Model No. WEO012864J
►Type: Graphic
►Structure: COG + Frame + PCB
►Size: 2.42 inch
►128 x 64 Dot Matrix
►IC：SSD1309
►3V Power supply
►1/64 duty
►Interface: 8080 option 6800, SPI, I2C

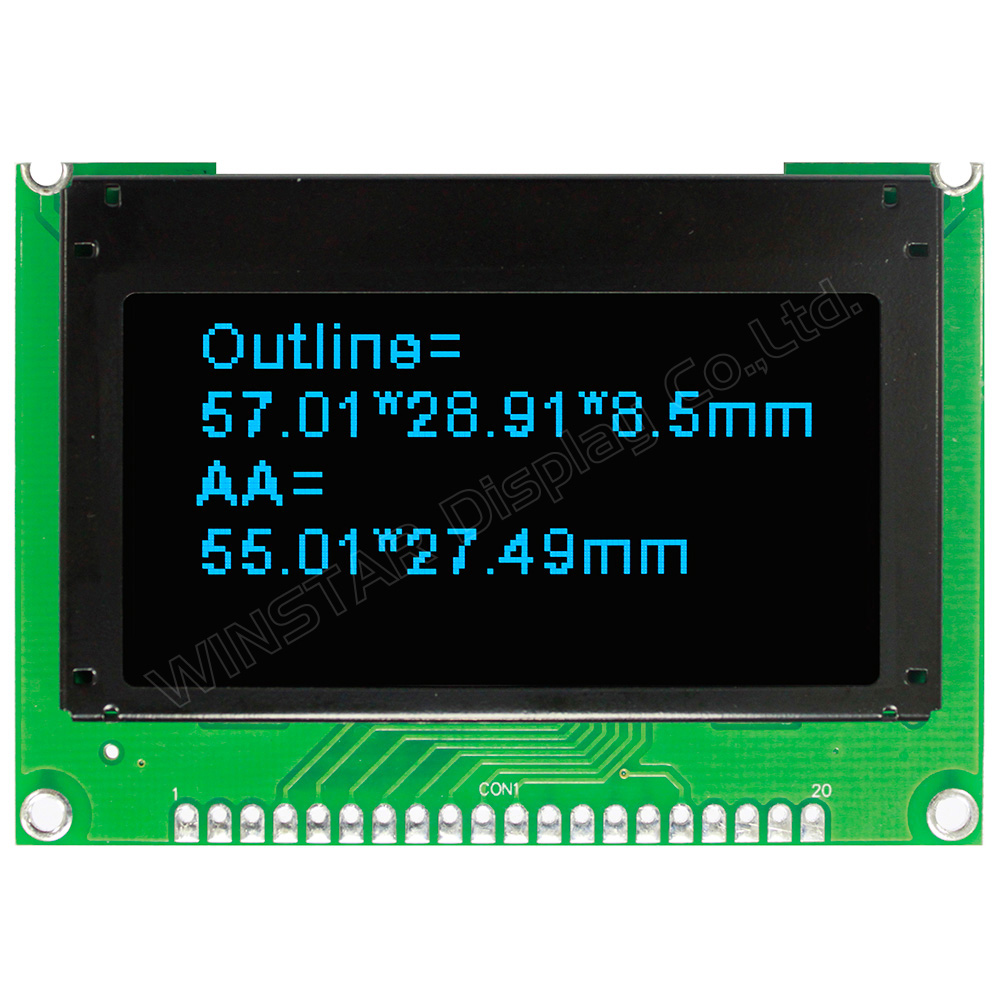

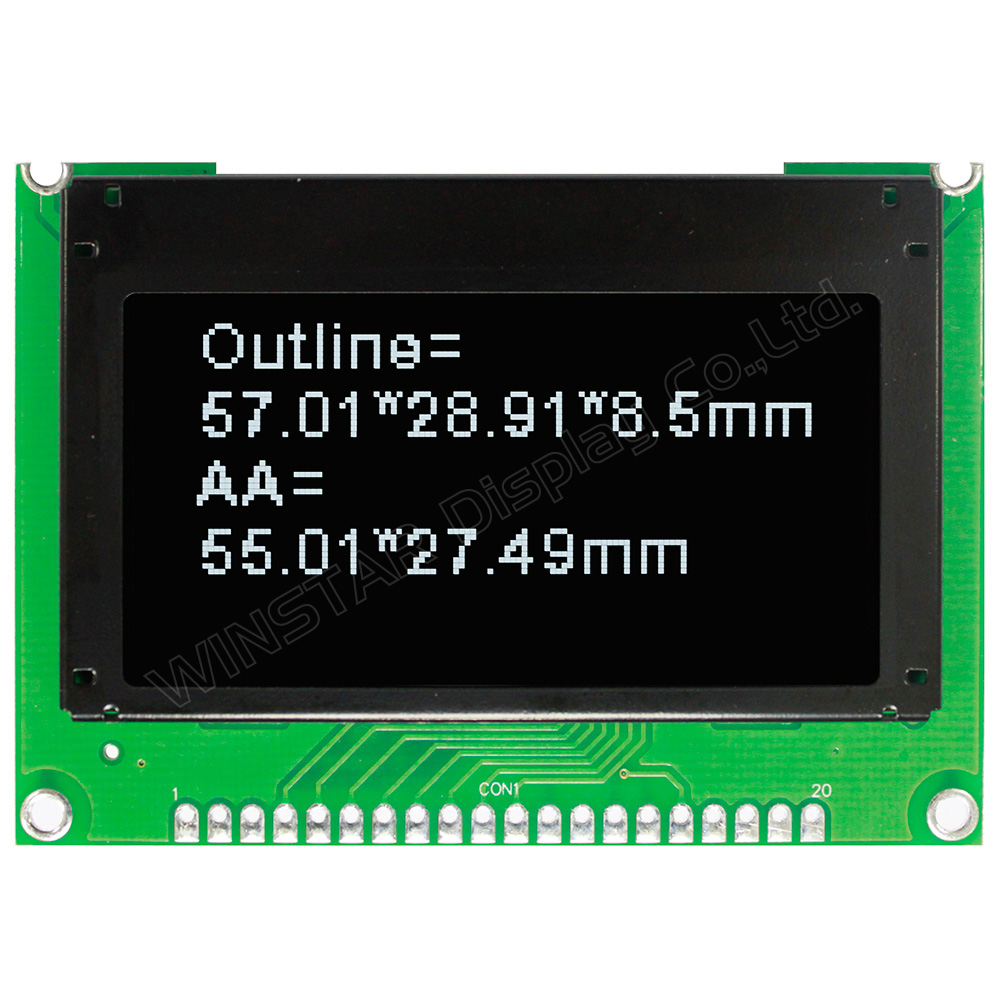

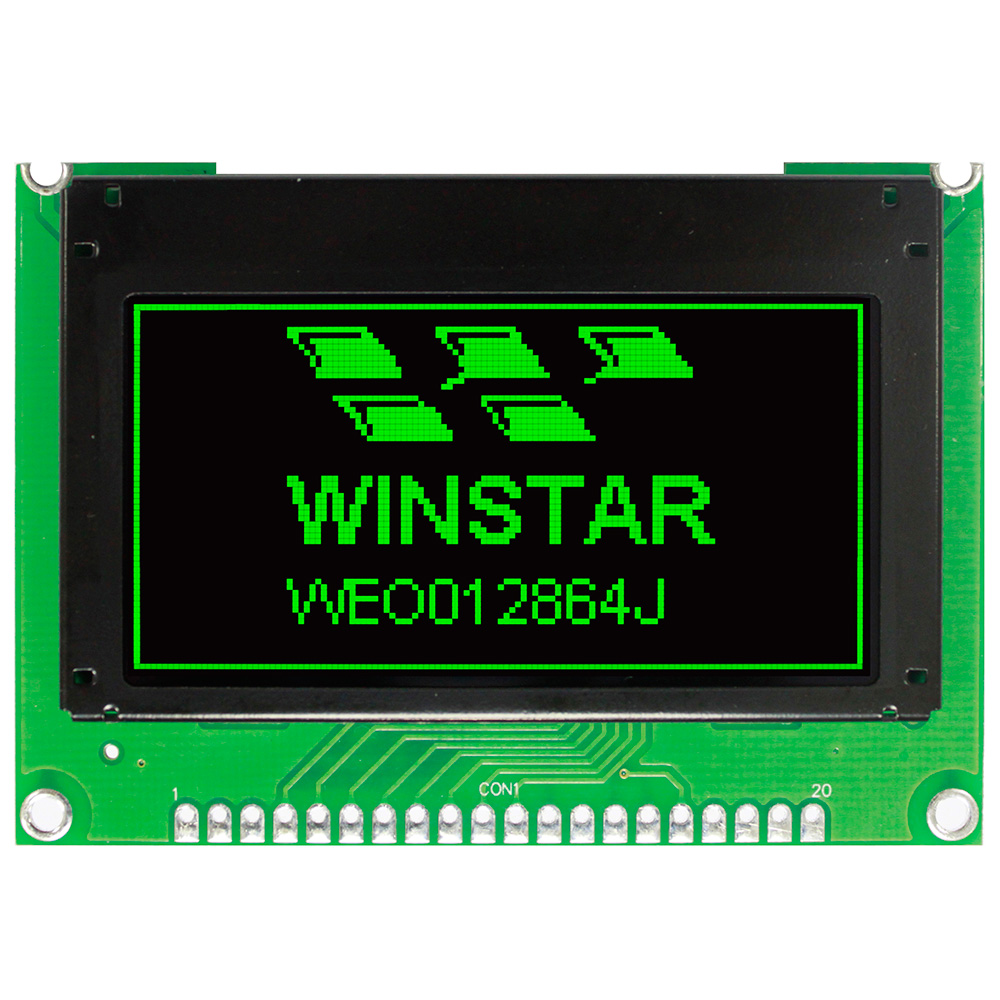

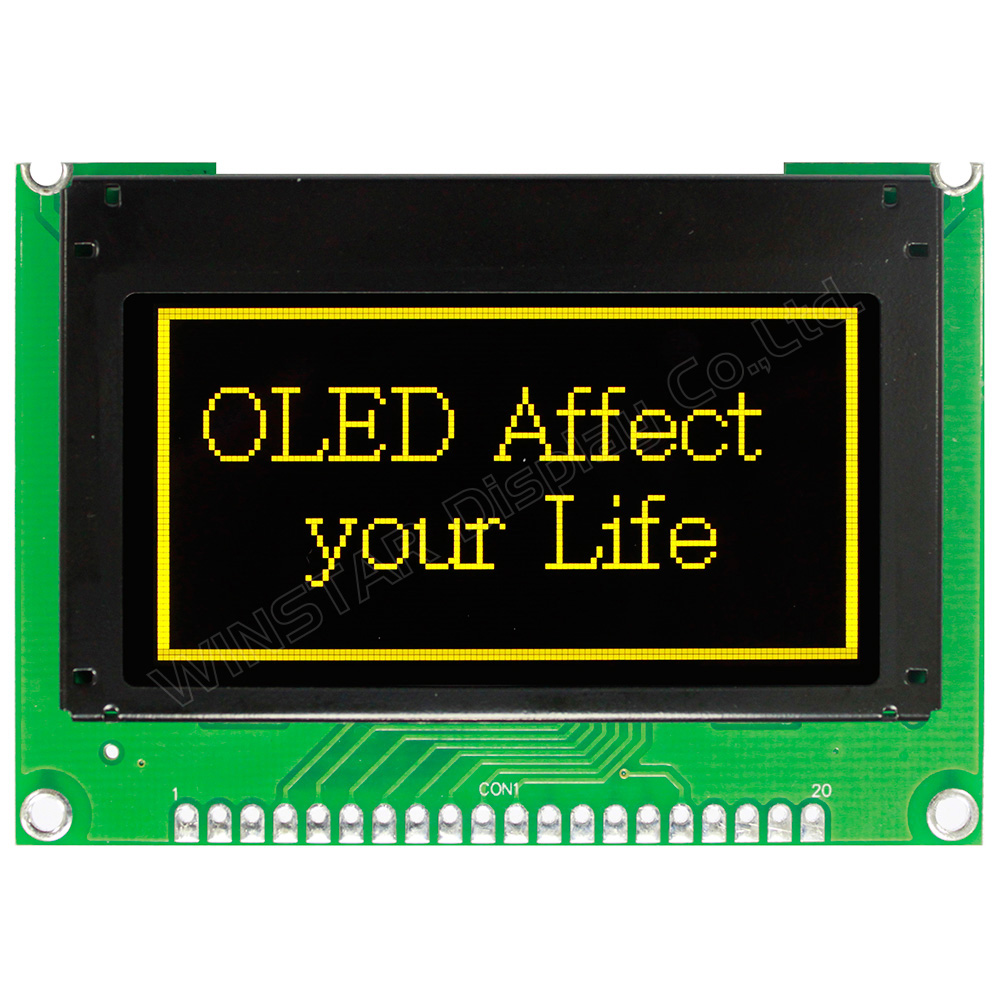

►Display Color: White / Yellow / Sky Blue / Green
The COG OLED 128x64 is one of the most popular resolutions. The Winstar WEO012864J is 2.42" graphic display OLED 128x64 module which is built-in with SSD1309 IC and it supports hardware command "Segment Remap" and "COM Output Scan Direction" mode. This display is OLED COG structure but with a PCB on module which made it more easily to fix on customer's application.
Data source ref:WEO012864JWPP3N00000
| Item | Dimension | Unit |
|---|---|---|
| Dot Matrix | 128 x 64 Dots | － |

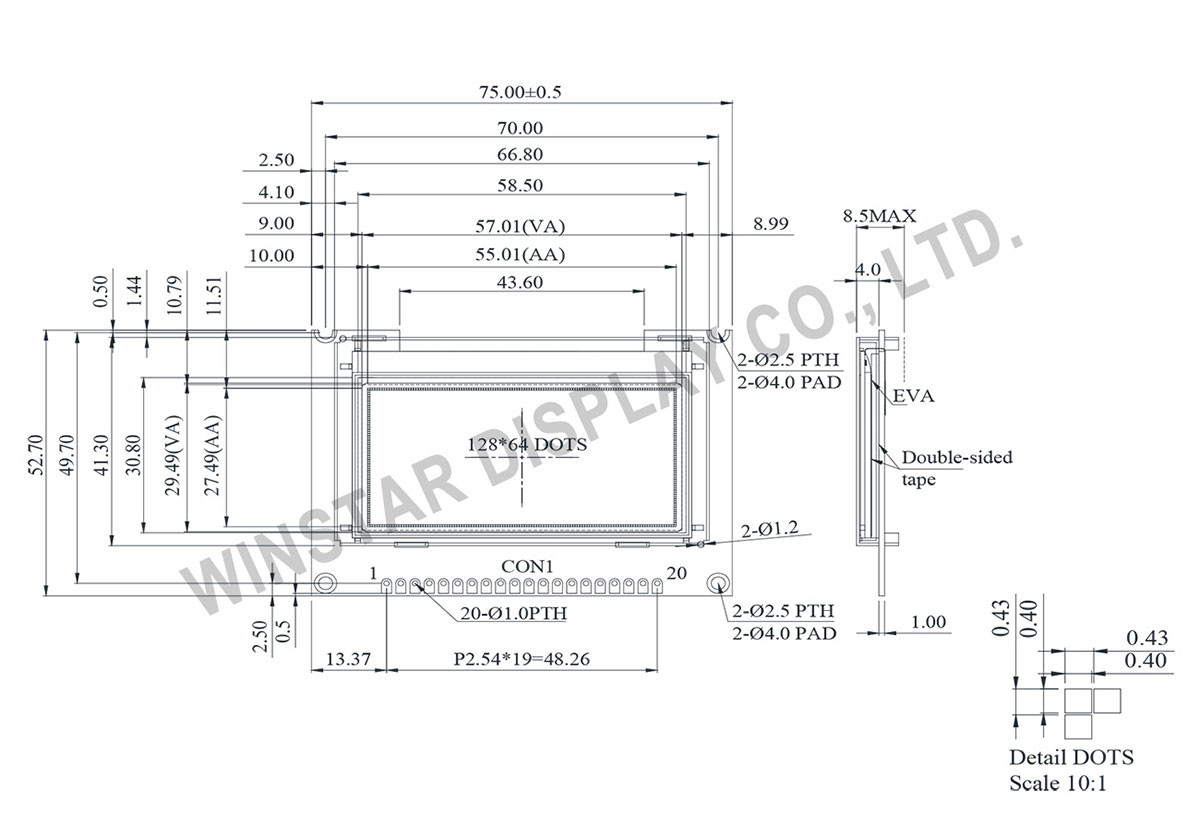

| Module dimension | 75.0 × 52.7 × 8.5 | mm |
| Active Area | 55.01 × 27.49 | mm |
| Pixel Size | 0.40 × 0.40 | mm |
| Pixel Pitch | 0.43 × 0.43 | mm |
| Display Mode | Passive Matrix | |
| Display Color | Monochrome | |
| Drive Duty | 1/64 Duty | |
| IC | SSD1309 | |
| Interface | Default 8080, Options: 6800, SPI, I2C | |
| Size | 2.42 inch | |
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Supply Voltage for Logic | VDD | -0.3 | 4 | V |
| Operating Temperature | TOP | -40 | +80 | °C |
| Storage Temperature | TSTG | -40 | +85 | °C |
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage for Logic | VDD | － | 2.8 | 3.0 | 3.3 | V |
| High Level Input | VIH | － | 0.8×VDD | － | － | V |
| Low Level Input | VIL | － | － | － | 0.2×VDD | V |
| High Level Output | VOH | － | 0.9×VDD | － | － | V |
| Low Level Output | VOL | － | － | － | 0.1×VDD | V |
| 50% Check Board operating Current | IDD | VDD =3.0V | 120 | 135 | 145 | mA |
| No. | Symbol | Function |
|---|---|---|
| 1 | VDD | Power supply pin for core logic operation. |
| 2 | VSS | Ground. |
| 3 | NC | No connection |
| 4~11 | D0~D7 | Data bus. |
| 12 | CS | This pin is the chip select input connecting to the MCU. The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW). |
| 13 | NC | No connection |
| 14 | /RES | This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed. Keep this pin pull HIGH during normal operation. |
| 15 | R/W | This pin is read / write control input pin connecting to the MCU interface. When 8080 interface mode is selected, this pin is pulled LOW and the chip is selected |
| 16 | D/C | This pin is Data/Command control pin connecting to the MCU. |
| 17 | E | This pin is MCU interface input. When 8080 interface mode is selected, this pin is pulled LOW and the chip is selected |
| 18 | NC | No connection |
| 19 | DISP | Display off when it's pulled low; Display on when it's pulled high. |
| 20 | NC | No connection |
* 80 Series Interface is default
