2.7-inch 128x64 COG OLED Display with Frame
Model No. WEF012864Q
►Type: Graphic
►Structure: COG + Frame
►Size: 2.7 inch
►128 x 64 Dot Matrix
►Display Color: Monochrome
►IC:SSD1309
►3V Power supply
►1/64 duty
►Interface: 6800, 8080, SPI, I2C
►Display Color: White / Yellow / Sky Blue / Green
Description

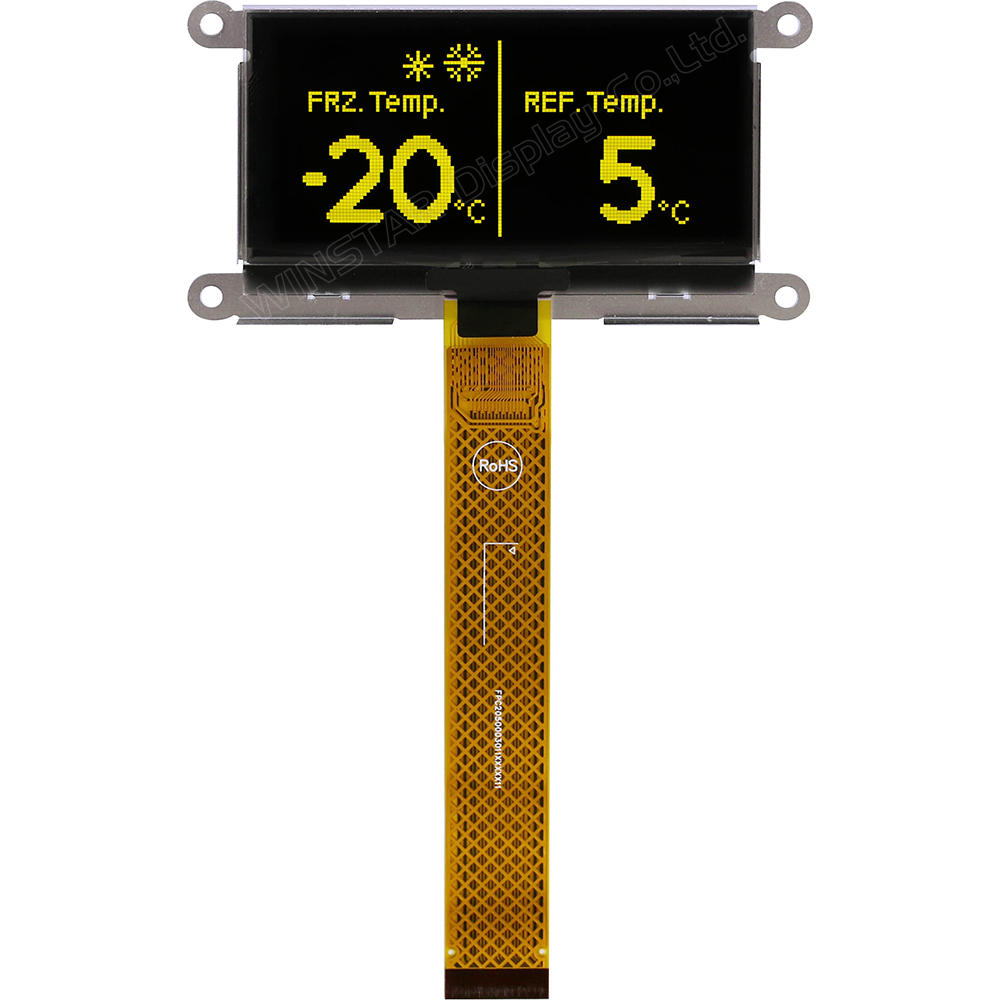

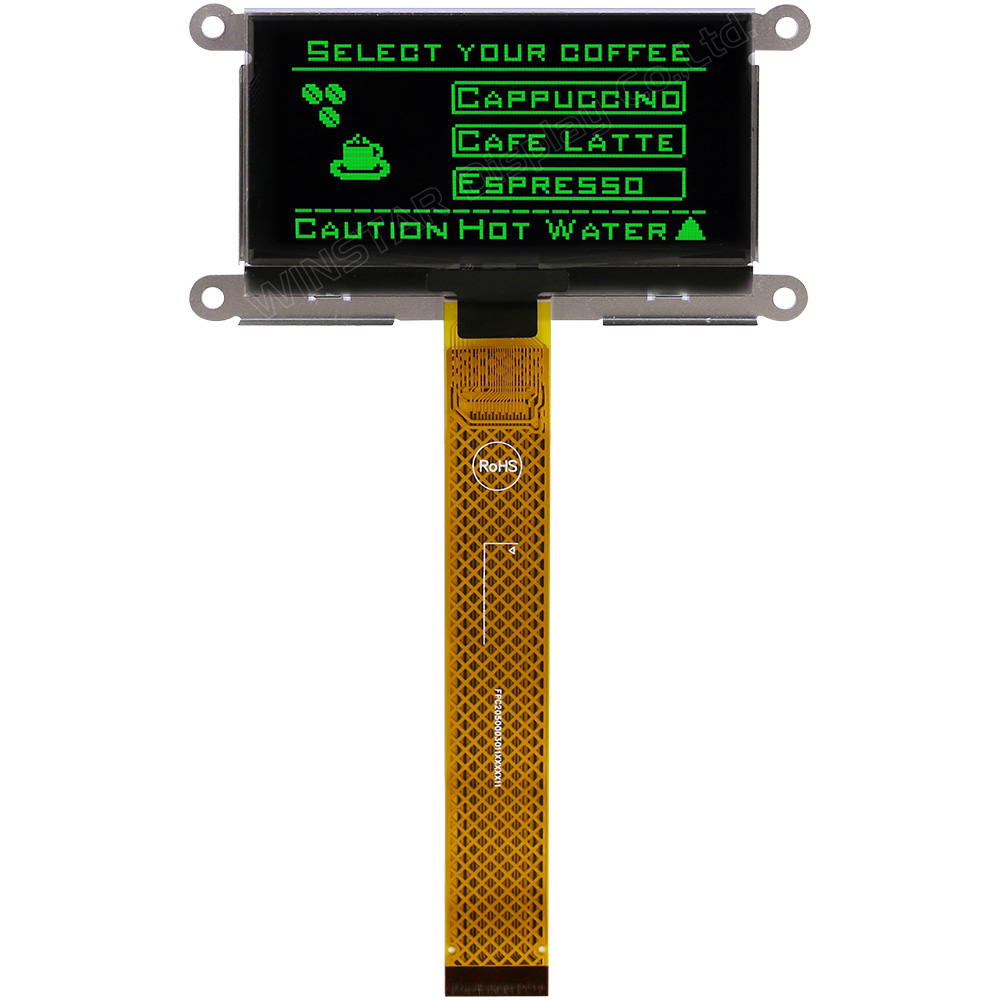

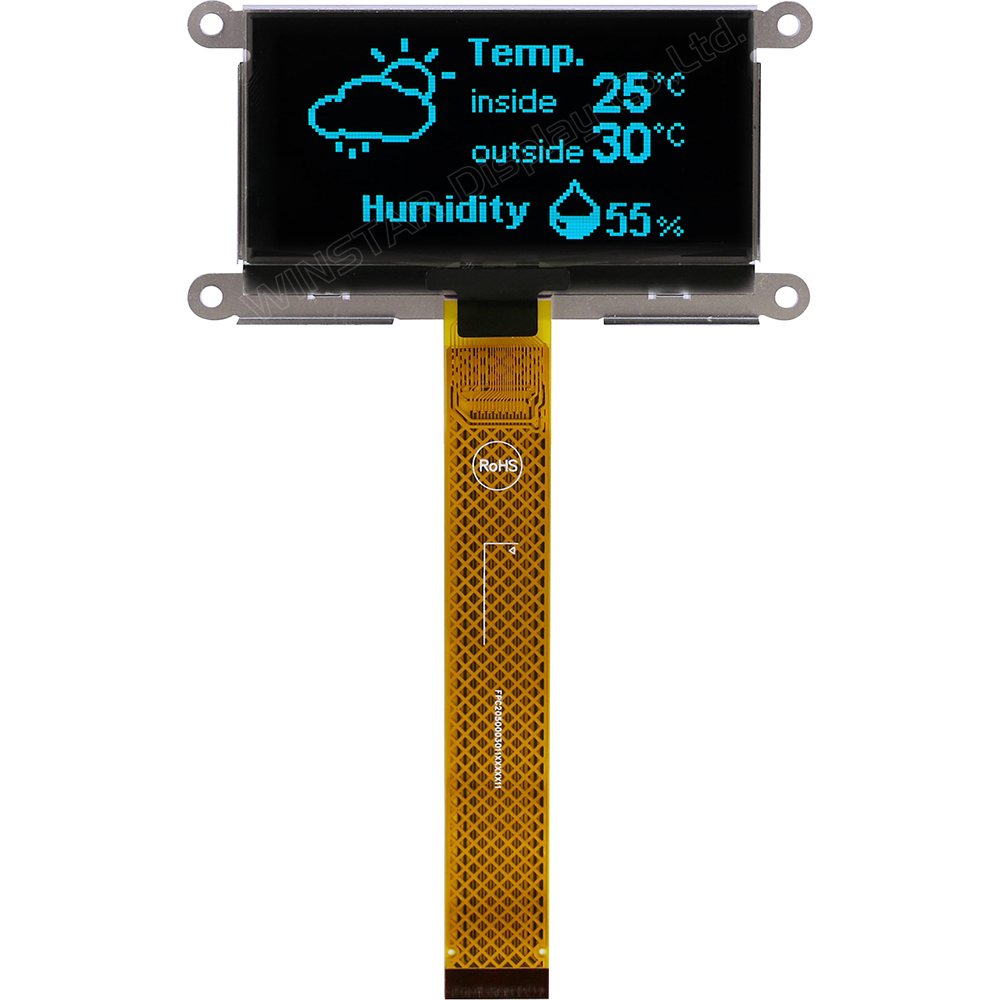

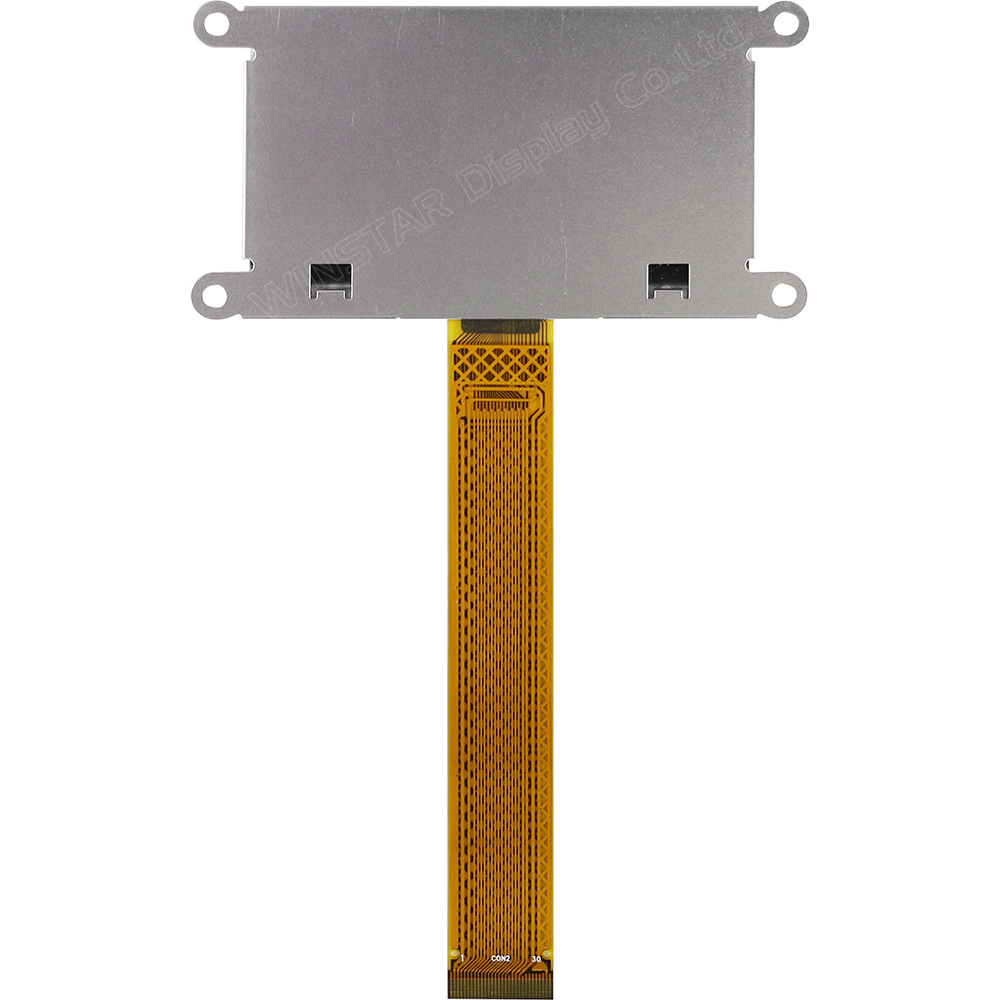

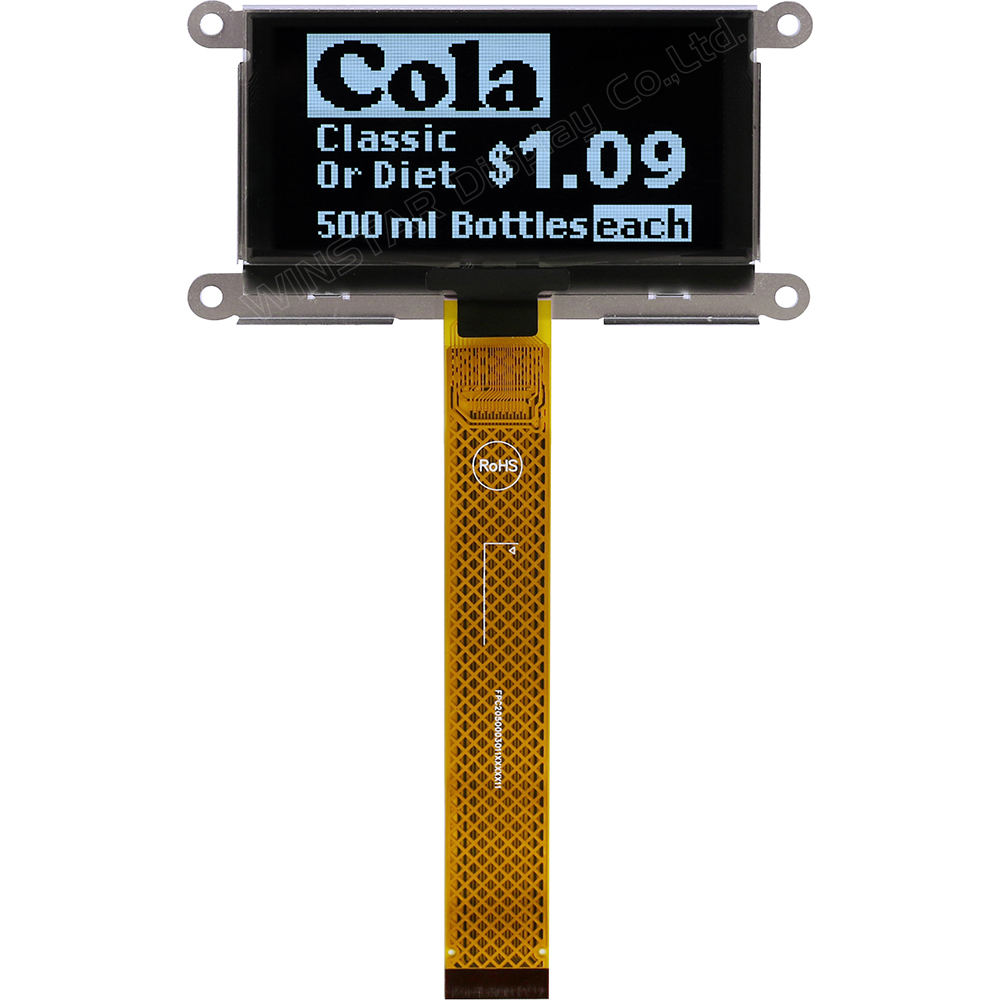

Winstar OLED Display WEF012864Q is made of 128x64 pixels, diagonal size 2.7 inch. This graphic display is built-in SSD1309 controller IC and it communicates via 6800/8080 8-bit parallel, I2C and 4-wire serial interface. WEF012864Q is having the module dimension of 89.7 x 47.2 mm and AA size of 61.41 x 30.69 mm; it has the same OLED panel as existing WEO012864K with a bezel (frame) on module, it's FPC pin assignment has been defined as the same as WEX012864L (30 pins). WEF012864Q model is a COG OLED; it can be regards as an alternative of TAB type WEX012864L.
WEF012864Q is a COG structure OLED display; this OLED module is lightweight, low power and very thin, it is suitable for wall / meter devices, home applications, POS system, Cloud/IoT system, intelligent technology devices, energy systems, communication systems, medical instrument, etc. WEF012864Q OLED module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +80℃.

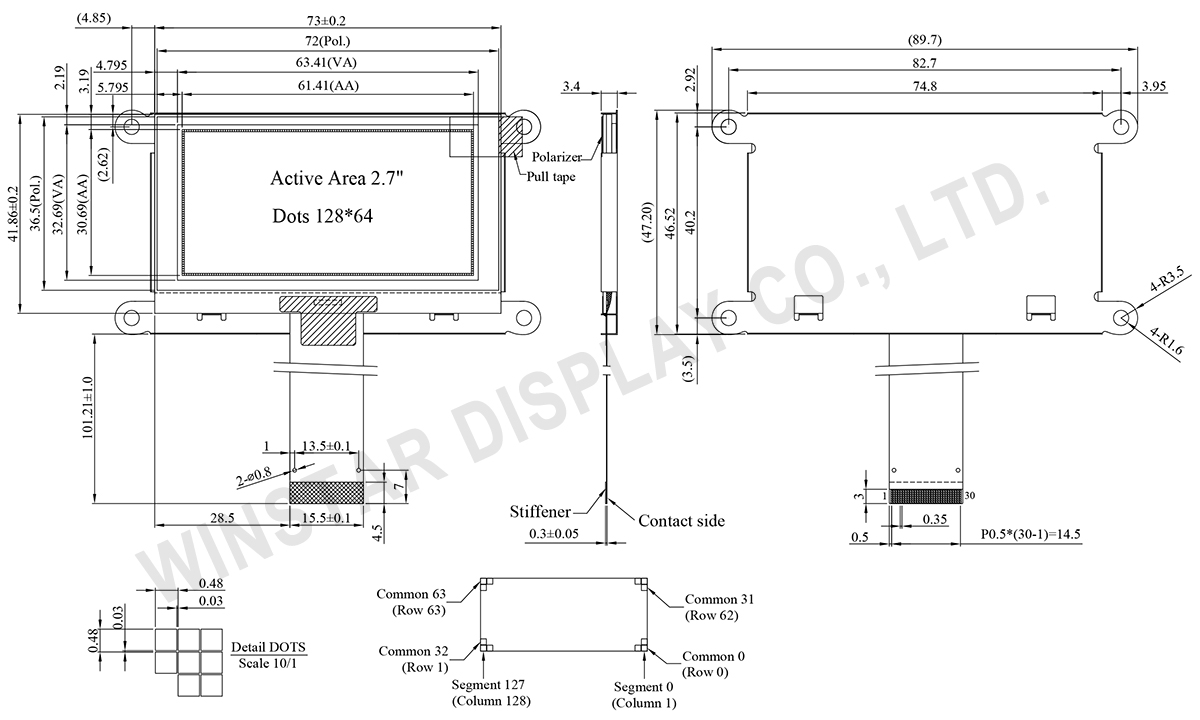

DRAWING
Data source ref: WEF012864QWPP3N00000SPECIFICATIONS
Interface Pin Function
No. | Symbol | Function | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 | NC | No connection | |||||||||||||||
2 | VCC | Power supply for panel driving voltage. This is also the most positive power voltage supply pin. | |||||||||||||||
3 | VCOMH | COM signal deselected voltage level. A capacitor should be connected between this pin and VSS. |
|||||||||||||||
4 | IREF | This pin is the segment output current reference pin. IREF is supplied externally. |
|||||||||||||||
5~12 | D7~D0 | These pins are bi-directional data bus connecting to the MCU data bus. Unused pins are recommended to tie LOW. When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN and D2 should be kept NC. When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL. |
|||||||||||||||
13 | E/RD# | This pin is MCU interface input. When 6800 interface mode is selected, this pin will be used as the Enable (E) signal. Read/write operation is initiated when this pin is pulled HIGH and the chip is selected. When 8080 interface mode is selected, this pin receives the Read (RD#) signal. Read operation is initiated when this pin is pulled LOW and the chip is selected. When serial or I2C interface is selected, this pin must be connected to VSS. |
|||||||||||||||
14 | R/W# | This pin is read / write control input pin connecting to the MCU interface. When 6800 interface mode is selected, this pin will be used as Read/Write (R/W#) selection input. Read mode will be carried out when this pin is pulled HIGH and write mode when LOW. When 8080 interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled LOW and the chip is selected. When serial or I2C interface is selected, this pin must be connected to VSS. |
|||||||||||||||
15 | D/C# | This pin is Data/Command control pin connecting to the MCU. When the pin is pulled HIGH, the data at D[7:0] will be interpreted as data. When the pin is pulled LOW, the data at D[7:0] will be transferred to a command register. In I2C mode, this pin acts as SA0 for slave address selection. |
|||||||||||||||
16 | RES# | This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed. Keep this pin pull HIGH during normal operation. |
|||||||||||||||
17 | CS# | This pin is the chip select input connecting to the MCU. The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW). |
|||||||||||||||
18 | NC | No connection | |||||||||||||||
19 | BS2 | MCU bus interface selection pins. Select appropriate logic setting as described in the following table. BS2 and BS1 are pin select
Note (1) 0 is connected to VSS (2) 1 is connected to VDD |
|||||||||||||||
20 | BS1 | ||||||||||||||||
21 | VDD | Power supply pin for core logic operation | |||||||||||||||
22~28 | NC | No connection | |||||||||||||||
29 | VSS | Ground. | |||||||||||||||
30 | NC | No connection |
Mechanical Data
Item | Dimension | Unit |
---|---|---|
Dot Matrix | 128 × 64 | dots |
Module dimension | 89.7 × 47.2 × 3.4 | mm |
Active Area | 61.41 × 30.69 | mm |
Pixel Size | 0.45 × 0.45 | mm |
Pixel Pitch | 0.48 × 0.48 | mm |
Display Mode | Passive Matrix | |
Display Color | Monochrome | |
Drive Duty | 1/64 Duty | |
IC | SSD1309 | |
Interface | I2C, 4-Wire SPI ,6800, 8080 | |
Size | 2.7 inch |
Absolute Maximum Ratings
Parameter | Symbol | Min | Max | Unit |
---|---|---|---|---|
Supply Voltage for Logic |
VDD | -0.3 | 4 | V |
Supply Voltage for Display |
VCC | 0 | 15 | V |
Operating Temperature |
TOP | -40 | +80 | °C |
Storage Temperature |
TSTG | -40 | +85 | °C |
Electronical Characteristics
Item | Symbol | Condition | Min | Typ | Max | Unit |
---|---|---|---|---|---|---|
Supply Voltage for Logic | VDD | - | 2.8 | 3.0 | 3.3 | V |
Supply Voltage for Display | VCC | - | 12.5 | 13 | 13.5 | V |
High Level Input | VIH | - | 0.8×VDD | - | - | V |
Low Level Input | VIL | - | - | - | 0.2×VDD | V |
High Level Output | VOH | - | 0.9×VDD | - | - | V |
Low Level Output | VOL | - | - | - | 0.1×VDD | V |
50% Check Board operating Current | VCC =13.0V | - | 22 | 33 | mA |
