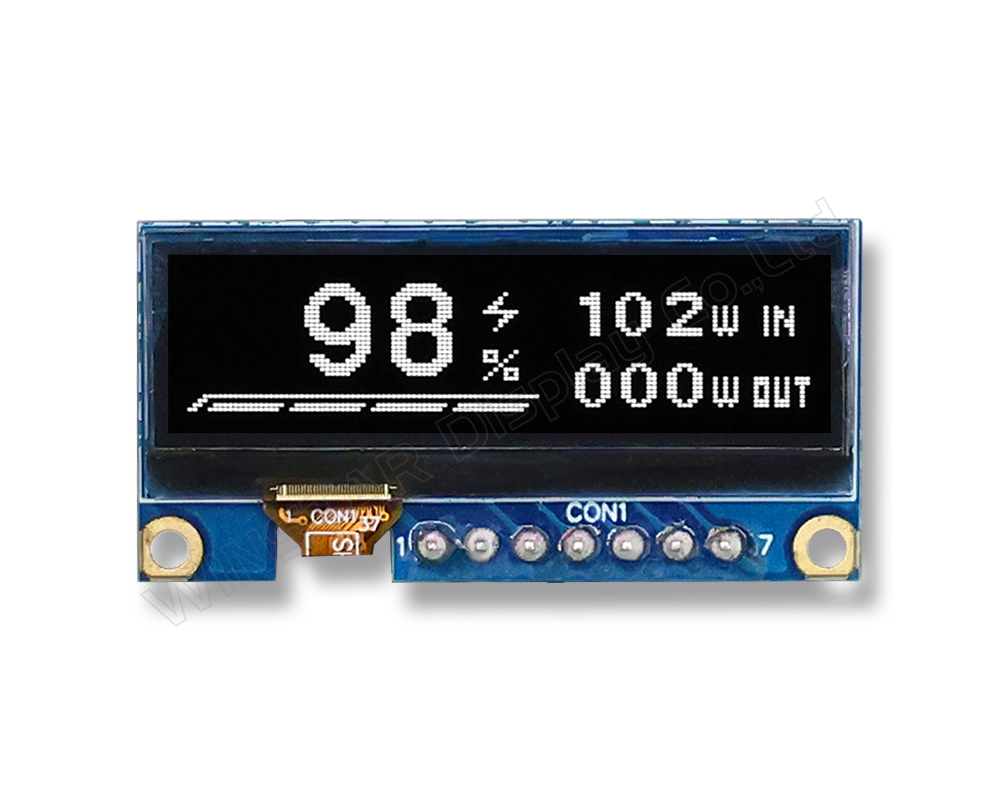

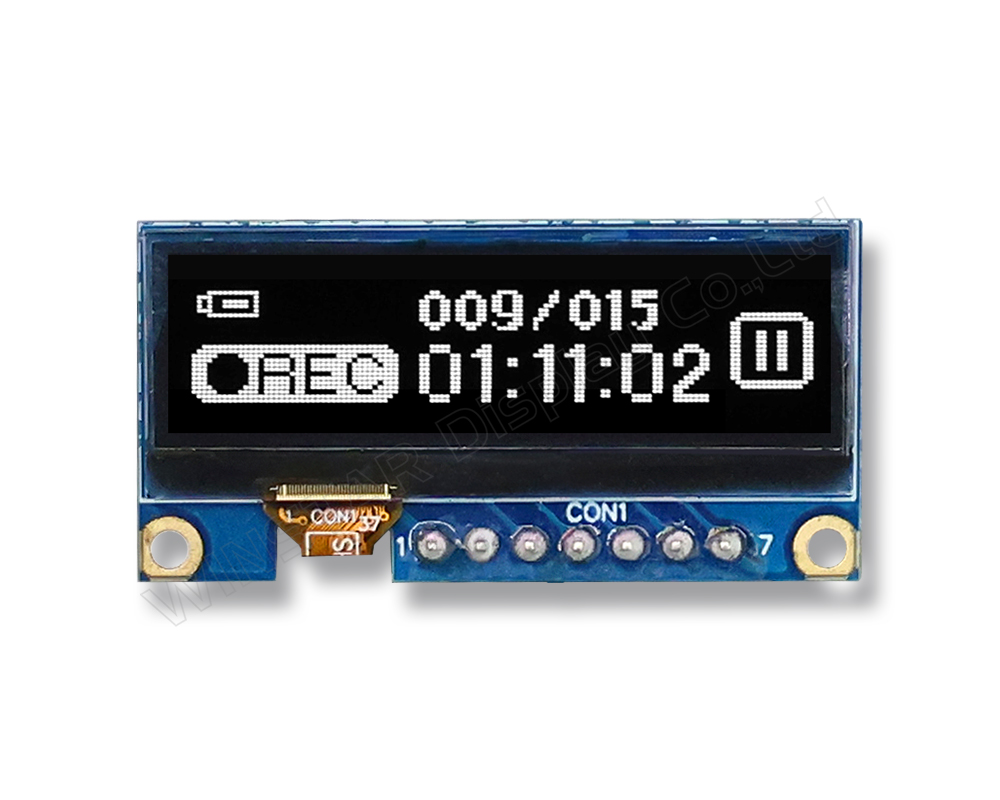

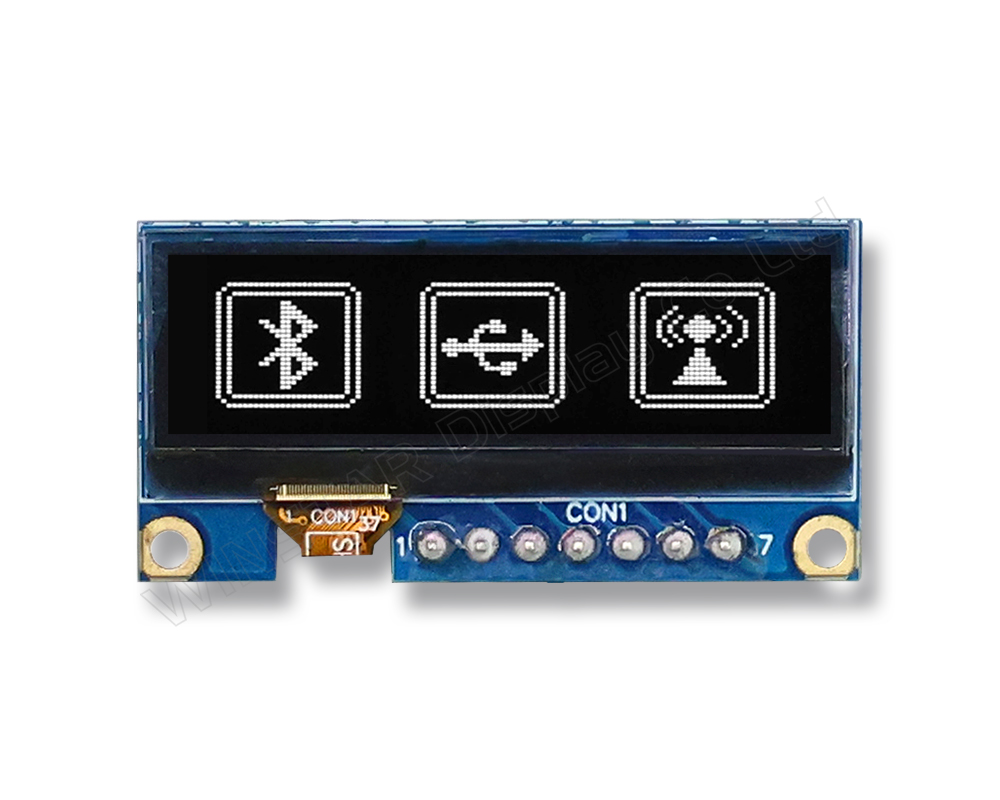

SH1106 1.3" OLED Display 128x40 with Integrated PCB

Model No. WEA012840A

►Type: Graphic
►Structure: COG+PCB
►Size: 1.3 inch
►128x40 Dot Matrix
►IC:SH1106G-0E
►3.3V Power supply
►1/40 duty
►Interface: SPI
►Display Color: White
►Polarizer optional

Description

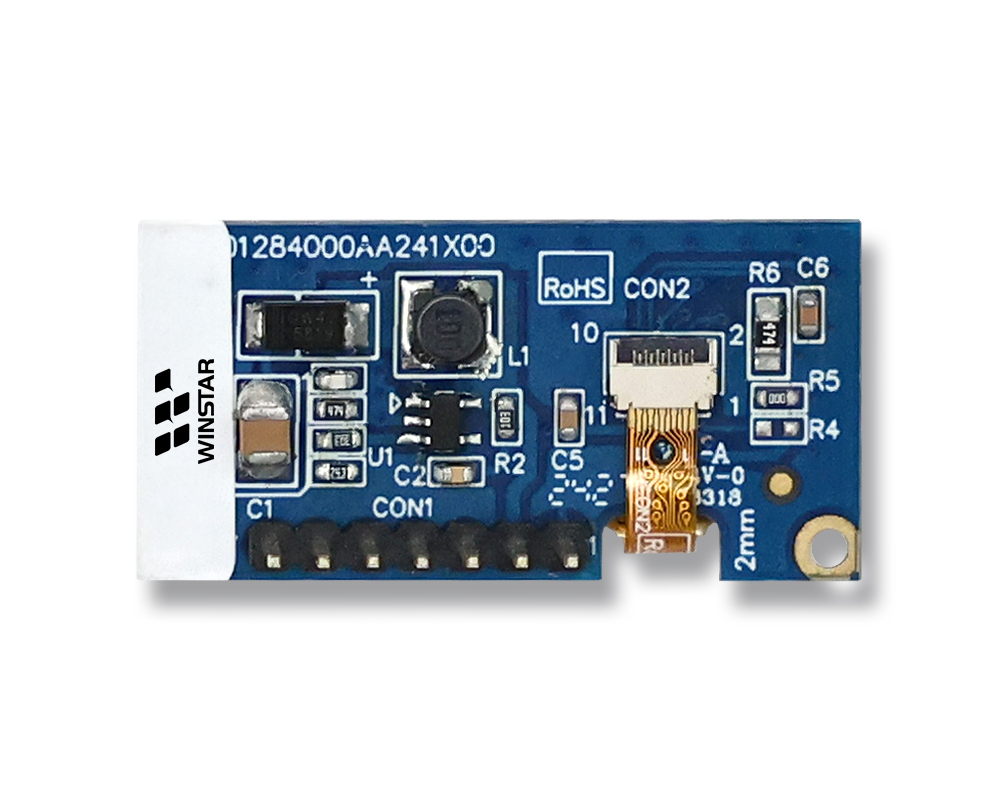

The WEA012840A series is a graphic OLED display module featuring an active area with a diagonal size of 1.3 inches and a resolution of 128x40 dots. The module comes with an integrated PCB, eliminating the need for customers to design separate PCBs. Additionally, screw holes on the PCB simplify installation. This display is ideal for applications such as gaming keyboards and networking equipment. The compact OLED 128x40 display offers exceptional clarity and vibrant visuals, making it the perfect choice for devices that require small, high-quality screens. With a contrast ratio of up to 10,000:1, it guarantees sharp text and images.

This 128x40 OLED display utilizes a COG (Chip-on-Glass) structure, providing a compact and efficient form factor, perfect for space-constrained applications. The flexible FPC (Flexible Printed Circuit) is slightly offset to the left, with the IC centrally positioned on the module. This design ensures the module's compact form factor and facilitates easy integration into various hardware configurations. Powered by the SH1106 OLED controller IC, the module offers an SPI interface and is available with both polarizer and non-polarizer options, allowing you to select the most suitable configuration for your needs.

The WEA012840A OLED display boasts an industrial-grade operating temperature range of -40°C to +80°C, ensuring reliable performance in harsh environments. Its compact, lightweight design and exceptional clarity make it the perfect solution for gaming peripherals, networking equipment, and other devices that require high-quality, compact displays.

1.3 inch 128x40 OLED Display Module for Esports Equipment

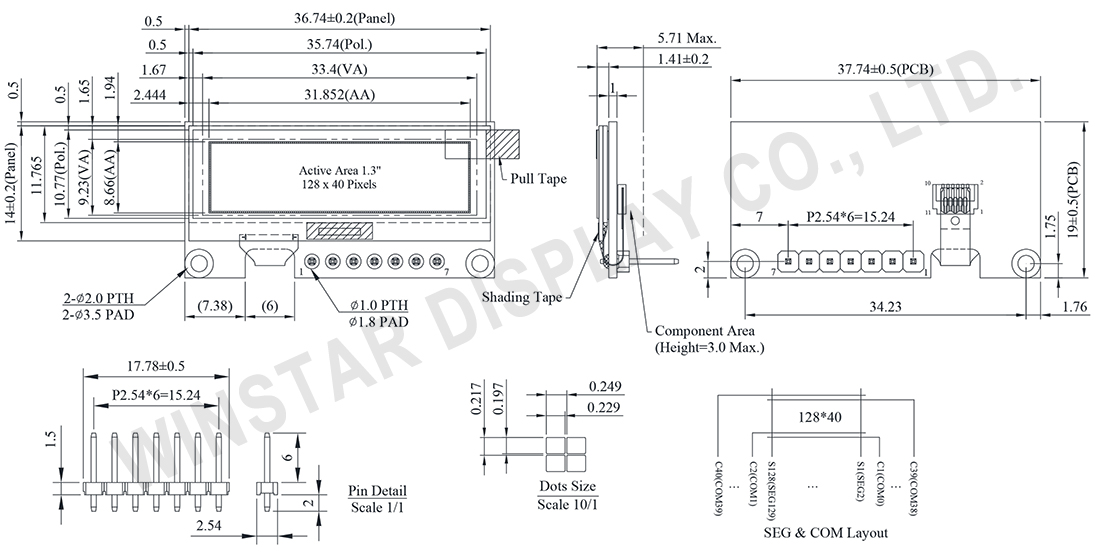

DRAWING

WEA012840A

Data source ref: WEA012840AWAP3N00000

SPECIFICATIONS

General Specification

Item Dimension Unit
Dot Matrix 128 x 40
Module dimension 37.74 × 19.0 × 5.71 Max. mm
Active Area 31.852 × 8.66 mm
Pixel Size 0.229 × 0.197 mm
Pixel Pitch 0.249 × 0.217 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/40 Duty
Gray Scale 2 (White/Black)
Dimmer Steps 256 step
Controller IC SH1106G-0E
Interface 4-Wire SPI
Size 1.3 inch

Absolute Maximum Ratings

Parameter Symbol Min Max Unit
Logic Power Supply Voltage VCC -0.3 3.6 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C

Electronical Characteristics

DC Characteristics

Item Symbol Condition Min Typ Max Unit
Logic Power Supply Voltage VCC 2.5 3.3 3.5 V
Input High Volt. VIH 0.8xVCC VCC V
Input Low Volt. VIL 0 0.2xVCC V
Output High Volt. VOH 0.8xVCC VCC V
Output Low Volt. VOL 0 0.2xVCC V
Display 50% Pixel on ICC VCC=3.3V 30 45 mA

Interface Pin Function

No. Symbol Function
1 GND GND.
2 VCC OLED Drive Power Supply.
3 D0 The serial clock input pad.
4 D1 The serial data input pad.
5 RES# This is a reset signal input pad. When RES is set to “L”, the settings are initialized. The reset operation is performed by the RES signal level.
6 D/C# This is the Data/Command control pad that determines whether the data bits are data or a command.
7 CS# This pad is the chip select input.
