Comprehensive Display Capabilities

As a leading provider of display solutions, WINSTAR offers a complete range of display technologies and services to meet the diverse needs of customers in industrial, automotive, medical, and smart home applications. Our extensive experience in display integration, bonding technologies, and in-house development capabilities make us a best one-stop display solution provider.

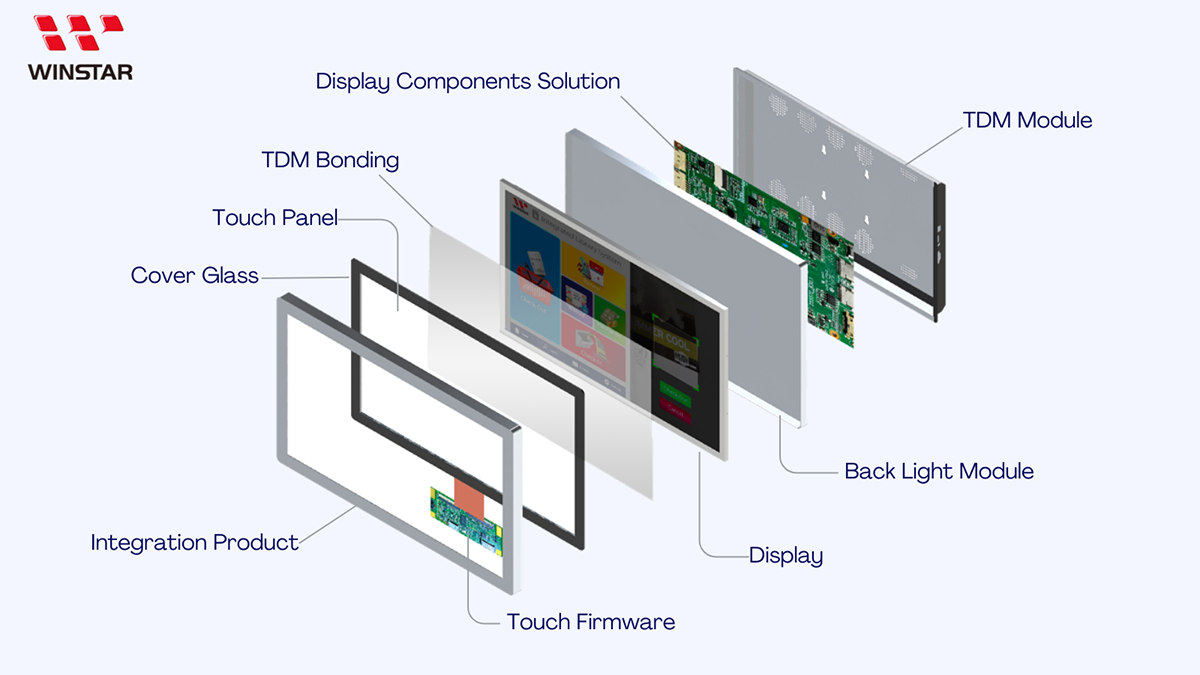

Our technical capabilities cover every critical aspect of display production, from design and touch integration to bonding, assembly, and controller board integration. This all-inclusive approach allows WINSTAR to deliver customized, high-quality display solutions tailored to each customer's specific needs.

Core Technologies

WINSTAR's expertise extends across every major aspect of display technology, offering customers the flexibility to choose the right solution for their unique requirements.

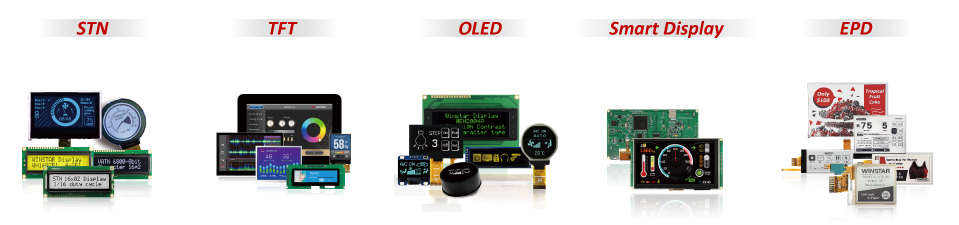

1. Display Technologies

WINSTAR offers a comprehensive selection of display technologies, allowing customers to choose the most suitable display for their applications.

• STN / FSTN / VATN Monochrome Displays: Ideal for industrial control applications where cost-efficiency and clarity are essential.
• TFT Displays (TN, IPS, VA): TFT displays provide vibrant colors, wide viewing angles, and strong brightness, making them ideal for industrial equipment, consumer products, and medical devices.
• OLED Displays (TOLED / FOLED): OLEDs offer self-emissive technology with ultra-high contrast, deep blacks, and thinner, more flexible displays.
• Smart Display: WINSTAR's Smart Display is a pre-integrated, plug-and-play display solution with built-in controllers and standard communication interfaces (UART, RS485, CAN bus). It enables quick integration, reduces development time, and simplifies system design for applications like smart home control panels, industrial HMI, medical devices, and automotive dashboards.
• E-Paper (EPD / EFD / MIP): Used in low-power applications like e-labels and e-readers, e-Paper provides excellent visibility under direct sunlight.



These display technologies ensure that WINSTAR can meet the diverse demands of sectors such as industrial, automotive, smart home, audio systems, IoT, energy, and medical applications.

2. Touch Panel Integration

WINSTAR's touch integration technology delivers fast, smooth, and accurate touch response, which is essential for smart home devices, industrial control panels, and medical equipment.

• Resistive Touch Panels (RTP): Available in FG and FFG structures, resistive panels offer precise touch response, even when operated with gloves or styluses.
• Capacitive Touch Panels (CTP): Available in GFF, GMM, and GG structures, capacitive touch panels provide multi-touch functionality and high touch sensitivity.
• Touch Sensor Customization: WINSTAR customizes touch sensor layout and firmware to ensure seamless interaction with specific product designs.



With support for both single-touch and multi-touch operation, WINSTAR's touch integration capabilities are designed for industrial controls, smart appliances, and automotive displays.

3. Cover Glass Customization

The cover glass is the front line of user interaction and display protection. WINSTAR offers a range of customizable features that enhance visibility, durability, and user safety.

• AG / AR / AF Surface Coatings: Anti-glare (AG), anti-reflection (AR), and anti-fingerprint (AF) coatings reduce glare, improve visibility, and keep screens smudge-free.
• Anti-Bacterial Coating: Ideal for medical applications and public-use devices, this coating prevents bacterial growth on touch surfaces.
• UV & IR Cutting: Filters ultraviolet (UV) and infrared (IR) light to protect internal components and increase display lifespan.
• Shatter-Resistant Design: Provides protection up to IK10 impact resistance, ensuring durability in industrial and outdoor environments.



These features make WINSTAR displays more reliable and durable, particularly in medical devices, public equipment, and harsh environments.

4. Advanced Bonding Technology

To improve visual performance, reduce reflections, and eliminate air gaps, WINSTAR offers state-of-the-art bonding technologies.

• OCA (Optically Clear Adhesive) Bonding: OCA bonding uses a pre-cut adhesive film that is bonded to the display via pressure or heat-assisted lamination. This method eliminates the need for UV curing, making it an efficient choice for flat-panel displays.
• OCR (Optically Clear Resin) Bonding: OCR bonding uses a liquid optical resin applied to the surface, which is then cured using UV or heat. This process ensures smooth, gap-free bonding for curved displays and irregular screen surfaces.
• Air Bonding: Air bonding uses a non-adhesive approach where the display and cover glass are assembled with a small air gap. This method is often used in consumer electronics and entry-level control panels where cost efficiency is prioritized.



With support for OCA, OCR, and air bonding technologies, WINSTAR provides the most suitable bonding solutions for flat, curved, and entry-level display modules. This versatile range of bonding methods enables our customers to choose the most appropriate technology based on their application needs, cost constraints, and performance requirements.

5. Backlight Design & Customization

The backlight system is a vital component in displays, determining brightness, power efficiency, and image quality.

• High-Brightness Backlights: These ensure clear visibility in outdoor environments with strong sunlight.
• Mini LED Local Dimming: Improves contrast and energy efficiency by controlling brightness in specific display zones.
• Quantum Dot (QD) Technology: Enhances the color gamut and brightness for more vivid and accurate color reproduction.



WINSTAR's customizable backlight design enables higher brightness, better energy efficiency, and improved contrast for outdoor displays, automotive dashboards, and professional equipment.

6. Controller Board Integration

WINSTAR integrates custom control boards to support a variety of display features and input formats.

• AD Boards (Standard / Custom): Supports multiple inputs, including HDMI, VGA, DVI, and DP.
• OSD (On-Screen Display) Control: Provides a menu-driven interface for easy control and settings adjustment.
• Integrated Audio & Speaker Support: WINSTAR provides complete solutions with VESA, rear, and panel-mounted speaker designs.



These features make it easy to customize display functionality to meet the specific requirements of industrial, medical, audio system, HMI and automotive devices.

Industries & Applications

WINSTAR’s display solutions support a wide range of industries and applications, providing customized displays that meet specific technical and operational needs.

• Industrial Automation: Touch control panels, human-machine interfaces (HMI), and equipment dashboards.
• Smart Home Devices: Touch-enabled displays for home automation systems, smart thermostats, and control hubs.
• Automotive Displays: In-vehicle infotainment, dashboards, and control displays designed to meet automotive requirements.
• Medical Devices: Displays designed for use in medical equipment and healthcare environments, meeting specific industry standards.
• Outdoor Applications: High-brightness, weather-resistant displays for outdoor kiosks, outdoor EV charger.



With customized solutions for every industry, WINSTAR is the go-to partner for tailored display solutions.

Why Choose WINSTAR as Your Display Solution Partner?

WINSTAR has built a strong reputation as a global leader in display solutions. Here are five key reasons to partner with WINSTAR:

1. One-Stop Display Provider: Comprehensive solutions from design to assembly, providing a seamless and efficient production process.
2. Custom Display & Full Support: Tailored displays with flexible design options for size, color, and structure. Supported by a dedicated R&D team and rapid prototyping capabilities to meet unique customer requirements.
3. Innovative Display Technology: Advanced Local Dimming (Mini LED backlight), TOLED (Transparent OLED), FOLED (Flexible OLED), and the latest developments in cutting-edge display technologies.
4. Flexible & Scalable Production: Expertise in handling low-volume/high-mix and large-scale production orders with dual production facilities in Taiwan and China, ensuring fast delivery and adaptable production schedules.
5. Industry-Trusted Expertise: Decades of experience providing display solutions for industrial, medical, smart home, IoT, and automotive sectors, making WINSTAR a trusted and proven partner.



By choosing WINSTAR, you gain a reliable partner with the technical know-how and production capacity to deliver the perfect display solution for your business.
