Home Products TFT Display High Brightness TFT Display WF70C6SYAB5MNN0

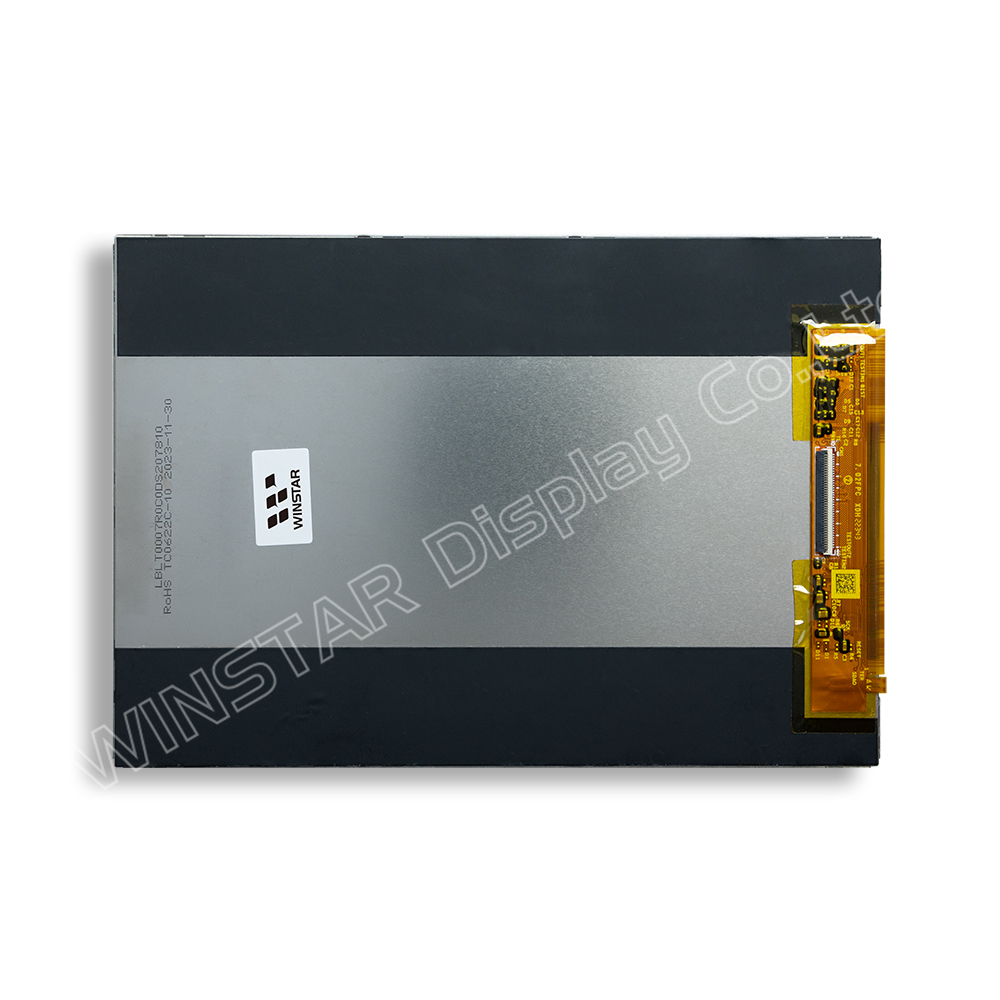

7 Inch Full HD TFT LCD Display with High Brightness & IPS

Model No. WF70C6SYAB5MNN0

►Size : 7-inch
►Resolution : 1200×1920 dots
►View Direction : IPS
►Interface : MIPI DSI
►Driver IC : HX8279-D01*2 CASCADE
►Control-Board : No
►Brightness(cd/m²): 1000
►Frame Through Hole : No
►Touch Screen : No

Description

The 7-inch full HD TFT LCD display WF70C6SYAB5MNN0 offers a resolution of 1200x1920 pixels, delivering vibrant, clear visuals with an impressive brightness of 1000 cd/m², ensuring excellent visibility even in well-lit environments.

The RGB-STRIPE color arrangement used in the WF70C6SYAB5MNN0 enhances color accuracy and visual consistency by aligning red, green, and blue sub-pixels in a stripe pattern. This configuration contributes to vibrant, true-to-life colors, ensuring superior color reproduction across the entire display. When combined with the high resolution of 1200x1920 pixels, the display delivers sharp, detailed visuals, making it ideal for applications requiring precise color accuracy and clarity.

The WF70C6SYAB5MNN0 supports the MIPI DSI interface and incorporates the HX8279-D01*2 CASCADE driver IC, which enhances data transmission efficiency while reducing power consumption. Thanks to IPS technology, the display provides ultra-wide viewing angles of 80 degrees in all directions (left, right, top, bottom), ensuring consistent visibility from nearly any angle.

Designed to operate efficiently within a temperature range of -20°C to +70°C and with a storage temperature range of -30°C to +80°C, the WF70C6SYAB5MNN0 combines high-definition LCD performance with high brightness, making it an excellent choice for a wide range of professional applications.

7 inch Full HD LCD Display, 7 HD LCD Panel, 7 inch HD LCD - WF70C6SYAB5MNN0

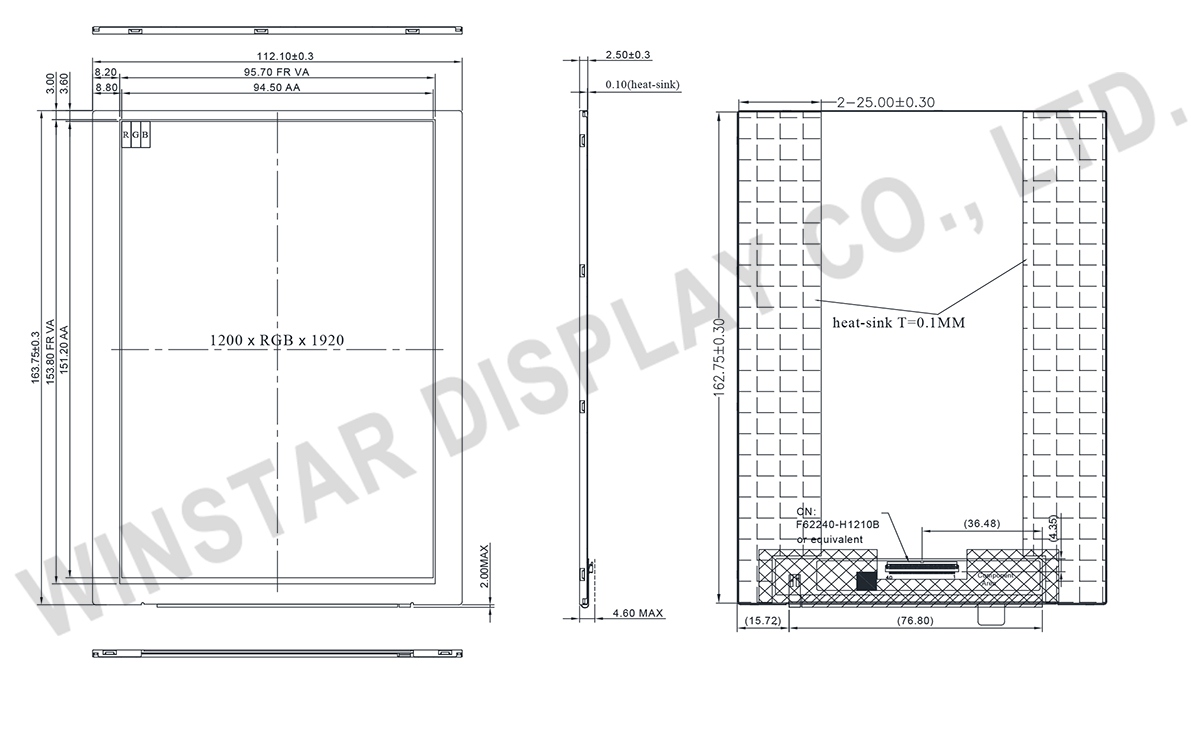

DRAWING

TFT-LCD Display 7 inch high-brightness IPS 1200x1920 MIPI 10:16 RGB-STRIPE - WF70C6SYAB5MNN0
Data source ref:WF70C6SYAB5MNN0#

SPECIFICATIONS

General Specifications

Item Dimension Unit
Size 7.0 inch
Dot Matrix 1200 x RGB x 1920(TFT) dots
Module dimension 112.1 x 163.75 x 2.5 mm
Active area 94.5 x 151.2 mm
Pixel pitch 0.07875 x 0.07875 mm
LCD type TFT, Normally Black ,Transmissive
View Angle 80/80/80/80
Aspect Ratio 10:16
Color arrangement RGB-STRIPE
Driver IC HX8279-D01*2 Cascade
Interface MIPI DSI
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Glare

Absolute Maximum Ratings

Item Symbol Min Typ Max Unit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80

Electrical Characteristics

Operating conditions

Item Symbol Min Typ Max Unit
Power Supply Input Voltage IOVCC 1.7 1.8 2.0 V
VSP 4.5 6.0 V
VSN -6 -4.5 V
Current Consumption Operating IOVCC 39.4 40.3 41.3 mA
VSP 16.8 17.2 17.7 mA
VSN 12.9 13.3 13.7 mA
Sleep in IOVCC 1.58 1.59 1.61 mA
VSP 2.04 2.05 2.06 mA
VSN 0.045 0.05 0.052 mA

LED Driving Conditions

Parameter Symbol Min Typ Max Unit
LED current 520 mA
LED voltage VLED 8.1 9.0 9.9 V
LED Life Time 50K Hr

Interface Pin Function

LCM PIN Definition

Pin Symbol Function
1 NC No connection
2 IOVCC Power supply for system ,IOVCC=1.8V
3 IOVCC
4 GND Ground
5 RESET Device reset signal
6 NC No connection
7 GND Ground
8 D0N MIPI Negative data signal (-)
9 D0P MIPI Positive data signal (+)
10 GND Ground
11 D1N MIPI Negative data signal (-)
12 D1P MIPI Positive data signal (+)
13 GND Ground
14 CLKN MIPI Negative clock signal (-)
15 CLKP MIPI Positive clock signal (+)
16 GND Ground
17 D2N MIPI Negative data signal (-)
18 D2P MIPI Positive data signal (+)
19 GND Ground
20 D3N MIPI Negative data signal (-)
21 D3P MIPI Positive data signal (+)
22 GND Ground
23 NC No connection
24 NC No connection
25 GND Ground
26 NC/TE Sync signal for touch panel. Float it if not used.
27 NC No connection
28 NC/BIST Enable the Test Image Generation function, if connect to ground. Float it if not used.
29 NC No connection
30 GND Ground
31 VLED- LED cathode
32 VLED-
33 NC No connection
34 VSN Analog supply negative voltage
35 VSN
36 NC No connection
37 VSP Analog supply positive voltage
38 VSP
39 VLED+ LED anode
40 VLED+
