July 2024 WINSTAR News
Welcome to the July 2024 edition of the WINSTAR Newsletter! We're delighted to unveil our state-of-the-art display products to you. Let's embark on a journey of discovery and explore all the details.
- Keep reading about our new products and their features：
- (1) 2.55-inch 206x36 COG OLED Display Module (SSD1362)
- (2) 1.54-inch 160x80 COG OLED Display Module (SSD1320)
- (3) 2.23-inch 128x32 COG OLED Display Module (SH1106) with PCB
- (4) 0.91-inch 128x32 COG OLED Display Module (SH1106)
- (5) 7-inch 1024x600 with RGB Interface TFT Display
- (6) Overview of the Built-in Font Library in WINSTAR OLED Module WS0010 IC

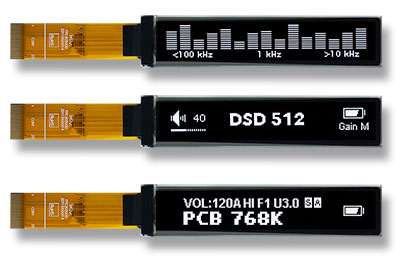

2.55-inch 206x36 COG OLED Display Module (SSD1362)
Discover the WEO020636A series, Winstar's first 2.55-inch OLED module with a resolution of 206 × 36 dots. This COG (Chip on Glass) graphic OLED display features an outline dimension of 70.77 × 15.14 mm and an active area of 63.84 × 11.14 mm, delivering precise visual representation.
Key Features:
- Integrated IC: SSD1362 IC supports I2C and 3-wire/4-wire SPI interfaces.
- Power Supply: Logic voltage ranges from 1.65V to 3.5V; display power operates at 10V to 12.5V (typical 12V) with a 1/36 duty cycle.
- Grayscale Support: 4-bit (16-level) grayscale enhances image depth and detail.
- Contrast Ratio: High 10,000:1 ratio ensures vivid image clarity.
- Temperature Range: Operational from -40°C to +80°C, suitable for diverse environments.
Versatile Applications:
The WEO020636A OLED display is ideal for applications including portable DAC (Digital-to-Analog Converter) headphone amplifiers, portable power stations, and radio applications. Its compact size and exceptional visual clarity make it suitable for mobile devices, industrial equipment, medical devices, and consumer electronics. The display's COG structure and compatibility with SPI and I2C interfaces facilitate seamless integration into different digital environments.
|
Model No. : WEO020636A ►Structure : COG |
 |

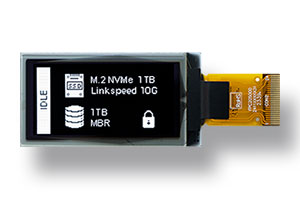

1.54-inch 160x80 COG OLED Display Module (SSD1320)
The WEO016080A is a 1.54-inch COG graphic OLED display featuring a resolution of 160 × 80 dots. It measures 43.5 × 22.5 mm with an active area of 35.02 × 17.5 mm, and its slim profile of 1.41 mm is attributed to its COG structure.
Equipped with the SSD1320 IC, this module supports 6800/8080 8-bit, 4-wire SPI, and I2C interfaces. It offers 4-bit (16 Levels) grayscale and achieves an impressive contrast ratio of 10,000:1.
Ideal for a variety of applications including Networking Products, USB Testers, Smart Watches, Gaming Keyboards, and Smart Healthcare Devices such as oximeters and skin analyzers, the WEO016080A enhances display quality with its crisp and vibrant screen.
With its high resolution (160x80 dots) and low power consumption, this OLED display module is perfectly suited for performance-driven and efficient applications.
 |
Model No. : WEO016080A ►Structure : COG |

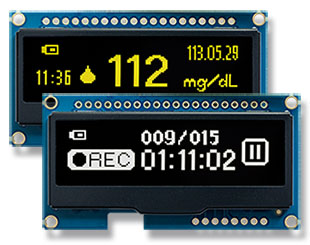

2.23-inch 128x32 COG OLED Display Module (SH1106) with PCB
The WEP012832N is a COG graphic OLED module with a PCB board, featuring a resolution of 128x32 dots and a diagonal size of 2.23 inches (active area: 55.016 × 13.096 mm). It includes a built-in SH1106 driver and supports communication via 6800 or 8080 parallel, 4-line SPI, and I2C interfaces. The logic power supply voltage ranges from 2.9V to 3.5V, with a typical value of 3.3V. It operates with a 1/32 duty cycle and features internal power boost and external power supply capabilities. The series is equipped with a metal frame and four screw holes, facilitating easy module installation, and offers a contrast ratio (typical value) of 10,000:1.
The WEP012832N series eliminates fixed pin headers, enabling semi-custom part numbers with varying pin lengths tailored to specific customer needs. The PCB design retains space for integrating capacitive touch panel modules without requiring redevelopment, ensuring flexibility to meet diverse customer demands seamlessly.
Ideal for applications such as voice recorders, blood glucose meters, MP3 players, mini radio, and medical instruments, the WEP012832N operates reliably in temperatures ranging from -40℃ to +80℃, with storage temperatures extending from -40℃ to +85℃.
|
Model No. : WEP012832N ►Structure : COG |
 |

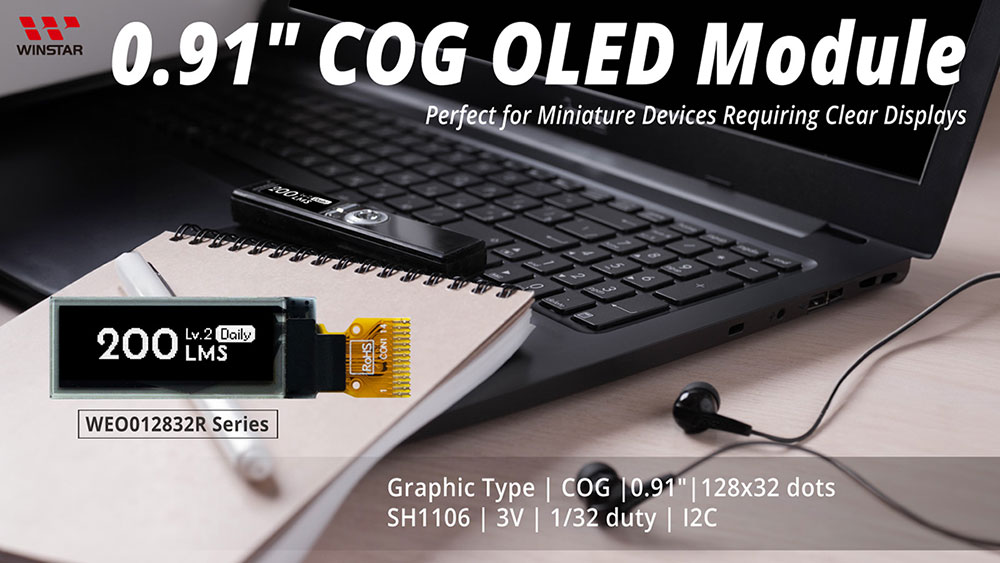

0.91-inch 128x32 COG OLED Display Module (SH1106)
The WEO012832R series is a popular 0.91-inch COG graphic OLED module in the market. This module features a resolution of 128x32 dots and integrates the SH1106 IC, supporting an I2C interface. The IC also facilitates internal power boost and external power supply. With outline dimensions of 30 × 11.5 mm and an active area of 22.384 × 5.584 mm, the module is very lightweight due to its COG structure, measuring just 1.26 mm in thickness.
The logic power supply voltage ranges from 1.65V to 3.3V, with a typical value of 3.0V, and operates with a duty cycle of 1/32. Additionally, the module features a wide temperature range, reliably operating from -40℃ to +80℃, with a storage temperature range of -40℃ to +85℃.
This module is particularly suitable for various applications requiring compact and lightweight OLED displays. It is ideal for integrating into devices such as voice recorder, charging cables with embedded OLED displays and keychain lights featuring OLED displays, where space and visual clarity are paramount.
 |
Model No. : WEO012832R ►Structure : COG |

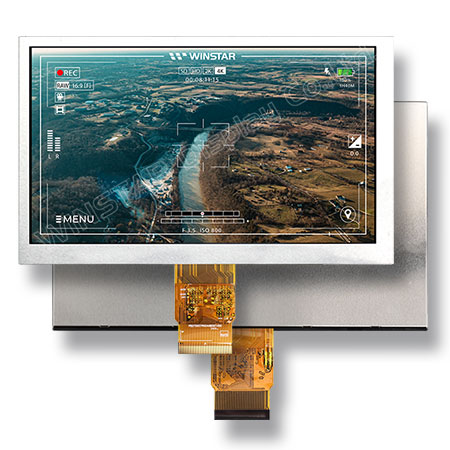

7 inch 1024x600 with RGB Interface TFT Display
WF70A8SYAHDNN0 TFT LCD Display Module delivers exceptional performance across diverse applications. This 7-inch module features a high-resolution 1024 x 600 dots display and an active area of 154.2144 x 85.92 mm, ensuring clear and detailed visuals.
The WF70A8SYAHDNN0 utilizes TFT technology with a Normally Black, Transmissive LCD type and an IPS panel that provides wide 85/85/85/85-degree viewing angles, ensuring a vivid display experience. Its 16:9 aspect ratio, paired with a high brightness of 1100 cd/m2 and a contrast ratio of 800:1, enhances visibility in various lighting conditions.
With EK79001HK-S + EK73215BCGA driver ICs and a 24-bit RGB interface, this module seamlessly integrates into UAV controllers, industrial equipment, medical devices, smart home systems, and multifunctional office equipment. WF70A8 series that is option in LVDS, MIPI and RGB interface depend on customer MCU request.
|
Model No. : WF70A8SYAHDNN0 ►Diagonal Size : 7-inch |
 |
Overview of the Built-in Font Library in WINSTAR OLED Module WS0010 IC
When customers use Winstar OLED modules, they can format text images using the built-in font library. Winstar provides an integrated font library IC to meet customer needs. When designing display images, customers can directly apply the internal font library of the IC, speeding up the completion of display screen editing and reducing the time required to integrate the OLED module into their products.

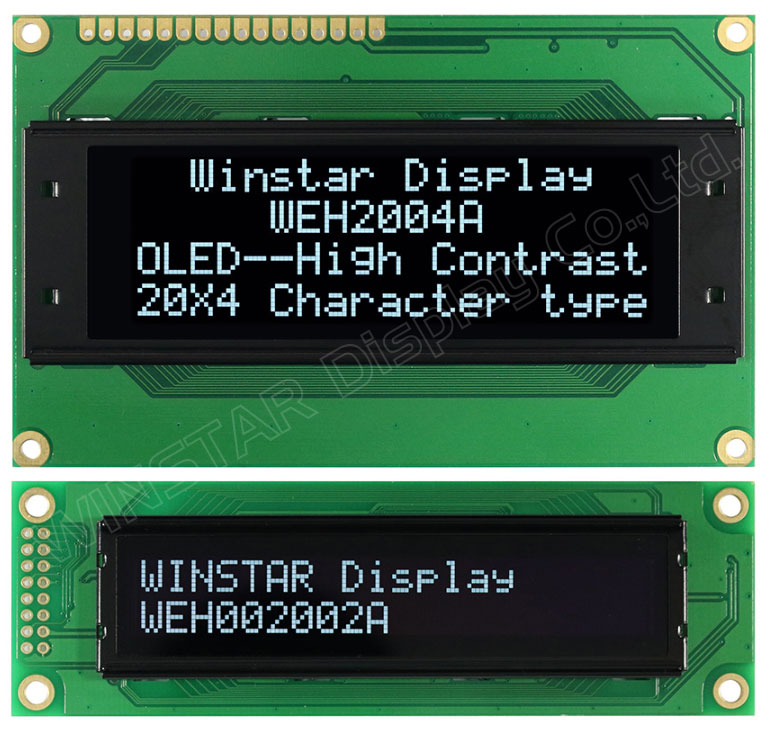

Winstar COB structure incorporates the WS0010 driver IC, which is installed on the PCB board. The character display effect is shown in Figure 1.
► Read More
