September 2023 WINSTAR News
Welcome to the September 2023 edition of the WINSTAR newsletter!
We're delighted to unveil our state-of-the-art display products to you. Let's embark on a journey of discovery and explore all the details.
- Keep reading about our new products and their features:
- (1) Exhibition: CEATEC JAPAN 2023
- (2) Shipping Arrangement before Taiwan & China Holidays
- (3) 3.4" Circular Screen IPS TFT Display
- (4) 3.9" Bar Type Touch TFT Display For HDMI Signal
- (5) 7" High Brightness IPS TFT Display with PCAP
- (6) 1.92" 160x128 OLED Display Module
- (7) How to send command to switch page on Smart Display via custom CAN
- (8) How to send command to switch page on Smart Display via Modbus protocol
Exhibition: CEATEC JAPAN 2023
WINSTAR will participate in CEATEC (Combined Exhibition of Advanced Technologies) held at Makuhari Messe in Chiba, Japan, from October 14 to 20, 2023. We sincerely invite you to visit us at Hall 4, Booth K063-13! Date : October 17 (Tue) ~ 20 (Fri), 2023 Time : 10:00~17:00 Location : Makuhari Messe, Chiba, JAPAN Hall : 4 Booth No.: K063-13 ► View More |
Shipping Arrangement before Taiwan & China Holidays
Winstar Headquarters in Taiwan will be closed from October 7 to October 10, 2023 for National Holidays and China factories and China Customs will be closed from September 29 to October 6, 2023 for China National Day (Golden Week). |
Shipping From Taiwan ►Last shipping date: October 6, 2023 ►First shipping date: October 11, 2023 Shipping From China ►Last shipping date: September 26, 2023 ►First shipping date: October 9, 2023 |

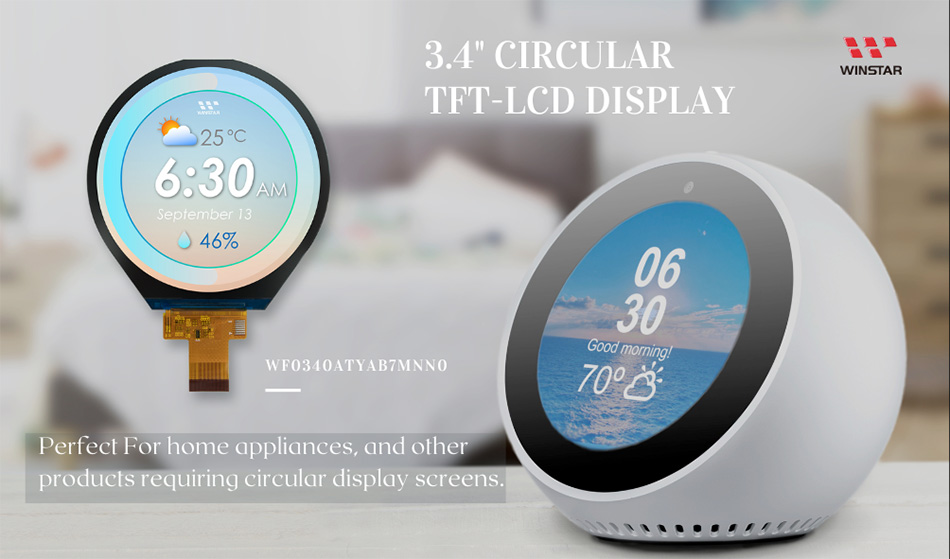

3.4" Circular Screen IPS TFT Display
Model No.:WF0340ATYAB7MNN0 ►Size: 3.4-inch ►Dot Matrix: 800 × 800 dots ►Module Dimensions: 94.9 × 96.95 × 2.22 mm ►Active Area: 87.6 × 87.6 mm ►Viewing Angles: 85/85/85/85 (IPS) ►Driver IC: ILI9881C ►Interface: MIPI ►Touch Panel: Without Touch Panel ►Surface: Anti-Glare ►Brightness: 400 cd/m2 ►Operating Temperature: -20~+70℃ |
WF0340ATYAB7MNN0 is a 3.4-inch Circular Screen IPS TFT Display with a resolution of 800x800 dots. It uses IPS (In-plane Switching) technology to achieve fast and stable response time, higher frequency transmittance, better color performance, and wider viewing angles of up: 85/ down: 85/ left: 85/ right: 85 degrees. The circular TFT LCD display is suitable for home appliances, electronic alarm clocks, cocktail machines, and other products requiring circular display screens.► View More |

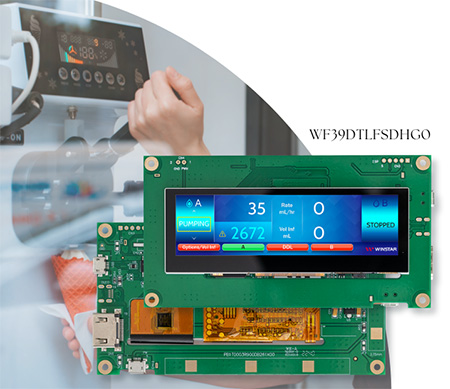

3.9" Bar Type Touch TFT Display For HDMI Signal
Model No.:WF39DTLFSDHG0 |
WF39DTLFSDHG0 is a 3.9-inch bar-shaped HDMI TFT display. It features a projected capacitive touch panel (PCAP) with 5-point multi-touch. The module adopts TFP401 controller IC, supporting HDMI interfaces (DVI signal) compatible with Raspberry Pi.
This HDMI TFT LCD is suitable for applications in electronic devices, catering equipment, medical measuring instruments, etc.
► View More

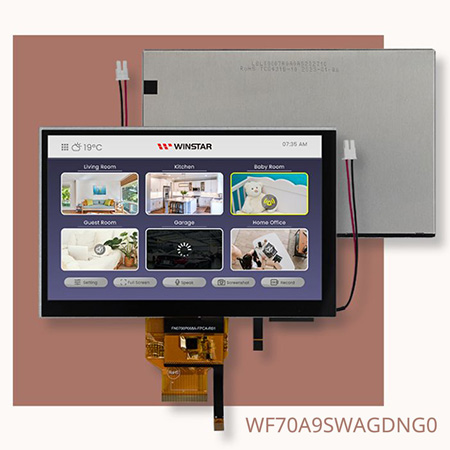

7" High Brightness IPS TFT Display with PCAP
Model No.:WF70A9SWAGDNG0 |
WF70A9SWAGDNG0 is a 7 inch IPS TFT-LCD with a Projected Capacitive Touch Panel (PCAP). It has features of high brightness and a wide operating temperature range. It boasts a resolution of 800x480 pixels, a high contrast ratio of 1,000:1 (typical value), and a high brightness of 800 nits (typical value).
The module can operate at the temperature range from -30℃ to +80℃, and its storage temperature covers from -40℃ to +85℃. It's perfect for outdoor measuring equipment, industrial measuring equipment, testing equipment, measuring tools, plastic bottle recycling machine, automated car park payment machine, etc.► View More

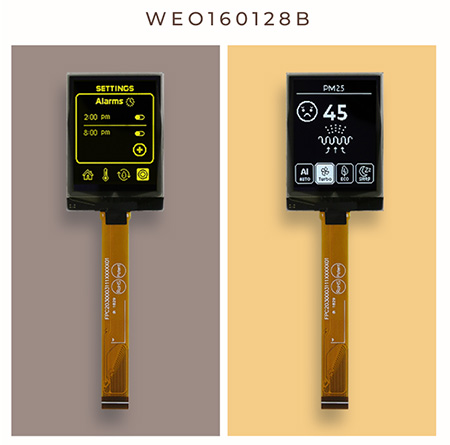

1.92" 160x128 OLED Display Module
Model No.:WEO160128B ►Type: Graphic |
WEO160128B is a 160x128 COG graphic OLED display module with a diagonal size of 1.92 inches. This model is built-in with CH1120 IC, supporting 6800/8080 parallel interfaces, I2C, and 4-wire SPI serial interfaces.
This OLED module is suitable for medical applications, smart home applications, intelligent building systems (home and office), control panels for lighting or heating, smartwatches, and fitness watches.► View More

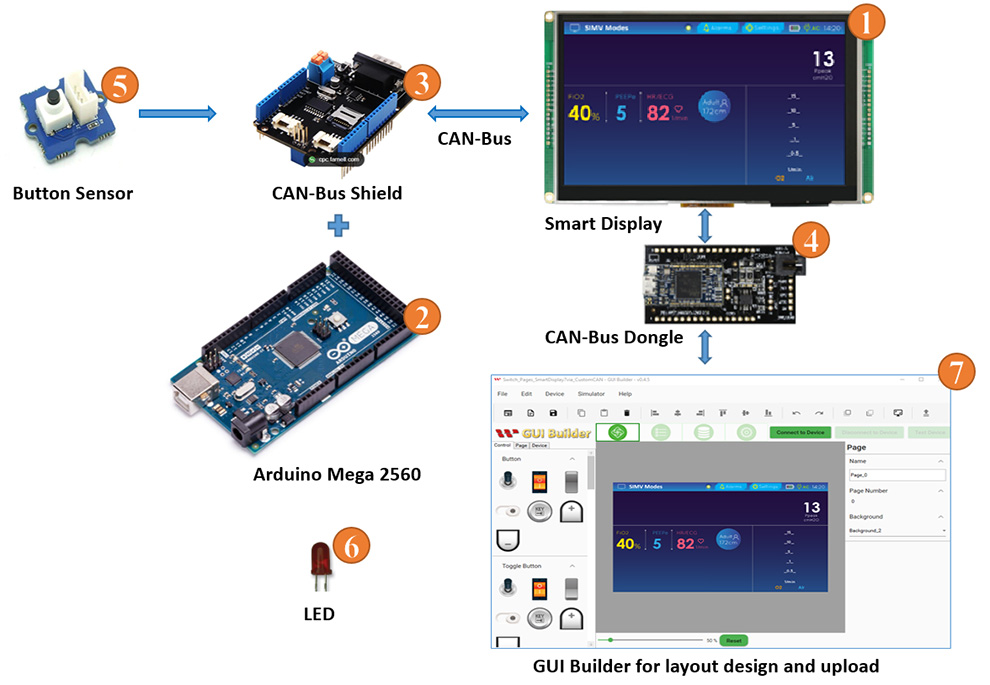

How to send command to switch page on Smart Display via custom CAN
In order to promote Smart Display products, the CAN communication could be implemented using different protocols, including CANopen and custom CAN ID protocols. CANopen is a standardized protocol that defines communication profiles, device profiles, and object models for different types of devices. It provides a standardized way to configure, monitor, and control devices on the CAN bus.
On the other hand, the Custom CAN ID protocol is often used when the devices on the CAN bus have unique features or requirements that are not covered by existing standard protocols. Custom protocols can offer more flexibility and efficiency compared to standard protocols.► View More

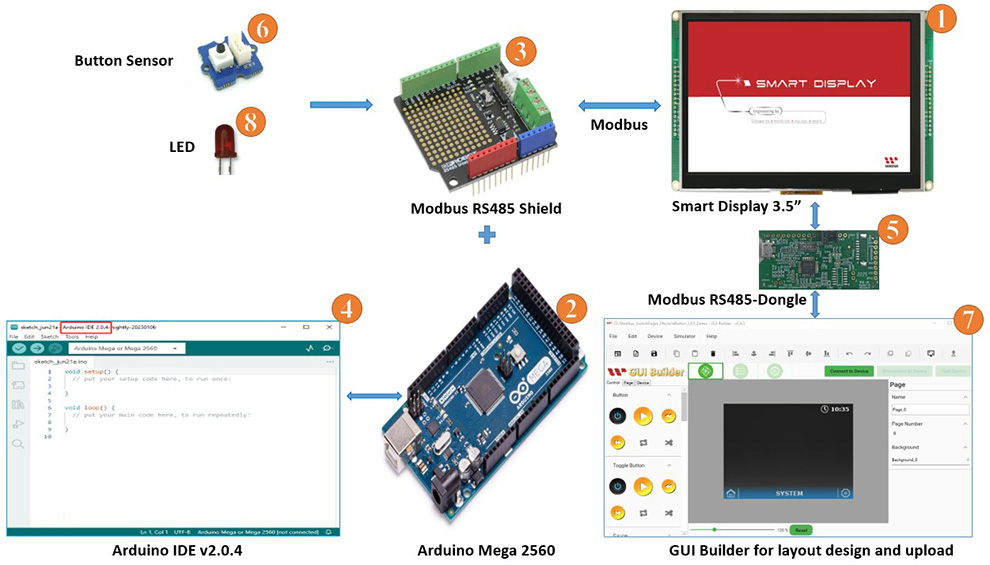

How to send command to switch page on Smart Display via Modbus protocol
So far, as we know that a system interface and a communication protocol are required to control a smart display. System Integration controls Smart-Display products in a comprehensive manner. In all those ways, Arduino could be used from a host control perspective as well. This article provides an example of how to control Smart-Display products from the perspective of the client and host. So that it could be understood how the host issues a command to switch pages of the Smart-Display. As an example, let's create a demo scenario: In this, we take a physical button, pressing which will switch the smart display from the first page to the second page. And when the Smart Display is on the second page, pressing the physical button again will return to the first page.► View More
