MAR. 2023 Winstar News
Issue No. 169

Welcome to read March 2023 Winstar newsletter. In this issue, No.169, we would like to invite our customers to attend the Exhibitor Forum of Embedded World Exhibition on Mar 15, 2023, 9:30 - 10:00 (GMT+1). Our speaker is Mr. Ginger Xu, Manager of System Integration at Booth nr. 3-561 (LIVESTREAM). The Keynote speech is about Winstar HMI Solution. Welcome to join us!

Let's catch up with these three new 10-inch TFT products and the introduction of the new category "Solution" on our Company Website.
(1) WF101JSYJHLNB0:10.1" High Brightness IPS TFT Display with PCAP
(2) WF101KTYJPLNG0:10.1" IPS TFT LCD 1280x800 with PCAP Touch
(3) WF101LSYJPLNG0:10.1" High Brightness IPS TFT 1280x800 with PCAP
(4) Introduction:Company Website's new category of "Solution"

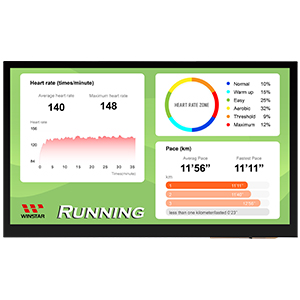

Model No. WF101JSYJHLNB0:
10.1" High Brightness IPS TFT Display with PCAP

Model No.WF101JSYJHLNB0-10.1" High Brightness IPS TFT Display with PCAP



■ Size : 10.1 inch
■ Resolution : 1024×600 dots
■ View Direction : IPS
■ Interface : LVDS
■ Driver IC : EK79001HN + EK73215BCGA
■ Brightness(cd/m²) : 900
■ Touch Screen : Projected Capacitive Touch Panel (PCAP)
■ Detect Point : 5 Fingers

WF101JSYJHLNB0 is a 10.1-inch IPS TFT-LCD module with Projected Capacitive Touchscreen (PCAP). This TFT-LCD module, built-in with EK79001HN and EK73215BCGA ICs, supports LVDS interface with resolution of 1024 x 600 pixels. WF101JSYJHLNB0 is featured with an IPS panel that has the advantage of wider view angle of Left:85 / Right:85 / Up:85 / Down:85 degrees; with high brightness of 900 nits (typical value), contrast ratio: 800:1, glare surface panel, the aspect ratio of 16:9.

This model featured a projected capacitive touch panel (PCAP), which is built-in with ILI2511 IC and supports USB interface (I2C available). WF101JSYJHLNB0 module can operate at temperatures from -20℃ to+ 70℃ and storage temperatures from -30℃ to +80℃.

Link to WF101JSYJHLNB0 web page

TOP

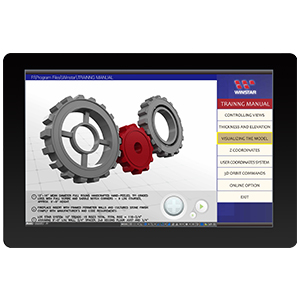

Model No. WF101KTYJPLNG0 :
10.1" IPS TFT LCD 1280x800 with PCAP Touch



■ Size : 10.1 inch
■ Resolution : 1280×800 dots
■ View Direction : IPS
■ Interface : LVDS
■ Drive IC : EK79202B1
■ Brightness(cd/m2):300
■ Touch Screen : Projected Capacitive Touch Panel (PCAP)
■ Detect Point : 5 Fingers

Model No.WF101KTYJPLNG0:10.1" IPS TFT LCD 1280x800 with PCAP Touch

WF101KTYJPLNG0 is a 10.1-inch IPS TFT-LCD module with Projected Capacitive Touchscreen (PCAP). This TFT-LCD module, built-in with EK79202B1, supports LVDS interface with a high resolution of 1280 x 800 (WXGA) pixels, brightness of 300 nits, and a contrast ratio: of 1000:1. WF101KTYJPLNG0 is featured with IPS panel which having the advantages of the wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical) and having HD resolution (1280 horizontal by 800 vertical pixels).

This model featured a projected capacitive touch panel (PCAP), glare surface for cover lens , which is built-in with GT928 IC and supports I2C interface. The power voltage for this module is DC 12V. WF101KTYJPLNG0 is very suitable for HMI (Human-machine Interaction) applications, POS systems, etc.

Link to WF101KTYJPLNG0 web page

TOP

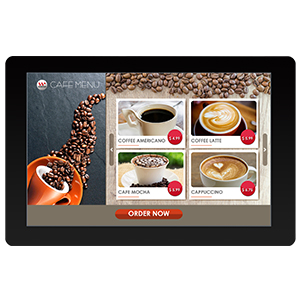

Model No. WF101LSYJPLNG0:
10.1" High Brightness IPS TFT 1280x800 with PCAP

Model No.WF101LSYJPLNG0:10.1" High Brightness IPS TFT 1280x800 with PCAP



■ Size : 10.1 inch
■ Resolution : 1280×800 dots
■ View Direction : IPS
■ Interface : LVDS
■ Drive IC : EK79202B1
■ Brightness (cd/m²): 900
■ Touch Screen : Projected Capacitive Touch Panel (PCAP)
■ Detect Point : 5 Fingers

WF101LSYJPLNG0 is a 10.1" IPS TFT LCD Display with 1280x800(WXGA)pixels. This TFT module adopted IPS technology which has the advantage of a wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degrees. it is built-in with EK79202B1 driver IC, supports LVDS interface, with high brightness of 900 nits (typical value), aspect ratio of 16:10, contrast ratio of 1000:1 (typical value).

This model featured a projected capacitive touch panel (PCAP), glare surface for cover lens , which is built-in with GT928 IC and supports I2C interface. The power supply voltage for LCM is 12V (typical value). It can operate at temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +70℃.

Link to WF101LSYJPLNG0 web page

TOP



Introduction:
Company Website's new category of "Solution"

Introduction-Company Website’s new category of solution



Recently, the Winstar company website added a new category of "Solution". In this section, we would like to let our customers know about Winstar Solutions Tailored to Your Need; our solution service is a fully customizable display to move your designs forward. Winstar has the ability to offer mix-and-match custom display solutions. We can make it! Welcome to find out more details and the applications case sharing.

Let's learn more about display-solutions
