FEB, 2023 Winstar News
Issue No. 168

Welcome to read February 2023 Winstar newsletter. In this issue, No. 168, we would like to remind our customers to visit our booth at Embedded World 2023 in Nuremberg. Welcome to reserve a meeting or stop by to see what’s new at the Winstar Display booth. Also, please come to join our Live Forum on Mar 15, 9:30 - 10:00 GMT+1 at Exhibitor's Forum Hall 3:Booth nr. 3-561 I LIVESTREAM.



Exhibition News:
Embedded World 2023 Nuremberg Germany

Winstar is going to demonstrate our technology and products portfolio at the Embedded World 2023 exhibition, scheduled to take place between 14 - 16 Mar’23 in Nuremberg, at booth No. 1-460. We will showcase a variety of TFT, OLED, System Integration, and a comprehensive range of industrial display solutions. Welcome to visit us!

► Mar 15, 2023, 9:30 - 10:00 GMT+1
► Speaker:Mr. Ginger Xu
► Exhibitor's Forum Hall 3:Booth nr. 3-561 I LIVESTREAM


Let's catch up with our new TFT products and a recent technical article including:
(1) WF70B8SWAGDNB0:7" High Brightness IPS TFT Display with PCAP
(2) WF70C4TIBGDAN0 :7" TFT LCD 800x480 with Controller Board
(3) WF150ATYAMLNN0:15" TFT IPS LCD Display 1024x768
(4) Technical Article:User-Friendly STN LCD Control Interface

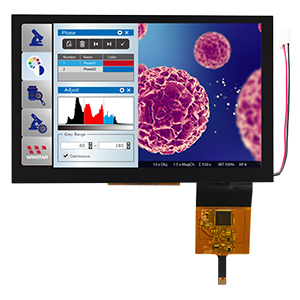

Model No. WF70B8SWAGDNB0:
7" High Brightness IPS TFT Display with PCAP

WF70B8SWAGDNB0

■ Size : 7 inch
■ Resolution : 800x480 dots
■ View Direction : 80/80/80/80 (IPS)
■ Interface : RGB
■ TFT Driver IC : HX8249-A + HX8678-C
■ Brightness(cd/m²) : 800
■ Touch Screen : Projected Capacitive Touch Panel
■ Detect Point : 5 Fingers
■ Operating Temperature : -30~+80°C (Wide Temperature)

WF70B8SWAGDNB0 is a 7-inch High Brightness 800 x 480 IPS TFT-LCD module with PCAP touchscreen. This TFT-LCD module adopted IPS technology which has the advantage of a wide viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degrees. WF70B8SWAGDNB0 module is built-in with HX8249-A and HX8678-C driver ICs; it supports 18-bit RGB interface, contrast ratio of 1000:1 (typical value), brightness of 800 nits (typical value), glare surface panel, aspect ratio 15:9. This model featured a projected capacitive touch panel (PCAP), which built-in with ILI2511 IC, supports USB interface (I2C available). It has wider operation temperatures from -30℃ to +80℃; its storage temperatures range from -40℃ to +85℃.

Link to WF70B8SWAGDNB0 web page

TOP

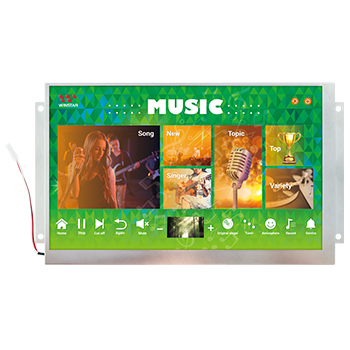

Model No. WF70C4TIBGDAN0 :
7" TFT LCD 800x480 with Controller Board



■ Size : 7 inch
■ Resolution : 800 x 480 dots
■ View Direction : 12H
■ Interface : Digital 8080 family MPU( 8bit Parallel )
■ Controller IC: SSD1963
■ Control Board : Yes
■ Brightness(cd/m2): 500
■ Frame Through Hole : Yes
■ Touch Panel : No

WF70C4TIBGDAN0

WF70C4TIBGDAN0 is a 7-inch TFT LCD module with a controller board, resolution WVGA 800x480 pixels. This TFT model is built-in with SSD1963 IC and supports 8080 MPU (8bit Parallel) interface, view direction of 12 o'clock, gray scale inversion of 6 o'clock, aspect ratio of 16:9, contrast ratio of 1000:1 (typical value), brightness of 500 nits (typical value), anti-glare surface panel.

The supply voltage for LCM (VDD) of WF70C4TIBGDAN0 is from 3.0V to 3.6V, with the typical value of 3.3V. It can be operated at temperatures from -20℃ to +70 ℃ and storage temperatures from -30 to +80 ℃. The WF70C4 series is an alternative solution for the WF70H series, which has been End-of-Life (EOL). For more details, please contact our sales persons.

Link to WF70C4TIBGDAN0 web page

TOP

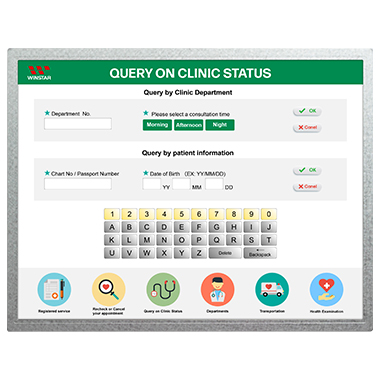

Model No. WF150ATYAMLNN0:
15" TFT IPS LCD Display 1024x768

WF150ATYAMLNN0



■ 15 inch TFT LCD Display
■ Resolution : 1024x768 dots
■ View Direction : 88/88/88/88 (IPS)
■ Interface : LVDS
■ Brightness (cd/m²): 300
■ Touch Screen : Without Touch Panel

WF150ATYAMLNN0 is a 15" IPS TFT LCD Display made of resolution 1024x768 (XGA) pixels. This TFT module adopted IPS technology which has the advantage of a wider viewing angle of Left:88 / Right:88 / Up:88 / Down:88 degrees. it supports LVDS interface, with brightness of 300 nits (typical value), contrast ratio of 2000:1 (typical value), anti-glare surface glass panel.

The power supply voltage for LCM (VCC) of WF150ATYAMLNN0 is from 3.0V to 3.6V (typical 3.3V). It can operate at temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +70℃.

Link to WF150ATYAMLNN0 web page

TOP



Technical Article:
User-Friendly STN LCD Control Interface

Technical Article:User-Friendly STN LCD Control Interface

Winstar offers a wide range of standard Character LCD Modules for customer’s application. Available standard display types are WH0802, WH1202, WH1601, WH1602, WH1604, WH2002, WH2004, WH2402 and WH4002 series. Customer can use the least number of control pins to achieve display, making it easier for choosing a MCU.

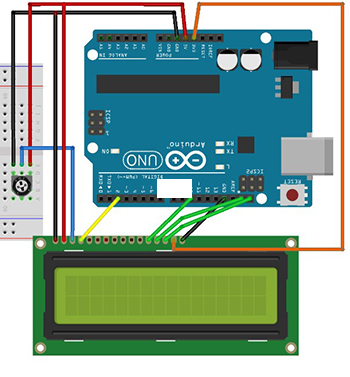

Without adding a transfer board, Customer just need to connect the development board Arduino Uno and can use different communication interface to control the following Winstar’s Character LCD Modules directly.

This article provides details of "LCM and development board Arduino Uno wiring method" and system settings.

Let's catch up with technical article.
