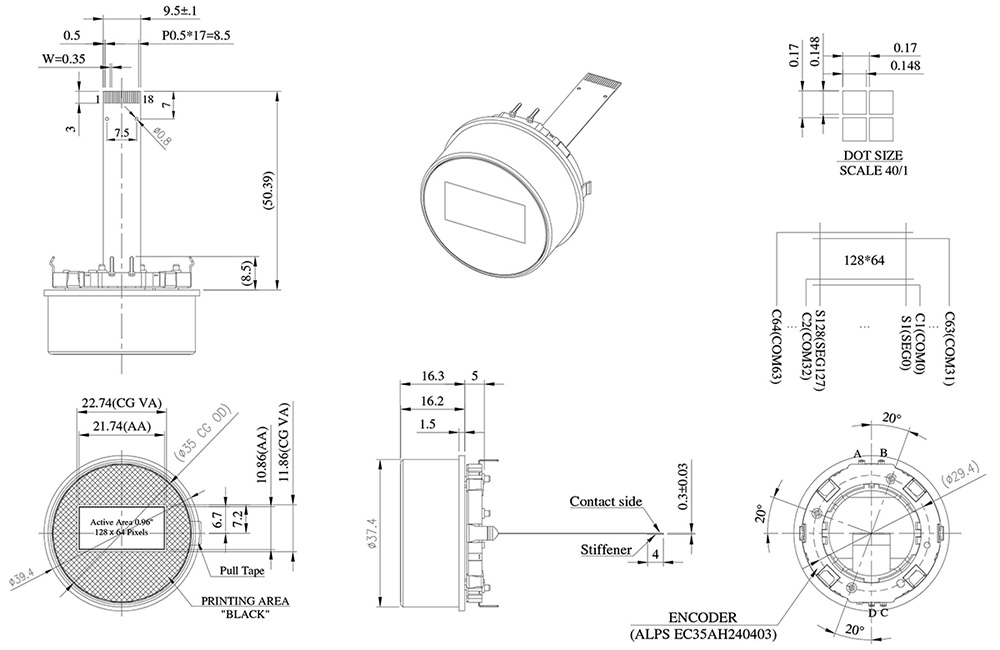

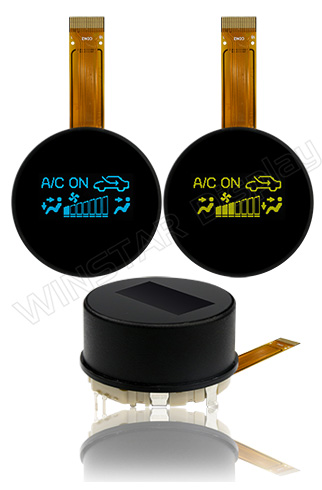

WEO012864Z OLED is an extension item of WEO012864D with a control knob. It's a 0.96 inch 128x64 dots COG type OLED display. This OLED Encoder module is built in with SSD1306 IC; it supports 4-line SPI and I2C interface, supply voltage (VCI) minimum 1.65V, maximum 3.3V, 1/64 driving duty.
This WEO012864Z OLED features a rotary switch which is ideal for applications that require a control knob such as smart home applications, intelligent technology devices, audio system, etc. This module can be operated at temperature range from -20℃ to +70℃; its storage temperature ranges from -30℃ to +80℃.

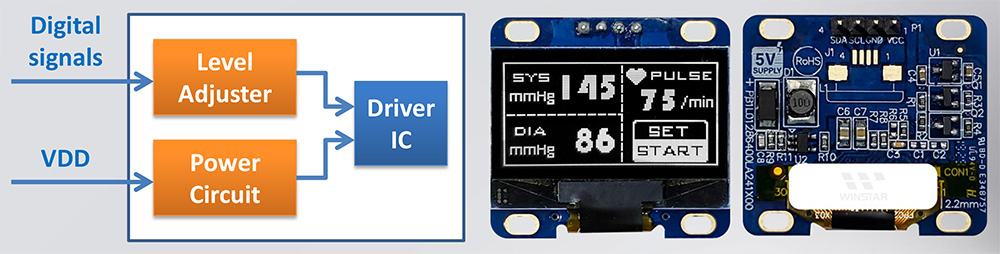

Winstar released a series of OLED Circuit Built-in Solution display modules - OLED WEA Series. The OLED WEA Series are our COG extension items featuring power circuit built-in on board and reserved standard 2.54 mm pin holes on PCB board to provide another easy connecting function. The PCB board with mounting holes is an easy method for customers to fix modules on their applications. This WEA series supports 3V and 5V input voltage. Furthermore, our Circuit Built-in Solution supports serial interface which can reduce PIN numbers for design.
WEA series are available with OLED sizes from 0.49”to 2.4”; and 5.5” will be released in July or early of August. They are suitable for smart home application, medical device, smart control, meter, etc. OLED Circuit Built-in Solution is designed to help customers to reduce their development time and provide an easy way for OLED panel setup. It’s a very easy task for customers to set up the display with their device. Using our OLED Circuit Built-in Solution can shorten the development time and speed up the time to market.

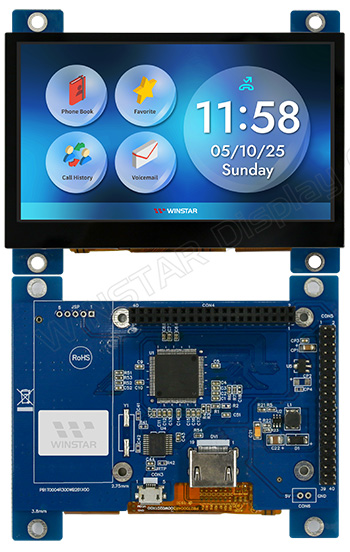

WF43WSYFEDHGV is an IPS 4.3 inch High Brightness 480x272 TFT-LCD module with capacitive touch panel. WF43WSYFEDHGV comes with a control board which only supports Raspberry PI system HDMI Signal interface (only DVI). Please note that this module does not have built-in EDID parameter to support PC HDMI signal. There is a 40-pin GPIO connector on the board which is designed to make Raspberry Pi usage easy. The control board on module is featured with four mounting holes which is an easy method for customers to fix modules on their applications. WF43W HDMI series also supports PWM (Pulse Width Modulation) function for adjusting LED backlight brightness. WF43WSYFEDHGV adopts IPS panel which has a wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical value). The brightness is 800 nits (typical value); capacitive touch panel is built in with ILI2130 IC which supports USB interface. We also offer resistive touch panels (RTP) for WF43W HDMI signal series, available part number WF43WSYFEDHTV (RTP touch).
The supply voltage for LCM (VDD) of WF43WSYFEDHGV is 5V, glare surface glass, aspect ratio 16:9, and contrast ratio 800:1 (typical value). It can be operating at temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃.

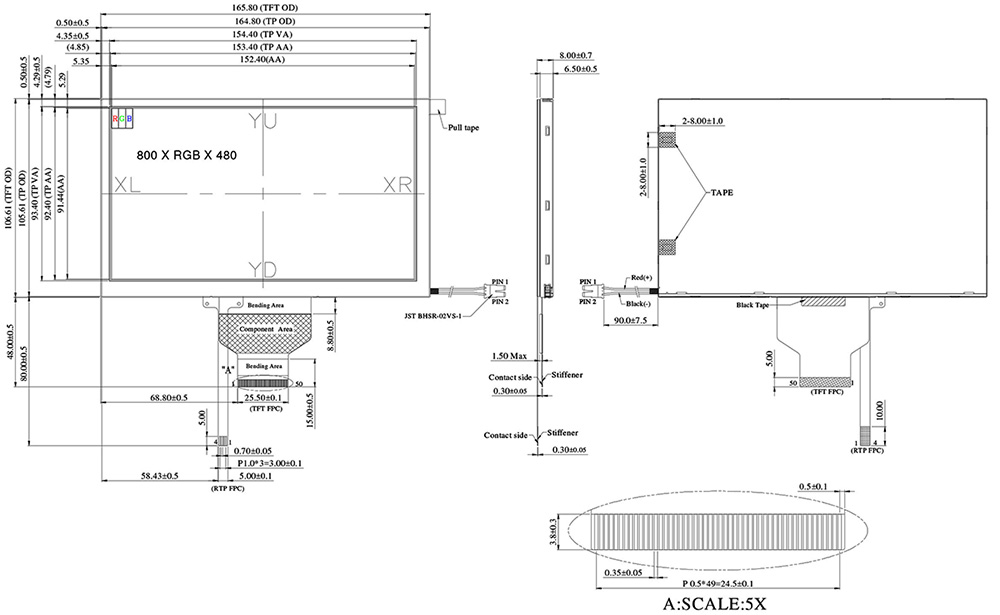

WF70A9TWAGDNT0 is a 7 inch 800x480 Wide Temperature IPS TFT-LCD display with resistive touch panels (RTP). This module is built in with HX8249-A and HX8678-C driver ICs, it supports 24-bit RGB interface. WF70A9TWAGDNT0 adopts IPS panel which has the advantage of wider view angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 1000:1 (typical value), brightness 350 nits (typical value), anti-glare surface panel, aspect ratio 15:9. If customers need high brightness backlight, please choose WF70A9SWAGDNT0.
The supply voltage (VCC) of WF70A9TWAGDNT0 is from 2.7V to 3.6V, typical value 3.3V. It can be operated at temperatures from -30℃ to +80℃ and storage temperatures from -30℃ to +80℃.
