Christmas is a good time to think about all we have to be thankful for.  We would like to take this opportunity to thank you for our all customers' valuable collaboration during all these years. Due to the COVID-19 pandemic change the business operation model, we don't have any chance to visit customers or attend exhibition events this year for setting up meetings. At this challenging time for all of us, we hope you stay safe and healthy and we can continue remote working via conference call. This year, Winstar HQs has a very special Christmas Tree, this idea is coming from our CEO Dr. Venson Liao and his wife. This pile of wood logs cut down by our CEO is to present his special thankful feelings to all customers and hope that could warm up our heart at this difficult time to all of us. We wish you a safe and healthy Christmas Holiday and Happy New Year.  All dreams come true!  ►Link to video

Issue No. 142

Contents
1) Shipping Arrangement before Stocktaking & Holiday Notice
2) 1.92" COG 160x128 Graphic OLED WEO160128A
3) 3.55" COG Graphic OLED WEO025664D
4) Ø1.18" Circular CTP OLED WEO128128D with Knob
5) 0.96" IPS TFT Optical Bonding PCAP WF0096ATYAA3DNF10
6) 4" MIPI High Brightness IPS RTP TFT WF40ESWAA6MNT
7) 2020 Company Staff Travel Highlight





Shipping Arrangement before Stocktaking & Holiday Notice

Winstar Display will have annual stocktaking from December 30 thru 31, 2020 for the Taiwan and China plants. Please note that all the shipping arrangement during this period will be forbidden. We will return to work on January 4, 2021 after New Year Holiday. Please notice the shipping date before and after holiday and our annual stocktaking.

Below is the last shipping date and the first shipping date for this period as reference. Please work with Winstar sales persons closely before the inventory check and holiday if your shipment might be affected. Thank you.


Shipping From China:
►Last shipping date: December 28, 2020
►First shipping date: January 4, 2021
Shipping From Taiwan:
►Last shipping date: December 29, 2020
►First shipping date: January 4, 2021



TOP





1.92" COG 160x128 Graphic OLED WEO160128A

WEO160128A is a 160x128 resolution COG graphic OLED display module, diagonal size 1.92 inch. This model is built-in with SH1108 IC; it supports 6800/8080 parallel, I2C, and 4-wire SPI serial interface. The supply voltage for logic is 3V, supply voltage for display is 12V, display with 50% check board current is 23mA @ 12Vcc (typical value), driving duty 1/128.

This 1.92 inch COG Graphic OLED module is suitable for medical applications, smart home applications, smart buildings’ devices (both homes and offices) and as well as control panels used to manage the lighting or heating, etc. This module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.


WEO160128A Dimension
Dot Matrix 160 × 128 Dots
Module dimension 34.5 × 48.8 × 1.41 mm
Active Area 28.908 × 39.34 mm
Pixel Size 0.206 × 0.226 mm
Pixel Pitch 0.226 × 0.246 mm
Display Mode Passive Matrix
Display Color White /Yellow
Drive Duty 1/128 Duty
IC SH1108
Interface 6800, 8080, SPI, I2C
Size 1.92 inch

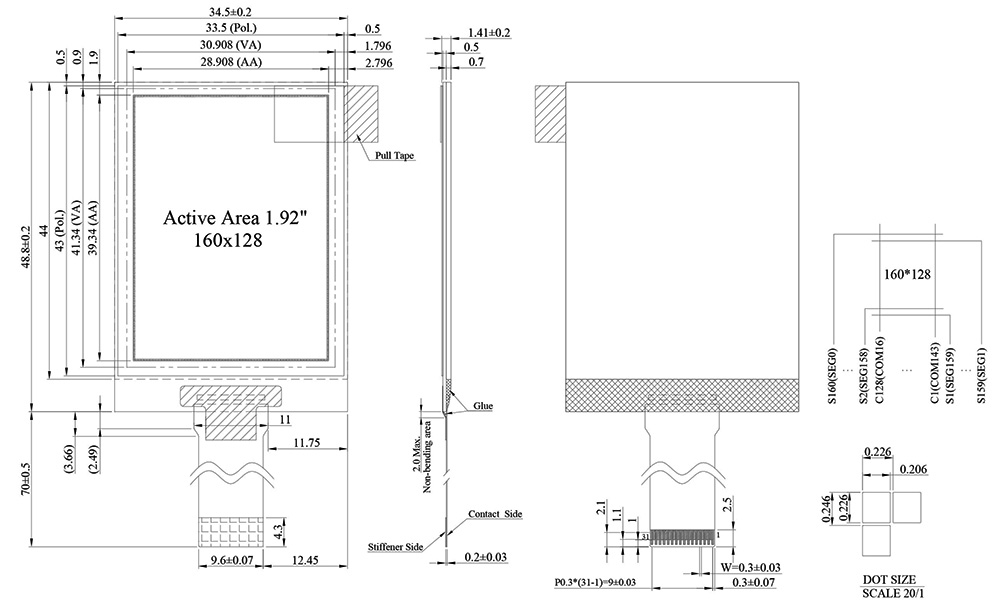

WEO160128A
WEO160128A

Link to Winstar WEO160128A web page



TOP





3.55" COG Graphic OLED WEO025664D

WEO025664D model is a COG type Graphic OLED; it's diagonal size 3.55 inch, made of 256x64 pixels. This WEO025664D module is built in with SSD1322 IC; it supports 6800/8080 parallel and 3-wire/4-wire SPI interface, 16 (4bits) gray scale, driving duty 1/64, supply voltage for logic is from 3.3V, supply voltage for display is 16V, the display with 50% Check board current is 35mA @16Vcc (typical value).

This OLED module is suitable for medical applications, control panel, self-checkouts machine, ticket machines, parking meters, etc. WEO025664D module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.

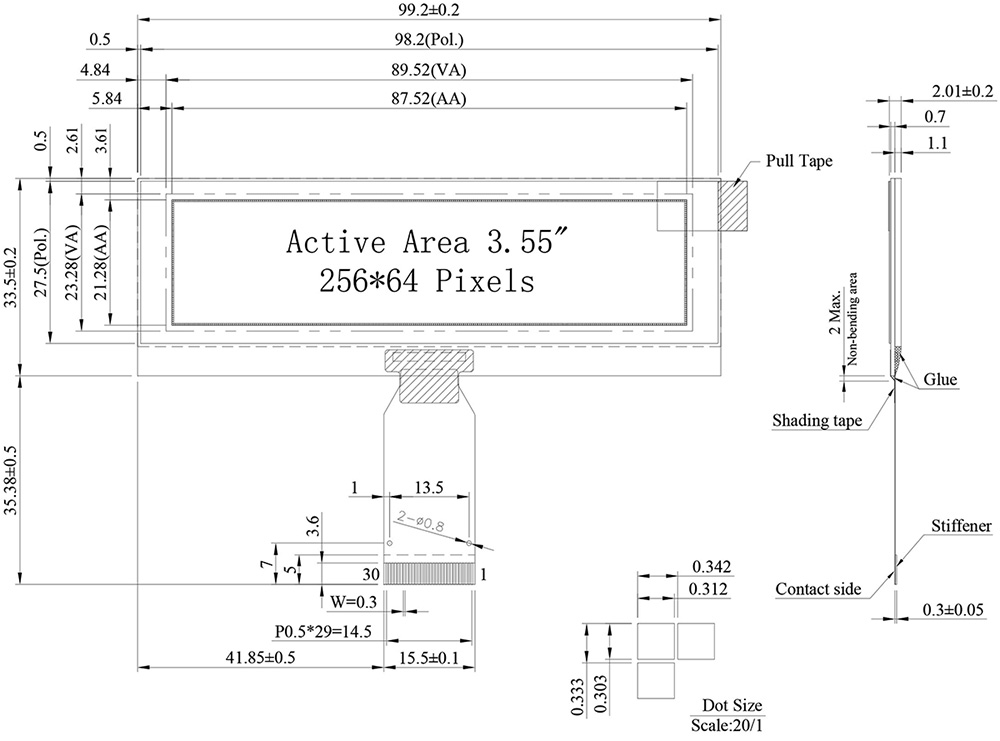

WO025664D Dimension
Dot Matrix 256 x 64 Dots
Module dimension 99.2 x 33.5 x 2.01 mm
Active Area 87.52 x 21.28 mm
Pixel Size 0.312 x 0.303 mm
Pixel Pitch 0.342 x 0.333 mm
Display Mode Passive Matrix
Display Color White /Yellow
Drive Duty 1/64 Duty
Gray Scale 4 bits
IC SSD1322
Interface 6800,8080,SPI
Size 3.55 inch

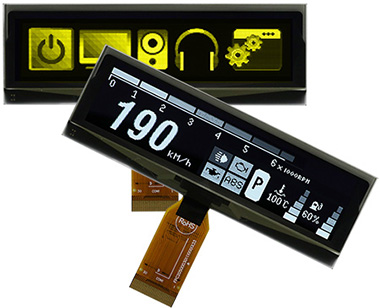

WEO025664D
WEO025664D

Link to Winstar WEO025664D web page



TOP





Ø1.18" Circular CTP OLED WEO128128D with Knob

The round OLED WEO128128D-CTP+Knob model is an extension item which equipped with capacitive touch screen and a control knob on module, it's an Ø1.18" circular COG type OLED display; made of resolution 128x128 dots. This module is built in with SSD1327 IC, it supports 4-line SPI and I2C interface, supply voltage for logic 3V (typical value), 1/128 driving duty. This WEO128128D-CTP+Knob model is built in with IT7259 touch panel IC on module, which supports I2C interface, one detect point for capacitive touch screen.

This round OLED extended WEO128128D model featured with capacitive touch screen and Knob is ideal for applications which required a control knob on devices such as smart home applications, intelligent technology devices, audio system, etc. This module can be operating at temperatures from -20℃ to +50℃; its storage temperatures range from -30℃ to +70℃.


WEO128128D-CTP+Knob Dimension
Dot Matrix 128 x 128 Dots
Module dimension Ø56 x 21.56 mm
Active Area Ø30.0 mm
Pixel Size 0.210 x 0.210 mm
Pixel Pitch 0.235 x 0.235 mm
Display Mode Passive Matrix
Display Color White /Yellow/Sky Blue
Drive Duty 1/128 Duty
Gray Scale 4 bits
IC SSD1327
Interface 4-line SPI , I2C
Size Ø 1.18 inch
CTP IC IT7259
Detect Point 1
CTP Interface I2C
CTP Surface Hardness 6H

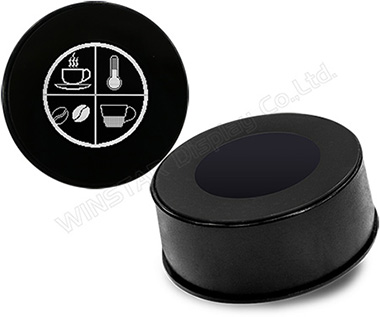

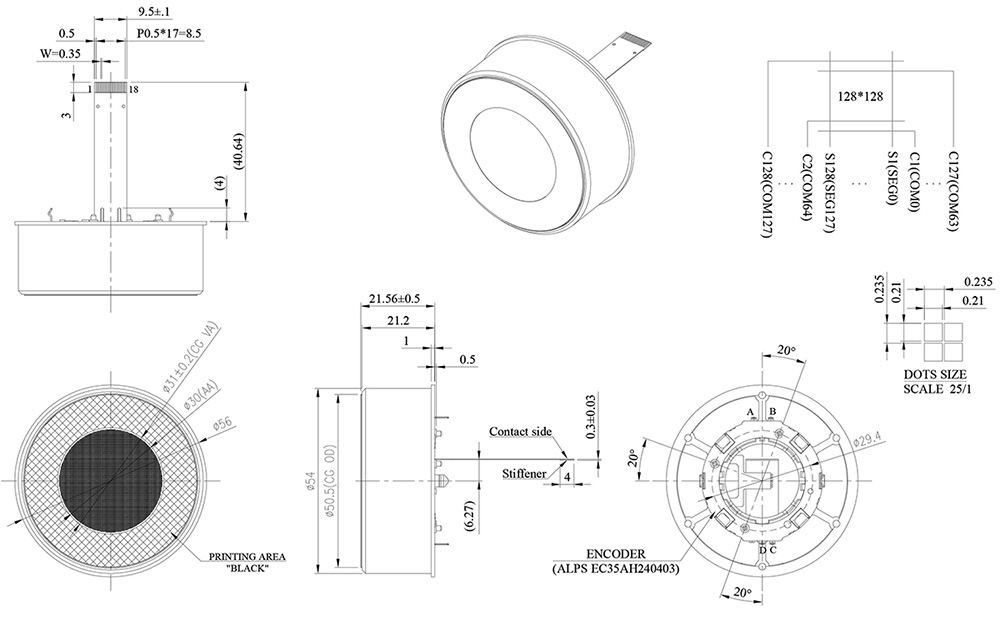

WEO128128D Knob with CTP
WEO128128D Knob with CTP

Link to Winstar WEO128128D-CTP+Knob web page



TOP





0.96" IPS TFT Optical Bonding PCAP WF0096ATYAA3DNF10

WF0096ATYAA3DNF10 is a 0.96 inch IPS TFT-LCD display featured with Optical bonding (OCA) capacitive touch screen on module, made of resolution 80x160 pixels. This 0.96 inch TFT LCD Display is portrait mode with IPS (In-Plane Switching) Panel which having the feature of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical) and the capacitive touch screen is adopted optical bonding technology which is a silicone Optical Clear Adhesive (OCA) process that fills air gaps between components in LCD displays, that having the advantage of increases the ruggedness of the display and improving durability to having better able to resist scratches, fluids, stains and dirt. This TFT model is built in with FT3267 touch panel IC on module, that supports I2C interface, and one detect point for capacitive touch screen.

This 0.96" TFT WF0096ATYAA3DNF10 module is built-in with ST7735S controller IC, it supports 4-wire SPI interface, supply voltage (VCC) range is from 3.0V to 3.6V, with brightness 400 nits (typical value), contrast ratio 800:1.This module is ideal for wearable devices, medical devices, etc. This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

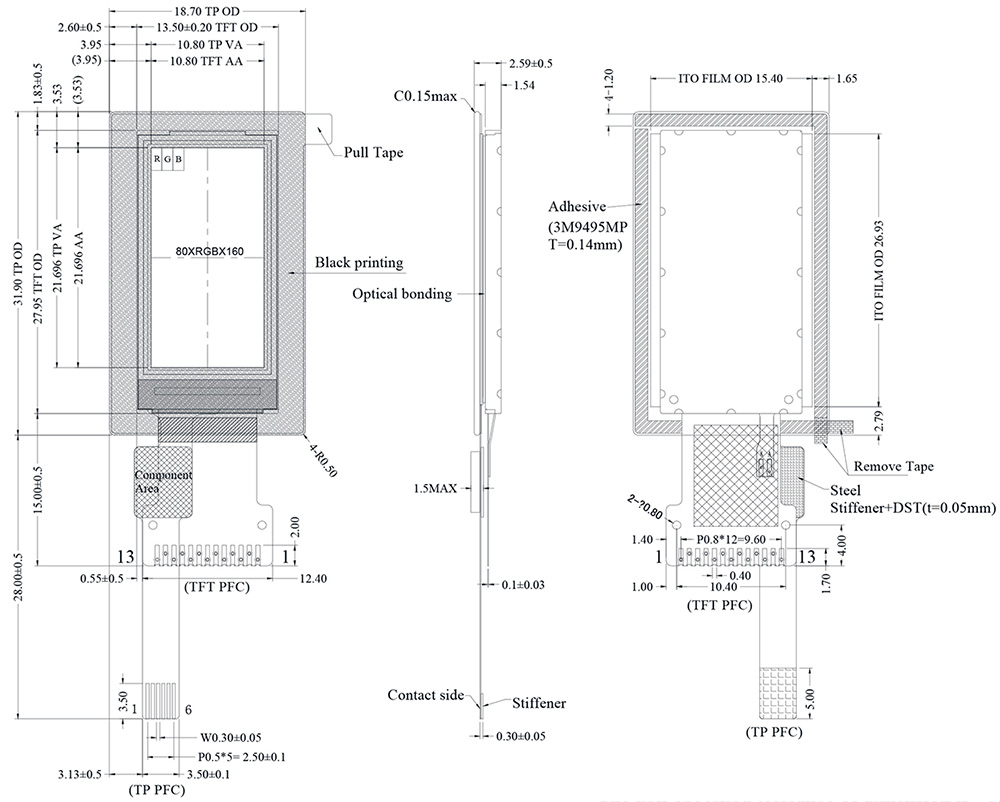

WF0096ATYAA3DNF10 Dimension
Size 0.96 inch
Dot Matrix 80 x RGB x 160 (TFT)
Module dimension 18.7(W) x 31.9(H) x 2.59(D) mm
Active area 10.8 x 21.696 mm
Dot pitch 0.135 x 0.1356 mm
LCD type TFT, Normally black, Transmissive
Viewing Angle 80/80/80/80
Aspect Ratio 1:2
IC ST7735S or equivalent
TFT Interface SPI
Backlight Type LED, Normally White
CTP Interface I2C
CTP IC FT3267 or equivalent
CTP FW Version V06
Touch Panel With PCAP
Surface Glare

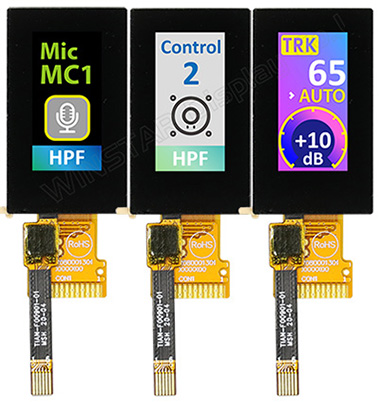

WF0096ATYAA3DNF10
WF0096ATYAA3DNF10

Link to Winstar WF0096ATYAA3DNF10 web page



TOP

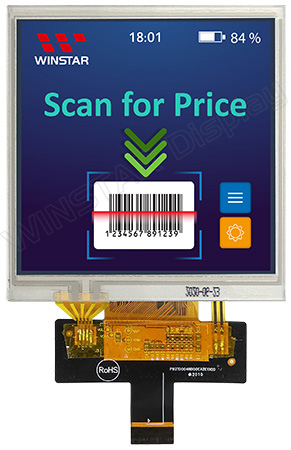

4" MIPI High Brightness IPS RTP TFT WF40ESWAA6MNT

WF40ESWAA6MNT0 is a 4 inch High Brightness IPS TFT-LCD module; made of resolution 480 x 480 pixels. WF40ESWAA6MNT0 is a square TFT module with Resistive Touch Panel, it supports MIPI DSI Serial interface (2 lanes), featured with IPS panel which is having the advantage of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 800:1 (typical value), high brightness 700 nits (typical value), anti-glare surface panel, aspect ratio 1:1.

WF40ESWAA6MNT0 module is integrated driver IC ST7701S on module, the analog supply voltage range from 2.5V to 3.6V, typical value 2.8V. WF40E module can be operating at temperatures from -30℃ to +80℃; its storage temperatures range from -30℃ to +80℃.

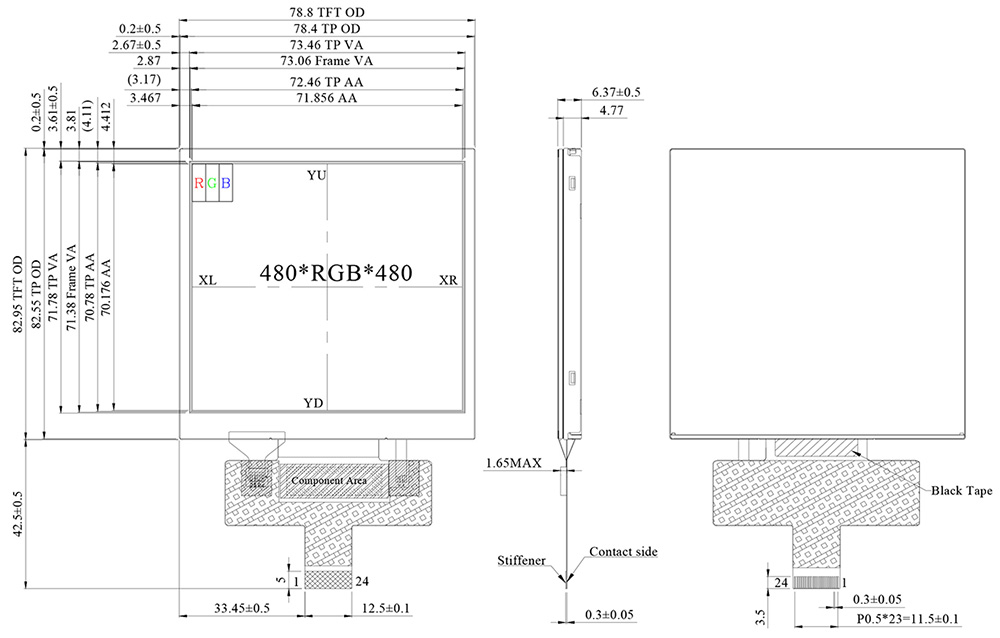

WF40ESWAA6MNT0 Dimension
Size 4 inch
Dot Matrix 480× 3(RGB) × 480
Module dimension 78.8(H) x82.95 (W) x6.37 mm
Active area 71.856(H)x70.176 (V) mm
Pixel pitch 0.1497(H)x0.1462(V) mm
LCD type TFT, Normally Black, Transmissive
View Direction  80/80/80/80
Aspect Ratio 1:1
Interface 2-Lanes MIPI DSI
Driver IC ST7701S or Equivalent
Backlight Type LED, Normally White
Touch Panel With RTP
Surface Anti-Glare
WF40ESWAA6MNT
WF40ESWAA6MNT

Link to Winstar WF40ESWAA6MNT0 web page



TOP





2020 Company Staff Travel Highlight

Autumn is a good season for traveling, especially traveling with colleagues and family, which can promote the relationship and work cooperation understanding. Due to the COVID-19 epidemic this year, most travel activities have been suspended. However, Taiwan is a treasure island, we have controlled the epidemic very well. We have taken safety considerations to organize this year’s employee tour before the end of the year. Winstar is a happy company that values employee welfare, this travel inspired us to have more energy to move on for coming challenges. Thanks to the top management of Winstar Display Co. to have the company staff travel annually for all Winstar employees and family.
