E-Newsletter Jan., 2020 - Winstar Display



Issue No. 136

Contents
1) 5" Smart Display_CAN Series TFT WL0F00050000FGAAASA00
2) 10.1" LVDS IPS TFT WF101JTYAHLNN0
3) Ø1.18" Circular OLED with PCAP Touch Screen WEO128128D-CTP
4) 0.96" Dual Color OLED WEA012864MX with PCB

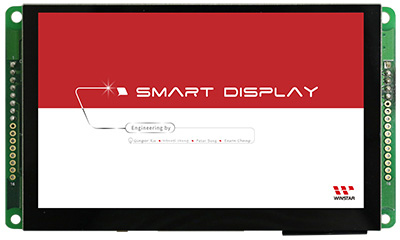

5" Smart Display_CAN Series TFT WL0F00050000FGAAASA00

WL0F00050000FGAAASA00 is a 5" Smart Display_CAN series TFT which is defined as a slave device, that is controlled by master device via CAN bus command to render display content on the display screen and return touch event data with protocol objects. WL0F00050000FGAAASA00 is integrated with an standard TFT module WF50FTYAGDNG0 and a 4-layers FR4 PCBA with built-in firmware. This 5" Smart Display _CAN series TFT is an easy-to-use product which allows you to develop projects rapidly in cost-effective way. Below are the features of WL0F00050000FGAAASA00. Our Smart Display can be used on multiple host (HOST) platforms. such as Computer (with USB2CAN Dongle) , MCU, Raspberry Pi (with PiCAN2). WL0F00050000FGAAASA00 modules will be available in early July, as to the demo sets will be available in late July, more details please contact us.

Features of 5" Smart Display_CAN Series TFT:

  • DC 5V working voltage, low power consumption for USB to drive.
  • Power-On Self-Test & Splash screen.
  • CAN bus Interface.
  • Supports CANopen protocol, default baud rate at 250KB.
  • Built in flash memory, store the font and Object Dictionary Data.
  • Supports PCAP touch screen.
  • CanTFT Smart Display is defined as a slave device, which is controlled by master device via CAN bus command to render display content on the display screen and return touch event data with protocol objects.
  • Demo set HOST can be used on multiple platforms, such as Computer (with USB to CAN Dongle), MCU, Raspberry Pi (with PiCAN2).
  • Built-in Buzzer is controlled from master device.

We have three demo scenario as below. More details, please check website.

WL0F00050000FGAAASB00 (Industrial Application)
WL0F00050000FGAAASC00 (Vehicle Application)
WL0F00050000FGAAASD00 (Medical Application)

Mechanical Data:
Item Standard Value Unit
LCD panel 120.7(W)×75.8(H)×4.475 mm
PCB 132.7(W)×75.8(H)×1.6 mm
Housing outline NA mm
General information:
Item Standard Value Unit
Operating voltage 5 Vdc
Communication Interface CAN bus differential ± 3.3 Vpp
LCD display size 5 inch
Dot Matrix 800× 3(RGB)×480 dot
Module dimension 120.7(W)×75.8(H)×4.475 mm
Active area 108(W)×64.8(H) mm
Dot pitch 0.135(W)×0.135(H) mm
LCD type TFT, Normally Black, Transmissive
View Direction 80/80/80/80
Aspect Ratio 16:9
Touch Screen With CTP
Surface Glare

5 inch Smart Display_CAN Series TFT - Winstar

Link to Winstar WL0F00050000FGAAASA00 web page



TOP

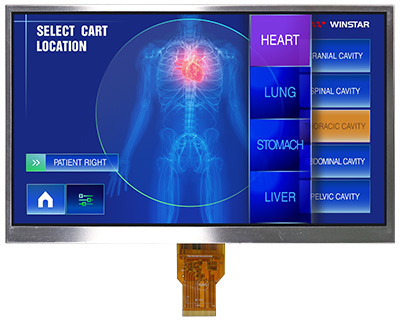

10.1" LVDS IPS TFT WF101JTYAHLNN0

WF101JTYAHLNN0 is a landscape mode 10.1 inch IPS TFT LCD module, it featured with resolution 1024x600 pixels. WF101JTYAHLNN0 is built in with EK79001HN and EK73215BCGA driver ICs, it supports LVDS interface, contrast ratio 800 (typical value), brightness 500 nits (typical value), aspect ratio 16:9, anti-glare surface glass, normally black, transmissive LCD type. This 10.1" IPS TFT has a wider viewing angle than TN TFT, it's view angle is Left:85 / Right:85 / Up:85 / Down:85 degree (typical value).

The supply voltage (VDD) of WF101JTYAHLNN0 is from 3.0V to 3.6V, typical value 3.3V. It can be operating at temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃. If customers require high brightness, please choose WF101JSYAHLNN0.


WF101JTYAHLNN0  Dimension
Size 10.1 inch
Dot Matrix 1024 RGB × 600
Module dimension 235(W) × 143(H) × 5.05(D) mm
Active area 222.72 (H) × 125.28(V) mm
Dot pitch 0.2175(W) × 0.2088(H)  mm
LCD type TFT, Normally Black, Transmissive
Interface LVDS
Driver IC EK79001HN + EK73215BCGAor equivalent
Viewing Angle 85/85/85/85
Aspect Ratio 16:9
Backlight Type LED, Normally White
Touch Panel RTP option, CTP under development
Surface Anti-Glare
WF101JTYAHLNN0 - Winstar TFT LCD Display

WF101JTYAHLNN0 Spec

Link to Winstar WF101JTYAHLNN0 web page



TOP

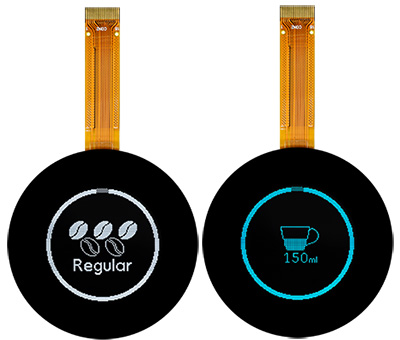

Ø1.18" Circular OLED with PCAP Touch Screen WEO128128D-CTP

WEO128128D-CTP is an Ø1.18" circular graphic OLED display; with capacitive touch screen on module; made of resolution 128x128 dots. This module is built in with SSD1327 IC, it supports 4-line SPI and I2C interface, supply voltage for logic 3V (typical value), 1/128 driving duty. This WEO128128D-CTP model is built in with IT7259 touch panel IC on module, which supports I2C interface, one detect point for capacitive touch screen.

This round OLED WEO128128D with CTP model is ideal for smart home applications, intelligent technology devices, energy systems, communication systems, medical instrument, etc. This module can be operating at temperatures from -20℃ to +50℃; its storage temperatures range from -30℃ to +70℃.

WEO128128D+CTP Dimension
Dot Matrix 128 × 128 Dots
Module dimension Ø50.5 × 5.0 mm
Active Area Ø30.0 mm
Pixel Size 0.210 × 0.210 mm
Pixel Pitch 0.235 × 0.235 mm
Display Mode PMOLED Passive Matrix
Display Color Monochrome (White/Yellow/Sky Blue)
Drive Duty 1/128 Duty
Gray Scale 4 bits
IC SSD1327
Interface 4-line SPI , I2C
Size 1.18 inch
CTP IC IT7259
Detect Point 1
CTP Interface I2C
CTP Surface Hardness 6H
WEO128128D-CTP - Winstar OLED Display

WEO128128D-CTP spec

Link to Winstar WEO128128D-CTP web page



TOP

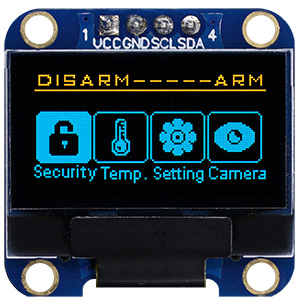

0.96" Dual Color OLED WEA012864MX with PCB

WEA012864MX is a COG 0.96" Dual Color OLED with PCB board on module. The module is built in with SSD1306 IC; it supports I2C interface, 1/64 driving duty, supply voltage for Logic 5V, optional 3.3V, with conversion circuit. WEA012864MX model is having PCB outline size 27.3 × 27.3 mm with mounting holes on board and 4x1 metal pins on module. The standard color is yellow/sky blue only, without any other color options.

WEA012864MX OLED module is suitable for smart home application, medical device, smart control, meter, etc. This module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.

WEA012864MX Dimension
Dot Matrix 128 × 64 Dots
Module dimension 27.3 × 27.3 × 2.72 mm
Active Area 21.744 × 11.204 mm
Pixel Size 0.148 × 0.148 mm
Pixel Pitch 0.17 × 0.17 mm
Display Mode Passive Matrix OLED
Display Color Dual Color: Yellow / Sky Blue
Drive Duty 1/64 Duty
IC SSD1306
Interface I2C
Size 0.96 inch
WEA012864MX - Winstar OLED Module

WEA012864M Spec

Link to Winstar WEA012864MX web page
