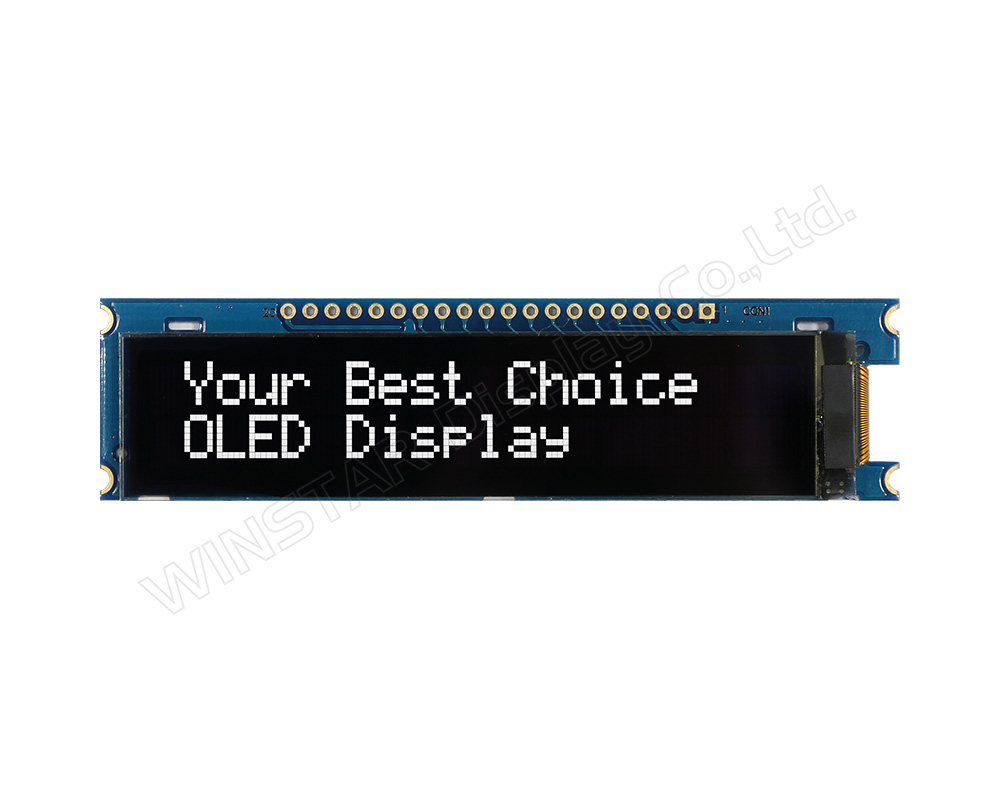

產品敘述

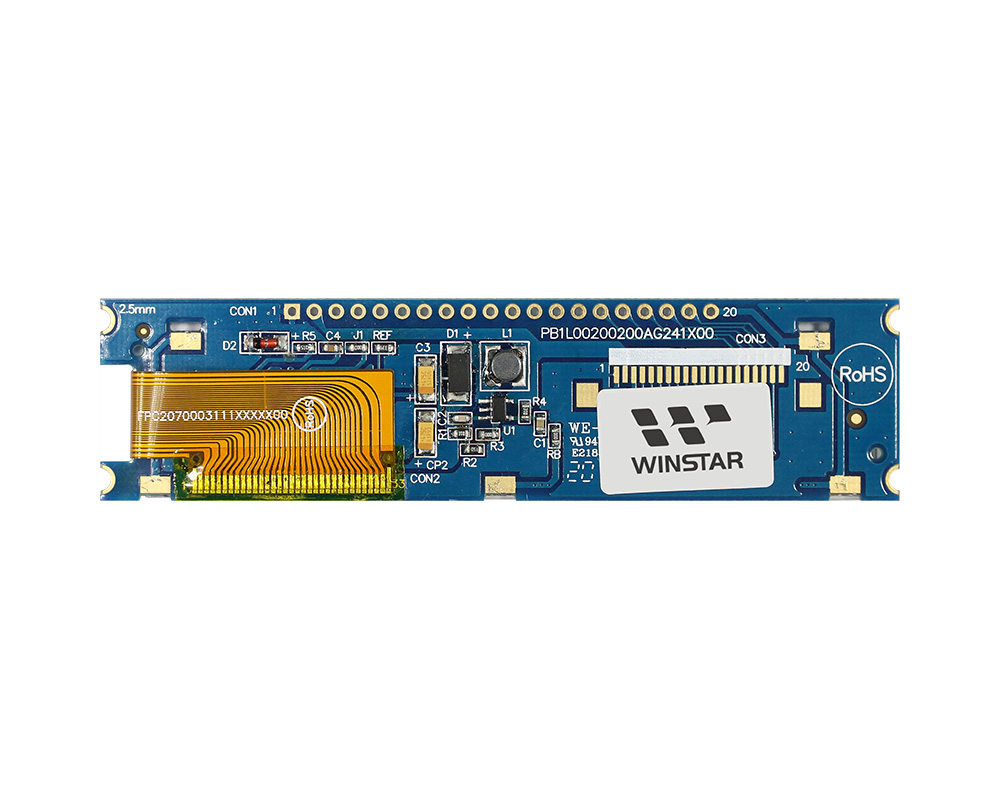

WEA002002A為2.93吋20字元x 2行COG加PCB板 OLED顯示器，模組PCB板上設計4個鎖孔更方便客戶固定模組在應用產品上。此模組內建SSD1311IC，支援4bit/8bit 6800和8080並列介面、I2C 和4線SPI串列介面。模組內建ROM儲存ASCII、英語、歐洲、日語等字庫。邏輯供電電壓預設為3.3V可選5V，50%顯示畫面耗電流為50mA，工作電壓3.3V (typical value)，driving duty 1/16。 WEA002002A OLED模組加PCB設計客戶可使用導線連接，客戶不需要額外自行開發PCB版。此模組整合了介面設定和VCC電路，使客戶易於使用。
WEA002002A 2.93吋 字元型 OLED模組適合用於智能家居應用、醫療設備、智能控制系統、工業控制等。模組工作溫度為-40℃至+80℃；儲存溫度為-40℃至+ 85℃。

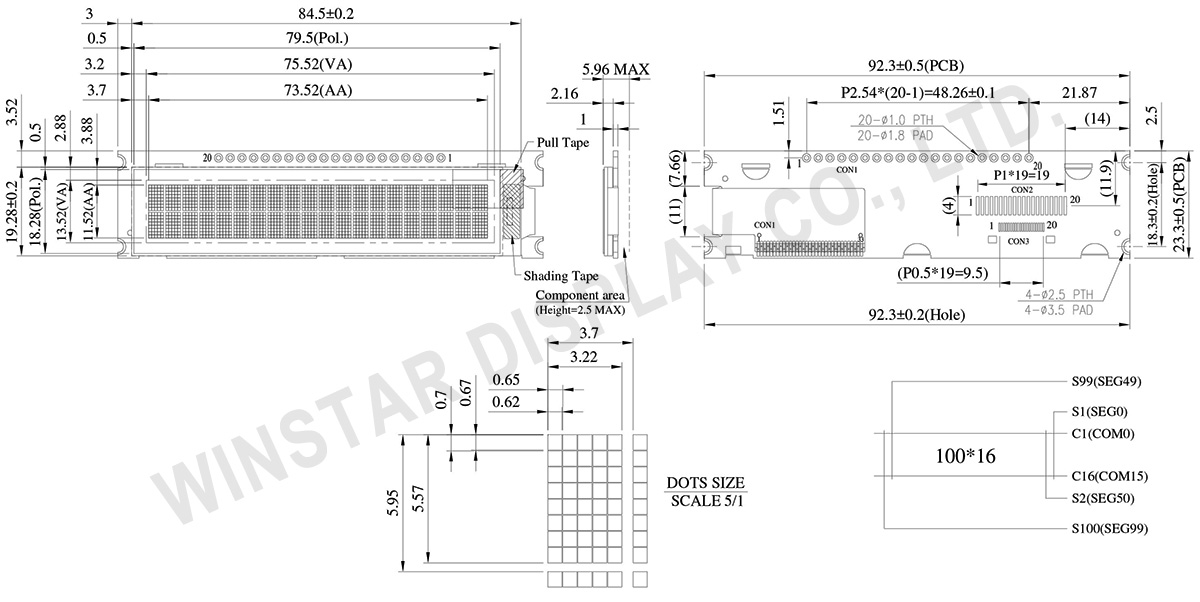

規格圖
產品規格
Pin功能定義
| Pin No. | 符號 | Pin 類型 | 說明 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | VSS | P | Ground pin. It must be connected to external ground. | ||||||||||||||||||
| 2 | VDD | P | Power supply for core logic operation. A capacitor should be connected between VDD and VSS under all circumstances. |
||||||||||||||||||
| 3 | REGVDD | I | Internal VDD regulator selection pin It must be connected to external ground. |
||||||||||||||||||
| 4 | D/C# | I | This pin is Data/Command control pin connecting to the MCU. When the pin is pulled HIGH, the data at D[7:0] will be interpreted as data. When the pin is pulled LOW, the data at D[7:0] will be transferred to a command register. In I2C mode, this pin acts as SA0 for slave address selection. When serial interface is selected, this pin must be connected to VSS. |
||||||||||||||||||
| 5 | R/W# | I | This pin is read / write control input pin connecting to the MCU interface. When 6800 interface mode is selected, this pin will be used as Read/Write (R/W#) selection input. Read mode will be carried out when this pin is pulled HIGH and write mode when LOW. When 8080 interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled LOW and the chip is selected. When serial or I2C interface is selected, this pin must be connected to VSS. |
||||||||||||||||||
| 6 | E | I | This pin is MCU interface input. When 6800 interface mode is selected, this pin will be used as the Enable (E) signal. Read/write operation is initiated when this pin is pulled HIGH and the chip is selected. When 8080 interface mode is selected, this pin receives the Read (RD#) signal. Read operation is initiated when this pin is pulled LOW and the chip is selected. When serial or I2C interface is selected, this pin must be connected to VSS. |
||||||||||||||||||
| 7 | D0 | I/O | These pins are bi-directional data bus connecting to the MCU data bus. Unused pins are recommended to tie LOW. When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SID and D2 will be the serial data output: SOD. When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL. |
||||||||||||||||||
| 8 | D1 | ||||||||||||||||||||
| 9 | D2 | ||||||||||||||||||||
| 10 | D3 | ||||||||||||||||||||
| 11 | D4 | ||||||||||||||||||||
| 12 | D5 | ||||||||||||||||||||
| 13 | D6 | ||||||||||||||||||||
| 14 | D7 | ||||||||||||||||||||
| 15 | CS# | I | This pin is the chip select input connecting to the MCU. The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW). In I2C mode, this pin must be connected to VSS. |
||||||||||||||||||
| 16 | RES# | I | This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed. Keep this pin pull HIGH during normal operation. |
||||||||||||||||||
| 17 | BS0 | I | MCU bus interface selection pins. Select appropriate logic setting as described in the following table. BS2, BS1 and BS0 are pin select. Bus Interface selection
(1) 0 is connected to VSS (2) 1 is connected to VDD |
||||||||||||||||||
| 18 | BS1 | ||||||||||||||||||||
| 19 | BS2 | ||||||||||||||||||||
| 20 | VSS | P | Ground pin. It must be connected to external ground. |
規格說明
| 項目 | 尺寸 | 單位 |
|---|---|---|
| 字元數 | 20字x2行 | － |
| 模組尺寸 | 92.3 x 23.3 x 5.96 Max.. | mm |
| 有效區域 | 73.52 x 11.52 | mm |
| 點大小 | 0.62 x 0.67 | mm |
| 點間距 | 0.65 x 0.70 | mm |
| 字大小 | 3.22 x 5.57 | mm |
| 字間距 | 3.70 x 5.95 | mm |
| LCD類型 | OLED , 單色 | |
| Duty | 1/16 | |
| IC | SSD1311 | |
| 介面 | 6800, 8080, SPI, I2C | |
| 尺寸 | 2.93 吋 | |
最大絕對額定值
| 項目 | 符號 | 最小值 | 最大值 | 單位 |
|---|---|---|---|---|
| 邏輯電源電壓 | VDD-VSS | -0.3 | 3.6 | V |
| 工作溫度 | TOP | -40 | +80 | °C |
| 儲存溫度 | TST | -40 | +85 | °C |
電氣特性
DC 電氣特性
| 項目 | 符號 | 條件 | 最小值 | 典型值 | 最大值 | 單位 |
|---|---|---|---|---|---|---|
| 邏輯電源電壓 | VDD-VSS | － | 3.1 | 3.3 | 3.5 | V |
| 輸入高電壓 | VIH | － | 0.8xVDD | － | － | V |
| 輸入低電壓 | VIL | － | － | － | 0.2xVDD | V |
| 輸出高電壓 | VOH | IOH=-0.5mA | 0.9xVDD | － | － | V |
| 輸出低電壓 | VOL | IOL=0.5mA | － | － | 0.1xVDD | V |
| 50%顯示畫面耗電流 | IDD | VDD=3.3V | － | 50 | 75 | mA |
