產品敘述

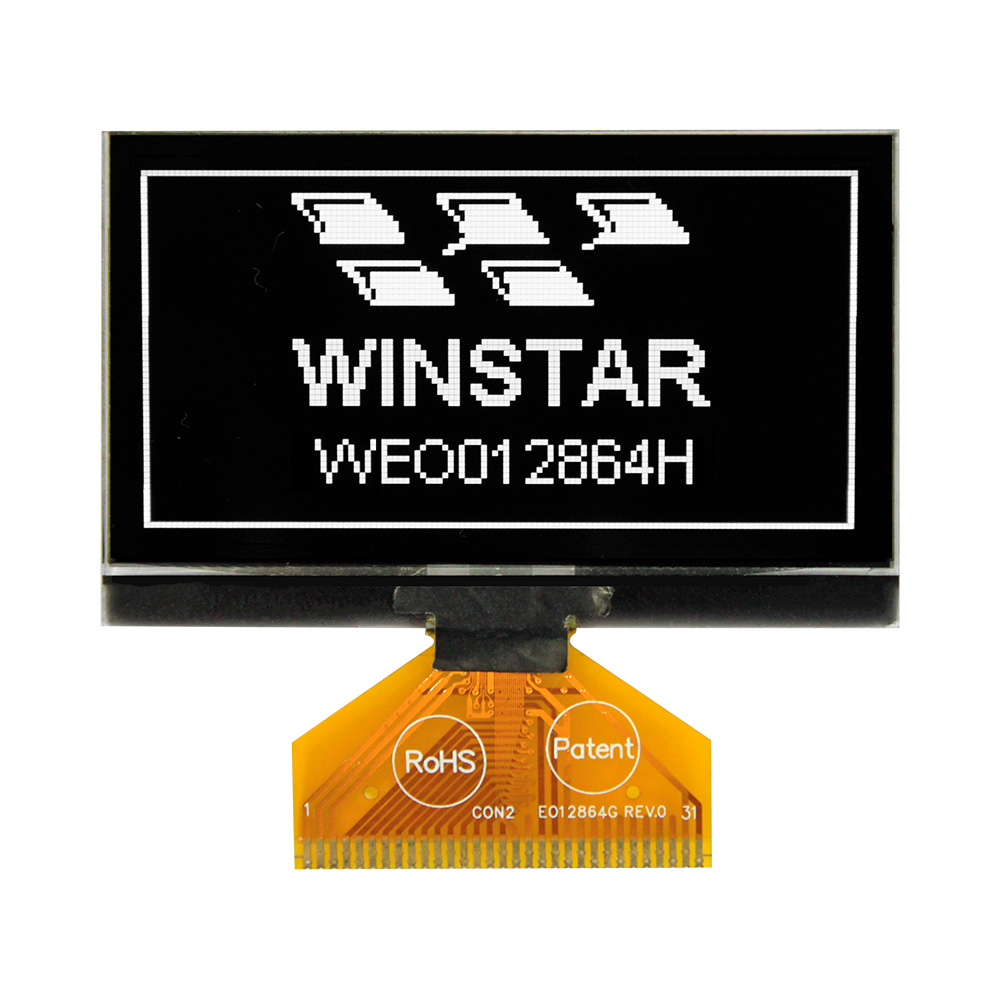

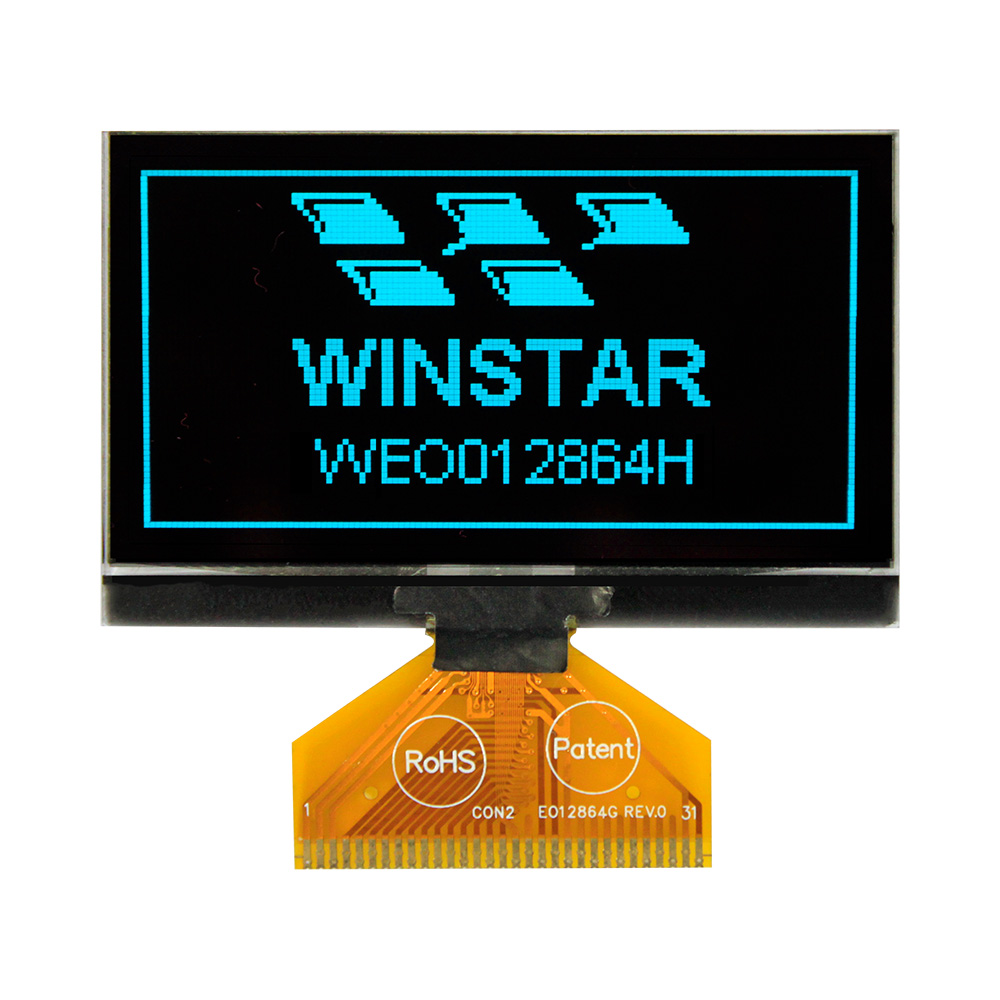

WEO012864H COG 2.42吋OLED顯示器內建SSD1309 IC，支援多種介面，包括6800、8080、I2C和SPI。憑藉10,000:1的高對比度和-40°C~+80°C的寬工作溫度範圍，無論環境如何，您都可以確保您的顯示器看起來令人驚嘆。這些COG OLED模組超薄、輕量、低功耗，非常適合手持式產品、量測儀器、智慧電表、穿戴式產品、物聯網設備等等。
我們提供兩個版本的 OLED 模組來滿足您的特定需求：WEO012864H 和 WEO012864G。 兩個模組均使用相同的高品質OLED面板，但WEO012864H採用Hot Bar FPC方式連接，而WEO012864G使用ZIF FPC方式連接。 在我們的兩個版本之間選擇最適合您的專案需求。

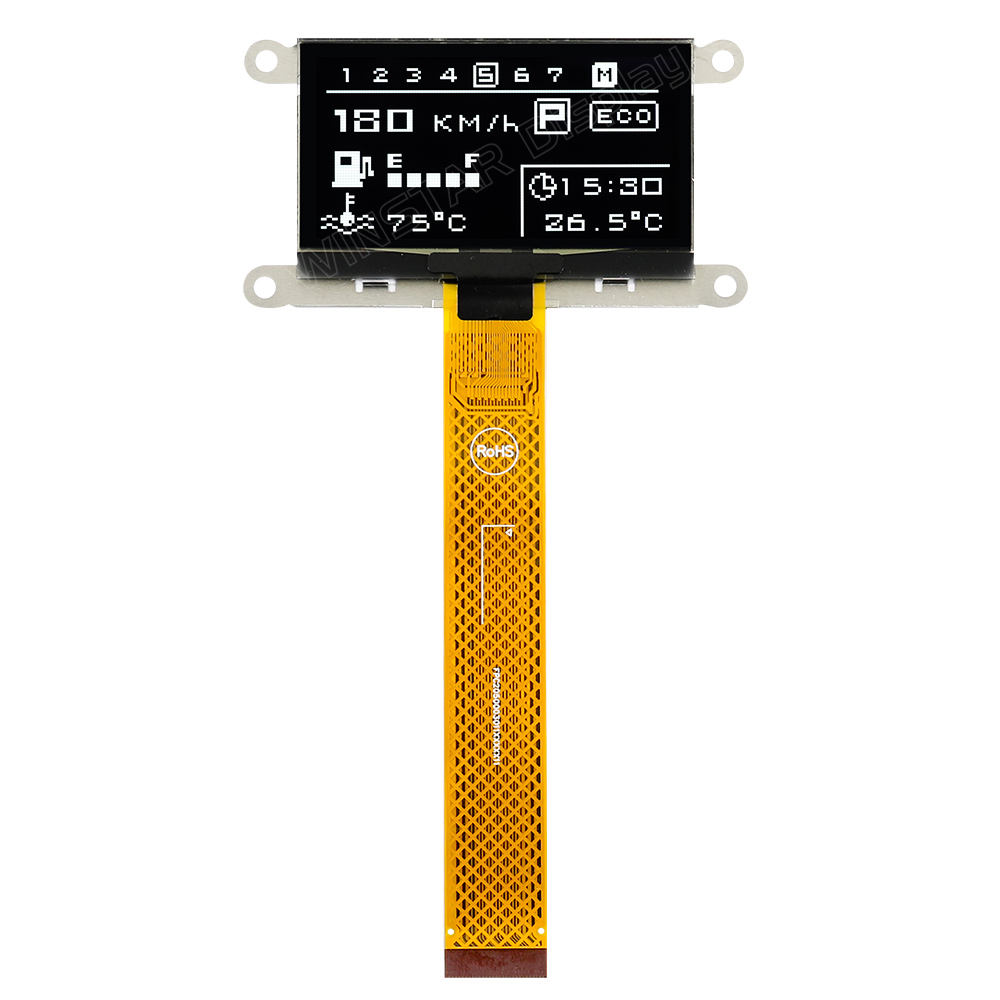

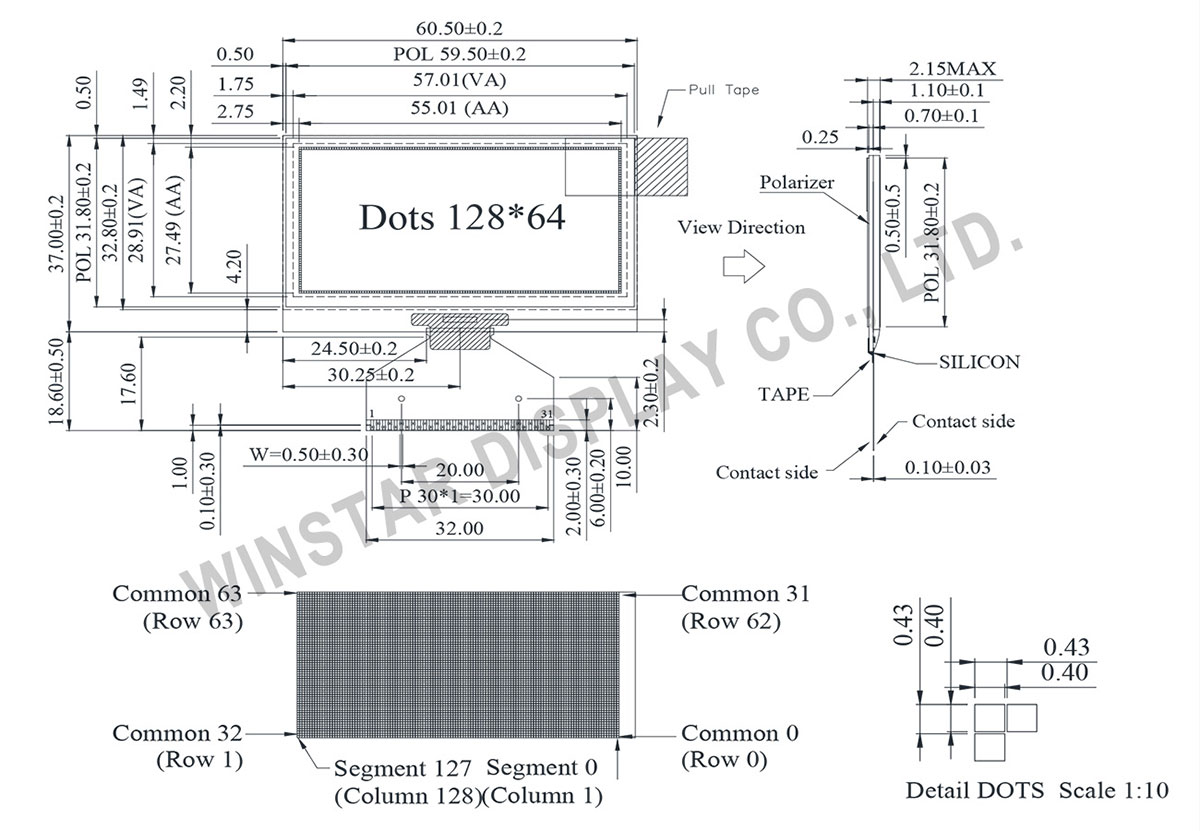

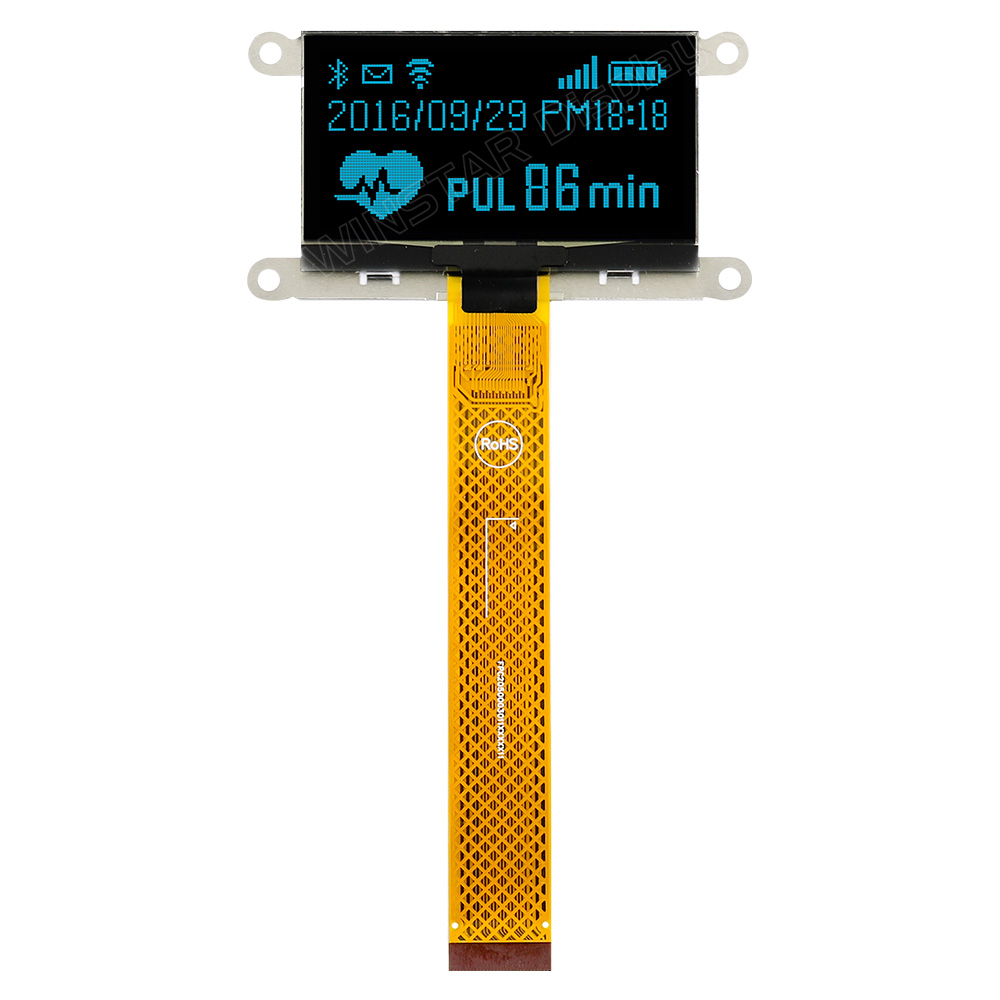

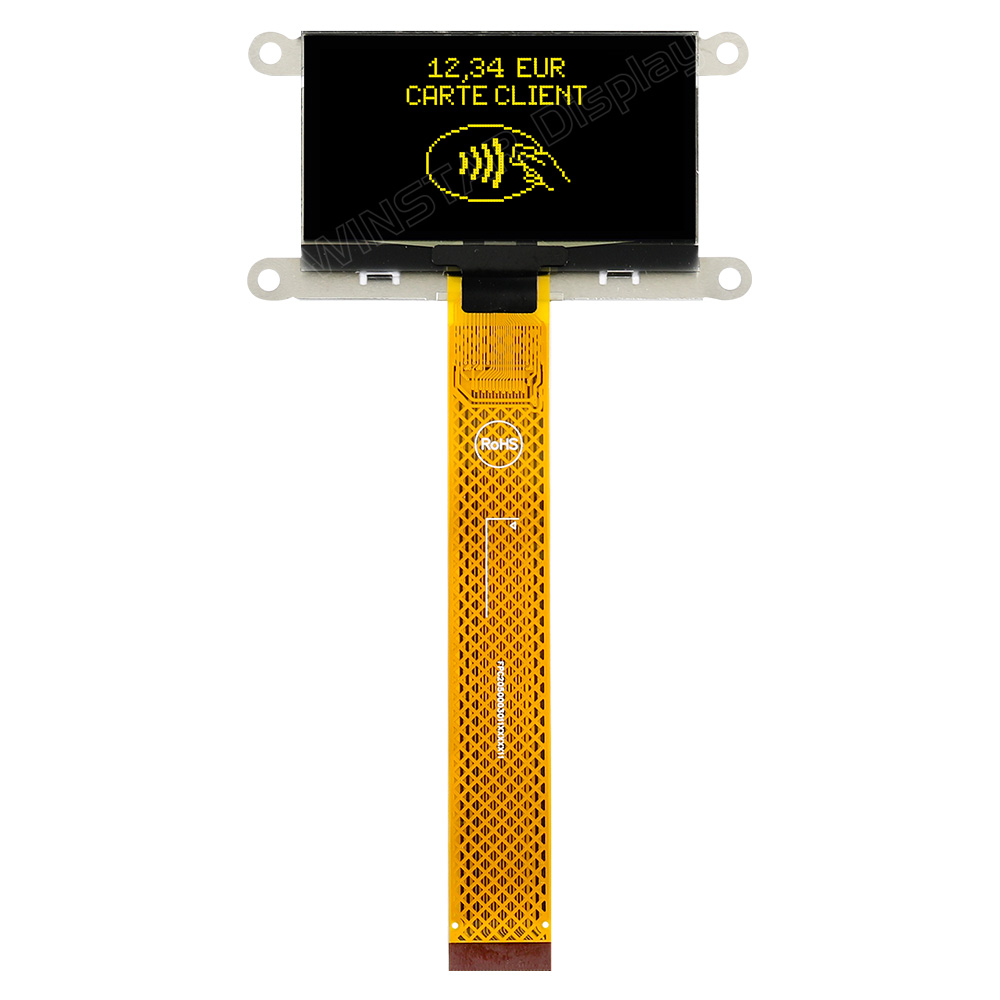

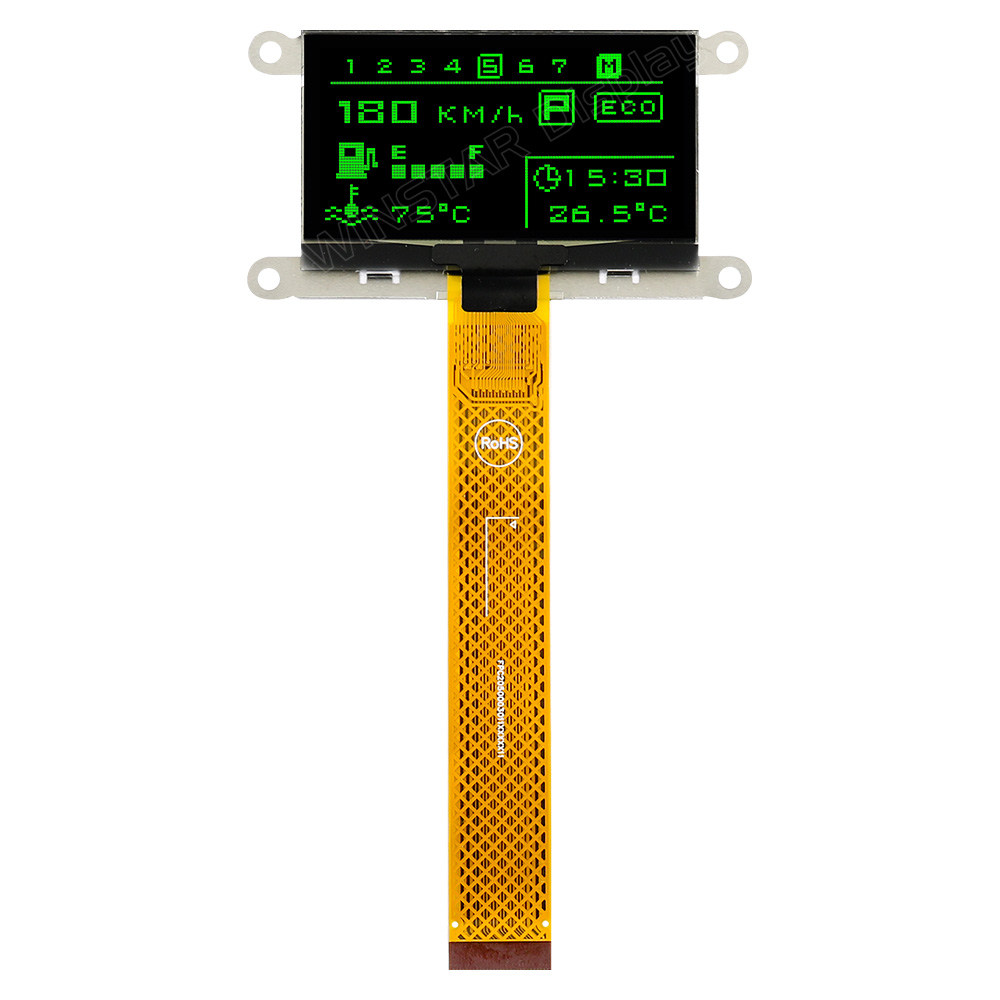

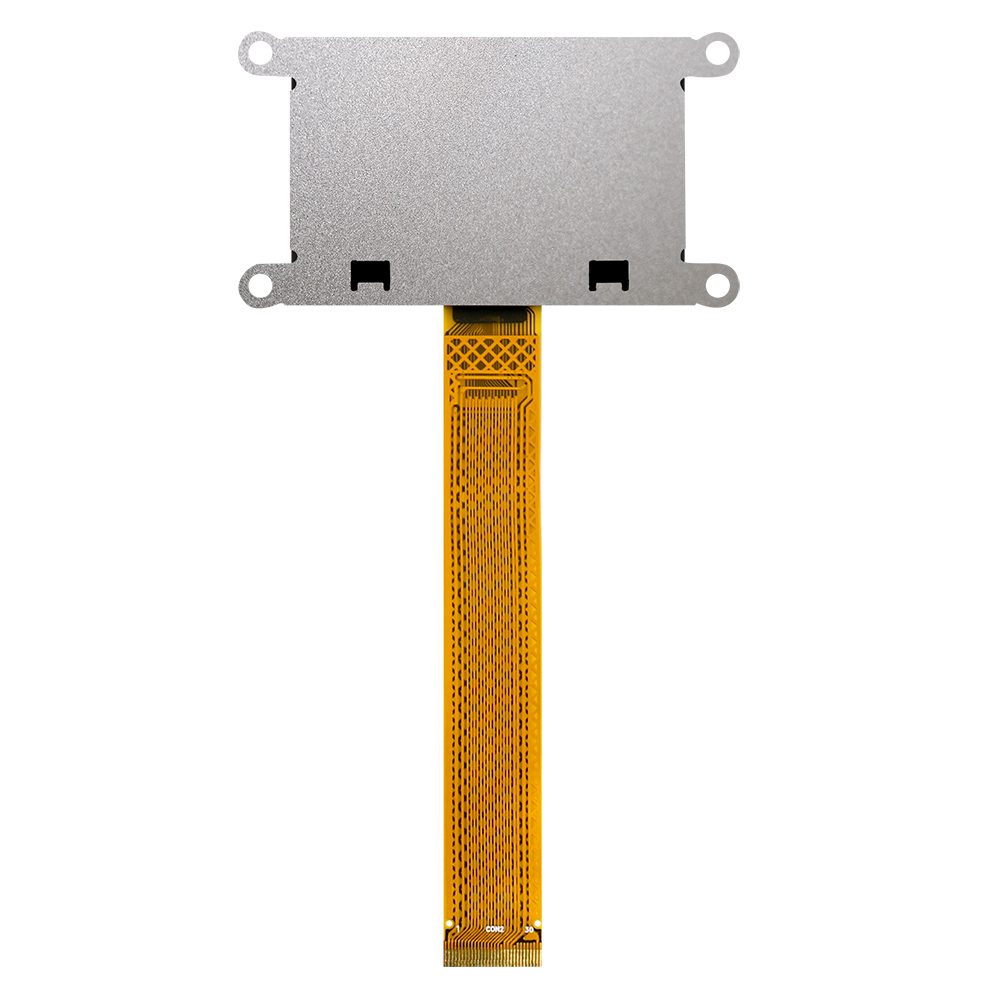

可另選加鐵框 規格圖
Data source ref:WEO012864HWPP3N00000
產品規格
規格說明
| 項目 | 尺寸 | 單位 |
|---|---|---|
| 點陣 | 128 x 64 Dots | － |
| 模組尺寸 | 60.5 × 37.0 × 2.15 | mm |
| 有效區域 | 55.01 × 27.49 | mm |
| 像素大小 | 0.40 × 0.40 | mm |
| 像素間距 | 0.43 × 0.43 | mm |
| 顯示模式 | 被動矩陣(Passive Matrix) | |
| 顯示顏色 | 單色 | |
| 驅動方式 | 1/64 Duty | |
| IC | SSD1309 | |
| 介面 | 6800, 8080, 4-Wire SPI, I2C | |
| 對角線尺寸 | 2.42 吋 | |
最大絕對額定值
| 參數 | 符號 | 最小值 | 最大值 | 單位 |
|---|---|---|---|---|
| 邏輯電源電壓 | VDD | -0.3 | 4 | V |
| 顯示電源電壓 | VCC | 0 | 15 | V |
| 工作溫度 | TOP | -40 | +80 | °C |
| 儲存溫度 | TSTG | -40 | +85 | °C |
電氣特性
DC 電氣特性
| 項目 | 符號 | 條件 | 最小值 | 典型值 | 最大值 | 單位 |
|---|---|---|---|---|---|---|
| 邏輯電源電壓 | VDD | － | 2.8 | 3.0 | 3.3 | V |
| 顯示器供電電壓 | VCC | － | 12.5 | 13 | 13.5 | V |
| 輸入高準位 | VIH | － | 0.8×VDD | － | － | V |
| 輸入低準位 | VIL | － | 0 | － | 0.2×VDD | V |
| 輸出高準位 | VOH | － | 0.9×VDD | － | － | V |
| 輸出低準位 | VOL | － | 0 | － | 0.1×VDD | V |
| 50% 設備運行電流 | VCC=7.5V | － | 6 | 13 | mA | |
Pin功能定義
| No. | 符號 | 功能說明 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | NC(GND) | No connection | |||||||||||||||
| 2 | VCC | Power supply for panel driving voltage. This is also the most positive power voltage supply pin. | |||||||||||||||
| 3 | VCOMH | COM signal deselected voltage level. A capacitor should be connected between this pin and VSS. |
|||||||||||||||
| 4 | IREF | This pin is the segment output current reference pin. IREF is supplied externally. A resistor should be connected between this pin and VSS to maintain the current around 10uA. |
|||||||||||||||
| 5~12 | D7~D0 | These pins are bi-directional data bus connecting to the MCU data bus. Unused pins are recommended to tie LOW. When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN and D2 should be kept NC. When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL. |
|||||||||||||||
| 13 | E/RD# | This pin is MCU interface input. When 6800 interface mode is selected, this pin will be used as the Enable (E) signal. Read/write operation is initiated when this pin is pulled HIGH and the chip is selected. When 8080 interface mode is selected, this pin receives the Read (RD#) signal. Read operation is initiated when this pin is pulled LOW and the chip is selected. When serial or I2C interface is selected, this pin must be connected to VSS. |
|||||||||||||||
| 14 | R/W# | This pin is read / write control input pin connecting to the MCU interface. When 6800 interface mode is selected, this pin will be used as Read/Write (R/W#) selection input. Read mode will be carried out when this pin is pulled HIGH and write mode when LOW. When 8080 interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled LOW and the chip is selected. When serial or I2C interface is selected, this pin must be connected to VSS. |
|||||||||||||||
| 15 | D/C# | This pin is Data/Command control pin connecting to the MCU. When the pin is pulled HIGH, the data at D[7:0] will be interpreted as data. When the pin is pulled LOW, the data at D[7:0] will be transferred to a command register. In I2C mode, this pin acts as SA0 for slave address selection. |
|||||||||||||||
| 16 | RES# | This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed. Keep this pin pull HIGH during normal operation. |
|||||||||||||||
| 17 | CS# | This pin is the chip select input connecting to the MCU. The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW). |
|||||||||||||||
| 18 | NC | No connection | |||||||||||||||
| 19 | BS2 | MCU bus interface selection pins. Select appropriate logic setting as described in the following table. BS2 and BS1 are pin select
Note (1) 0 is connected to VSS (2) 1 is connected to VDD |
|||||||||||||||
| 20 | BS1 | ||||||||||||||||
| 21 | VDD | Power supply pin for core logic operation | |||||||||||||||
| 22-29 | NC | No connection | |||||||||||||||
| 30 | VSS | Ground. | |||||||||||||||
| 31 | NC(GND) | No connection |
