型號 WEO012832D

►2017年台灣精品獎獲獎產品

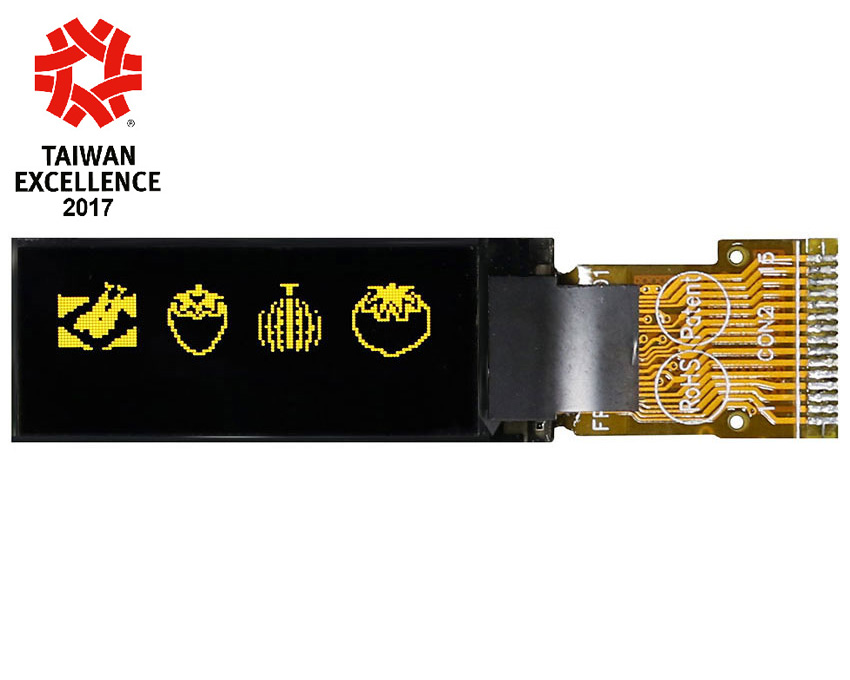

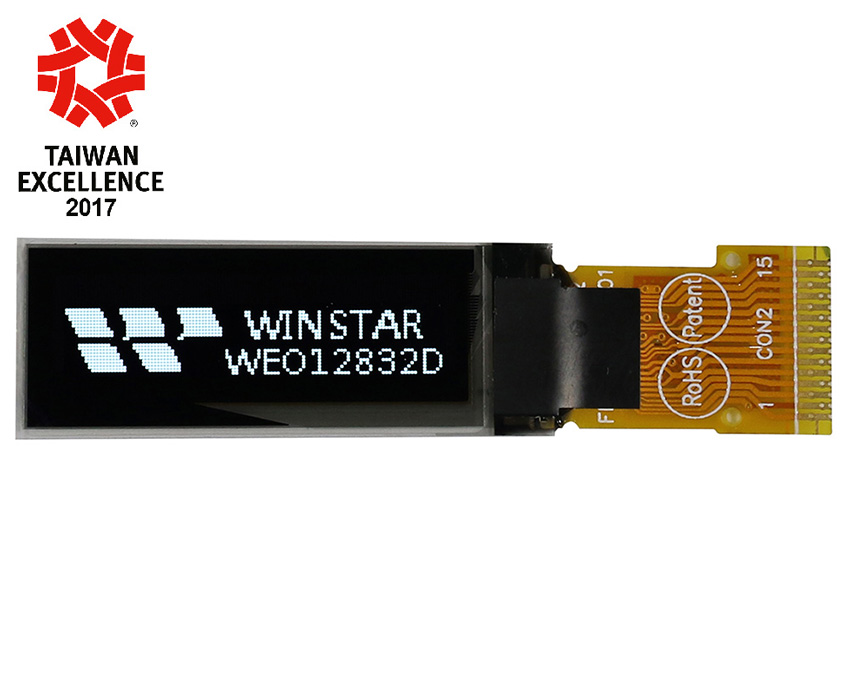

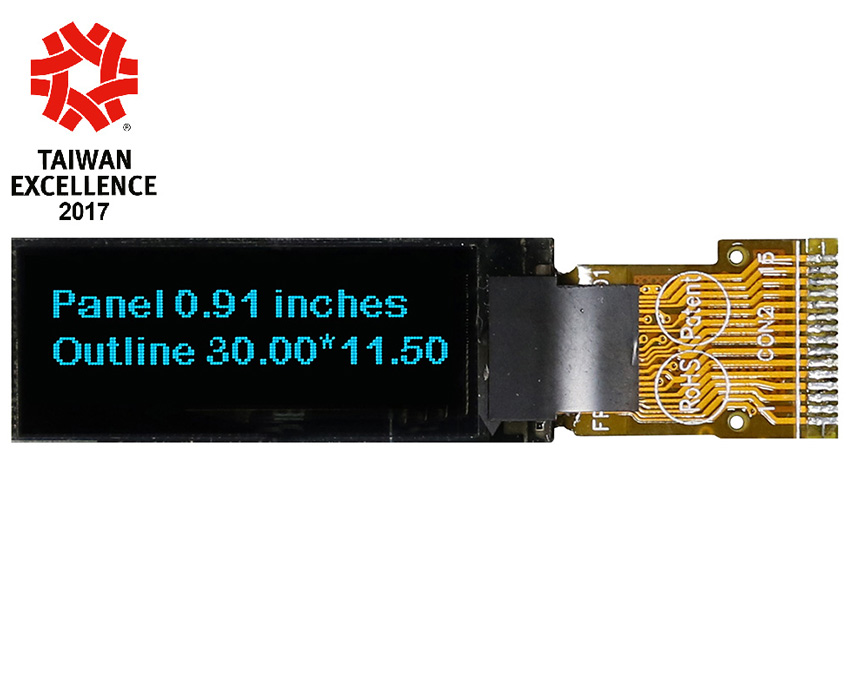

►類型: 繪圖型 (不含鐵框)
►結構:COG
►尺寸: 0.91吋 ; 適用於穿載設備
►128 x 32 點陣
►IC:SSD1306
►3V電源電壓
►1/32 duty
►介面: SPI
►發光顏色: 白色 / 黃色 / 天空藍
►其它FPC選項請參閱最下方表格說明

產品敘述

0.91吋OLED模組是最常被採用作為穿戴式顯示器的PM OLED小尺寸之一。華凌WEO012832D榮獲2017台灣精品獎是市場上最受歡迎的COG繪圖型0.91 OLED模組;解析度為128x32 像素,外觀尺寸為30×11.5 mm,AA尺寸為22.384×5.584 mm。此款內建SSD1306 IC,模組控制介面僅能使用串列式4線SPI,因為是OLED面板無需背光源,此款使用COG結構,所以顯示器模組非常的薄僅1.26 mm,重量輕且低耗電流,超高對比度且視角超過175度,所以非常適合手持式產品、量測儀器、智慧電表、穿戴式產品、電子菸、物聯網設備等等。COG OLED與TAB OLED有個很重要的差異是因為COG模組的IC是打在玻璃上,因此COG OLED 模組的FPC多半是可以饒折的,因而在客戶端的產品設計上較為方便。此型號OLED模組可支援內部升壓及外部供電。


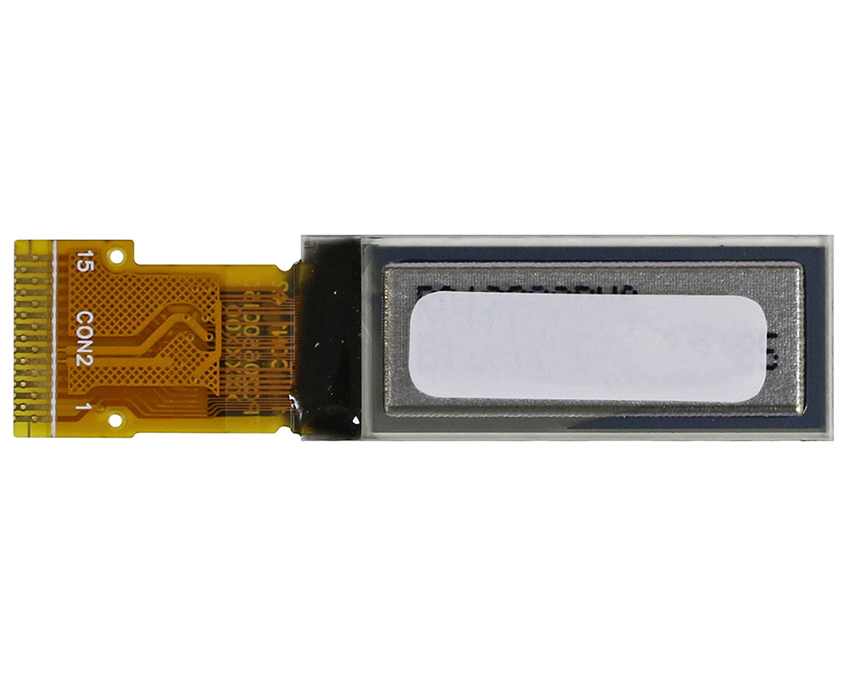

     可選 FPC

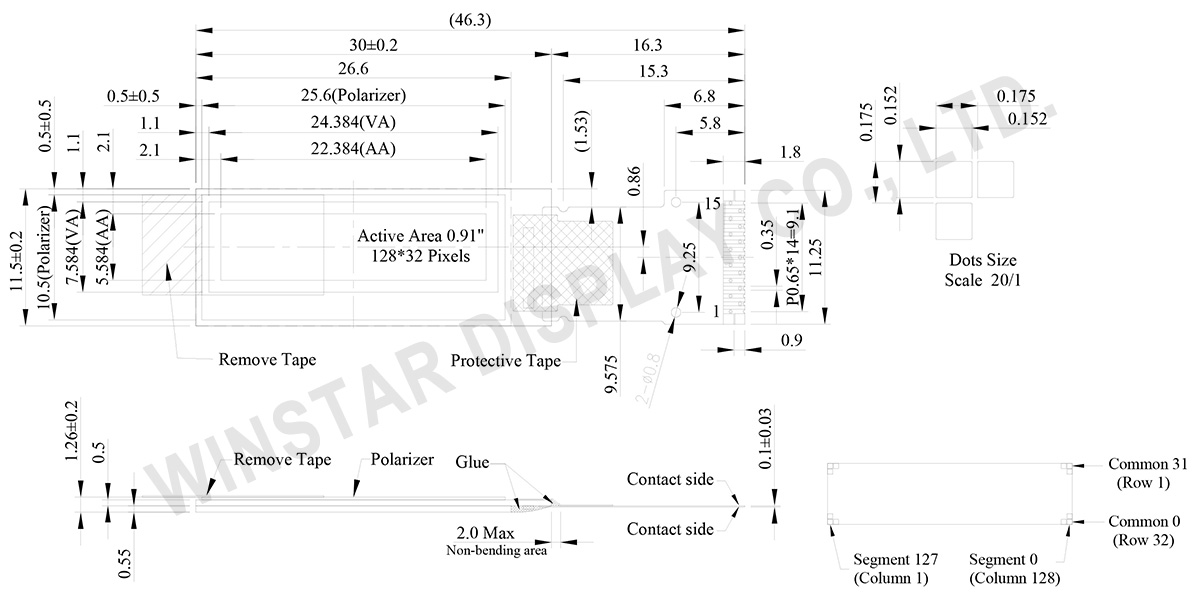

規格圖

OLED 128x32, 128x32 OLED Display, 0.91 inch OLED - WEO012832D

Data source ref: WEO012832DWPP3N00008


產品規格

Pin功能定義

No. 符號 功能說明
1 C2P Positive Terminal of the Flying Inverting Capacitor Negative Terminal of the Flying Boost CapacitorThe charge-pump capacitors are required between the terminals. They must be floated when the converter is not used.
2 C2N
3 C1P
4 C1N
5 VBAT Power Supply for DC/DC Converter Circuit
This is the power supply pin for the internal buffer of the DC/DC voltage converter. It must be connected to external source when the converter is used. It should be connected to VDD when the converter is not used.
6 VSS Ground of Logic Circuit
This is a ground pin. It acts as a reference for the logic pins. It must be connected to external ground.
7 VDD Power Supply for Logic
This is a voltage supply pin. It must be connected to external source.
8 CS# Chip Select
This pin is the chip select input. The chip is enabled for MCU communication only when CS# is pulled low.
9 RES# Power Reset for Controller and Driver
This pin is reset signal input. When the pin is low, initialization of the chip is executed.
10 D/C# Data/Command Control
This pin is Data/Command control pin..
When the pin is pulled high and serial interface mode is selected, the data at SDIN is treated as data. When it is pulled low, the data at SDIN will be transferred to the command register.
11 SCLK When serial mode is selected, D1 will be the serial data input SDIN and D0 will be the serial clock input SCLK.
12 SDIN
13 IREF Current Reference for Brightness Adjustment
This pin is segment current reference pin. A resistor should be connected between this pin and VSS. Set the current lower than 30uA.
14 VCOMH Voltage Output High Level for COM Signal
This pin is the input pin for the voltage output high level for COM signals. A capacitor should be connected between this pin and VSS.
15 VCC Power Supply for OEL Panel
This is the most positive voltage supply pin of the chip. A stabilization capacitor should be connected between this pin and VSS when the converter is used. It must be connected to external source when the converter is not used.

規格說明

項目 規格 單位
點陣(解析度) 128 × 32 Dots
模組尺寸 30.0 × 11.5 × 1.26 mm
有效區域 22.384 × 5.584 mm
像素大小 0.152 × 0.152 mm
像素間距 0.175 × 0.175 mm
顯示模式 Passive Matrix被動矩陣
發光顏色 單色
驅動方式 1/32 Duty
IC SSD1306
介面 4線SPI
尺寸(對角線) 0.91 吋

最大絕對額定值

參數 符號 最小值 最大值 單位
邏輯電源電壓 VDD 0 4.0 V
顯示電源電壓 VCC 0 16.0 V
工作溫度 TOP -40 +80 °C
儲存溫度 TSTG -40 +85 °C

電氣特性

DC 電氣特性

項目 符號 條件 最小值 典型值 最大值 單位
邏輯電源電壓 VDD 2.8 3.0 3.3 V
顯示電源電壓 (Supplied Externally)  VCC 7 7.25 8 V
電荷幫浦穩壓器電源電壓 VBAT 3.0 4.2 V
顯示器的電荷幫浦輸出電壓 (Generated by Internal DC/DC) Charge Pump
VCC
7.0 7.5 - V
輸入高準位 VIH 0.8×VDD VDD V
輸入低準位 VIL 0 0.2×VDD V
輸出高準位 VOH 0.9×VDD VDD V
輸出低準位 VOL 0 0.1×VDD V
VCC的工作電流 (VCC Supplied Externally) ICC VCC =7.25V 7 11 mA
550%顯示畫面耗電流 (VCC Generated by Internal DC/DC) IBAT 15 25 mA

FPC Options:

Drawing FPC Length PIN pitch ZIF FPC or HOTBAR FPC Interface FPC No. Create Date
FPC2065001501XXXXX00_WEO012832DLPP3N00000 17.06 15 0.65 HOTBAR FPC SPI FPC2065001501XXXXX00 20140827
FPC2050001511XXXXX02_WEO012832DWPP3N00001 40.76 15 0.5 ZIF FPC SPI FPC2050001511XXXXX02 20150421
FPC2062001401XXXXX02_WEO012832FLPP3N00000 11.26 14 0.62 HOTBAR FPC I2C FPC2062001401XXXXX02 20160106
