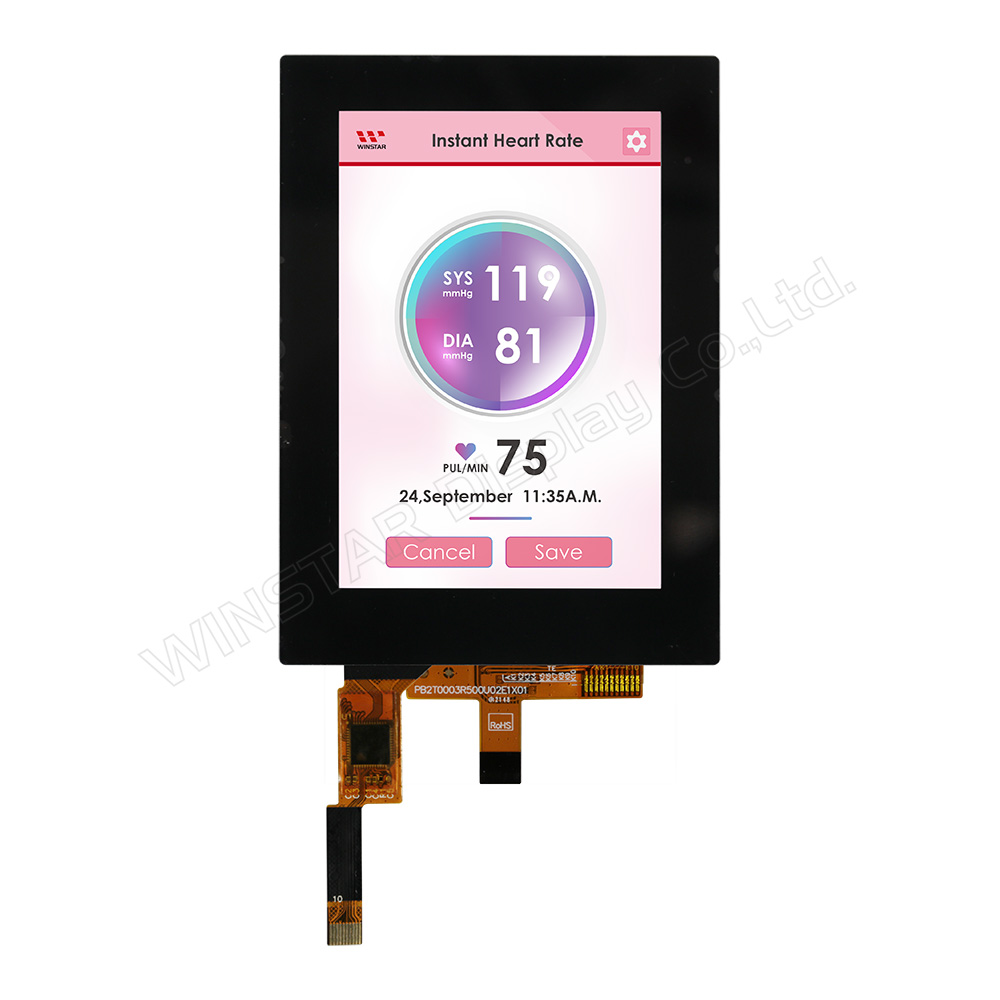

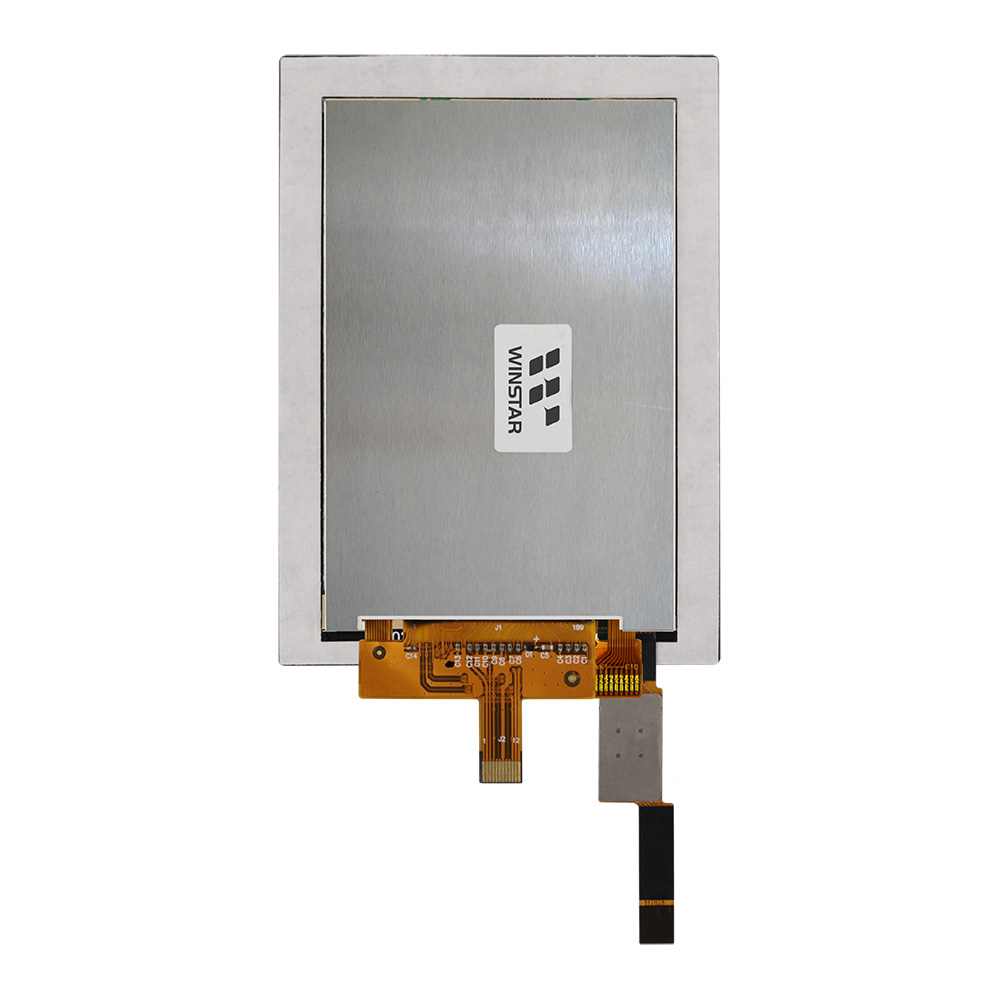

WF35UTYAIMNG0 是一款3.5吋 IPS TFT LCD模組,解析度為320x480像素。 此模組內建 ILI9488 IC,支援 MIPI (Mobile Industry Processor Interface) DSI (Display Serial Interface)介面,亮度500 nits(典型值),對比度 700:1 (典型值)。WF35UTYAIMNG0模組加上投射式電容觸控面板(PCAP),觸控面板內建 GT911 IC 可支援I2C介面,類比電路為2.8V~3.3V。 如果客戶不需觸控面板可以選擇我們的WF35UTYAIMNN0型號。
此款3.5" TFT LCD模組是直屏模式採用IPS面板,具有更寬廣視角的優勢,視角左:80/右:80/上:80/下:80度(典型值)。 WF35UTYAIMNG0模組工作溫度範圍-20℃~+70℃;儲存溫度範圍-30℃~+80℃。
項目 | 規格 | 單位 |
---|---|---|
顯示尺寸(對角線) | 3.5 | 吋 |
點陣(解析度) | 320 × RGB × 480(TFT) | dots |

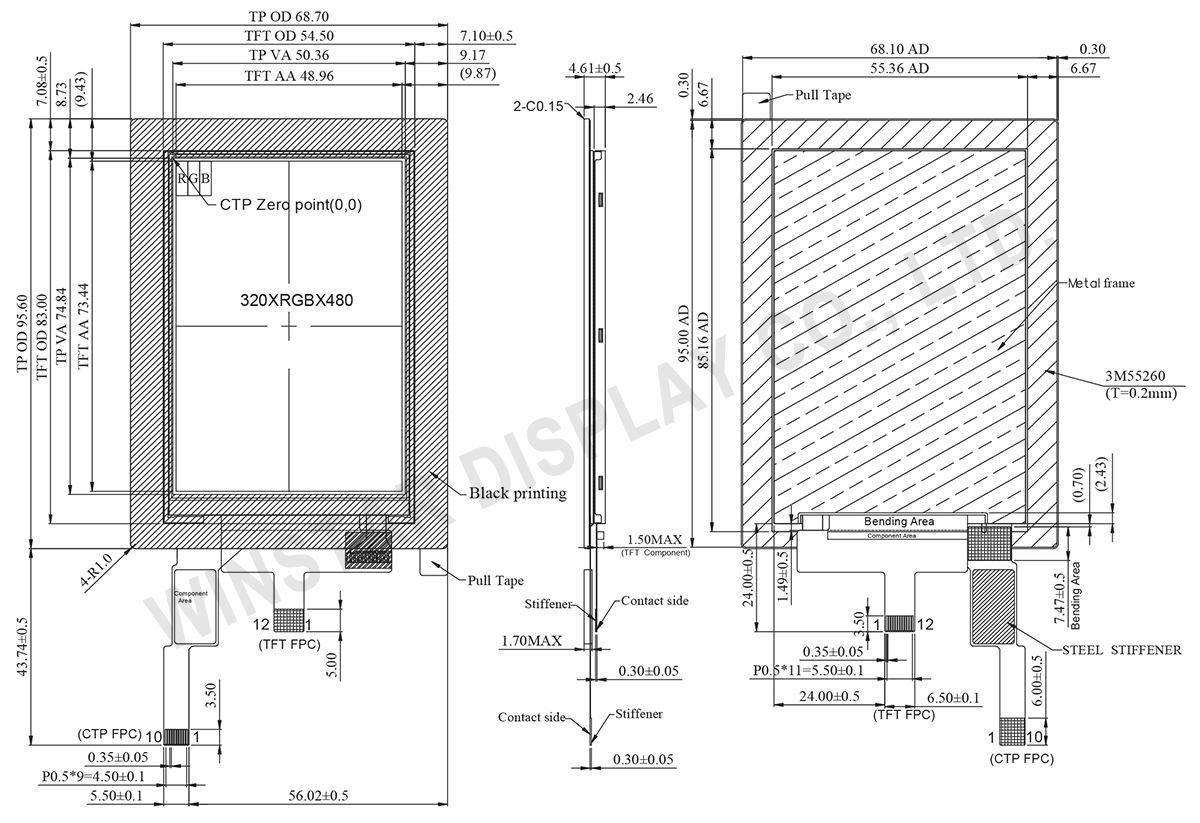

模組尺寸 | 68.7 (W) × 95.6 (H) × 4.61(D) | mm |
有效區域 | 48.96 × 73.44 | mm |
像素間距 | 0.153 × 0.153 | mm |
LCD 類型 | TFT全透 | |
視角 | 80/80/80/80 | |
長寬比 | 直屏 | |
驅動 IC | ILI9488 | |
介面 | 1-Lane MIPI | |
背光類型 | LED, 白色 | |
PCAP驅動IC | GT911 | |
PCAP介面 | I2C | |
FW版本 | 0x95 | |
PCAP解析度 | 320*480 | |
觸控面板類型 | PCAP電容式觸控面板 | |
表面 | 亮面 |
項目 | 符號 | 最小值 | 典型值 | 最大值 | 單位 |
---|---|---|---|---|---|
工作溫度 | TOP | -20 | - | 70 | ℃ |
儲存溫度 | TST | -30 | - | 80 | ℃ |
項目 | 符號 | 條件 | 最小值 | 典型值 | 最大值 | 單位 |
---|---|---|---|---|---|---|
數位電源電壓 | IOVCC | - | - | 1.8/2.8 | 3.3 | V |
類比電源電壓 | VCI | - | - | 2.8 | 3.3 | V |
電源電流 | ICC | IOVCC=VCI =VCC=3.3V |
- | 13.6 | - | mA |
觸控邏輯電源電壓 | VDDT | - | 2.8 | - | 3.3 | mA |
NO | 符號 | 功能說明 | I/O |
---|---|---|---|
1 | VCI | A supply voltage to the analog circuit. Connect to an external power supply of 2.5 ~ 3.3V. Connect to a stabilizing capacitor between VCI and GND. |
P |
2 | IOVCC | A supply voltage to the digital circuit. Connect to an external power supply of 1.65 ~ 3.3V. | P |
3 | RESET | Reset input signal Initialize the chip with a low input. Be sure to execute a power-on reset after supplying power. |
I |
4 | GND | Ground | I |
5 | MIPI_CLK_P | Positive polarity of low voltage differential clock signal Leave the pin open when not in use. | I |
6 | MIPI_CLK_N | Negative polarity of low voltage differential clock signal Leave the pin open when not in use |
I |
7 | GND | Ground | I |
8 | MIPI_DATA_P | Positive polarity of low voltage differential data signal Leave the pin open when not in use. |
I |
9 | MIPI_DATA_N | Negative polarity of low voltage differential data signal Leave the pin open when not in use. |
I |
10 | GND | Ground | I |
11 | VLED+ | Anode of LED backlight. | |
12 | VLED- | Cathode of LED backlight |
Pin | 符號 | 功能說明 |
---|---|---|
1 | VSS | Connect to system ground. |
2 | VDDT | Power Supply |
3 | SCL | I2C clock input |
4 | NC | No connect |
5 | SDA | I2C data input and output |
6 | NC | No connect |
7 | RST | External Reset, Low is active |
8 | NC | No connect |
9 | INT | External interrupt to the host |
10 | VSS | Connect to system ground. |
