產品敘述

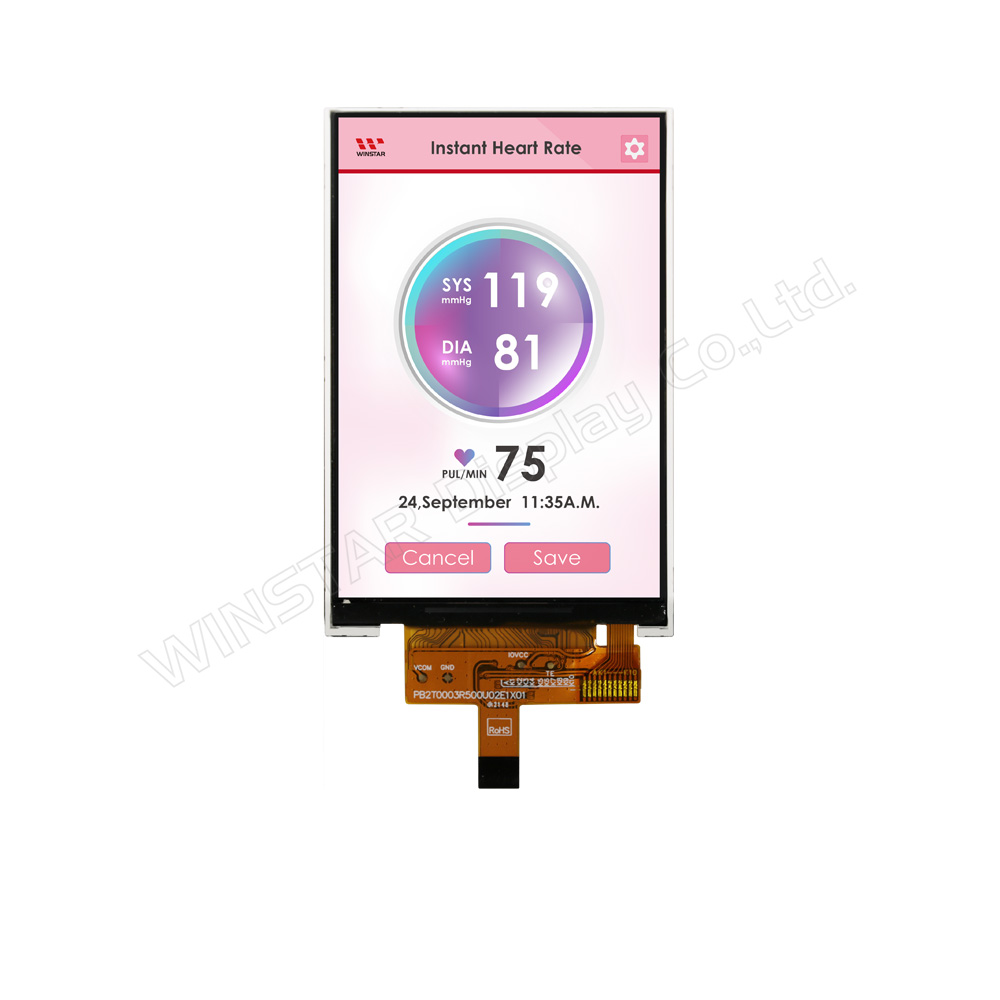

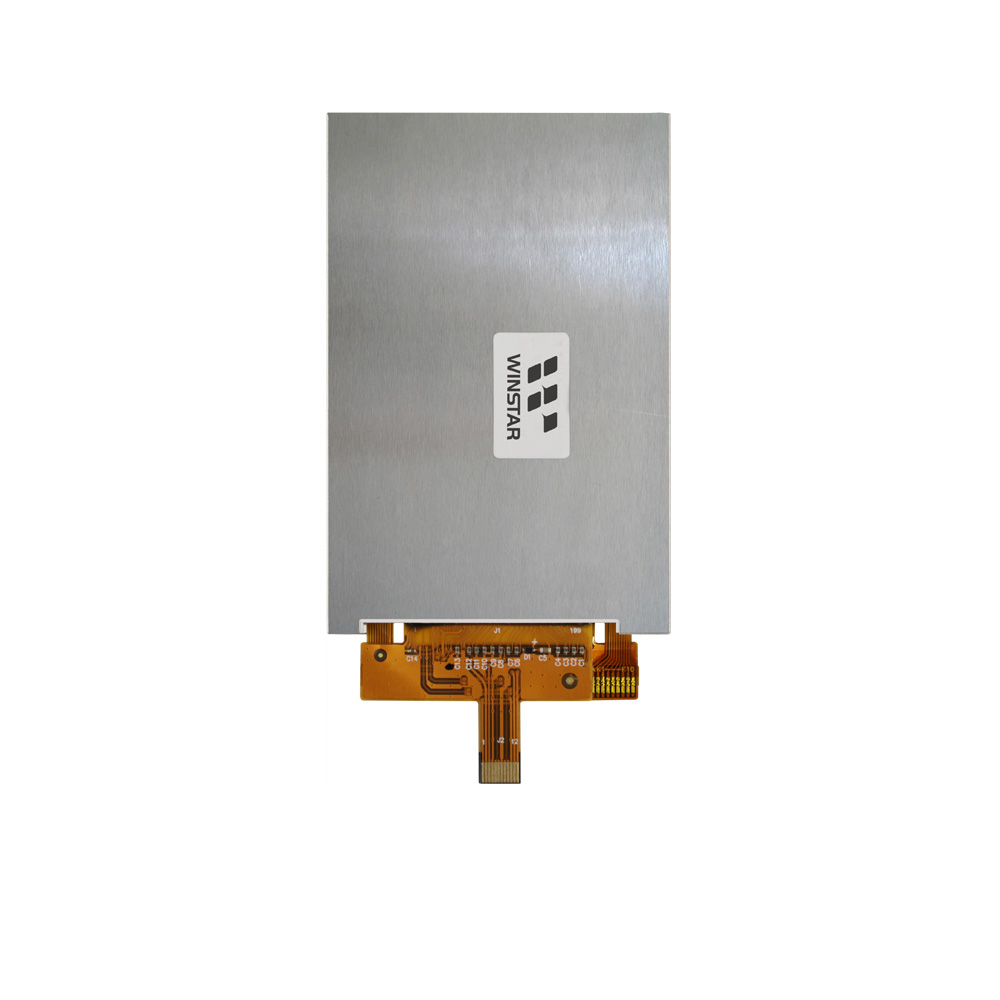

WF35UTYAIMNN0是一款採用IPS面板的3.5吋TFT LCD顯示器模組。該模組內置 ILI9488 驅動器 IC,支持1-Lane MIPI介面。此直式顯示器的解析度為 320×480像素,亮度為600 nits(典型值)。
IPS面板的優點是能呈現: 左80/右80/上80/下80 度(典型值)的寬視角。WF35UTYAIMNN0的工作溫度範圍為-20℃至+70℃,存儲溫度範圍為-30℃至+80℃。
IPS面板的優點是能呈現: 左80/右80/上80/下80 度(典型值)的寬視角。WF35UTYAIMNN0的工作溫度範圍為-20℃至+70℃,存儲溫度範圍為-30℃至+80℃。

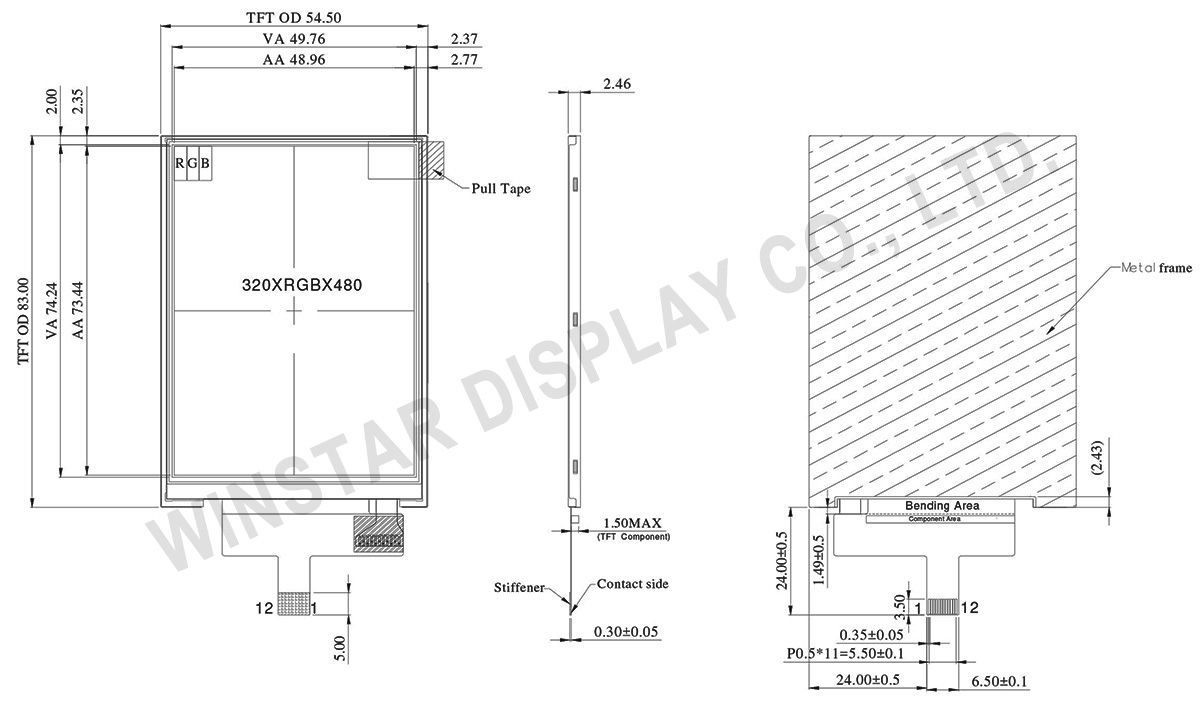

規格圖
產品規格
Pin功能定義
LCM PIN 定義
NO | 符號 | 功能說明 | I/O |
---|---|---|---|
1 | VCI | A supply voltage to the analog circuit. Connect to an external power supply of 2.5 ~ 3.3V. Connect to a stabilizing capacitor between VCI and GND. |
P |
2 | IOVCC | A supply voltage to the digital circuit. Connect to an external power supply of 1.65 ~ 3.3V. | P |
3 | RESET | Reset input signal Initialize the chip with a low input. Be sure to execute a power-on reset after supplying power. |
I |
4 | GND | Ground | I |
5 | MIPI_CLK_P | Positive polarity of low voltage differential clock signal Leave the pin open when not in use. | I |
6 | MIPI_CLK_N | Negative polarity of low voltage differential clock signal Leave the pin open when not in use |
I |
7 | GND | Ground | I |
8 | MIPI_DATA_P | Positive polarity of low voltage differential data signal Leave the pin open when not in use. |
I |
9 | MIPI_DATA_N | Negative polarity of low voltage differential data signal Leave the pin open when not in use. |
I |
10 | GND | Ground | I |
11 | VLED+ | Anode of LED backlight. | |
12 | VLED- | Cathode of LED backlight |
規格說明
項目 | 規格 | 單位 |
---|---|---|
顯示尺寸(對角線) | 3.5 | 吋 |
點陣(解析度) | 320 × RGB × 480(TFT) | dots |
模組尺寸 | 54.5 (W) × 83.0 (H) × 2.46(D) | mm |
有效區域 | 48.96 × 73.44 | mm |
像素間距 | 0.153 × 0.153 | mm |
LCD 類型 | TFT, 白色, 透射式 | |
視角 | 80/80/80/80 | |
長寬比 | 直屏 | |
驅動 IC | ILI9488 或相容IC | |
介面 | 1-Lane MIPI | |
背光類型 | LED, 白色 | |
觸控面板類型 | 無觸控面板 | |
表面 | 防眩光 (Anti-Glare) |
最大絕對額定值
項目 | 符號 | 最小值 | 典型值 | 最大值 | 單位 |
---|---|---|---|---|---|
工作溫度 | TOP | -20 | - | 70 | ℃ |
儲存溫度 | TST | -30 | - | 80 | ℃ |
電氣特性
項目 | 符號 | 條件 | 最小值 | 典型值 | 最大值 | 單位 |
---|---|---|---|---|---|---|
數位電源電壓 | IOVCC | - | - | 1.8/2.8 | 3.3 | V |
類比電源電壓 | VCI | - | - | 2.8 | 3.3 | V |
電源電流 | ICC | IOVCC=VCI =VCC=3.3V |
- | 13.6 | - | mA |
