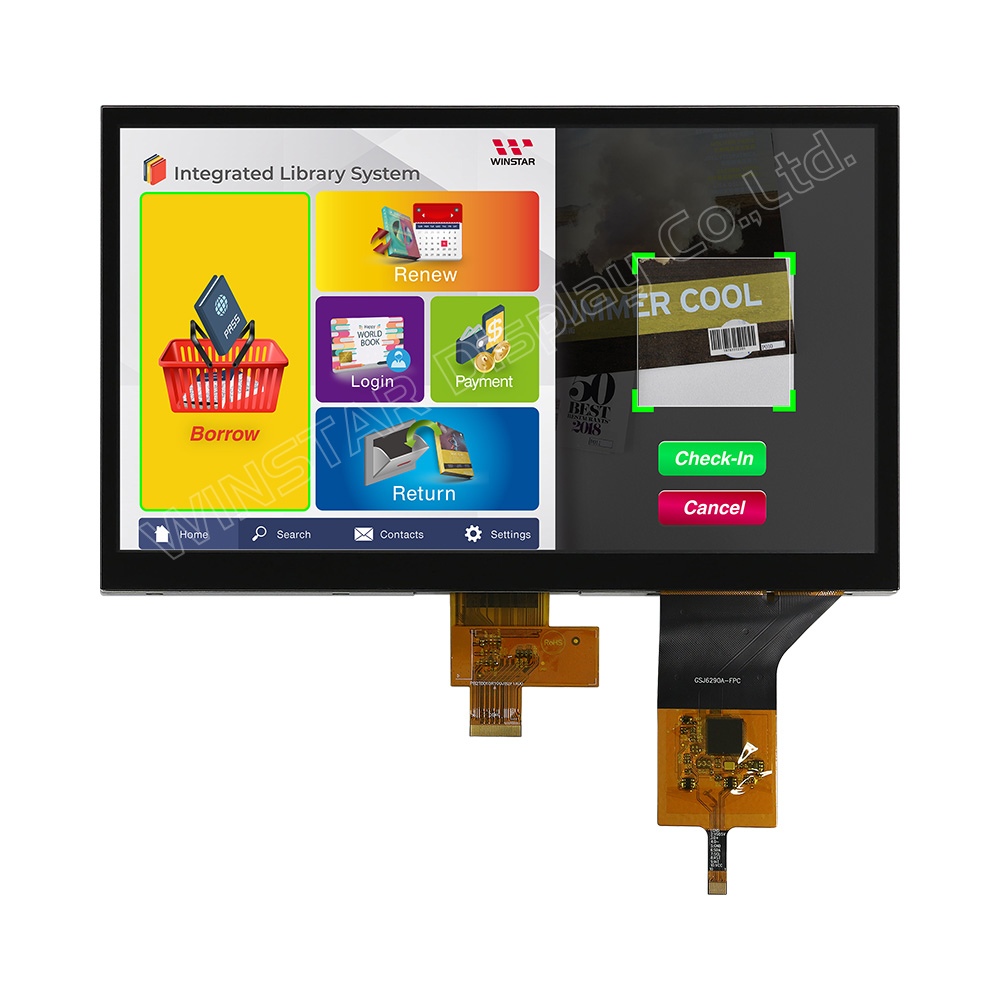

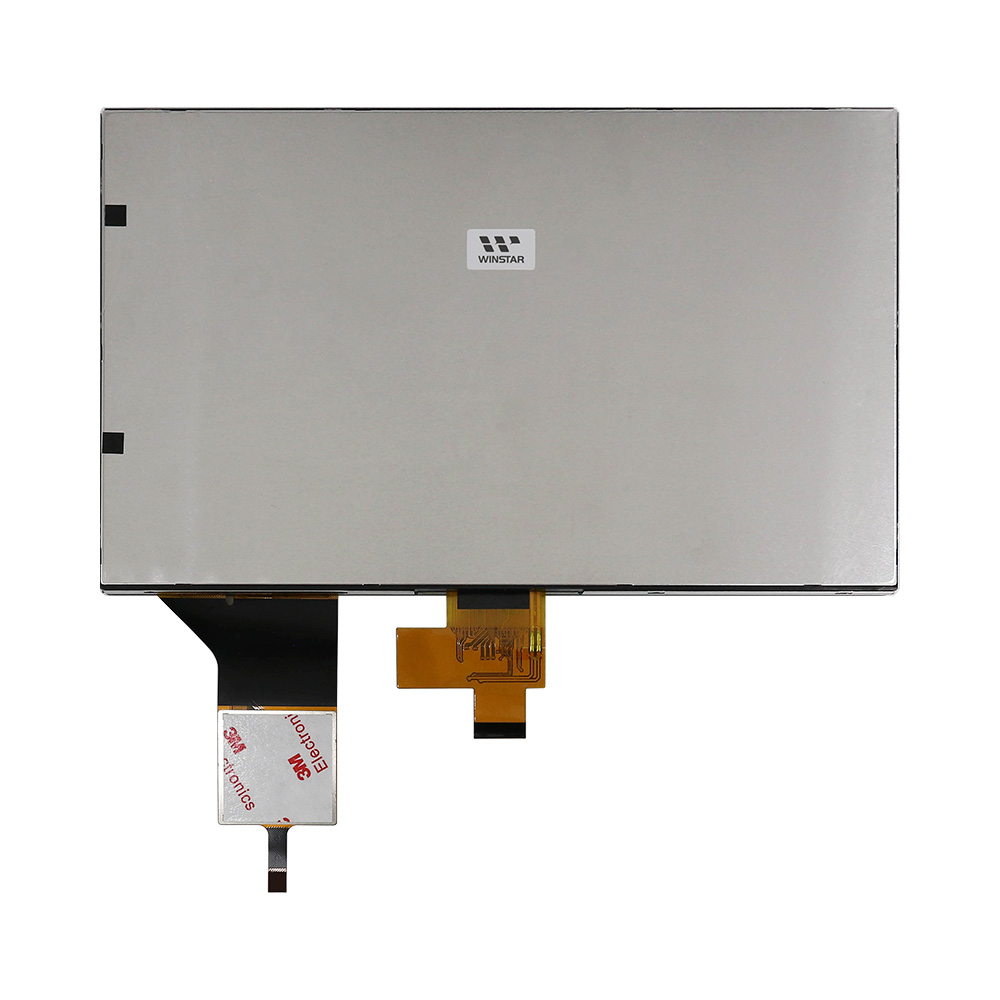

高亮 IPS MIPI 1024x600 10.1吋 PCAP TFT模組

型號 WF101JSYAHMNB0

►尺寸: 10.1吋
►解析度: 1024×600 dots
►視角: IPS
►介面: MIPI DSI
►驅動IC: EK79007AD3+EK73217BCGA
►控制板: No
►亮度(cd/m2): 900
►鐵框螺絲孔: 無
►觸控面板: 投射電容式觸控面板 (PCAP)
►支援指數: 5指

產品敘述

WF101JSYAHMNB0 是一款 10.1吋高亮度支援MIPI DSI 介面 IPS TFT-LCD 顯示器,解析度為1024 x 600像素,搭配投射電容式觸控面板 (PCAP)。此TFT模組採用 IPS面板 技術具有廣視角,典型值 左:85度/ 右:85度 / 上:85度/ 下:85度,亮度typical 值為 900 nits。如果客戶不需要高亮度可以選擇普亮型號 WF101JTYAHMNB0。此 MIPI 介面WF101J系列還提供電阻式觸控面板WF101JTYAHMNT0 (普亮) 和 WF101JSYAHMNT0 (高亮)。

WF101JSYAHMNB0 TFT模組內建 EK79007AD3 和 EK73217BCGA 驅動IC;支援4-Lanes MIPI (Mobile Industry Processor Interface) DSI (Display Serial Interface),由於MIPI具有高速率Data傳輸和高速率Clock傳輸的特性,使得MIPI DSI介面越來越受歡迎。此模組搭配投射電容式觸控面板內建 ILI2511 IC 可支援USB和I2C介面,採用亮面玻璃表面,長寬比16:9。模組工作溫度範圍-20℃~+70℃;儲存溫度範圍-30℃~+80℃。

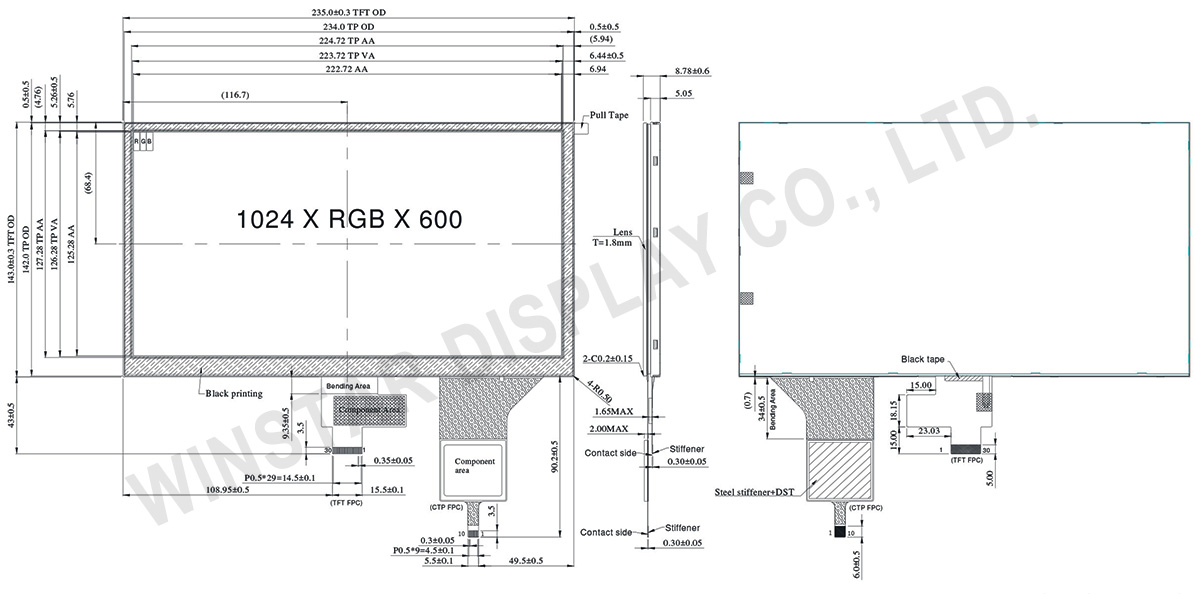

規格圖

High Brightness 10.1 inch IPS MIPI TFT Display 1024x600 with PCAP - WF101JSYAHMNB0

產品規格

Pin功能定義

TFT LCD Module

Pin No. 符號 功能說明
1 VLED+ LED Anode
2 VLED+ LED Anode
3 VGH Positive power for TFT
4 VGL Negative power for TFT
5 UPDN Gate up or down scan control.
UPDN = ”L”, STV2 output vertical start pulse and UD pin output logical “L” to Gate driver. (default)
UPDN = ”H”, STV1 output vertical start pulse and UD pin output logical “H” to Gate driver
6 SHLR Source right or left sequence control.
SHLR = ”L“, shift left: last data = S1←S2←S3….......←S1536 = first data.
SHLR = ”H“, shift right: first data = S1→S2→S3….....→S1536 = last data.(default)
7 VLED- LED Cathode
8 VLED- LED Cathode
9 AVDD Analog power
10 GND Digital ground
11 D3P MIPI data input.
12 D3N MIPI data input.
13 GND Digital ground
14 D2P MIPI data input.
15 D2N MIPI data input.
16 GND Digital ground
17 CLKP MIPI clock input
18 CLKN MIPI clock input
19 GND Digital ground
20 D1P MIPI data input.
21 D1N MIPI data input.
22 GND Digital ground
23 D0P MIPI data input.
24 D0N MIPI data input.
25 GND Digital ground
26 STBYB Standby mode.
STBYB = ”H“,normal operation(default)
STBYB = ”L”, timing controller, source driver will turn off, all output are GND.
27 RESET Global reset pin. Active Low to enter Reset State. Normally pull high. Connecting with an RC reset circuit for stability.
28 VDD (1.8V) Digital power
29 VDD (1.8V) Digital power
30 VCOMI Common voltage


PCAP PIN 定義

Pin 符號 功能說明
1 USB_VSS System ground
2 USB_VDD 5V Power supply
3 USB_D+ Data +
4 USB_D- Data -
5 VSS System ground
6 SDA I2C data input and output
7 SCL I2C clock input
8 RST External Reset, Low is active
9 INT External interrupt to the host
10 VDDT 3.3 Power supply

規格說明

項目 規格 單位
顯示尺寸(對角線) 10.1
點陣(解析度) 1024 RGB x 600 dots
模組尺寸 235(W) x143(H) x 8.78(D) mm
可視區域 222.72 (H) x 125.28(V) mm
點間距 0.2175(W) x 0.2088(H) mm
LCD類型 TFT 全透
介面 4-Lanes MIPI
驅動IC EK79007AD3 + EK73217BCGA 或相容IC
視角 85/85/85/85
長寬比 16:9
背光類型 LED, 白色
PCAP IC ILI2511 或相容IC
PCAP 介面 USB (I2C可用)
PCAP FW 版本 V6.0.0.0.62.90.1.2
觸控面板類型 投射電容式觸控面板 (PCAP)
表面 亮面

最大絕對額定值

項目 符號 最小值 典型值 最大值 單位
工作溫度 TOP -20 +70
儲存溫度 TST -30 +80

電氣特性

典型操作條件 (At Ta = 25 °C,)

項目 符號 最小值 典型值 最大值 單位
LCD數位電源電壓 VDD 1.71 1.8 1.89 V
類比電源電壓 AVDD 9.89 10.2 10.5 V
Gate 開啟供電電壓 VGH 19.4 20.0 20.6 V
Gate 關閉供電電壓 VGL -10.3 -10.0 -9.7 V
一般供電電壓 VCOMI 4.0 4.3 4.6 V
PCAP電源電壓 VDDT 3.0 3.3 3.6 V
IVDDT   90.5 115 mA
USB_VDD 5V 4.4 5.0 5.5 V
I VDD 5V 97.8 120 mA
