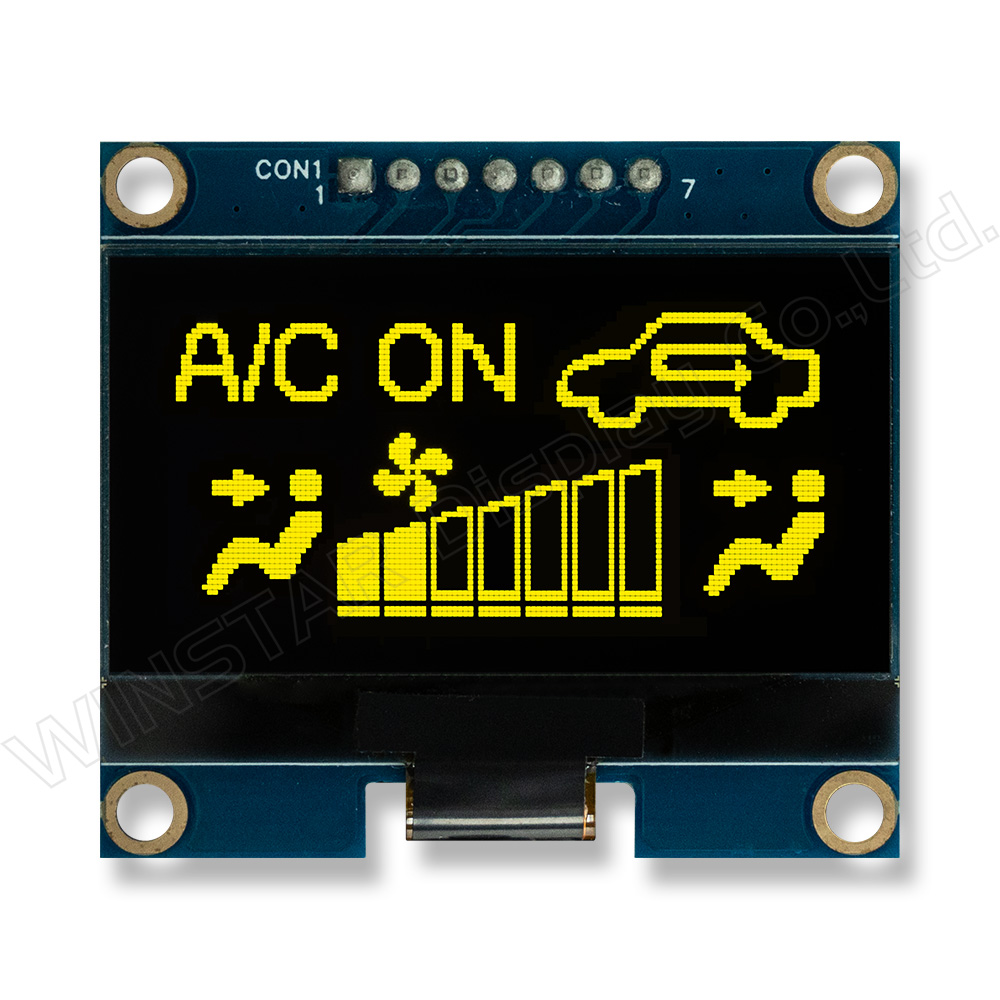

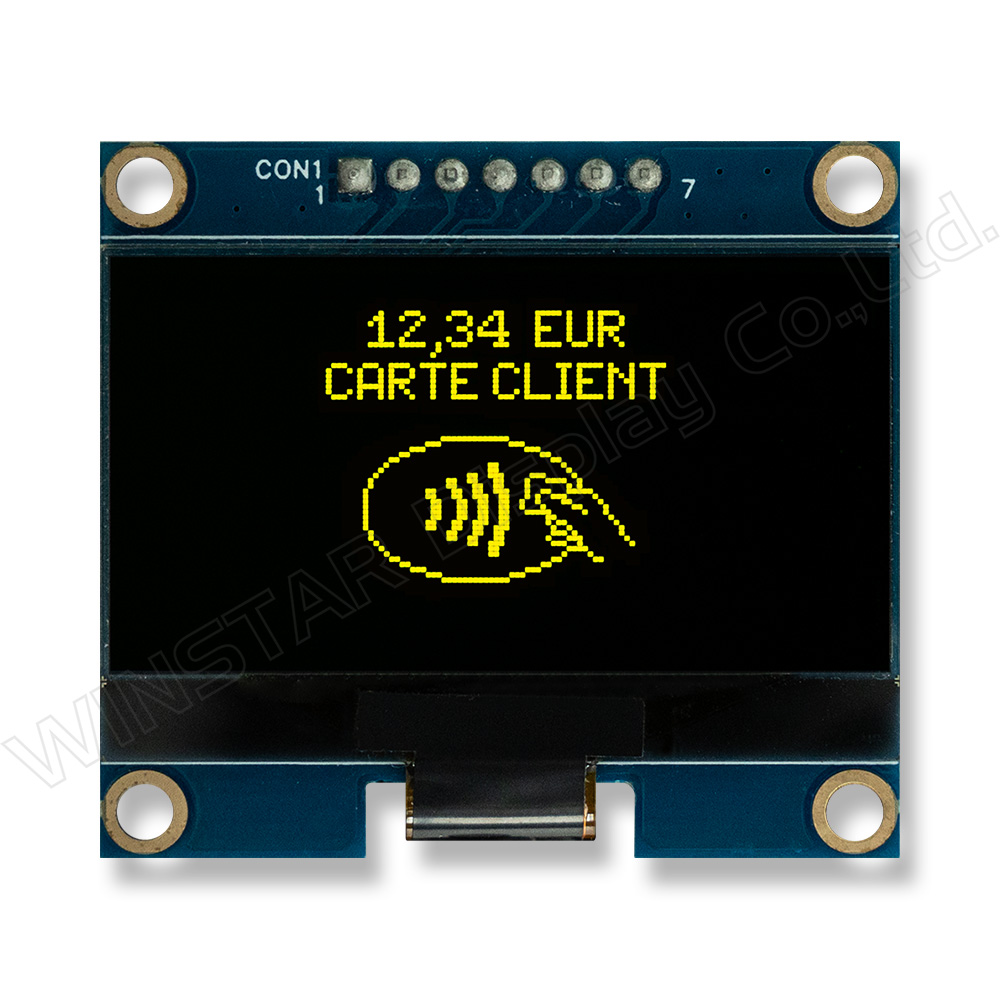

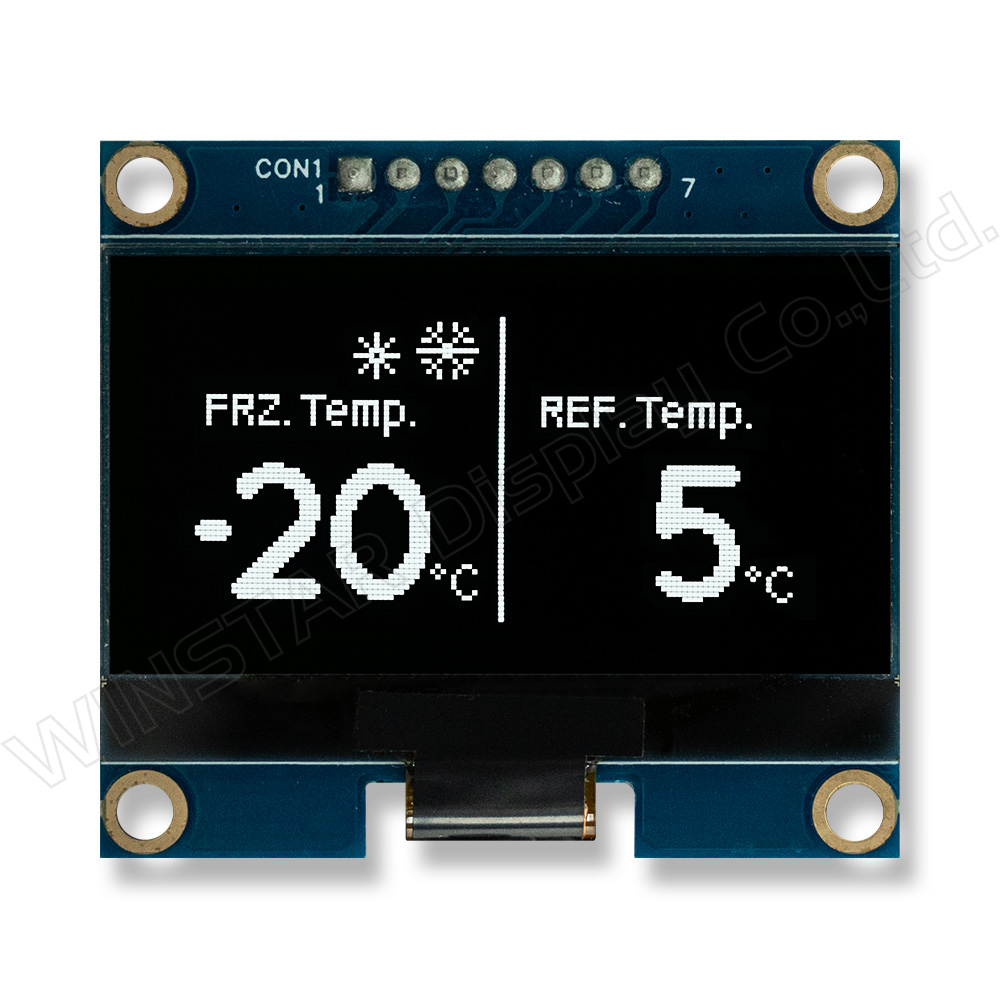

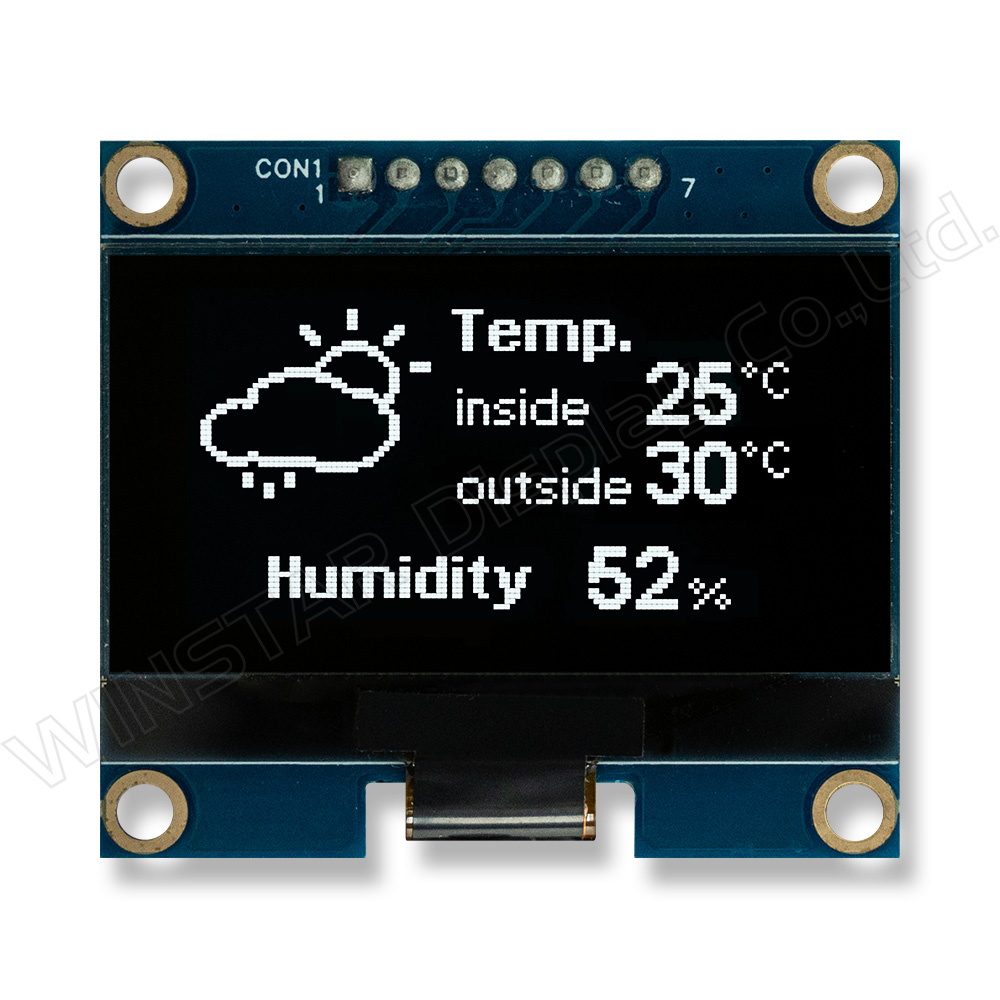

1.54 吋繪圖型 OLED 128x64 COG+PCB 顯示器

型號 WEA012864AE

►類型: 繪圖型
►結構: COG+PCB
►尺寸:1.54吋
►128 x 64 點陣
►IC：CH1116
►3V電源電壓
►1/64 duty
►介面: 4線SPI
►發光顏色: 白色 / 黃色

上一個產品回分類頁下一個產品

產品敘述

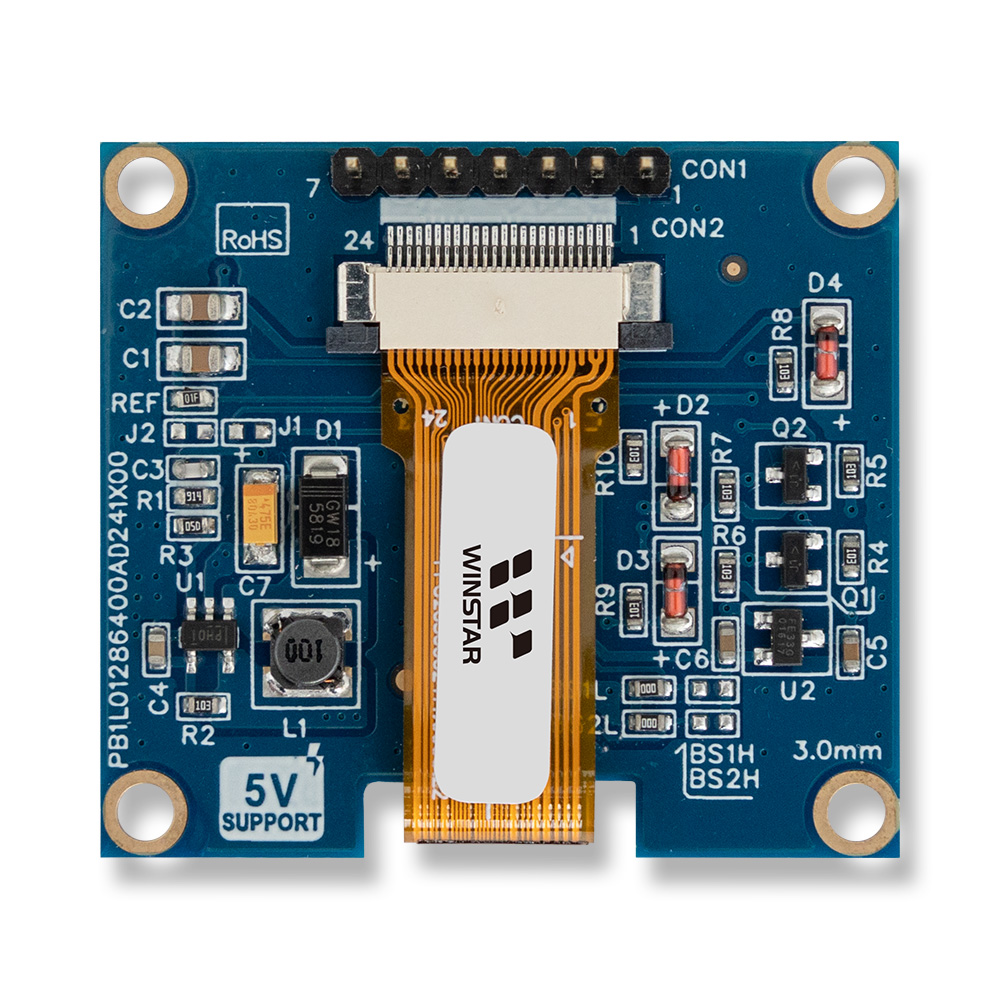

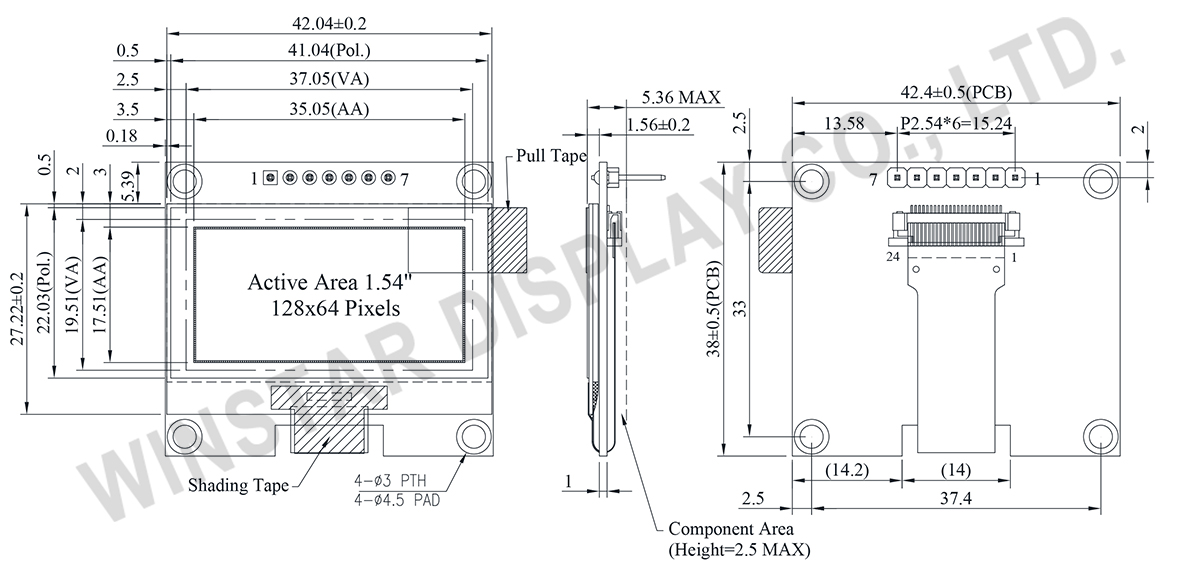

WEA012864AE是一款搭載PCB版，結構為COG的繪圖型OLED模組，其解析度為128x64 pixels，尺寸為1.54吋。這款OLED顯示器模組內建CH1116驅動 IC，支援4線SPI介面。模組驅動方式為1/64 duty。

WEA012864AE模組的工作溫度為-40℃至+80℃，儲存溫度為-40℃至+85℃。此款顯示器非常適合智能家電、醫療設備、儀表板等應用。

Data source ref: WEA012864AEWAP3N00000

No.	符號	功能說明
1	GND	Ground
2	VCC	Power supply input
3	D0	The serial clock input
4	D1	The serial data input
5	RES#	This is a reset signal input pad. When RES# is set to "L", the settings are initialized. The reset operation is performed by the RES# signal level.
6	D/C#	This is the Data/Command control pad that determines whether the data bits are data or a command. D/C# ="H"：the input at D1 is treated as display data D/C# ="L"：the input at D1 is transferred to the command registers.
7	CS#	This pad is the chip select input. When CS# ="L", then the chip select becomes active, and data/command I/O is enabled.
