產品敘述
WEO009616A是一款0.84吋小尺寸單色被動式OLED顯示器模組，解析度為96x16 點陣。WEO009616A 96x16 OLED 模組尺寸為29.1 x 9.2 mm， AA區尺寸為21.104 x 3.504 mm。WEO009616A內建SSD1306 controller控制器, 模組支援I2C傳輸介面，使用3V電壓驅動。此模組的工作溫度是-40℃至+80℃，儲存溫度-40℃至+85℃。
WEO009616A為薄型COG結構OLED顯示器模組，為有機自發光，無須背光源，模組輕巧且低耗電流，此款0.84吋OLED模組非常適合穿戴裝置、手環、 MP3、 錄音筆、手持式裝置、個人健康守護追蹤裝置、兒童或年長者GPS定位裝置等等。此型號OLED模組可支援內部升壓及外部供電。

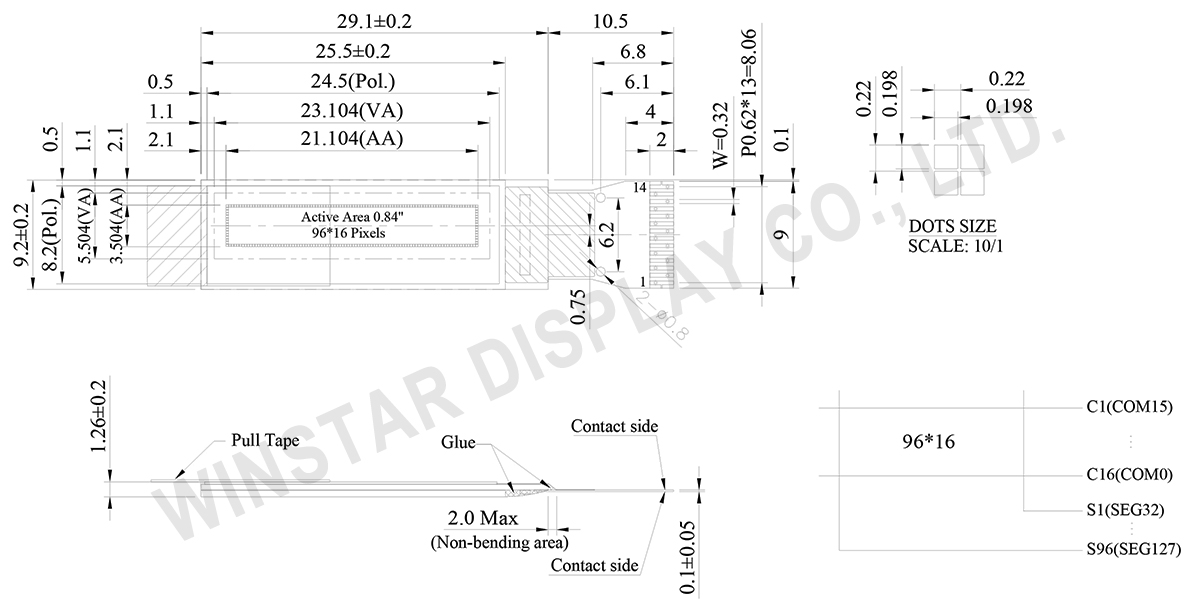

規格圖
Data source ref: WEO009616AWPP3N00000
產品規格
規格說明
| 項目 | 尺寸 | 單位 |
|---|---|---|
| 點陣 | 96 x 16 Dots | － |
| 模組尺寸 | 29.1× 9.2 × 1.26 | mm |
| 有效區域 | 21.104 × 3.504 | mm |
| 像素大小 | 0.198 × 0.198 | mm |
| 像素間距 | 0.220 × 0.220 | mm |
| 顯示模式 | 被動矩陣(Passive Matrix) | |
| 顯示顏色 | 單色 | |
| 驅動方式 | 1/16 Duty | |
| IC | SSD1306 | |
| 介面 | I2C | |
| 對角線尺寸 | 0.84 吋 | |
最大絕對額定值
| 參數 | 符號 | 最小值 | 最大值 | 單位 |
|---|---|---|---|---|
| 邏輯電源電壓 | VDD | 0 | 4.0 | V |
| 顯示電源電壓 | VCC | 0 | 16.0 | V |
| 工作溫度 | TOP | -40 | +80 | °C |
| 儲存溫度 | TSTG | -40 | +85 | °C |
電氣特性
DC 電氣特性
| 項目 | 符號 | 條件 | 最小值 | 典型值 | 最大值 | 單位 |
|---|---|---|---|---|---|---|
| 邏輯電源電壓 | VDD | － | 1.65 | 3.0 | 3.3 | V |
| 顯示器供電電壓（外部供應） | VCC | － | 7.0 | 7.5 | 7.8 | V |
| 電荷幫浦穩壓器電源電壓 | VBAT | － | 3.3 | － | 4.2 | V |
| 顯示器的電荷幫浦輸出電壓（由內部DC/DC生成） | Charge Pump VCC |
－ | 7.0 | 7.5 | 7.8 | V |
| 輸入高電壓 | VIH | － | 0.8×VDD | － | VDD | V |
| 輸入低電壓 | VIL | － | 0 | － | 0.2×VDD | V |
| 輸出高電壓 | VOH | － | 0.9×VDD | － | VDD | V |
| 輸出低電壓 | VOL | － | 0 | － | 0.1×VDD | V |
| 50% 設備運行電流（VCC 外部供應） | ICC | － | － | 7 | 15 | mA |
| 50% 設備運行電流（VCC 由內部 DC/DC 生成） | IBAT | － | 10 | 15 | 25 | mA |
Pin功能定義
| No. | 符號 | 功能說明 |
|---|---|---|
| 1 | C2N | Positive Terminal of the Flying Inverting CapacitorNegative Terminal of the Flying Boost Capacitor The charge-pump capacitors are required between the terminals. They must be floated when the converter is not used. |
| 2 | C2P | |
| 3 | C1P | |
| 4 | C1N | |
| 5 | VBAT | Power Supply for DC/DC Converter Circuit This is the power supply pin for the internal buffer of the DC/DC voltage converter. It must be connected to external source when the converter is used. It should be connected to VDD when the converter is not used. |
| 6 | NC | No connection |
| 7 | VSS | Ground of Logic Circuit This is a ground pin. It acts as a reference for the logic pins. It must be connected to external ground. |
| 8 | VDD | Power Supply for Logic This is a voltage supply pin. It must be connected to external source. |
| 9 | RES# | Power Reset for Controller and Driver This pin is reset signal input. When the pin is low, initialization of the chip is executed. |
| 10 | SCL | I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin inapplication and D0 is the serial clock input, SCL. |
| 11 | SDA | |
| 12 | IREF | Current Reference for Brightness Adjustment This pin is segment current reference pin. A resistor should be connected between this pin and VSS. Set the current lower than 30uA. |
| 13 | VCOMH | Voltage Output High Level for COM Signal This pin is the input pin for the voltage output high level for COM signals. A capacitor should be connected between this pin and VSS. |
| 14 | VCC | Power Supply for OEL Panel This is the most positive voltage supply pin of the chip. A stabilization capacitor should be connected between this pin and VSS when the converter is used. It must be connected to external source when the converter is not used. |
