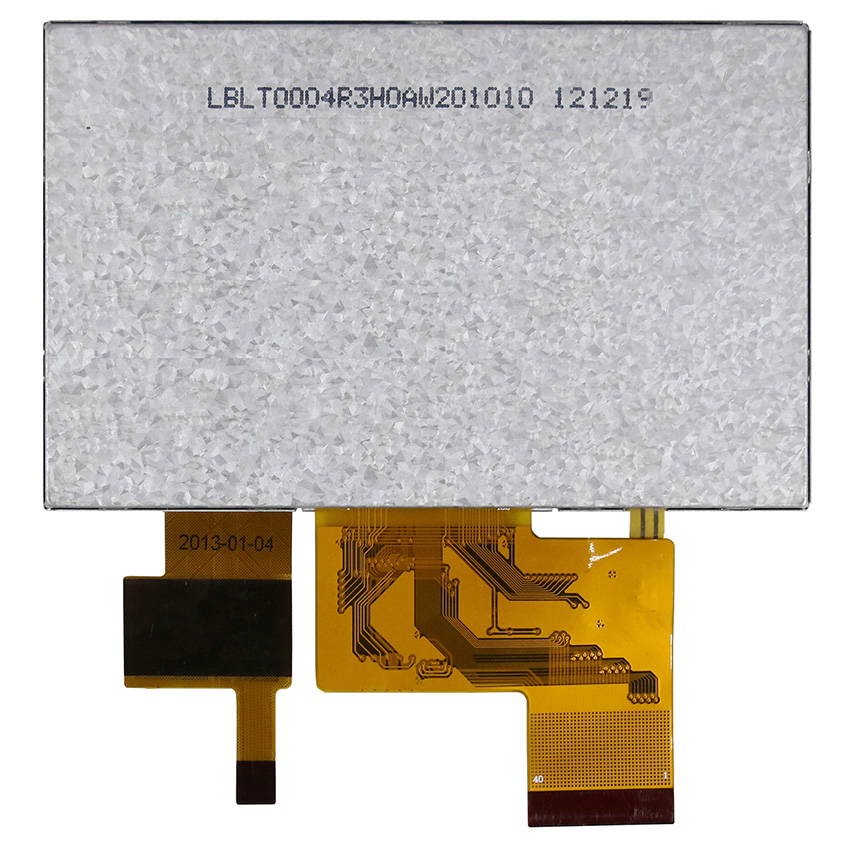

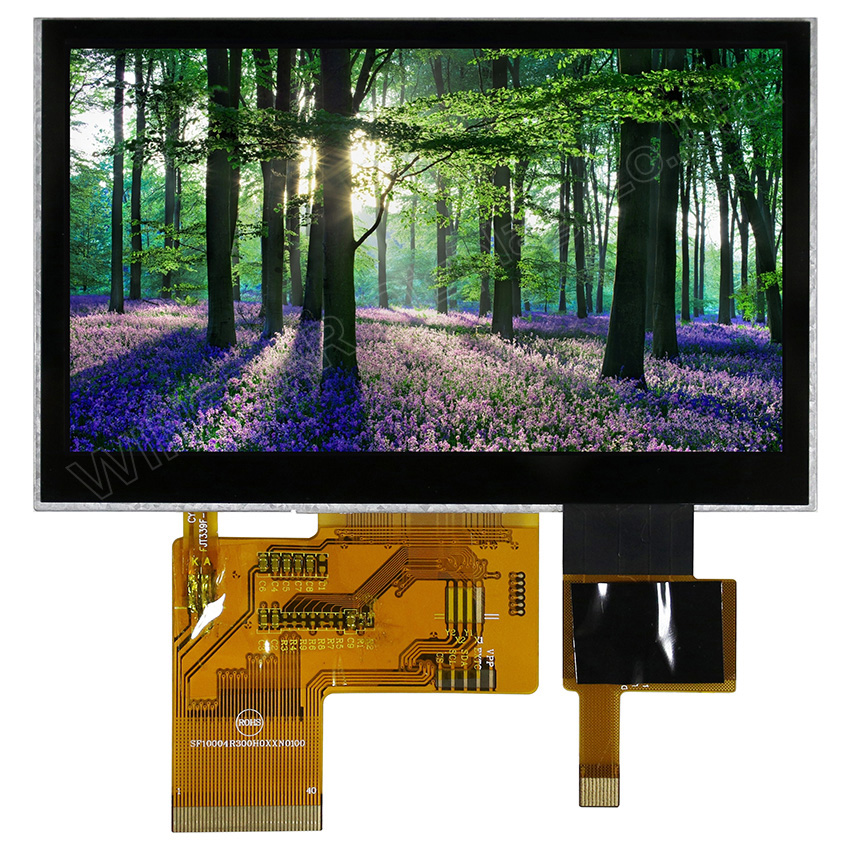

產品敘述
華凌光電此款為4.3吋 投射電容式觸控螢幕TFT-LCD面板模組,外型尺寸為105.5x67.2 mm, VA檢視尺寸96.24 x 54.66 mm, AA有效尺寸為95.04 x 53.586 mm。此型號TFT LCD非常適合運用在工業設備、安全系統和手持設備...等,需要在高品質和彩色影像顯示中使用。

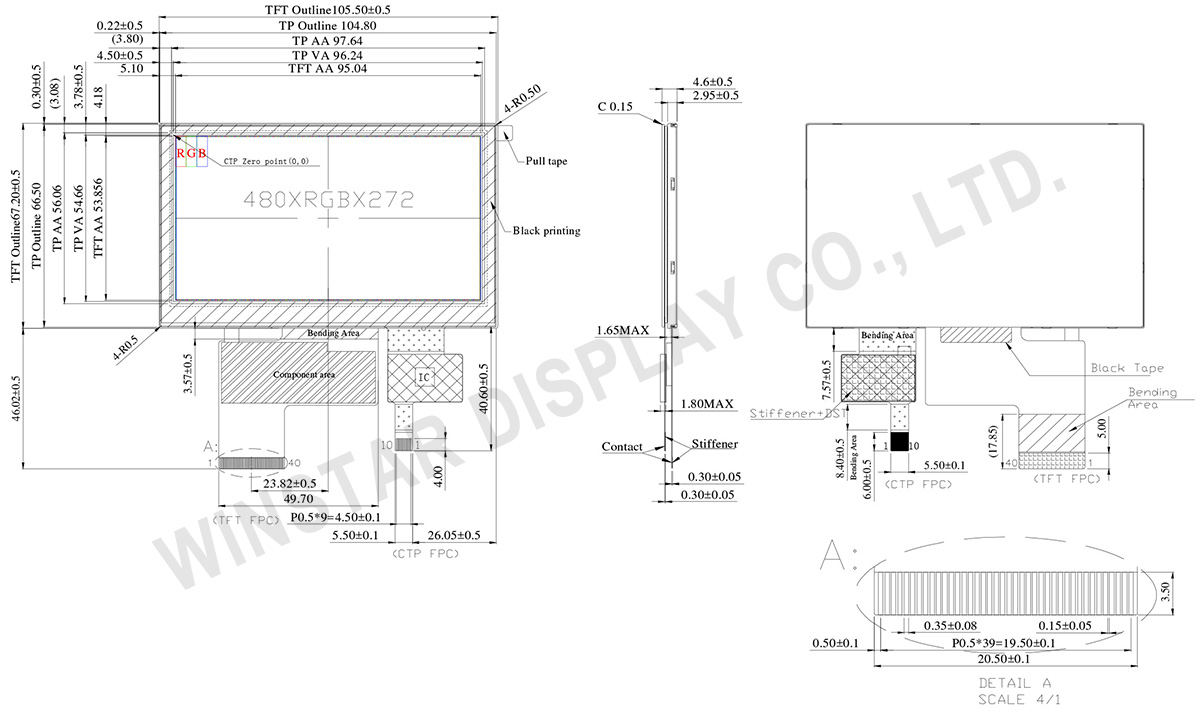

規格圖
產品規格
Pin功能定義
1.LCM PIN腳定義
Pin |
符號 |
功能說明 |
1 |
VLED- |
Power for LED backlight cathode |
2 |
VLED+ |
Power for LED backlight anode |
3 |
GND |
Power ground |
4 |
VCC |
Power voltage |
5 |
R0 |
Red data (LSB) |
6 |
R1 |
Red data |
7 |
R2 |
Red data |
8 |
R3 |
Red data |
9 |
R4 |
Red data |
10 |
R5 |
Red data |
11 |
R6 |
Red data |
12 |
R7 |
Red data (MSB) |
13 |
G0 |
Green data (LSB) |
14 |
G1 |
Green data |
15 |
G2 |
Green data |
16 |
G3 |
Green data |
17 |
G4 |
Green data |
18 |
G5 |
Green data |
19 |
G6 |
Green data |
20 |
G7 |
Green data (MSB) |
21 |
B0 |
Blue data (LSB) |
22 |
B1 |
Blue data |
23 |
B2 |
Blue data |
24 |
B3 |
Blue data |
25 |
B4 |
Blue data |
26 |
B5 |
Blue data |
27 |
B6 |
Blue data |
28 |
B7 |
Blue data (MSB) |
29 |
GND |
Power ground |
30 |
CLK |
Pixel clock (DCLK) |
31 |
DISP |
Display on/off |
32 |
HSYNC |
Horizontal sync signal; negative polarity |
33 |
VSYNC |
Vertical sync signal; negative polarity |
34 |
DE |
Data Enable |
35 |
NC |
No connection |
36 |
GND |
Power ground |
37 |
NC |
No connection |
38 |
NC |
No connection |
39 |
NC |
No connection |
40 |
NC |
No connection |
2.PCAP PIN腳定義
Pin |
符號 |
功能說明 |
1 |
VSS |
Ground for analog circuit |
2 |
VDDT |
Power Supply : +3.3V |
3 |
SCL |
I2C clock input |
4 |
NC |
No connect |
5 |
SDA |
I2C data input and output |
6 |
NC |
No connect |
7 |
/RST |
External Reset, Low is active |
8 |
NC |
No connect |
9 |
/INT |
External interrupt to the host |
10 |
VSS |
Ground for analog circuit |
規格說明
項目 |
規格 |
單位 |
顯示尺寸(對角線) |
4.3 |
吋 |
點陣(解析度) |
480 × RGB × 272 (TFT) |
dots |
模組尺寸 |
105.5 × 67.2 × 4.6 |
mm |
有效區域 |
95.04 × 53.856 |
mm |
點間距 |
0.066 × 0.198 |
mm |
LCD 類型 |
TFT, 平常白, 透射式 |
視角 |
12點鐘方向 |
灰階反轉 |
6點鐘方向 |
長寬比 |
16:9 |
TFT 驅動IC |
ST7282 或相容IC |
TFT 介面 |
24-bit RGB |
背光類型 |
LED, 平常白 |
PCAP FW 版本 |
0x07.0x00.0x00.0x00.0x01.0x0C.0x11.0x43 |
PCAP IC |
ILI2130或相容IC |
PCAP 介面 |
I2C |
觸控面板類型 |
投射電容式觸控面板 (PCAP) |
表面 |
亮面 (Glare) |
最大絕對額定值
項目 |
符號 |
最小值 |
典型值 |
最大值 |
單位 |
工作溫度 |
TOP |
-20 |
- |
+70 |
℃ |
儲存溫度 |
TST |
-30 |
- |
+80 |
℃ |
電氣特性
項目 |
符號 |
最小值 |
典型值 |
最大值 |
單位 |
邏輯電源電壓 |
Vcc |
3.1 |
3.3 |
3.5 |
V |
數位工作電流 |
ICC |
|
22 |
33 |
mA |
PCAP電源電壓 |
VDDT |
3.0 |
3.3 |
3.6 |
V |
ICTP |
- |
52 |
78 |
mA |
