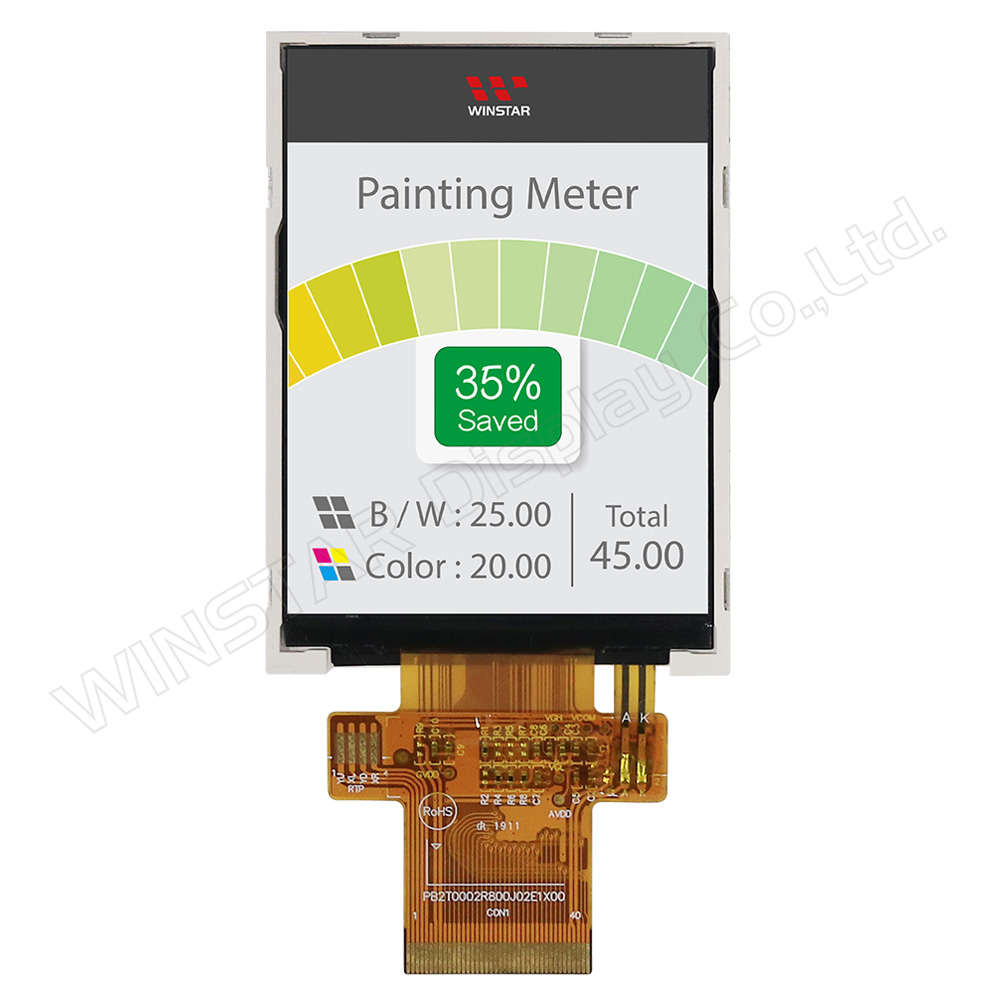

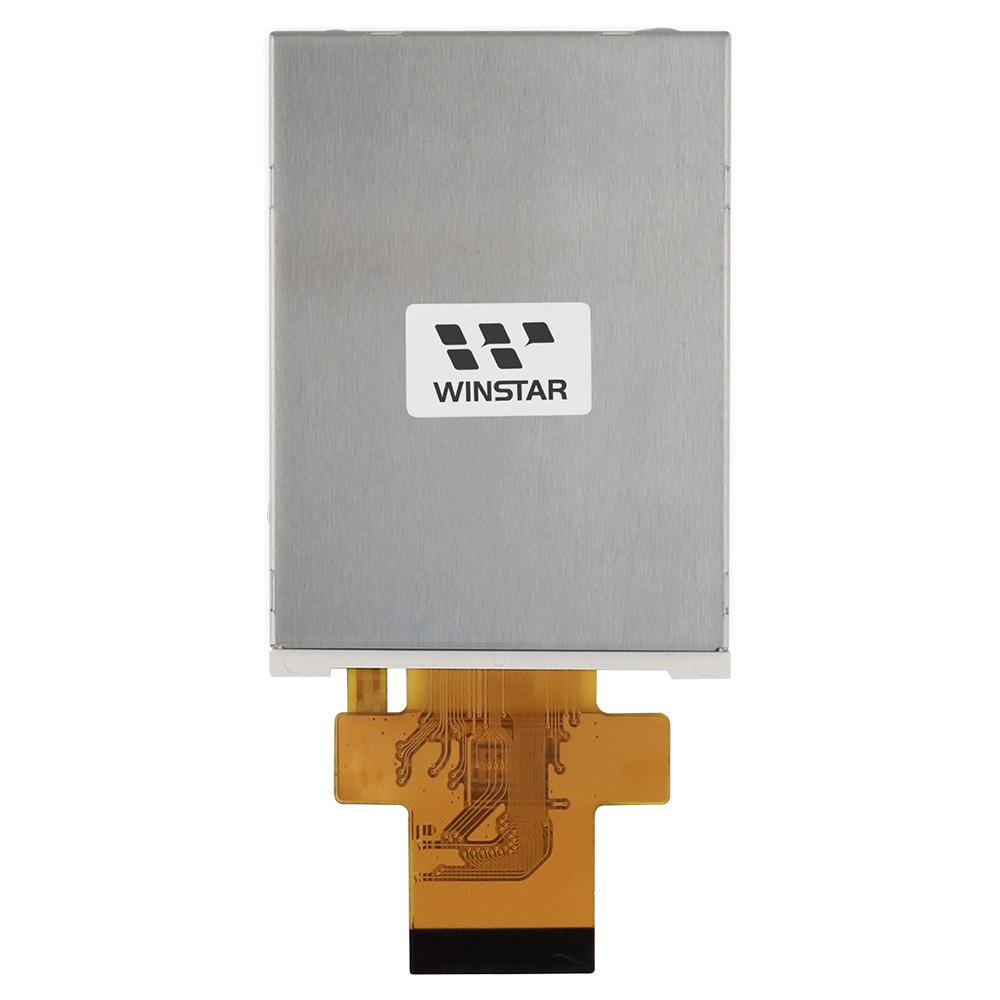

2.8吋 240x320 TFT IPS 顯示器模組

型號 WF28JTYAJDNN0

►尺寸: 2.8吋
►解析度: 240 x 320 dots
►視角: IPS
►介面: MCU, SPI
►TFT 驅動IC: ILI9341V
►控制板: 無
►亮度(cd/m²): 500
►鐵框螺絲孔: 無
►觸控面板: 無

產品敘述

WF28J是一款採用IPS面板的2.8吋TFT液晶顯示器模組。此款TFT-LCD解析度240 x 320 pixels。WF28JTYAJDNN0為直屏模式IPS模組,內建ILI9341V controller IC,支援MCU 8-bit/16-bit與SPI介面,對比度800 (典型值),亮度為500 nits(典型值)。WF28J採用IPS面板技術,具廣視角範圍,左: 80 / 右: 80 / 上: 80 / 下: 80 度,面板視角寬度廣,色彩鮮明、具有飽和自然的優質畫面。WF28J模組的驅動介面電路的電壓範圍從1.65V~3.3V,模擬供電電壓範圍從2.5V~3.3V,平常黑/透射式LCD,亮面玻璃,螢幕長寬比3:4。此款模組的工作溫度是-20℃ 至 +70℃,儲存溫度是 -30℃ 至 +80℃。如果客戶產品應用需要使用高亮TFT,可另選WF28JSYAJDNN0型號,其模組亮度為1000 nits (典型值)。WF28J系列同時也有電阻式與電容式觸控面板可供選擇。

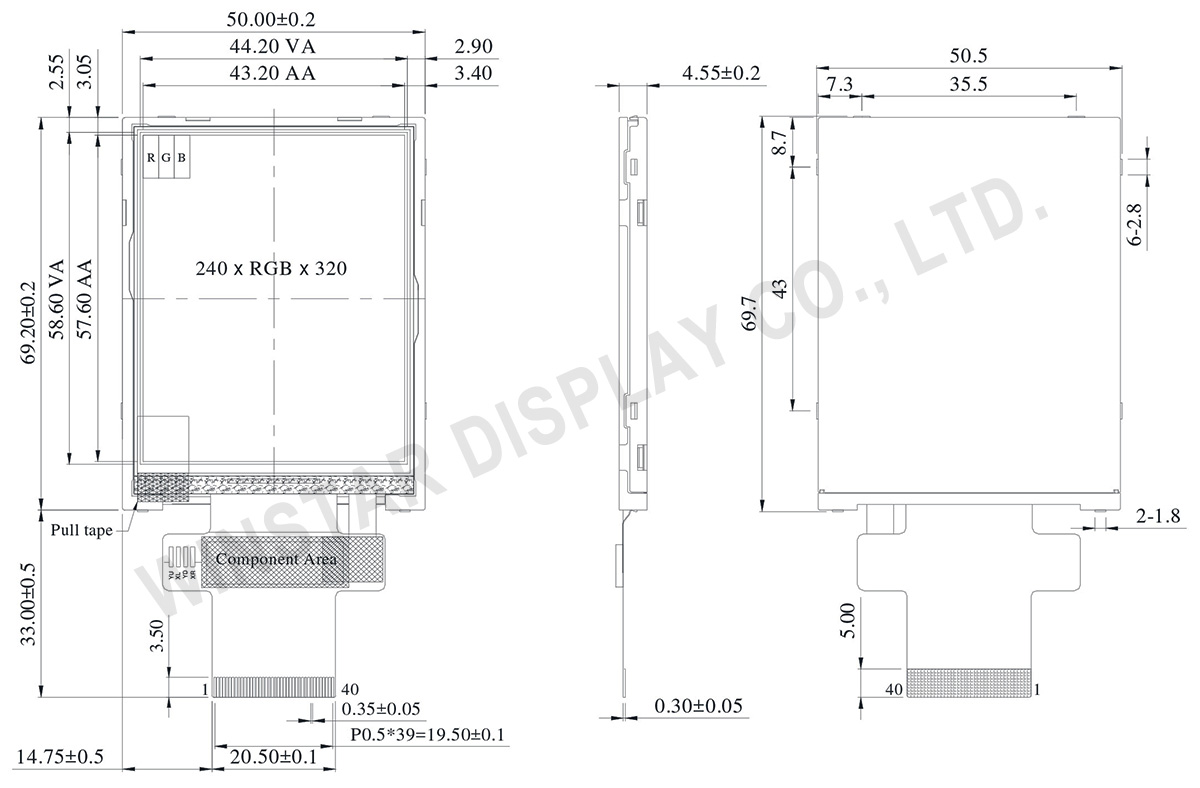

規格圖

2.8 inch 240x320 TFT IPS LCD Display - WF28JTYAJDNN0 - Winstar

產品規格

Pin功能定義

LCM PIN 定義

NO 符號 功能 I/O
1 GND Ground P
2-6 NC No connection -
7 VCI High voltage power supply for analog circuit blocks
(2.5 ~ 3.3 V)
P
8 IOVCC Low voltage power supply for interface logic circuits
(1.65 ~ 3.3 V)
P
9 TE Tearing effect output pin to synchronize MPU to frame writing, activated by S/W command. When this pin is not activated, this pin is low.
If not used, open this pin.
O
10 CS Chip select signal. I
11 D/CX(SCL) (D/CX): This pin is used to select “Data or Command” in the parallel interface.
When DCX = 1, data is selected.
When DCX = 0, command is selected.
(SCL): This pin is used as the serial interface clock in 3-wire
9-bit/4-wire 8-bit serial data interface.
If not used, this pin should be connected to VDDI or VSS.
I
12 WR(SPI_D/C) (WRX) - 8080-Ⅰ/8080-Ⅱ system: Serves as a write signal and writes data at the rising edge.
(D/CX) - 4-line system: Serves as the selector of command or parameter.
Fix to VDDI level when not in use.
I
13 RD 8080-Ⅰ/8080-Ⅱ system (RDX): Serves as a read signal and MCU read data at the rising edge.
Fix to VDDI level when not in use.
I
14-29 DB0~DB15 18-bit parallel bi-directional data bus for MCU system and RGB
interface mode
Fix to VSS level when not in use.
I/O
30 RESET This signal will reset the device and must be applied to properly initialize the chip.
Signal is active low.
I
31 IM0 Select the MCU interface mode
IM2 IM1 1M0 MCU-Interface Mode DB Pin in use
Register/Content GRAM
0 0 0 80 MCU 8-bit bus interface I D[7:0] D[7:0]
0 0 1 80 MCU 16-bit bus interface I D[7:0] D[15:0]
0 1 0 80 MCU 9-bit bus interface I D[7:0] D[8:0]
0 1 1 80 MCU 18-bit bus interface I D[7:0] D[17:0]
1 0 1 3-wire 9-bit data serial interface I SDA: In/Out
1 1 0 4-wire 8-bit data serial interface I SDA: In/Out
MPU Parallel interface bus and serial interface select
If use RGB Interface must select serial interface.
* : Fix this pin at VDDI or VSS.
I
32 IM1
33 IM2
34 DB16 18-bit parallel bi-directional data bus for MCU system and RGB
interface mode
Fix to VSS level when not in use.
I/O
35 DB17
36 LEDK Cathode of LED backlight. P
37 LEDK Cathode of LED backlight. P
38 LEDA Anode of LED backlight. P
39 SDI(SDA) When IM[3] : Low, Serial in/out signal.
When IM[3] : High, Serial input signal.
The data is applied on the rising edge of the SCL signal.
If not used, fix this pin at VDDI or VSS.
I/O
40 SDO Serial output signal.
The data is outputted on the falling edge of the SCL signal.
If not used, open this pin
O

規格說明

項目 規格 單位
尺寸 (對角線) 2.8
解析度 240 x RGB x 320(TFT) dots
模組尺寸 50.5(W) x 69.7(H) x 4.55(D) mm
有效區域 43.2 x 57.6 mm
點間距 0.18 x 0.18 mm
LCD類型 TFT, 平常黑, 透射式
TFT 驅動 IC ILI9341V 或相容IC
TFT 介面 MCU/SPI
視角 80/80/80/80
長寬比 3:4
背光類型 LED ,平常白
觸控面板 無觸控面板
表面 亮面

最大絕對額定值

項目 符號 最小值 典型值 最大值 單位
工作溫度 TOP -20 +70
儲存溫度 TST -30 +80

電氣特性

項目 符號 條件 最小值 典型值 最大值 單位
數位電源電壓 IOVCC 1.65 3.3 V
類比電源電壓 VCI 2.5 3.3 V
電源電流 ICC IOVCC=VCI
=VCC=3.28V
12 18 mA
