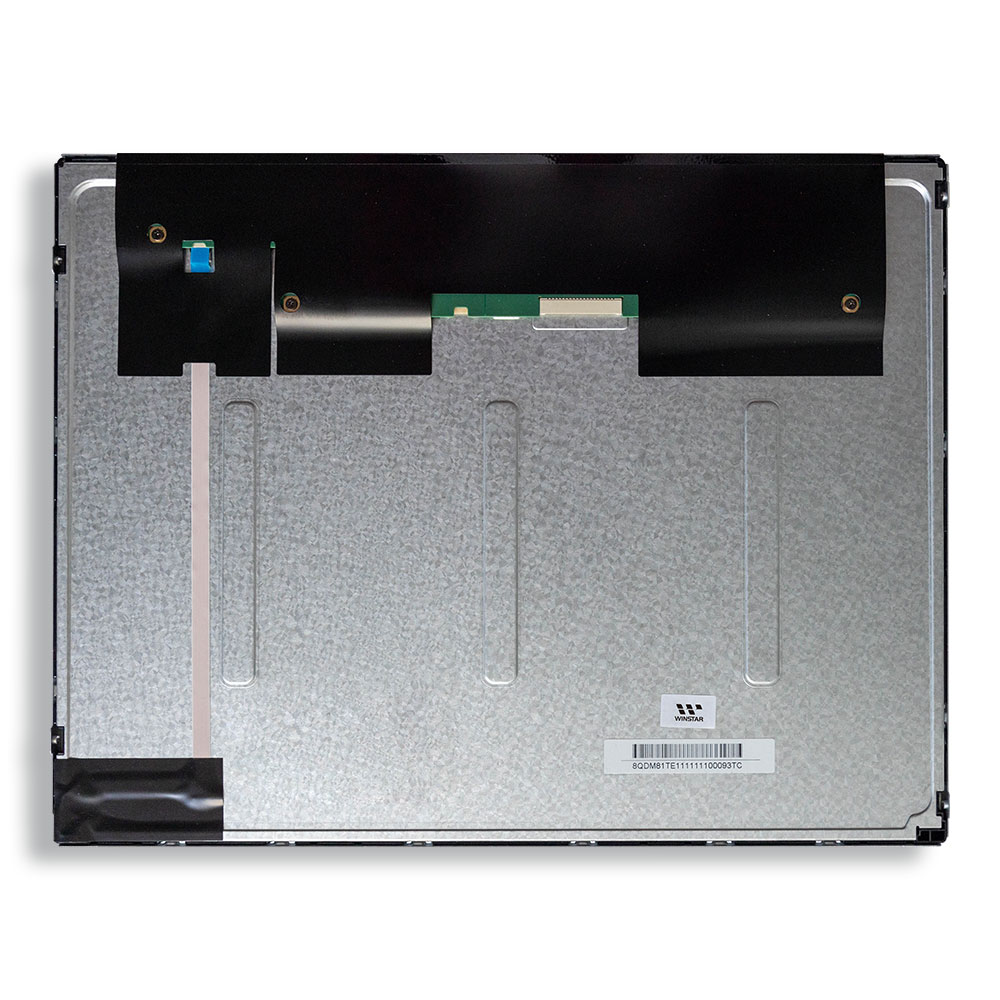

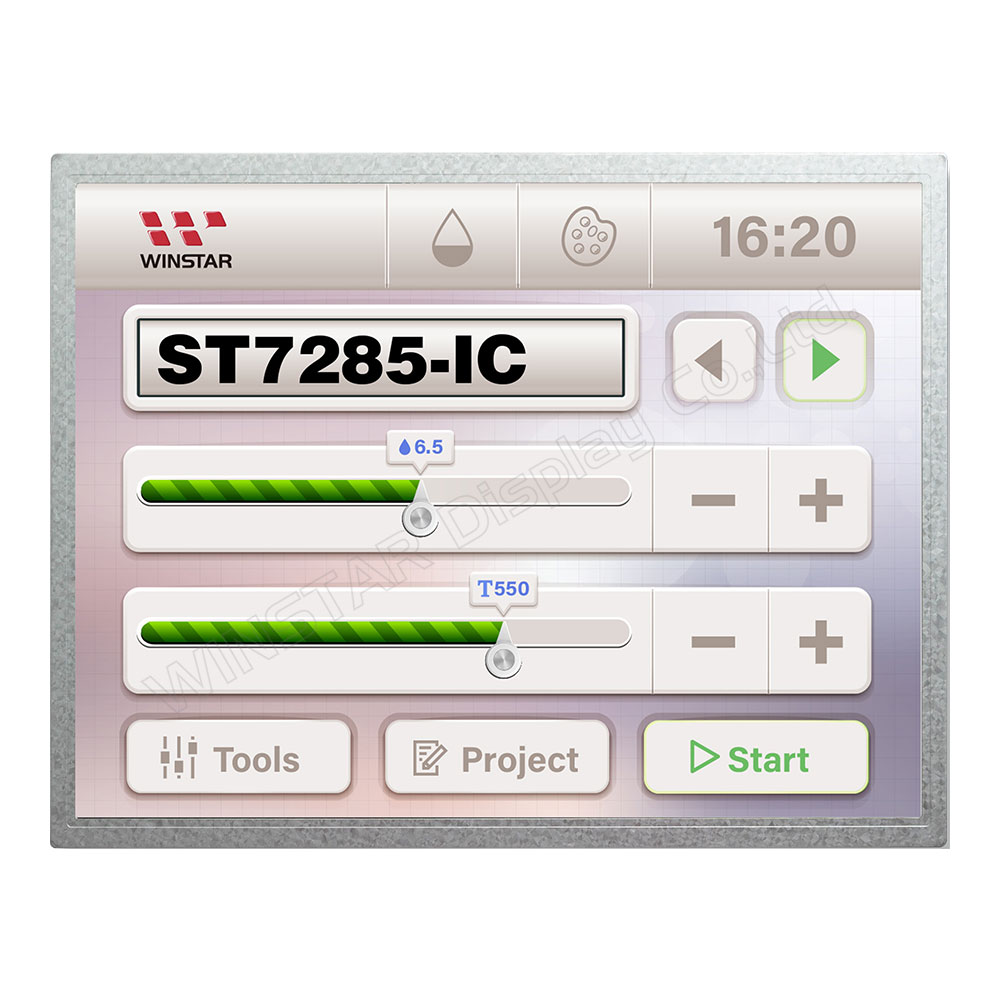

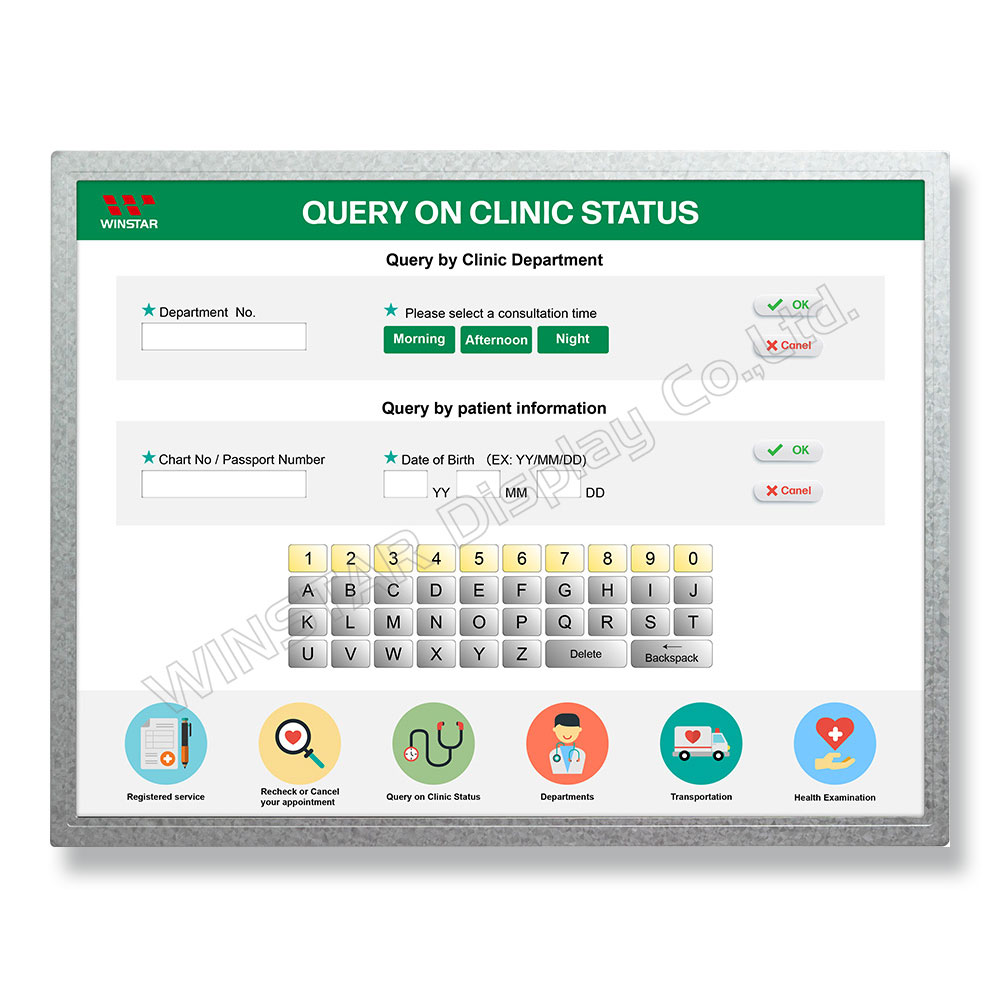

WF150ATYAMLNN0這是一款15吋 TFT LCD顯示器模組,擁有1024x768像素(XGA)的解析度。此型號外觀模組尺寸為326.5 × 253.5 mm,有效區域尺寸為304.1 × 228.1 mm。憑藉In-Plane Switching(IPS)技術,模組在左/右/上/下方向提供88度廣視角優勢,確保多樣應用中的卓越清晰度和豐富色彩。支援LVDS介面,擁有300 nits (典型值) 的亮度、2000:1(典型值)的對比度,採用防眩光玻璃表面。
主要特點:這款15吋顯示器適用於各個領域,包括工廠自動化控制系統、機器人控制系統、可視化工具、工具機控制系統、醫療設備。透過WF150ATYAMLNN0,提升您的視覺體驗,這是一款精心設計以實現精密和多樣性的顯示器模組。
項目 | 規格 | 單位 |
---|---|---|
尺寸(對角線) | 15 | 吋 |
點陣(解析度) | 1024 × RGB × 768 (TFT) | dots |

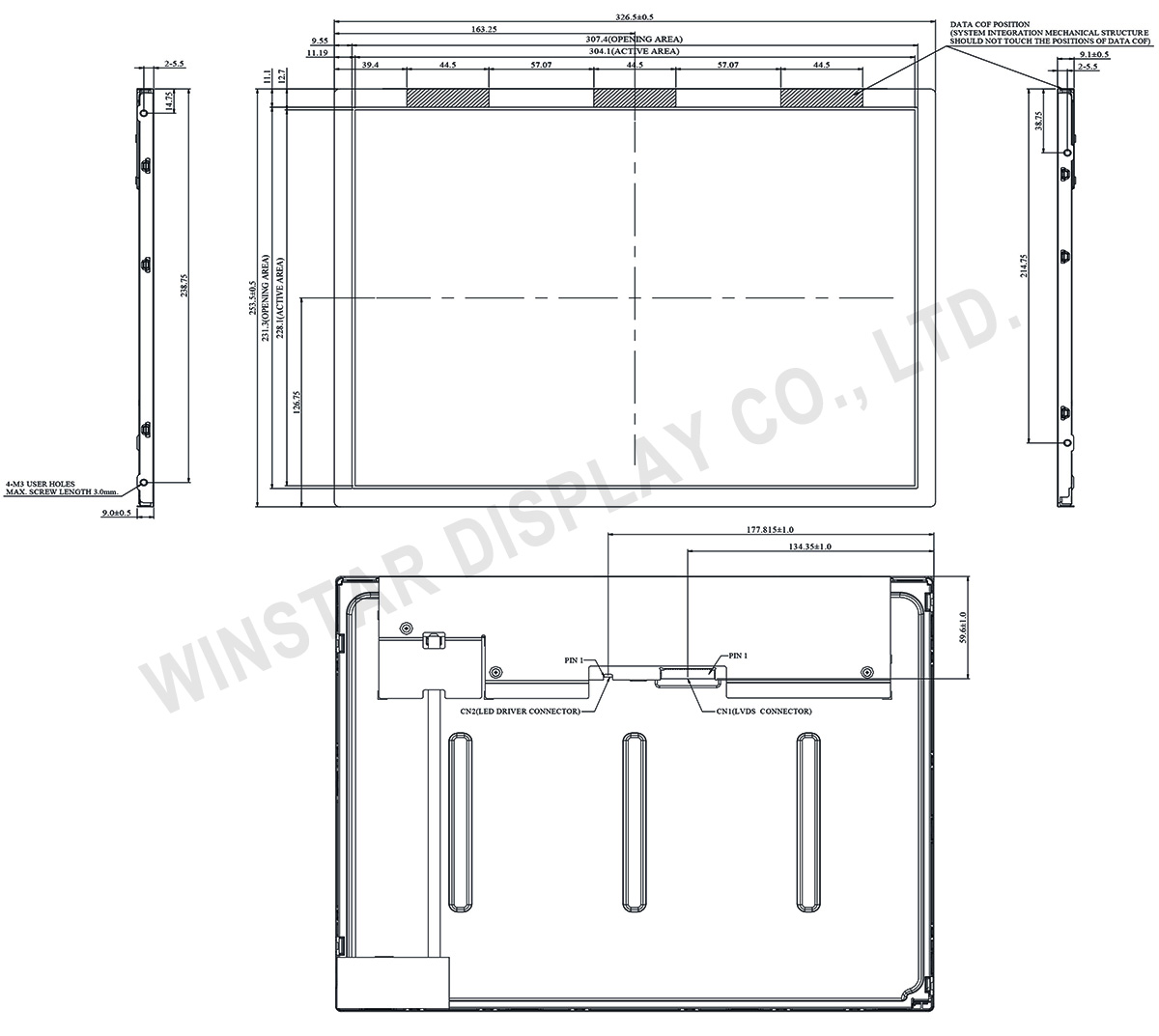

模組尺寸 | 326.5 × 253.5 × 9.1 | mm |
有效區域 | 304.1 × 228.1 | mm |
點間距 | 0.297 × 0.297 | mm |
LCD類型 | TFT, 平常黑, 透射式 | |
視角 | 88/88/88/88 | |
背光類型 | LED ,平常白 | |
介面 | LVDS | |
觸控面板 | 無觸控面板 | |
表面 | 防眩光 |
項目 | 符號 | 最小值 | 典型值 | 最大值 | 單位 |
---|---|---|---|---|---|
工作溫度 | TOP | -20 | - | +70 | ℃ |
儲存溫度 | TST | -30 | - | +70 | ℃ |
參數 | 符號 | 標準值 | 單位 | |||
---|---|---|---|---|---|---|
最小值 | 典型值 | 最大值 | ||||
Power Supply Voltage | VCC | 3.0 | 3.3 | 3.6 | V | |
Ripple Voltage | VRP | - | - | 100 | mVp-p | |
Inrush Current | IINRUSH | - | - | 2.0 | A | |
Power Supply Current | White | lcc | - | 550 | 660 | mA |
Black | - | 440 | 530 | mA | ||
LVDS differential input voltage | Vid | 200 | - | 600 | mV | |
LVDS common input voltage | Vic | 1.0 | 1.2 | 1.4 | V | |
Differential Input Voltage for LVDS Receiver Threshold | “H” Level | VIH | - | - | 100 | mV |
“L” Level | VIL | -100 | - | - | mV | |
Terminating Resistor | RT | - | 100 | - | Ohm |
Pin No. | 符號 | 功能說明 | Polarity |
---|---|---|---|
1 | VCC | Power Supply +3.3V(typical) | |
2 | VCC | Power Supply +3.3V(typical) | |
3 | NC | No Conncetion (Reserve for INX test) | |
4 | LR/UD | Reverse Scan Control H or NC = Normal Mode. L = Horizonta/ Vertical Reverse Scan. |
|
5 | RX0- | LVDS Differential Data Input | Negative |
6 | RX0+ | LVDS Differential Data Input | Positive |
7 | GND | Ground | |
8 | RX1- | LVDS Differential Data Input | Negative |
9 | RX1+ | LVDS Differential Data Input | Positive |
10 | NC | No Conncetion (Reserve for INX test) | |
11 | RX2- | LVDS Differential Data Input | Negative |
12 | RX2+ | LVDS Differential Data Input | Positive |
13 | GND | Ground | |
14 | RXCLK- | LVDS Differential Data Input | Negative |
15 | RXCLK+ | LVDS Differential Data Input | Positive |
16 | GND | Ground | |
17 | RX3- | LVDS Differential Data Input | Negative |
18 | RX3+ | LVDS Differential Data Input | Positive |
19 | NC | No Conncetion (Reserve for INX test) | |
20 | SEL68 | LVDS 6/8 bit select function control, High → 6bit Input Mode Low or NC→ 8bit Input Mode |
Pin | 符號 | 功能說明 |
---|---|---|
1 | Vi | Converter input voltage |
2 | VGND | Converter ground |
3 | EN | Enable pin |
4 | Dimming | Backlight Adjust |
5 | NC | Not Connect |
