首頁 產品介紹 TFT 模組 TFT-LCD 含控制板 WF52CTLBSDBN0

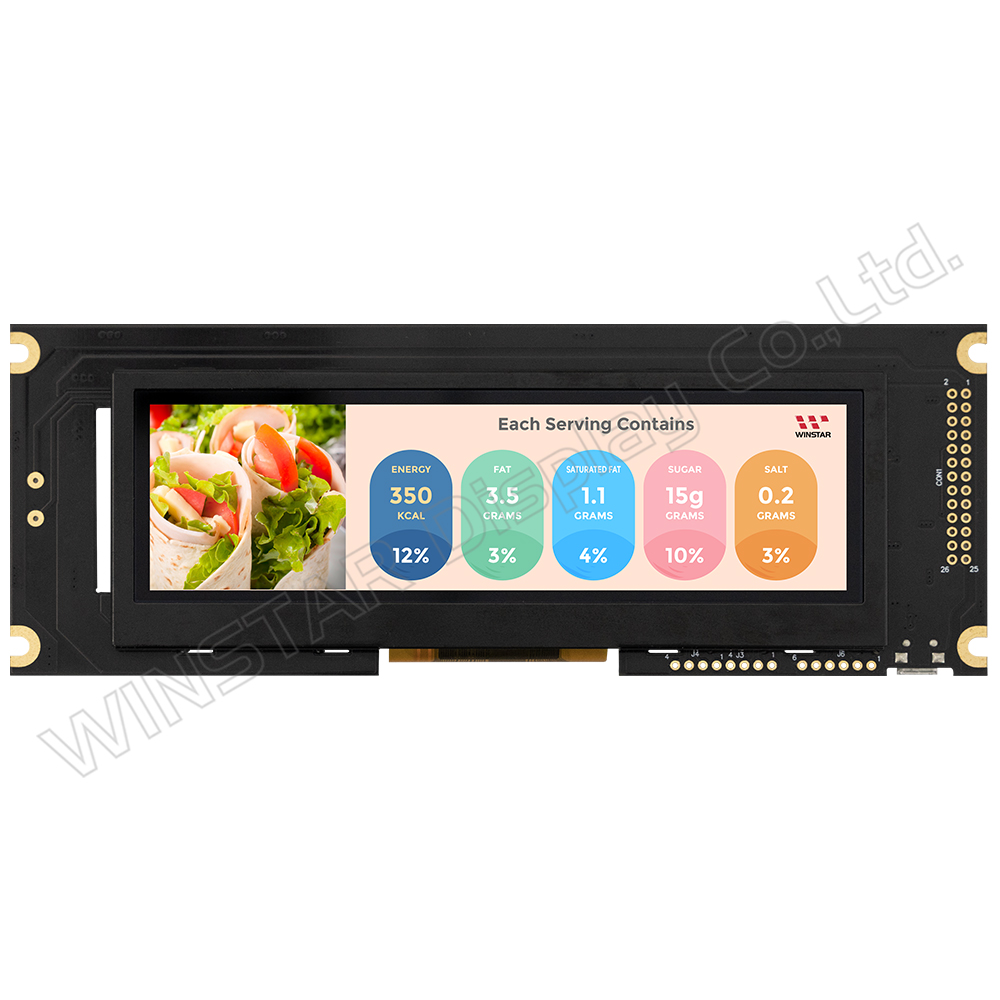

5.2吋 480x128 長條型TFT-LCD

型號 WF52CTLBSDBN0

►尺寸: 5.2吋
►解析度: 480 x 128 dots
►視角: 6H
►介面: 8080, MPU
►控制器IC:MR6566
►控制板: 有
►亮度 (cd/m²): 500
►鐵框螺絲孔: 無
►觸控面板: 無觸控面板
►O-Film : 無

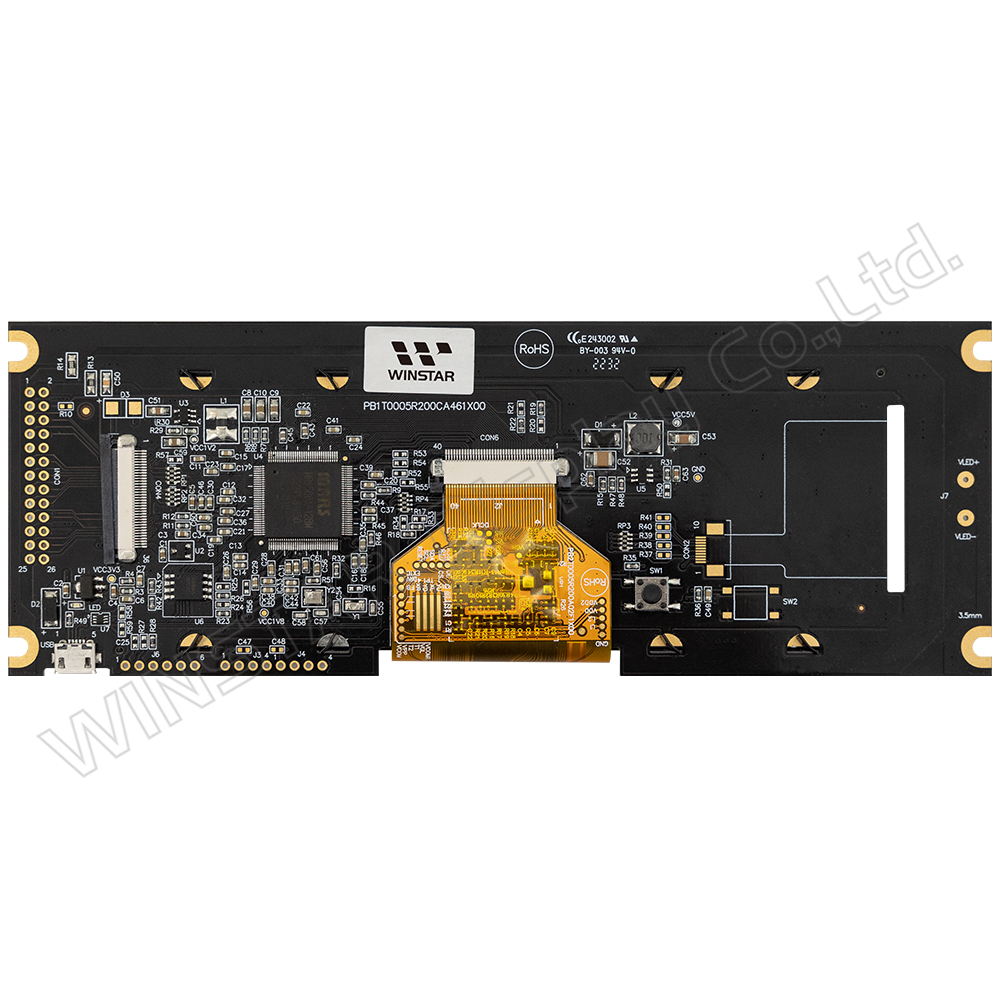

產品敘述

WF52CTLBSDBN0 是一款5.2吋長條型 TFT 液晶顯示器, 搭載PCB 控制板上帶有螺絲孔,其解析度為480x128像素,亮度為500 nits(典型值)。

模組最大的特色為原本使用STN 240x64 Dots搭載RA6963 Controller IC的客戶, 可在不更改Interface與韌體的環境下直接替換此次發表的新機種Color TFT WF52CTLBSDBN0,讓客戶加速從原本的單色顯示器輕鬆替換為彩色化顯示器。

此模組內建MR6566驅動IC,支援MCU 8080 8-bits介面。該模組的供電電壓為4.5V至5.5V(典型值5V)。其工作溫度範圍為-20℃~+70℃,儲存溫度範圍為-30~+80℃。

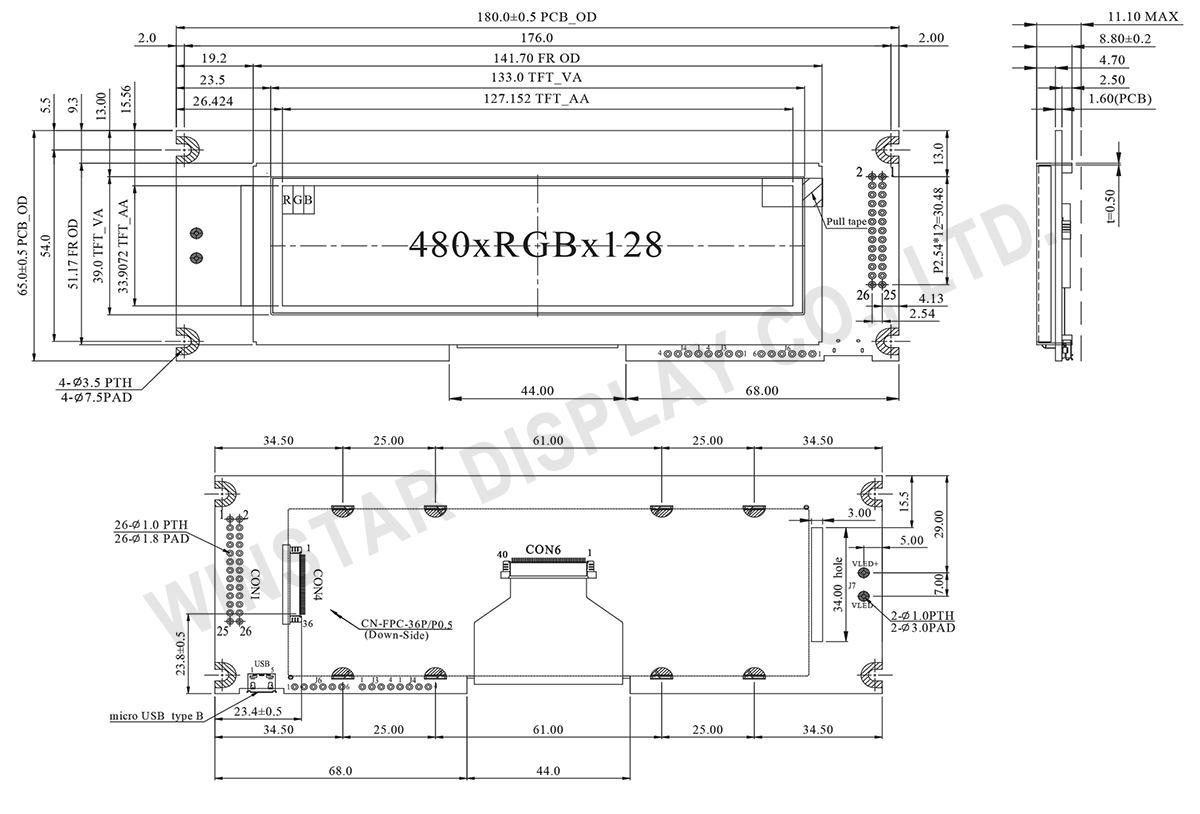

規格圖

5.2 inch 480x128 Bar Type TFT LCD - WF52CTLBSDBN0

產品規格

Pin功能定義

LCM PIN 定義 (CON4)
Pin 符號 功能說明
1 GND Ground
2 NC No connect
3 NC No connect
4 D/C Data/Command select
5 WR Write control
6 RD Read control
7 DB0 Data bus
8 DB1 Data bus
9 DB2 Data bus
10 DB3 Data bus
11 DB4 Data bus
12 DB5 Data bus
13 DB6 Data bus
14 DB7 Data bus
15~24 NC No Connect
25 CS Chip Select
26 RESET Reset
27 LR Right /Left selection; Default R/L is Pull High
28 UD Up/down selection; Default U/D is Pull High
29~32 NC No connection
33~34 GND Ground
35~36 VDD5V Power Supply (+5V)

LCM PIN 定義 (CON1)
(MCU8080 the same with the WG24064A for RA6963 serial)
Pin 符號 功能說明
1 FG System round pin of the IC. Connect to system ground
2 GND Ground
3 VDD5V Power Supply (+5V)
4 NC No connect
5 WR Write control
6 RD Read control
7 CS Chip select
8 D/C Data/Command select
9 NC No connection
10 RESET Reset
11 DB0 Data bus
12 DB1 Data bus
13 DB2 Data bus
14 DB3 Data bus
15 DB4 Data bus
16 DB5 Data bus
17 DB6 Data bus
18 DB7 Data bus
19~20 NC No connection
21 VDD5V Power Supply (+5V)
22 GND Ground.
23~25 NC No connection
26 GND Ground

USB
Pin 符號 功能說明
1 5V Power 5V
2 D- Data line -
3 D+ Data line +
4 NC No connection
5 GND Power Ground

規格說明

項目 規格 單位
顯示尺寸(對角線) 5.2
點陣(解析度) 480 x RGB x 128 dots
模組尺寸 180.0 x 65.0 x 11.1 mm
有效區域(AA) 127.152 x 33.9072 mm
點間距 0.0883 x 0.2649 mm
LCD類型 TFT, 白色, 透射性
視角 6 o'clock
灰階反轉 12 o'clock
長寬比 長條型
背光類型 LED, 白色
控制器IC MR6566
介面 Digital 8080 family MPU 8bit/16bit
觸控面板類型 無觸控面板
表面 亮面

最大絕對額定值

項目 符號 最小值 典型值 最大值 單位
工作溫度 TOP -20 +70
儲存溫度 TST -30 +80

電氣特性

項目 符號 最小值 典型值 最大值 單位
LCM供電電壓 VDD 4.5 5.0 5.5 V
LCM供電電流 IDD - 500 750 mA
LED使用壽命   - 50,000 - Hr
