產品敘述

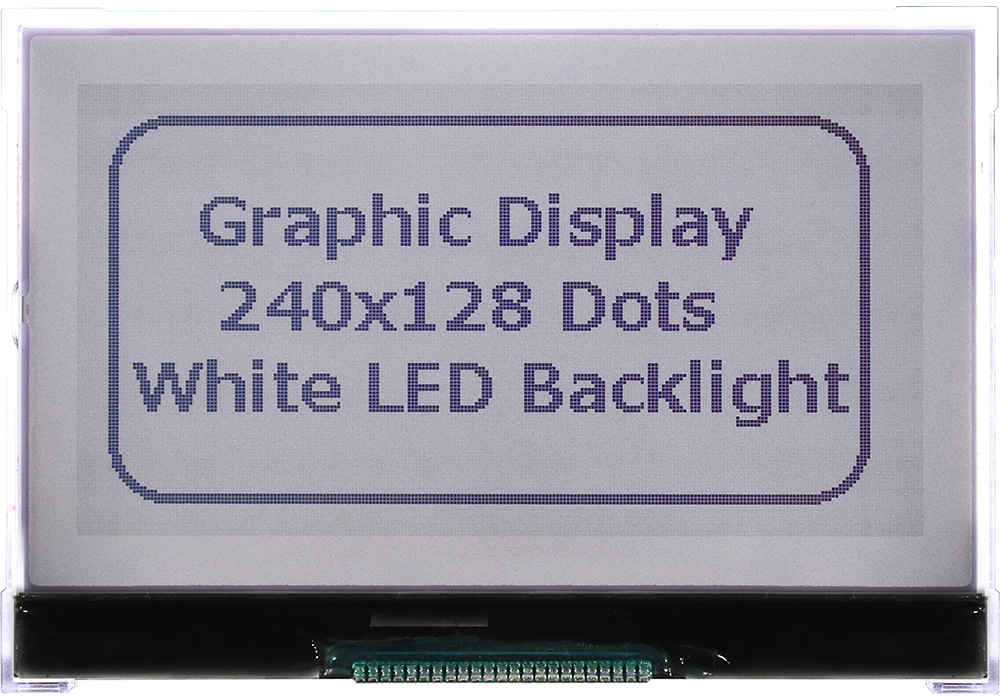

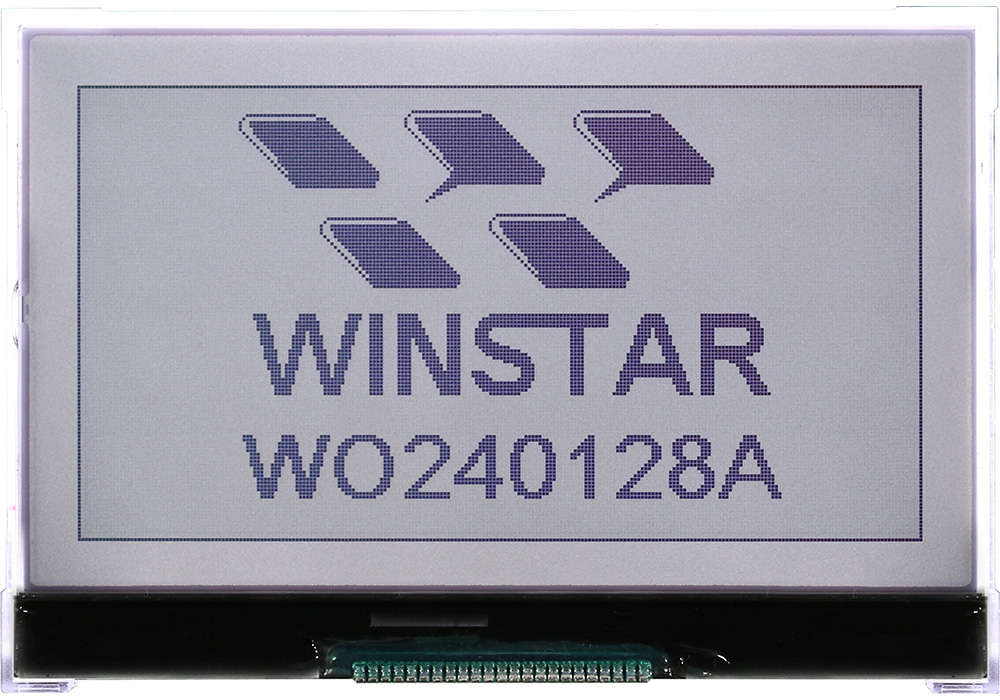

WO240128A 是一款 3.75 吋單色繪圖型 LCD 模組，採用 COG（Chip on Glass）結構設計，具備 240x128 dots 解析度，內建 UC1608 控制 IC，支援多種介面類型（6800、8080、3-wire SPI、4-wire SPI）。此模組具備輕薄、省電等特性，適用於工業儀器、醫療設備及手持式裝置等對顯示品質與空間效率有要求的應用。提供多種 LCD Type 與偏光片模式，歡迎與我們聯繫了解更多。

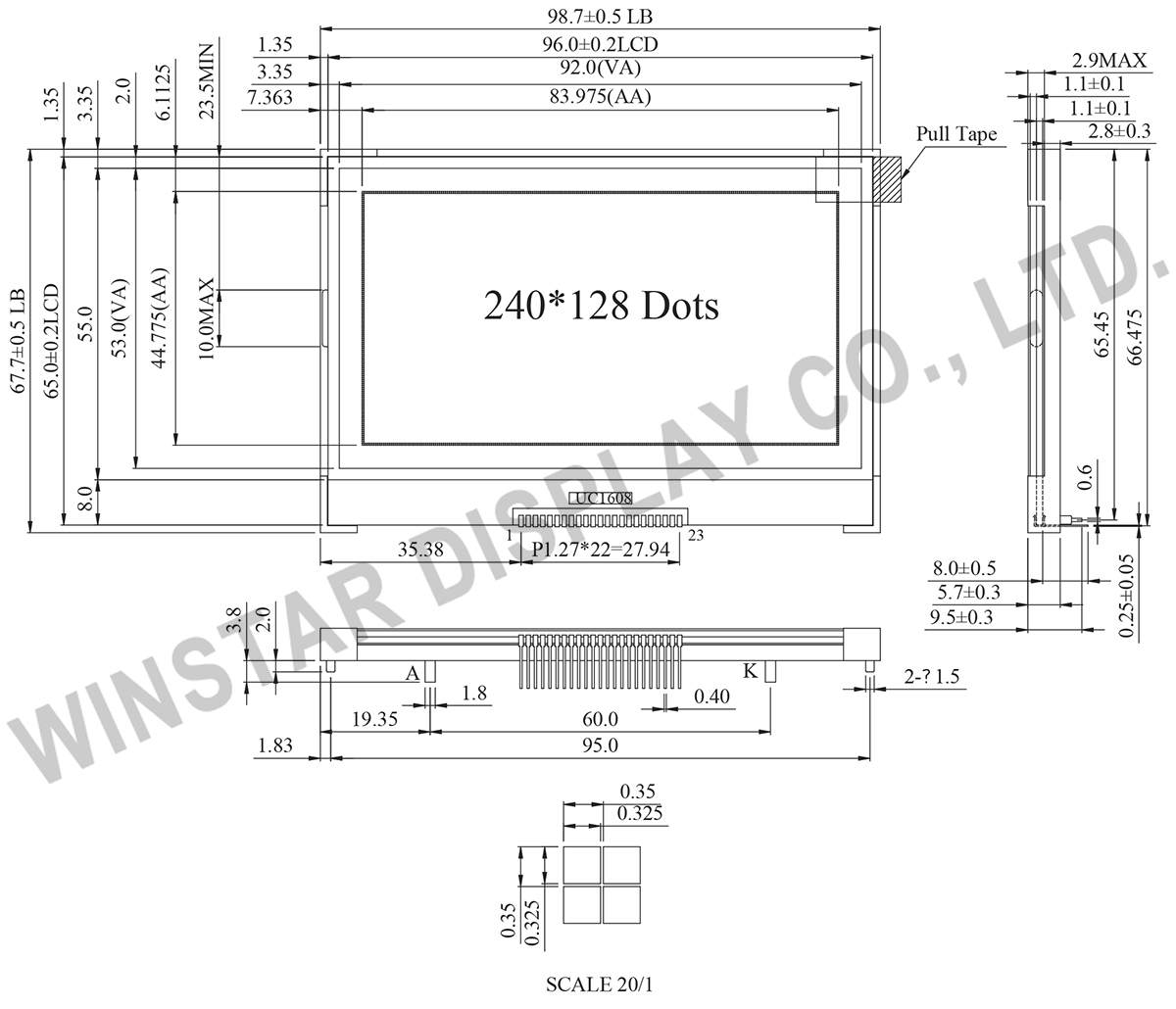

規格圖
Data source ref:WO240128A-TFH#
產品規格
規格說明
| 項目 | 標準尺寸 | 單位 |
|---|---|---|
| 顯示形式 | 240 x 128 點 | － |
| 模組尺寸 | 98.7 x 67.7 x 9.5 (Max) | mm |
| 檢視區域 | 92.0 x 53.0 | mm |
| 有效區域 | 83.975 x 44.775 | mm |
| 點大小 | 0.325 x0.325 | mm |
| 點間距 | 0.35 x 0.35 | mm |
| 驅動方式 | 1/128 , 1/12 Bias | |
| 背光類型 | LED | |
| IC | UC1608 | |
| 介面 | 6800/8080/3 wire SPI/4 wire SPI | |
最大絕對額定值
| 項目 | 符號 | 最小值 | 典型值 | 最大值 | 單位 |
|---|---|---|---|---|---|
| 工作溫度 | TOP | -20 | － | +70 | ℃ |
| 儲存溫度 | TST | -30 | － | +80 | ℃ |
| 邏輯電源電壓 | VDD | -0.3 | － | +4.0 | V |
| LCD Generator supply voltage | VDD2 | -0.3 | － | +4.0 | V |
| LCD Generated voltage | VLCD | -0.3 | － | +17.8 | V |
電氣特性
| 項目 | 符號 | 條件 | 最小值 | 典型值 | 最大值 | 單位 |
|---|---|---|---|---|---|---|
| 邏輯電源電壓 | VDD-VSS | － | 2.7 | 2.8~3.3 | 3.6 | V |
| LCM電源電壓 | V0-VSS | Ta=-20℃ Ta=25℃ Ta=70℃ |
－ 15.2 － |
－ 15.5 － |
－ 15.8 － |
V V V |
| 輸入高電壓 | VIH | － | 0.8 VDD | － | － | V |
| 輸入低電壓 | VIL | － | － | － | 0.2VDD | V |
| 輸出高電壓 | VOH | － | 0.8VDD | － | － | V |
| 輸出低電壓 | VOL | － | － | － | 0.2VDD | V |
| 電源電流（不包括LED背光） | IDD | VDD=3.0V | － | 1.1 | － | mA |
Pin功能定義
| Pin No. | 符號 | Level | 說明 | |||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | VB1- | PWR | LCD Bias Voltages. These are the voltage source to provide SEG driving currents. These voltages are generated internally. Connect capacitors of CBX between VBX+ and VBX–. The resistance of these four traces directly affects the SEG driving strength of the resulting LCD module. Minimize the trace resistance is critical in achieving high quality image. |
|||||||||||||||||||||||||||||||||||||||||||||
| 2 | VB1+ | |||||||||||||||||||||||||||||||||||||||||||||||
| 3 | VB0- | |||||||||||||||||||||||||||||||||||||||||||||||
| 4 | VB0+ | |||||||||||||||||||||||||||||||||||||||||||||||
| 5 | VLCD | PWR | Main LCD Power Supply. Connect these pins together. | |||||||||||||||||||||||||||||||||||||||||||||
| 6 | VBIAS | I | This is the reference voltage to generate the actual SEG driving voltage. VBIAS can be used to fine tune VLCD by external variable resistors. Internal resistor network has been provided to simplify external trimming circuit. In COF application, connect a small bypass capacitor between VBIAS and VSS to reduce noise. |
|||||||||||||||||||||||||||||||||||||||||||||
| 7 | VSS | PWR | Ground | |||||||||||||||||||||||||||||||||||||||||||||
| 8 | VDD | PWR | Supply Voltage for logic | |||||||||||||||||||||||||||||||||||||||||||||
| 9 | D7 | I/O | Bi-directional bus for both serial and parallel host interfaces. In serial modes, connect D[0] to SCK, D[3] to SDA,
|
|||||||||||||||||||||||||||||||||||||||||||||
| 10 | D6 | |||||||||||||||||||||||||||||||||||||||||||||||
| 11 | D5 | |||||||||||||||||||||||||||||||||||||||||||||||
| 12 | D4 | |||||||||||||||||||||||||||||||||||||||||||||||
| 13 | D3 | |||||||||||||||||||||||||||||||||||||||||||||||
| 14 | D2 | |||||||||||||||||||||||||||||||||||||||||||||||
| 15 | D1 | |||||||||||||||||||||||||||||||||||||||||||||||
| 16 | D0 | |||||||||||||||||||||||||||||||||||||||||||||||
| 17 | WR1 | I | WR[1:0] controls the read/write operation of the host interface. See Host Interface section for more detail. In parallel mode, WR[1:0] meaning depends on whether the interface is in the 6800 mode or the 8080 mode. In serial interface modes, these two pins are not used, connect them to VSS. |
|||||||||||||||||||||||||||||||||||||||||||||
| 18 | WR0 | |||||||||||||||||||||||||||||||||||||||||||||||
| 19 | CD | I | Select Control data or Display data for read/write operation. In S9 mode, CD pin is not used. Connect CD to VSS when not used. ”L”: Control data ”H”: Display data | |||||||||||||||||||||||||||||||||||||||||||||
| 20 | RST | I | When RST=”L”, all control registers are re-initialized by their default states. Since UC1608x has built-in Power-ON-Reset and Software Reset command, RST pin is not required for proper chip operation. When RST is not used, connect the pin to VDD. |
|||||||||||||||||||||||||||||||||||||||||||||
| 21 | CS | I | Chip Select. The chip is selected when CS=”H”. When the chip is not selected, D[7:0] will be high impedance. | |||||||||||||||||||||||||||||||||||||||||||||
| 22 | BM0 | I | Bus mode: The interface bus mode is determined by BM[1:0] and D[7:6] by the following relationship:
|
|||||||||||||||||||||||||||||||||||||||||||||
| 23 | BM1 |
Search keyword: 240x128 lcd, 240 x 128 lcd, lcd 240x128, lcd 240 x 128
