產品敘述

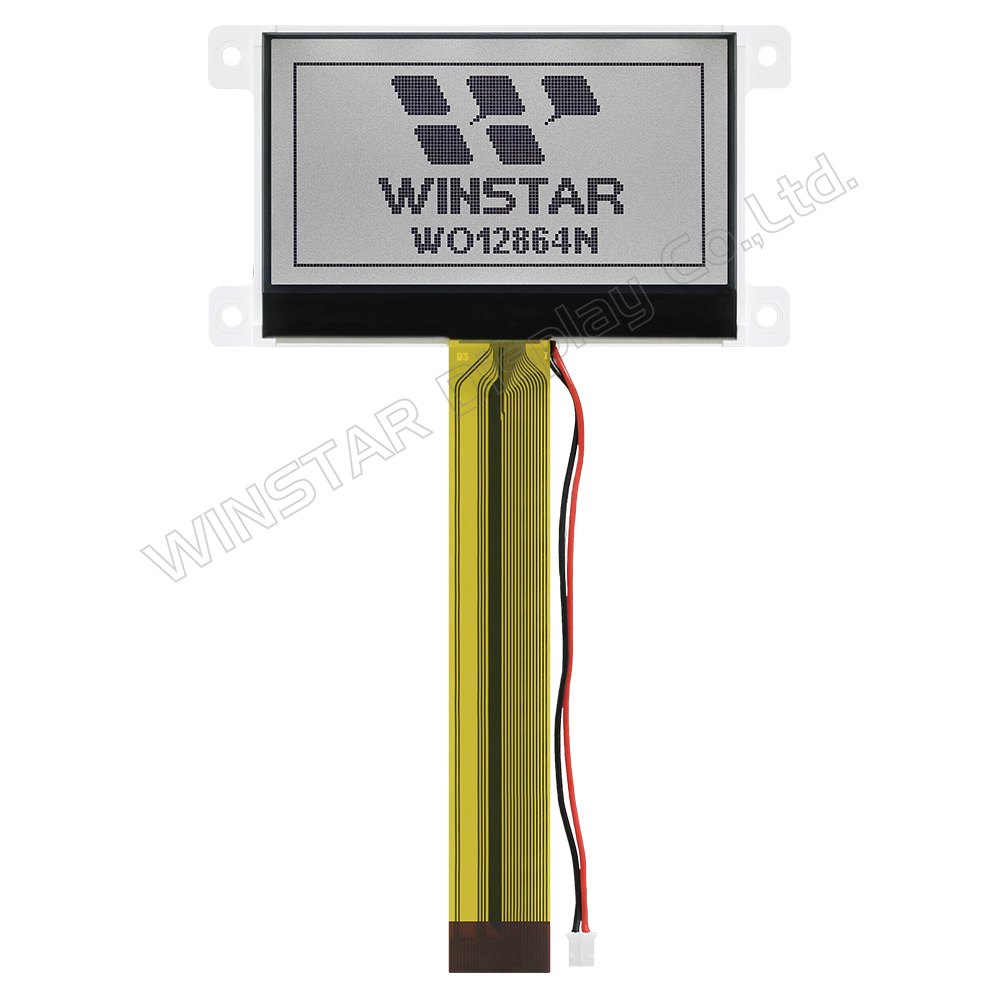

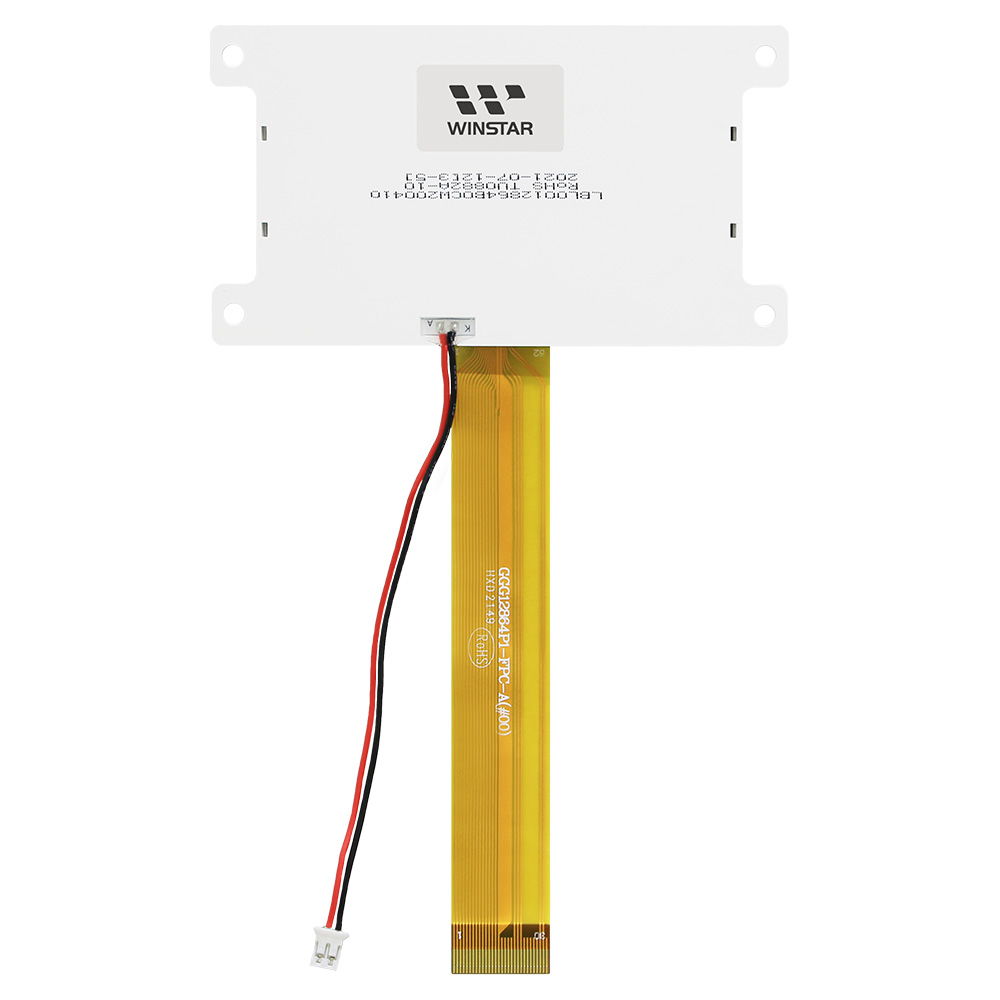

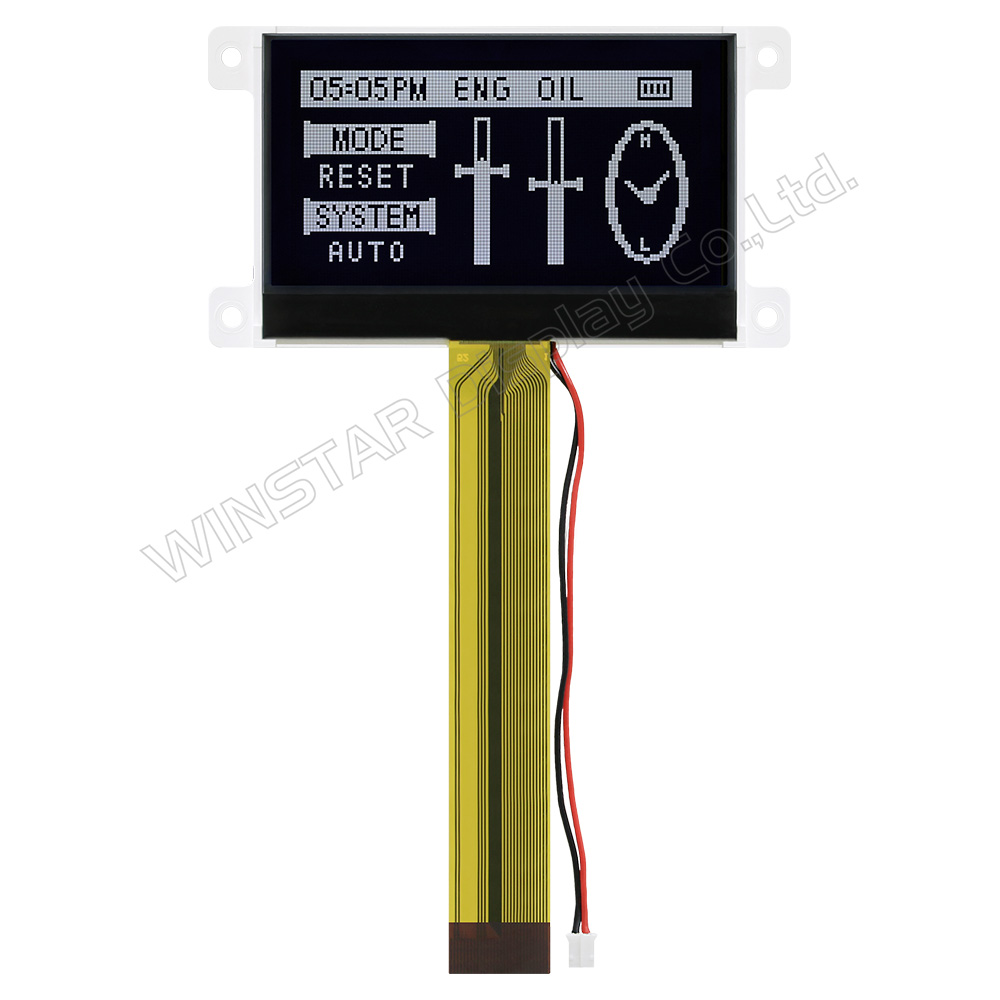

因應部分IC交期長, 華凌開發WO12864N作為WO12864B1替代選項型號。

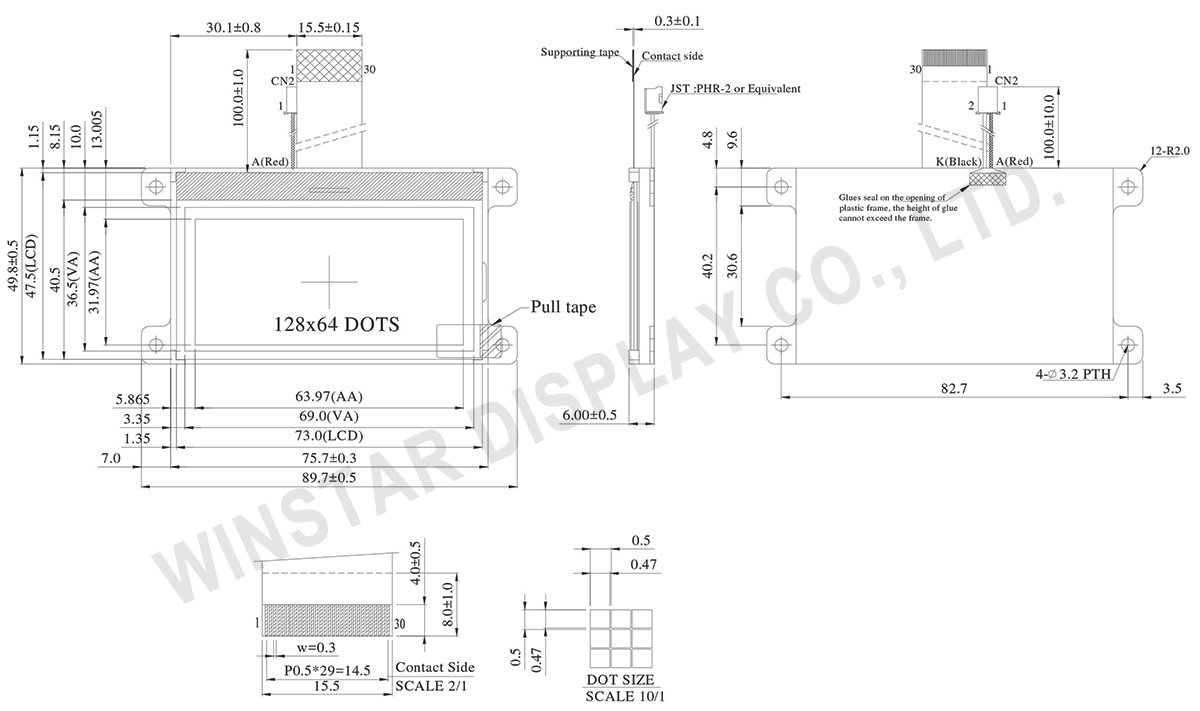

規格圖
產品規格
Pin功能定義
| Pin | 符號 | 說明 |
|---|---|---|
| 1 | CSB | Chip select input pin.Interface access is enabled when CSB is “L”,When CSB is non-active(CSB=”H”),D[7:0] pins are high impedance. |
| 2 | RSTB | Hardware reset input pin. When RSTB is “L”, interna initialization is executed and the internal registers will be initialized. |
| 3 | A0 | It determines whether the access is related to data or command. A0=“H” : Indicates that signals on D[7:0] are display data. A0=“L” : Indicates that signals on D[7:0] are command |
| 4 | RWR | Read/Write execution control pin. When PSB is “H”, RWR is not used in serial interface and should fix to “H” by VDD1 or VDDH. |
| 5 | ERD | Read/Write execution control pin. When PSB is “H”, ERD is not used in serial interface and should fix to “H” by VDD1 or VDDH. |
| 6 | D0 | When using 8-bit parallel interface: (6800 or 8080 mode) 8-bit bi-directional data bus. Connect to the data bus of 8-bit microprocessor. When CSB is non-active (CSB=“H”), D[7:0] pins are high impedance. |
| 7 | D1 | |
| 8 | D2 | |
| 9 | D3 | |
| 10 | D4 | |
| 11 | D5 | |
| 12 | D6 | |
| 13 | D7 | |
| 14 | VDD | Power supply |
| 15 | Vss | Ground |
| 16-19 | NC | Not connect. |
| 20 | V0 | V0 is the LCD driving voltage for common circuits at negative frame. |
| 21 | XV0 | XV0 is the LCD driving voltage for common circuits at positive frame. |
| 22 | VG | VG is the LCD driving voltage for segment circuits. |
| 23-27 | NC | Not connect. |
| 28 | C86 | C86 selects the microprocessor type in parallel interface mode. |
| 29 | PSB | PSB selects the interface type: Serial or Parallel. |
| 30 | NC | Not connect. |
規格說明
| 項目 | 規格 | 單位 |
|---|---|---|
| 點陣(解析度) | 128 x 64 | － |
| 模組尺寸 | 89.7 x 49.8 x 6.0 | mm |
| 檢視區域 | 69.0 x 36.5 | mm |
| 有效區域 | 63.97 x 31.97 | mm |
| 點大小 | 0.47 x 0.47 | mm |
| 點間距 | 0.5 x 0.5 | mm |
| 驅動方式 | 1/65 , 1/9 Bias | |
| 背光類型 | LED | |
| IC | ST7567 | |
| 介面 | 6800/8080/4線 SPI | |
最大絕對額定值
| 項目 | 符號 | 最小值 | 典型值 | 最大值 | 單位 |
|---|---|---|---|---|---|
| 工作溫度 | TOP | -20 | － | +70 | ℃ |
| 儲存溫度 | TST | -30 | － | +80 | ℃ |
| 輸入電壓 | VI | -0.3 | － | VDD+0.3 | V |
| 數位電源電壓 | VDD-Vss | -0.3 | － | 3.6 | V |
| LCD供電電壓 | V0-XV0 | -0.3 | － | 16 | V |
電氣特性
| 項目 | 符號 | 條件 | 最小值 | 典型值 | 最大值 | 單位 |
|---|---|---|---|---|---|---|
| 邏輯電源電壓 | VDD-VSS | － | 2.8 | 3.0 | 3.2 | V |
| LCD供電電壓 | VOP | Ta=-20℃ Ta=25℃ Ta=70℃ |
－ 9.3 － |
－ 9.5 － |
－ 9.7 － |
V V V |
| 輸入高電壓 | VIH | － | 0.7 VDD | － | VDD | V |
| 輸入低電壓 | VIL | － | Vss | － | 0.3VDD | V |
| 輸出高電壓 | VOH | － | 0.8 VDD | － | VDD | V |
| 輸出低電壓 | VOL | － | Vss | － | 0.2VDD | V |
| 供電電流 | IDD | VDD=3.0V | － | 0.7 | 1.0 | mA |
