10.1吋 1024x600 LVDS IPS 電阻式觸控 TFT 顯示器模組

型號 WF101JTYAHLNT0

►尺寸: 10.1吋
►解析度: 1024×600 dots
►視角: IPS
►介面: LVDS
►驅動IC: EK79001HN + EK73215BCGA
►控制板: No
►亮度(cd/m2): 350
►鐵框螺絲孔: 無
►觸控面板 : 電阻式觸控面板 (RTP)

產品敘述

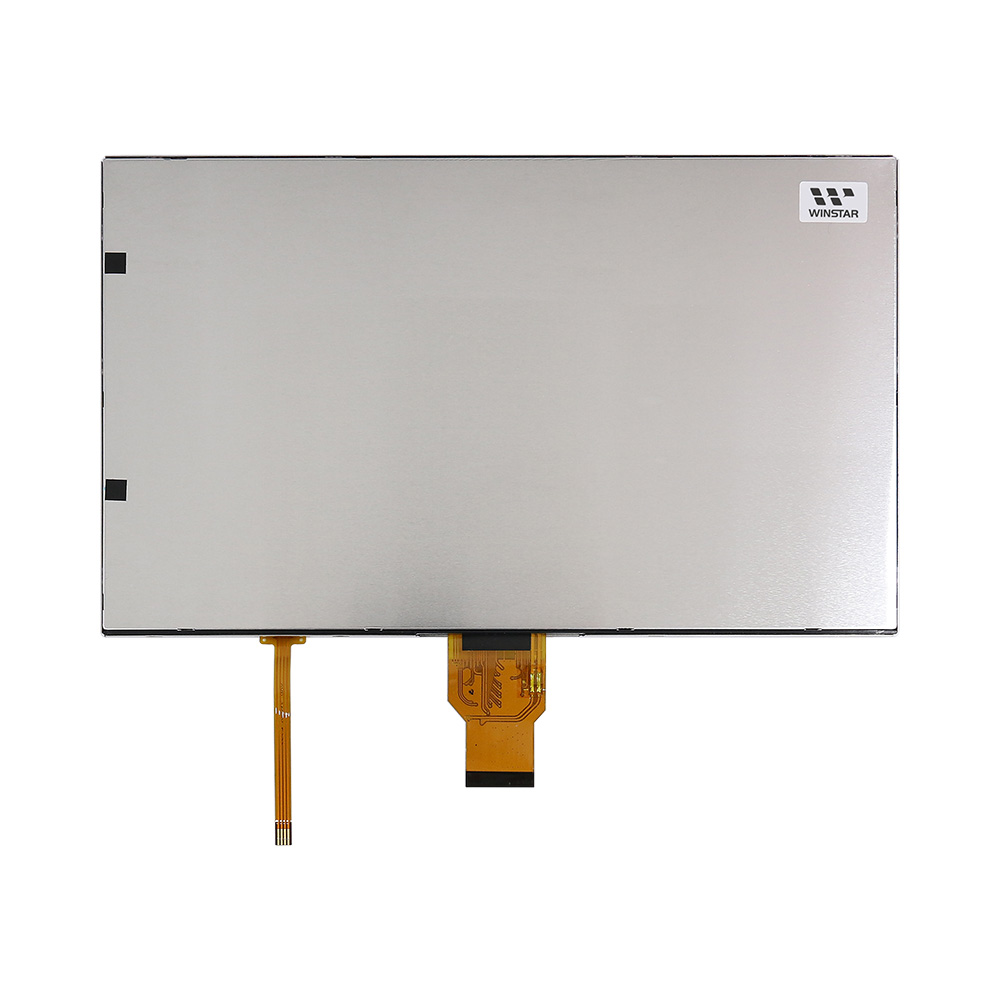

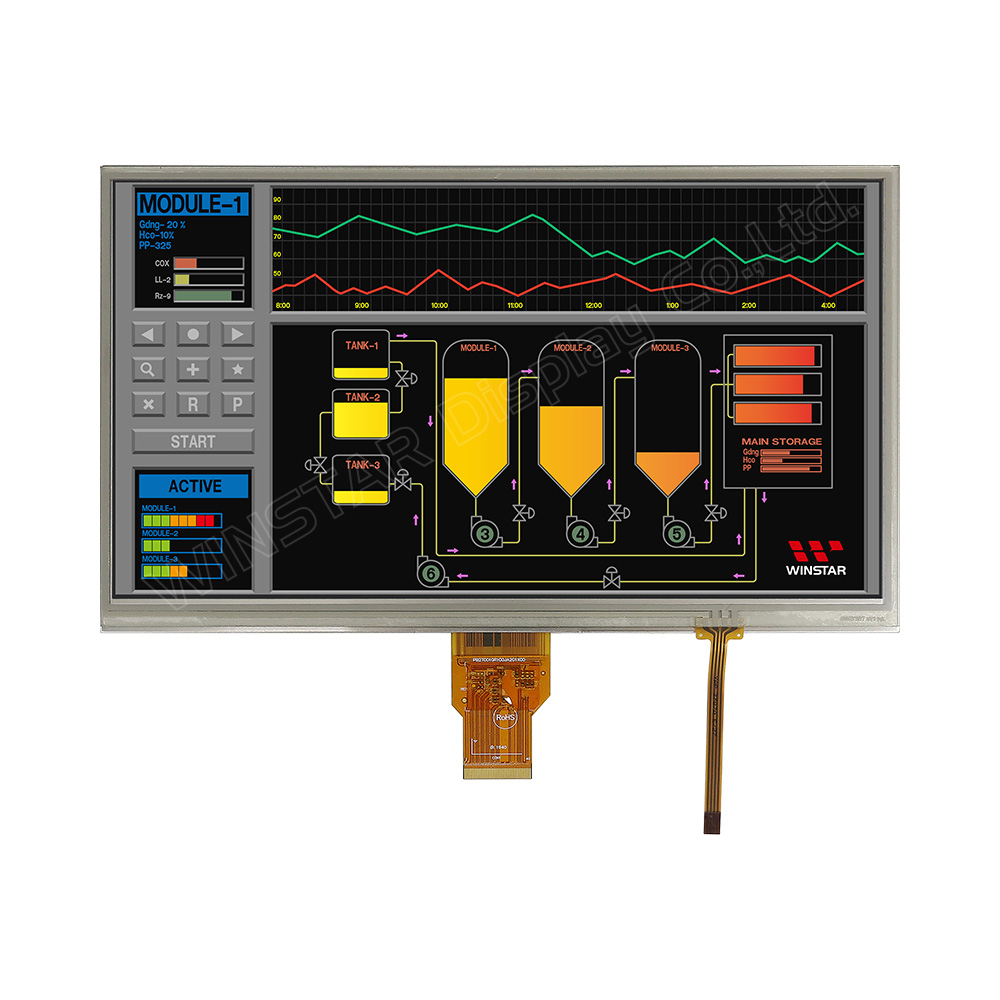

WF101JTYAHLNT0是一款10.1吋加上電阻式觸控面板的橫式螢幕(Landscape)IPS TFT LCD模組,解析度為1024x600像素。WF101JTYAHLNT0型號內建EK79001HN和EK73215BCGA驅動IC,支援LVDS介面。模組對比度800:1(典型值),亮度350 nits(典型值),長寬比16:9,玻璃採防眩光表面,Normally Black,Transmissive LCD類型。這款10.1吋IPS TFT視角比TN TFT寬,左:85 /右:85 /上:85 /下:85度(典型值)。WF101JTYAHLNT0 電源電壓(VDD)為3.0V~3.6V,典型值為3.3V。模組工作溫度為-20℃~+70℃;儲存溫度為-30℃~+80℃。

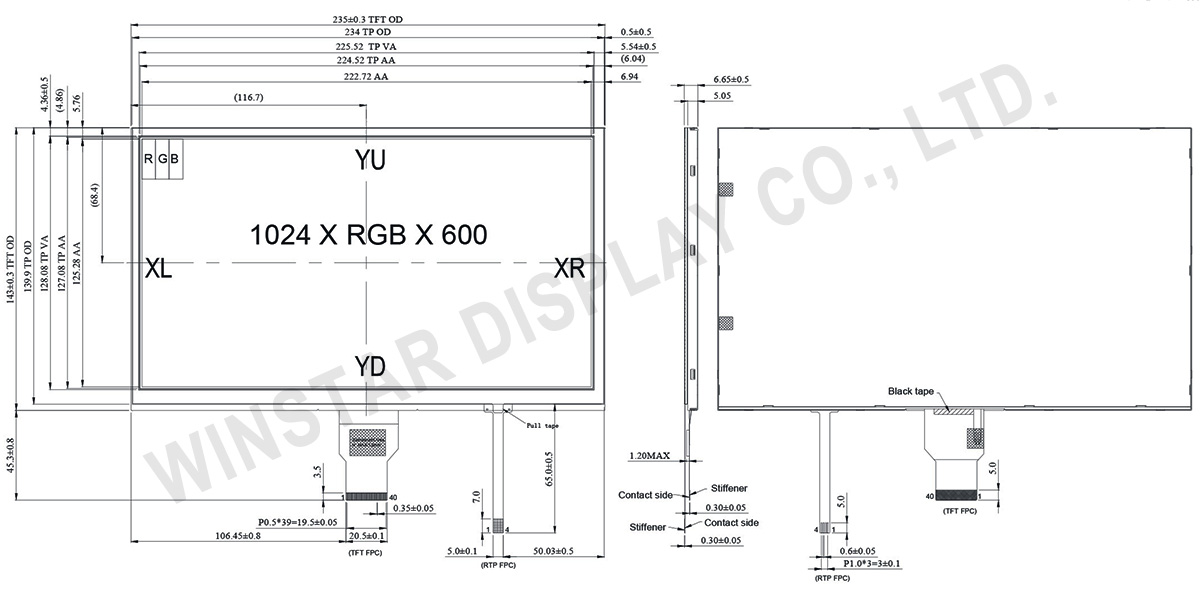

規格圖

Resistive Touch Screen TFT, TFT Resistive Touch, TFT Resistive Touchscreen, Resistive Touch Screen- WF101JTYAHLNT0

產品規格

規格說明

項目 規格 單位
顯示尺寸(對角線) 10.1
點陣(解析度) 1024 RGB x 600 dots
模組尺寸 235(W) x 143(H) x 6.65(D) mm
有效區域 222.72 (H) x 125.28(V) mm
點間距 0.2175(W) x 0.2088(H) mm
LCD類型 TFT, 平常黑, 透射式
介面 LVDS
驅動IC EK79001HN + EK73215BCGA 或相容IC
視角 85/85/85/85
長寬比 16:9
背光類型 LED, 平常白
觸控面板類型 電阻式觸控面板
表面 防眩光

最大絕對額定值

項目 符號 最小值 典型值 最大值 單位
工作溫度 TOP -20 +70
儲存溫度 TST -30 +80

電氣特性

典型操作條件 (At Ta = 25 °C,)

項目 符號 最小值 典型值 最大值 單位
LCD數位電源電壓 VDD 3 3.3 3.6 V
類比電源電壓 AVDD 9.89 10.2 10.5 V
VGH 電源電壓 VGH 19.4 20.0 20.6 V
VGH 電源電壓 VGL -10.3 -10.0 -9.7 V
VCOM 電源電壓 VCOM 4.0 4.3 4.6 V
邏輯輸入高電壓 VIH 0.7 VDD - VDD V
邏輯輸入低電壓 VIL 0 - 0.3 VDD V

Pin功能定義

TFT LCD Module

Pin No. 符號 功能說明
1 VCOM Common voltage
2 VDD Digital power
3 VDD Digital power
4 NC Not connect
5 Reset Global reset pin. Active low to enter reset state. Suggest to connecting with an RC reset circuit for stability. Normally pull high. (R=10KΩ,C=1μF)
6 STBYB Standby mode, normally pull high STBYB=”1”, normal operation STBYB=”0”,timing control, source driver will turn off, all output are high-Z
7 GND Digital ground
8 RXIN0- Negative LVDS differential data inputs
9 RXIN0+ Positive LVDS differential data inputs
10 GND Digital ground
11 RXIN1- Negative LVDS differential data inputs
12 RXIN1+ Positive LVDS differential data inputs
13 GND Digital ground
14 RXIN2- Negative LVDS differential data inputs
15 RXIN2+ Positive LVDS differential data inputs
16 GND Digital ground
17 RXCLKN- Negative LVDS differential clock inputs
18 RXCLKN+ Positive LVDS differential clock inputs
19 GND Digital ground
20 RXIN3- Negative LVDS differential data inputs
21 RXIN3+ Positive LVDS differential data inputs
22 GND Digital ground
23 NC Not connect
24 NC Not connect
25 GND Digital ground
26 NC Not connect
27 NC Not connect
28 SELB 6-bit/8-bit input select SELB = L , 8-bit ; SELB = H , 6-bit
29 AVDD Analog power
30 GND Digital ground
31 LED- LED Cathode
32 LED- LED Cathode
33 L/R Left or right display control
34 U/D Up / down display control
35 VGL Negative power for TFT
36 NC Not connect
37 NC Not connect
38 VGH Positive power for TFT
39 LED+ LED Anode
40 LED+ LED Anode

When L/R="0",set right to left scan direction.
When L/R="1",set left to right scan direction.
When U/D="0",set top to bottom scan direction.
When U/D="1",set bottom to top scan direction.
