0.96" 128x64 グラフィック液晶有機

型番 WEO012864C

►タイプ: グラフィック液晶有機
►結構: COG
►サイズ: 0.96 インチ
►50 x 16 ドットマトリックス
►SH1106Gコントローラー内蔵
►3V電源電圧
►1/64 duty
►インターフェース: 6800, 8080, SPI, I2C

製品情報

WEO012864Cは0.96"COG構造のグラフィックOLED 128*64です。自発光でバックライト不要な構造で、厚み1.65mmの極薄型の製品です。WEO012864CはSH1106G controller ICを内臓しております。6800/8080 8-bit /I2C /4線式のSPIのインターフェースをサポート致します。このモジュールは有機ELが搭載されておりますから、消費電力量が低いです。軽量、小型、低消費電流の製品に相応しいです。例えば、手持ち製品、測定器、 装着型装置 IoTなど。操作温度範囲は-40℃ から +80℃までで、保存温度範囲は-40℃ から+85℃に至ります。

  • WEO012864CWAP3N00001 : 白色

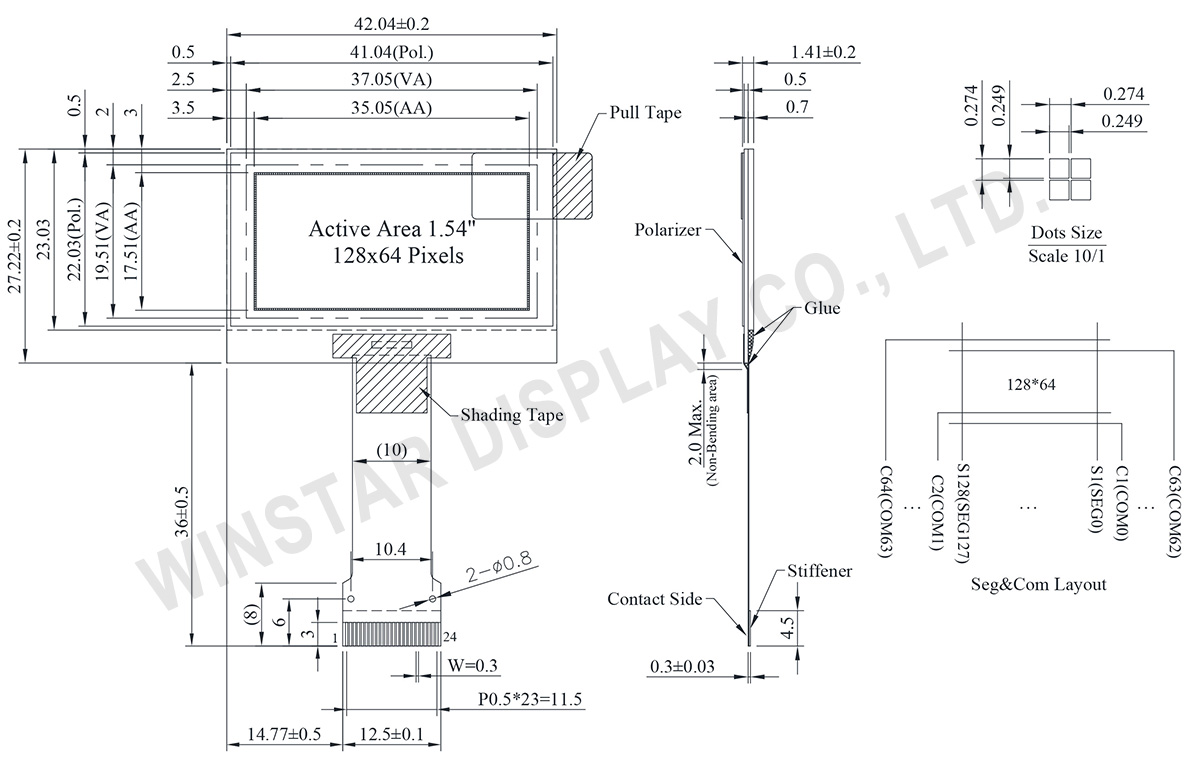

外形図

128x64 OLED Display, 128x64 OLED LCD, OLED 128x64, OLED Display 128 x 64 - WEO012864C

製品仕様

ピン功能定義

No. 記号 説明
1 NC No connection
2 C1N Connect to charge pump capacitor.
These pins are not used and should be disconnected when Vpp is supplied externally.
3 C1P
4 C2P Connect to charge pump capacitor.
These pins are not used and should be disconnected when Vpp is supplied externally.
5 C2N
6 VDD2 3.0 – 4.7V power supply pad for Power supply for charge pump circuit.
This pin should be disconnected when VPP is supplied externally
7 NC No connection
8 VSS Ground.
9 VDD1 Power supply input: 1.65 - 3.5V
10 NC No connection
11 IM1 These are the MPU interface mode select pads.
  8080 12C 6800 4-wire SPI
IM1 1 1 0 0
IM2 1 0 1 0
12 IM2
13 CSB This pad is the chip select input. When CSB = “L”, then the chip select becomes active, and data/command I/O is enabled.
14 RESB This is a reset signal input pad. When RES is set to “L”, the settings are initialized. The reset operation is performed by the RES signal level.
15 A0 This is the Data/Command control pad that determines whether the data bits are data or a command.
A0 = “H”: the inputs at D0 to D7 are treated as display data.
A0 = “L”: the inputs at D0 to D7 are transferred to the command registers.
In I2C interface, this pad serves as SA0 to distinguish the different address of OLED driver.
16 WRB This is a MPU interface input pad.
When connected to an 8080 MPU, this is active LOW. This pad connects to the 8080 MPU WR signal. The signals on the data bus are latched at the rising edge of the WR signal.
When connected to a 6800 Series MPU: This is the read/write control signal input terminal.
When R/W = “H”: Read.
When R/W = “L”: Write.
17 RDB This is a MPU interface input pad.
When connected to an 8080 series MPU, it is active LOW. This pad is connected to the RD signal of the 8080 series MPU, and the data bus is in an output status when this signal is “L”.
When connected to a 6800 series MPU , this is active HIGH. This is used as an enable clock input of the 6800 series MPU.
When RD = “H”: Enable.
When RD = “L”: Disable.
18 D0 This is an 8-bit bi-directional data bus that connects to an 8-bit or 16-bit standard MPU data bus.
When the serial interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SI). At this time, D2 to D7 are set to high impedance.
When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDAI). At this time, D2 to D7 are set to high impedance.
19 D1
20 D2
21 D3
22 D4
23 D5
24 D6
25 D7
26 IREF This is a segment current reference pad. A resistor should be connected between this pad and VSS. Set the current at 18.75uA.
27 VCOMH This is a pad for the voltage output high level for common signals.
A capacitor should be connected between this pad and VSS.
28 VPP OLED panel power supply. Generated by internal charge pump.
Connect to capacitor. It could be supplied externally.
29 NC No connection
30 NC No connection

規格説明

項目 仕様 単位
ドットマトリックス 128 x 64
モジュールサイズ 26.70 × 19.26 ×1.26 mm
有効表示エリア 21.74 × 10.86 mm
ドットサイズ 0.148 × 0.148 mm
ドットピッチ 0.170 × 0.170 mm
表示モード パッシブマトリクス
発光色 白色 / 黄色
駆動方法 1/64 Duty
コントローラー IC SH1106G
インターフェイス 6800, 8080, SPI, I2C
サイズ 0.96 インチ

絶対最大定格

パラメーター 記号 最小値 最大値 単位
ロジック電源電圧 VDD1 -0.3 3.6 V
Power supply for charge pump circuit VDD2 -0.3 4.8 V
Display電源電圧 VPP -0.3 14.5 V
操作温度 TOP -40 +80 °C
保存温度 TSTG -40 +85 °C

電気特性

DC 電気特性

項目 記号 条件 最小値 典型値 最大値 単位
ロジック電源電圧 VDD1 2.8 3.0 3.3 V
Power supply for charge pump circuit VDD2 3.5 3.8 4.2 V
Charge Pump Output Voltage for Display
(Generated by Internal DC/DC)
Charge Pump
VPP
7.5 8 8.5 V
高レベル入力 VIH 0.8xVDD1 VDD1 V
低レベル入力 VIL VSS 0.2xVDD1 V
高レベル出力 VOH 0.8xVDD1 VDD1 V
低レベル出力 VOL VSS 0.2xVDD1 V
Operating Current for VDD2 Display 50% ON IDD2 10 16 mA
