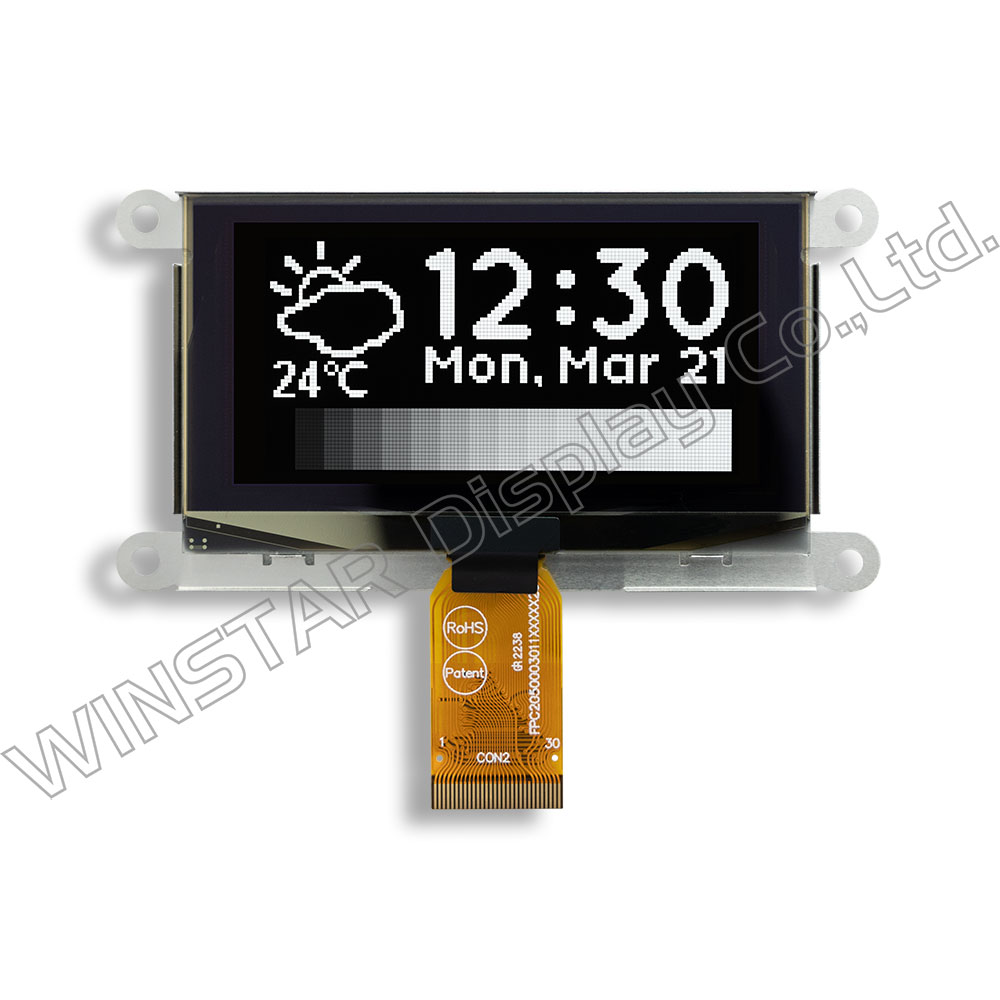

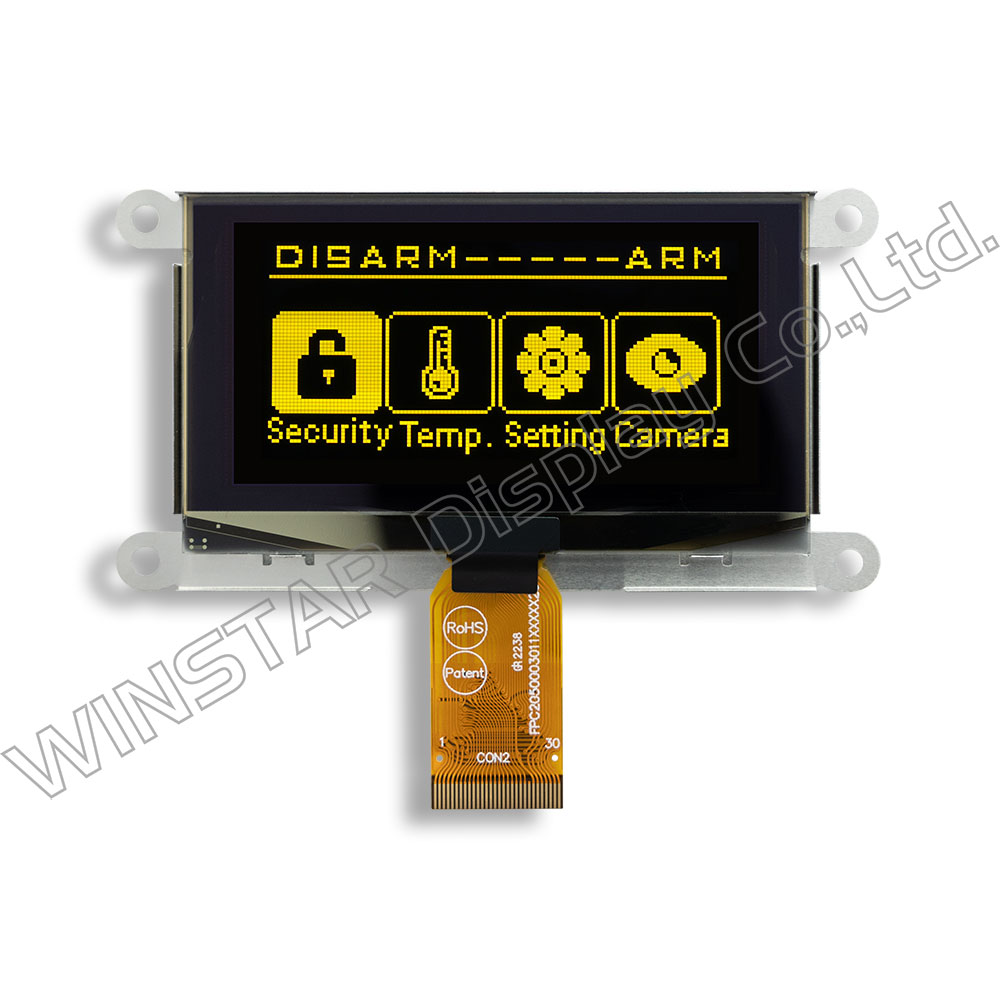

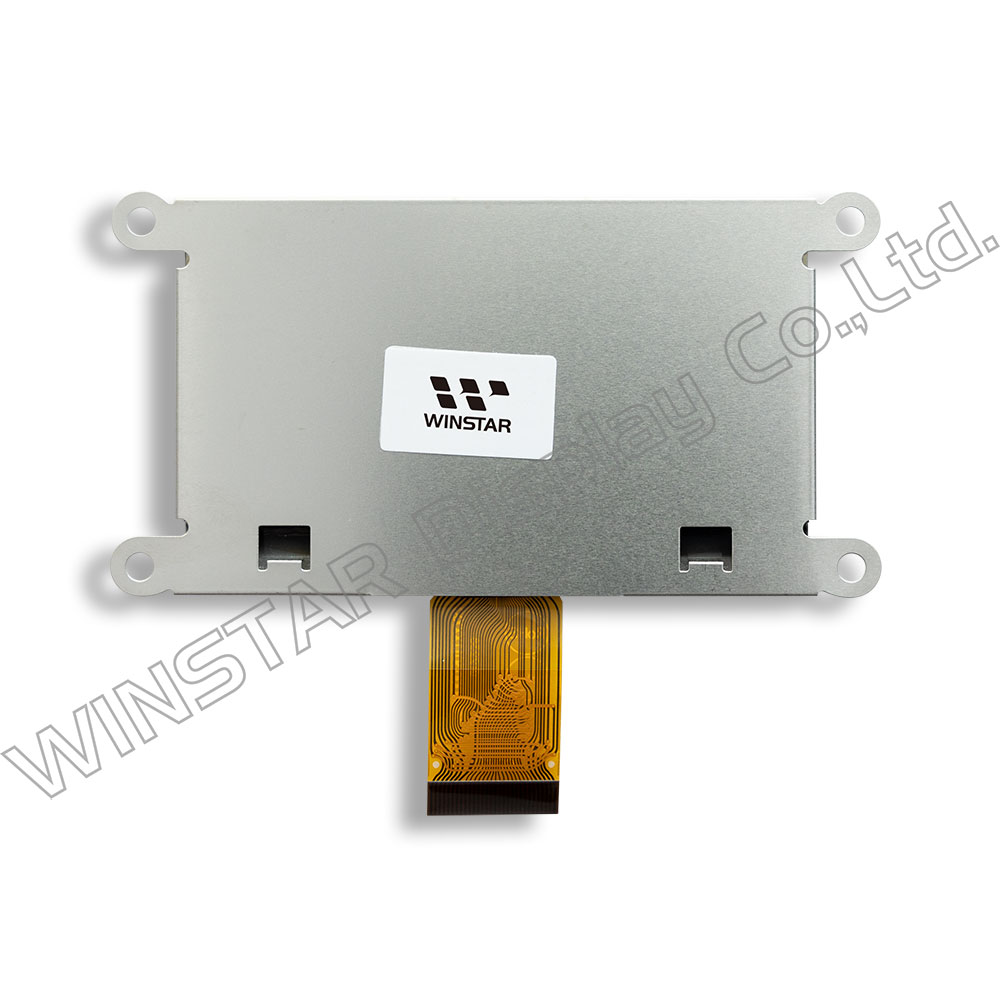

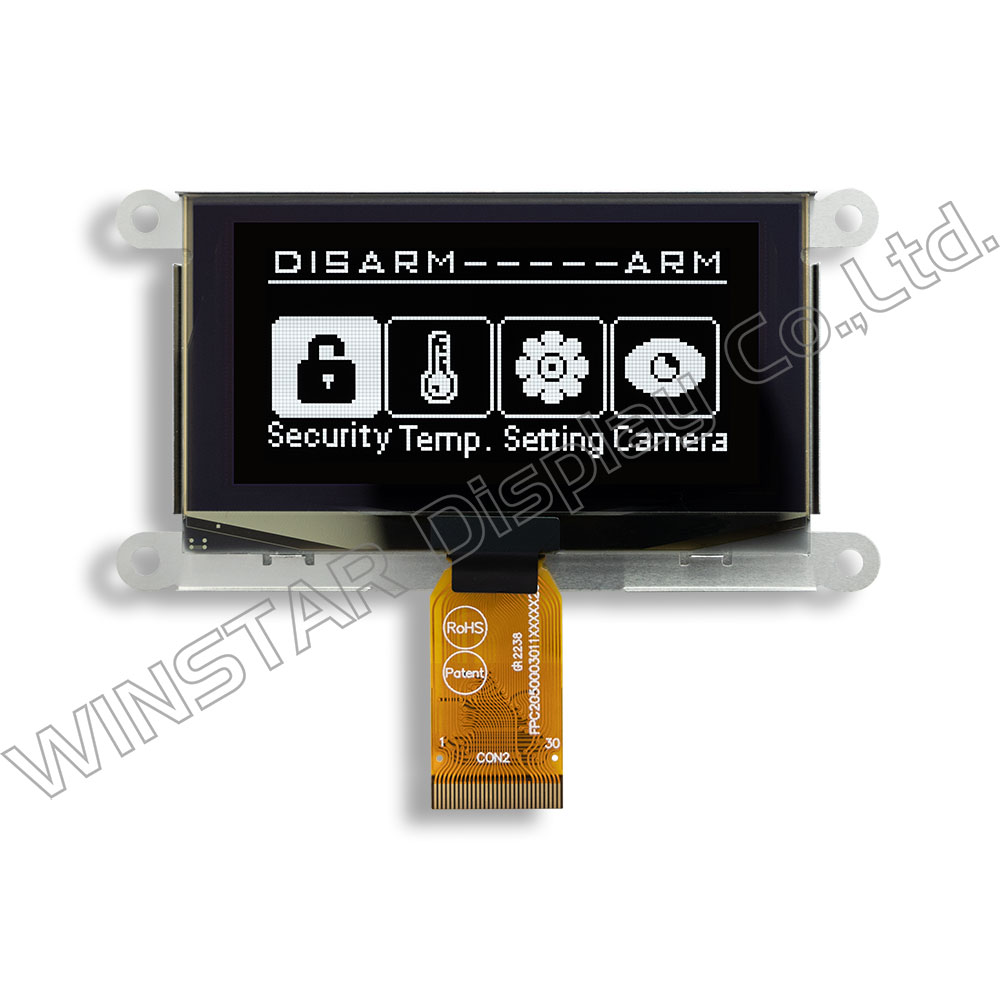

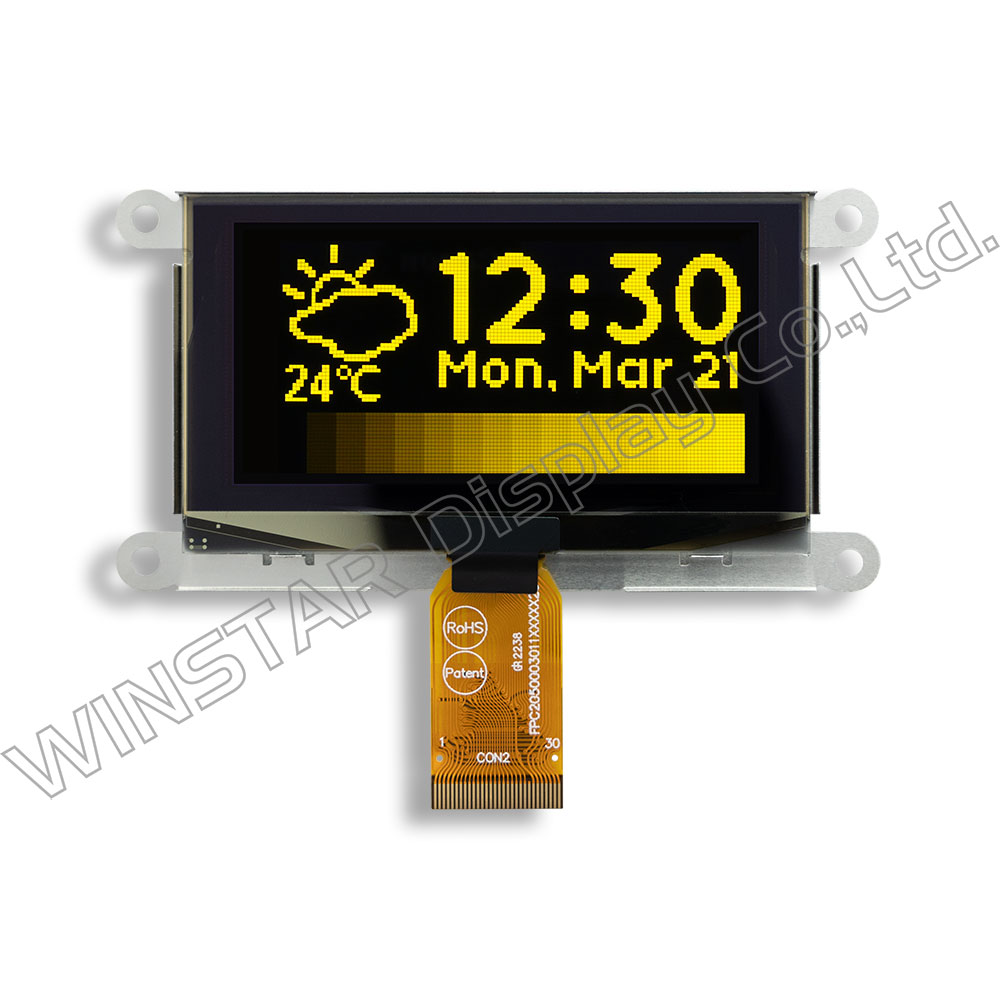

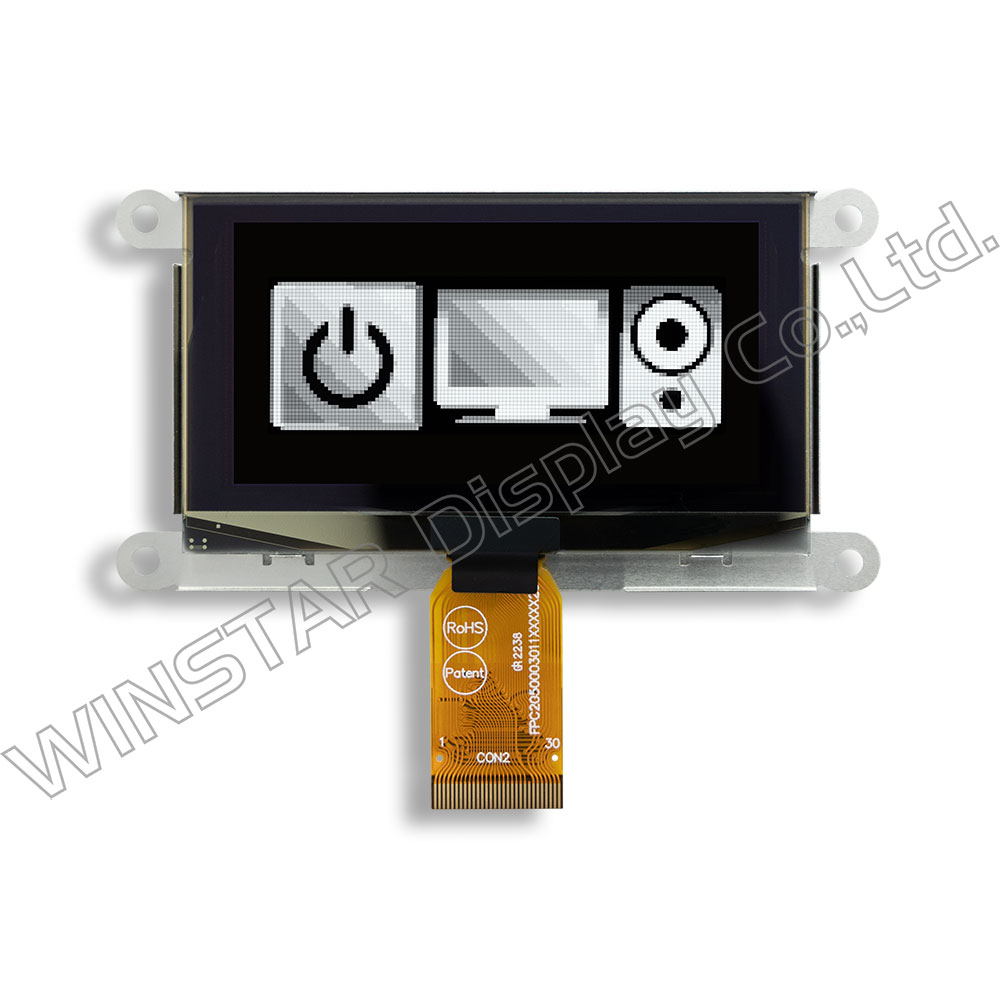

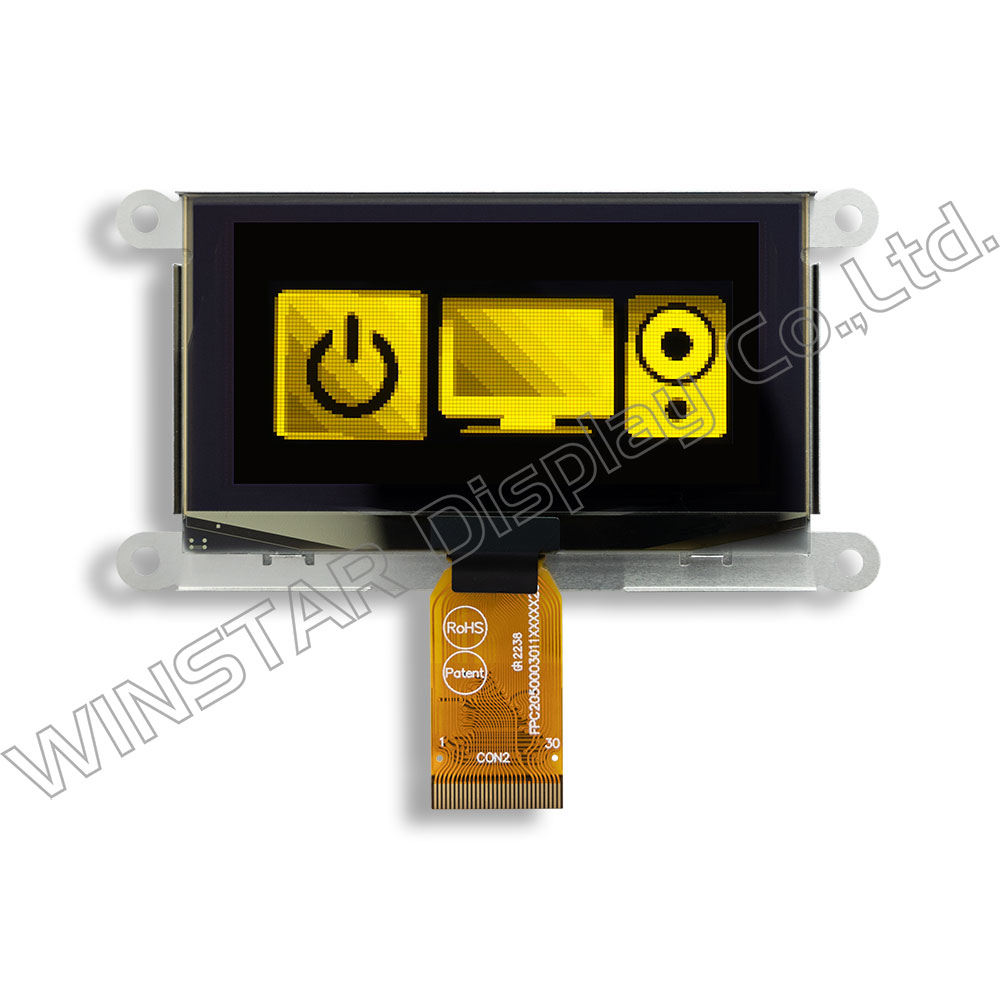

2.7 inch,128x64 COG OLED Display Module (IC SSD1357) with Frame

Model No. WEF012864U

►Type: Graphic
►Structure: COG+Frame
►Size: 2.7 inch
►128x64 Dot Matrix
►IC：SSD1357
►3V Power supply
►1/64 duty
►Interface: 6800,8080,SPI,I2C
►Display Color: White / Yellow
►Support Grayscale

PREV. BACK to LIST NEXT

Description

WEF012864U is a COG graphic 2.7-inch monochrome PMOLED display module with an iron frame and a panel resolution of 128x64 pixels and high contrast(10,000:1). WEF012864U has a built-in SSD1357 controller IC, which supports multiple transmission interfaces: 8-bit 6800, 8080 parallel interface, 4-line SPI and I2C serial interface, using 3V driver and 4-bit gray scale.

The same OLED panel can also be referenced:
  • The WEO012864U series features a frameless design.
  • The WEP012864U series incorporates an iron frame + PCB board, simplifying user experience by eliminating the need for additional PCB development and integrating interface settings and VCC circuits.
  • In addition to the iron frame and PCB board, the WEP012864U-CTP series adds CTP touch functionality.

WEF012864K is a COG structure OLED display module. It is organic self-luminous and does not require a backlight. The module is thin and light and has low current consumption. The WEF012864K module is very suitable for handheld products, measuring instruments, household products, POS systems, Internet of Things, Communication equipment and medical equipment, etc. The operating temperature of this module is -40℃ to +80℃, and the storage temperature is -40℃ to +85℃.

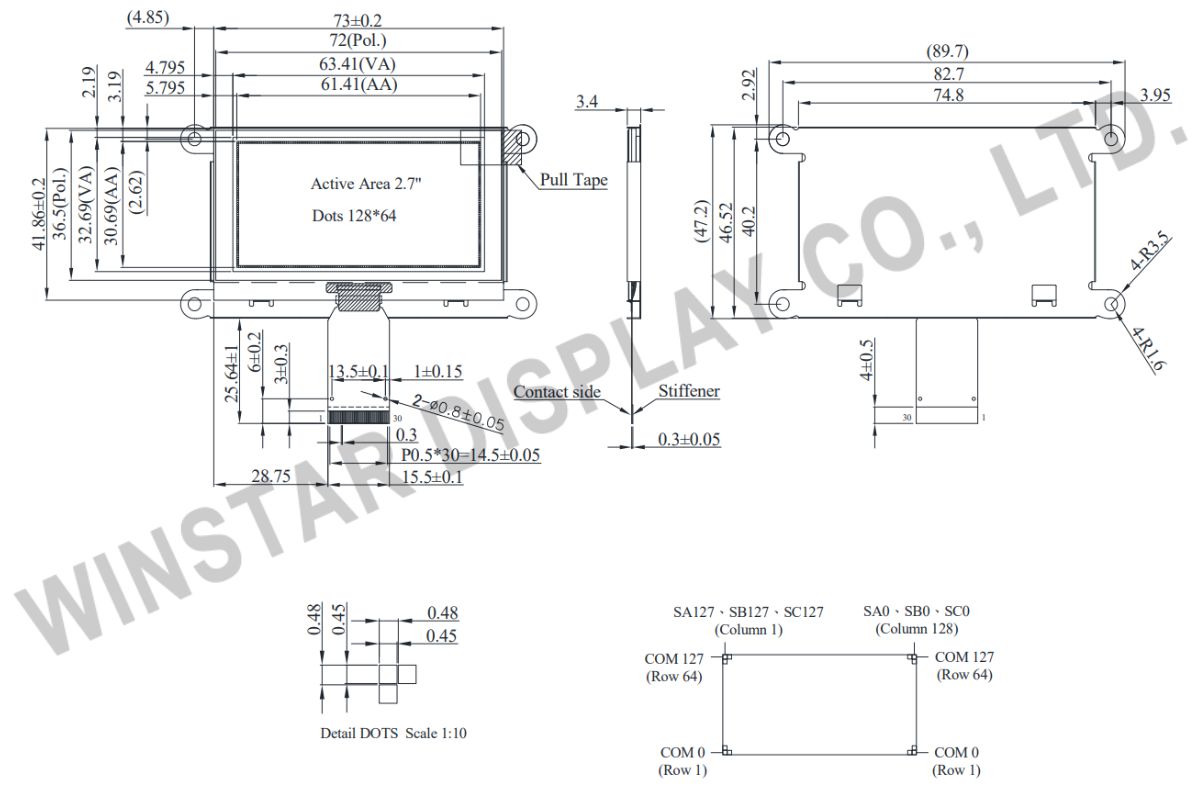

DRAWING

2.7 inch,128x64 COG OLED Display Module (IC SSD1357) with Frame - WEF012864U
Data source ref:WEF012864ULPP3N00000

SPECIFICATIONS

Interface Pin Function

Pin No. Symbol Function
1 NC(GND) No connection
2 VSS Ground of Logic Circuit.
This is a ground pin. It also acts as a reference for the logic pins.
It must be connected to external ground.
3 VCC Power supply for panel driving voltage. This is also the most positive power voltage supply pin.
4 VCOMH Voltage Output High Level for COM Signal.
This pin is the input pin for the voltage output high level for COM signals.
A tantalum capacitor should be connected between this pin and VSS.
5 VLSS Ground of Analog Circuit
These are the analog ground pins. They should be connected to VSS externally.
6~13 D7~D0 These pins are bi-directional data bus connecting to the MCU data bus.Unused pins are recommended to tie LOW.
When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN and D2 should be kept NC.
When I2C mode is selected, D2, D1 should be tied together and serve as SDAout,SDAin in application and D0 is the serial clock input, SCL.
14 E/RD# This pin is MCU interface input.
When 6800 interface mode is selected, this pin will be used as the Enable (E) signal.
Read/write operation is initiated when this pin is pulled HIGH and the chip is selected.
When 8080 interface mode is selected, this pin receives the Read (RD#) signal. Read operation is initiated when this pin is pulled LOW and the chip is selected.
When serial or I2C interface is selected, this pin must be connected to VSS.
15 R/W# This pin is read / write control input pin connecting to the MCU interface.
When 6800 interface mode is selected, this pin will be used as Read/Write (R/W#) selection input. Read mode will be carried out when this pin is pulled HIGH and write mode when LOW.
When 8080 interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled LOW and the chip is selected.
When serial or I2C interface is selected, this pin must be connected to VSS.
16
17		 BS1
BS2		 Communicating Protocol Select.
These pins are MCU interface selection input. See the following table:
  BS1 BS2
I2C 1 0
4-wire Serial 0 0
8-bit 8080 Parallel 1 1
8-bit 6800 Parallel 0 1
18 D/C# This pin is Data/Command control pin connecting to the MCU.
When the pin is pulled HIGH, the data at D[7:0] will be interpreted as data.
When the pin is pulled LOW, the data at D[7:0] will be transferred to a command register.
In I2C mode, this pin acts as SA0 for slave address selection.When 3-wire serial interface is selected, this pin must be connected to VSS.
19 CS# Chip SelectThis pin is the chip select input.
The chip is enabled for MCU communication onlywhen CS# is pulled low.
20 RES# This pin is reset signal input.
When the pin is pulled LOW, initialization of the chip is executed.Keep this pin pull HIGH during normal operation.
21 FR Frame Frequency Triggering Signal
This pin will send out a signal that could be used to identify the driver status.
Nothing should be connected to this pin. It should be left open individually.
22 IREF This pin is the segment output current reference pin.
IREF is supplied externally.
23 N.C Reserved Pin
The N.C. pin between function pins is reserved for compatible and flexible design.
24 VDD Power Supply for I/O Pin.
This pin is a power supply pin of I/O buffer. It should be connected to VCI or external source. All I/O signal should have VIH reference to VDDIO. When I/O signal pins (BS0~BS1, D0~D7, control signals…) pull high, they should be connected to VDDIO.
25 VP Power Supply for Core Logic Circuit
This is a voltage supply pin. It can be supplied externally (within the range of 2.4~2.6V) or regulated internally from VCI. A capacitor should be connected between this pin & VSS under all circumstances.
26 VDD Power Supply for Operation.
This is a voltage supply pin. It must be connected to external source & always be equal to or higher than VDD & VDDIO.
27 VSL Voltage Output Low Level for SEG Signal
This is segment voltage (output low level) reference pin.
This pin has to connect with resistor and diode to ground (details depends on application).
28 VLSS Ground of Analog Circuit
These are the analog ground pins. They should be connected to VSS externally.
29 VLSS Power Supply for OEL Panel
These are the most positive voltage supply pin of the chip. They must be connected to external source.
30 NC(GND) No connection

General Specification

Item Dimension Unit
Dot Matrix 128 x 64 dots
Module dimension 89.7 × 47.2 × 3.4 mm
Active Area 61.41 × 30.69 mm
Pixel Size 0.45 × 0.45 mm
Pixel Pitch 0.48 × 0.48 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64 Duty
Gray Scale 4 bits
IC SSD1357
Interface 8-bits 6800 and 8080 parallel, 4-line SPI, I2C
Size 2.7 inch

Absolute Maximum Ratings

Parameter Symbol Min Max Unit
Supply Voltage for Logic VDD -0.3 4.0 V
Supply Voltage for Display VCC 0 15.0 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C

Electrical Characteristics

DC Electrical Characteristics

Item Symbol Condition Min Typ Max Unit
Supply Voltage for Logic VDD － 1.65 3.0 3.3 V
Supply Voltage for Display VCC － 8.0 9 9.5 V
High Level Input VIH － 0.8×VDD － － V
Low Level Input VIL － － － 0.2×VDD V
High Level Output VOH － 0.9×VDD － － V
Low Level Output VOL － － － 0.1×VDD V
Display 50% Pixel on ICC VCC =9V － 31.5 47.5 mA
