Bar Type TFT LCD, Bar LCD Display

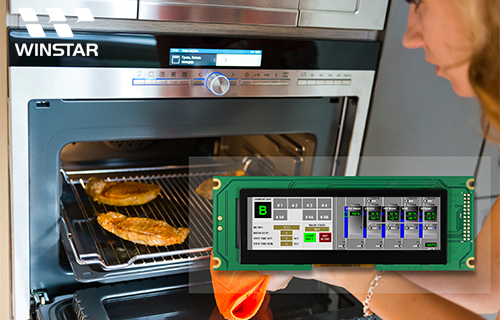

The mainstream aspect ratio of the TFT LCD panel in the market is 4:3 or 16:9.  But for some applications, bar type shape of display panel would be much better than the current mainstream 4:3 or 16:9 to display the required information.  Winstar Bar Type TFT-LCD displays are perfect for industrial equipment, automotive application, server system, POS system, dynamic information displays and advertising display.  We offer different sizes Bar Type TFT including sizes of 3.9 inch, 4.6 inch and 5.2 inch.  In order to meet with customers requirement especially for industrial applications, we develop more derivative solution from these Bar type TFT as below:

  • With screw hole on frame version option.
  • With Capacitive Touch Panel or Resistive Touch Panel option.
  • High Brightness version option.
  • Controller board version option (WF52A).

Filter Results

Filter Results

Select Display Format Picture Model No. Size
(inch)
Outline Dimension
(mm)
Viewing Area
(mm)
Active Area
(mm)
View Direction Interface Bulit-in Controller Control-Board Brightness
(cd/m²)
Frame Through Hole Touch Screen Temperature
(°C)
O-Film
480×128
3.9 inch RGB Bar TFT LCD Display
WF39ATIASDNN0 3.9 105.5×40.64 98.04×28.34 95.04×25.34 12H RGB No No 500 No No -20~70
800×320
4.6 inch Color TFT LCD Module
WF46ATIATDNNA 4.6 120.7×56.16 110.6×46 108×43.2 12H RGB No No 400 No No -20~70
480×128
5.2 inch Color Bar TFT LCD Module
WF52ATLASDNN0 5.2 140.4×49.87 133.4×39.4 127.152×33.9072 6H RGB No No 500 No No -20~70
480×128
5.2 inch Bar TFT LCD Module with Capacitive Touch Panel
WF52ATLASDNG0 5.2 140.4×49.87 129.16×35.91 127.152×33.9072 6H RGB ST7252 No 400 No CTP -20~70
480×128
5.2 inch TFT Module with O Film
WF52ATZASDNN0 5.2 140.4×49.87 133.4×39.4 127.152×33.9072 6H RGB ST7252 No 400 No No -20~70 Yes
480×128
WF52ATZASDNG0 5.2 140.4×49.87 129.16×35.91 127.152×33.9072 6H RGB ST7252 No 350 No CTP -20~70 Yes
480×128
WF52ASLASDNN0 5.2 140.4×49.87 133.4×39.4 127.152×33.9072 6H RGB ST7252 No 1100 No No -20~70
480×128
WF52ASLASDNG0 5.2 140.4×49.87 129.16×35.91 127.152×33.9072 6H RGB ST7252 No 880 No CTP -20~70
480×128
5.2 High Brightness TFT LCD with wider viewing angle
WF52ASZASDNN0 5.2 140.4×49.87 133.4×39.4 127.152×33.9072 6H RGB ST7252 No 850 No No -20~70 Yes
480×128
WF52ASZASDNG0 5.2 140.4×49.87 129.16×35.91 127.152×33.9072 6H RGB ST7252 No 700 No CTP -20~70 Yes
480×128
5.2 Bar Type LCD with Controller Board
WF52QTLBSDBN0 5.2 180x65×8.8 133×39 127.152×33.907 6H 8080,MPU SSD1963 Yes 500 Yes No -20~70
480×128
WF52QTLBSDBG0 5.2 180×65 129.16×35.91 127.152×33.9072 6H 8080,MPU SSD1963 Yes 400 Yes CTP -20~70
480×128
WF52QTZBSDBN0 5.2 180×65 133×39 127.152×33.9072 6H 8080,MPU SSD1963 Yes 400 Yes No -20~70 Yes
480×128
WF52QSZBSDBN0 5.2 180×65 133×39 127.152×33.9072 6H 8080,MPU SSD1963 Yes 850 Yes Yes -20~70 Yes
