6.75-inch TFT LCD Display High Brightness Bar Type 480x1280 LVDS Interface
Model No. WF0675ASYAB6LNN0
►Size : 6.75-inch (Portrait mode)
►Resolution : 480 x 1280 dots
►View Direction : IPS
►Interface : LVDS
►Driver IC : NV3051F-L
►Control-Board : No
►Brightness(cd/m²) : 1200
►Frame Through Hole : No
►Touch Screen : Without Touch Panel
Description
WF0675ASYAB6LNN0 is a 6.75-inch bar type TFT-LCD module that supports LVDS interface. The module dimension 66.8 x 181.1 x 4.55 mm, with an active area of 60.19 x 160.512 mm.
This TFT-LCD module adopts IPS technology, providing remarkable sharpness, superior color reproduction, better image consistency, and a high contrast ratio of 1500:1 (typical value), with wide viewing angles (Left: 85 / Right: 85 / Up: 85 / Down: 85 degrees) and high brightness of 1200 nits (typical value). The resolution is 480×1280 dots.
WF0675ASYAB6LNN0 is suitable for a variety of industries, including gaming, audio, and water quality testing. The TFT module comes with the built-in NV3051F-L driver IC (or an equivalent specification IC). It operates within a temperature range of -20°C to +70°C and can be stored within a range of -30°C to +80°C. The operating voltage range is from 3.0V to 3.6V, with a typical value of 3.3V.

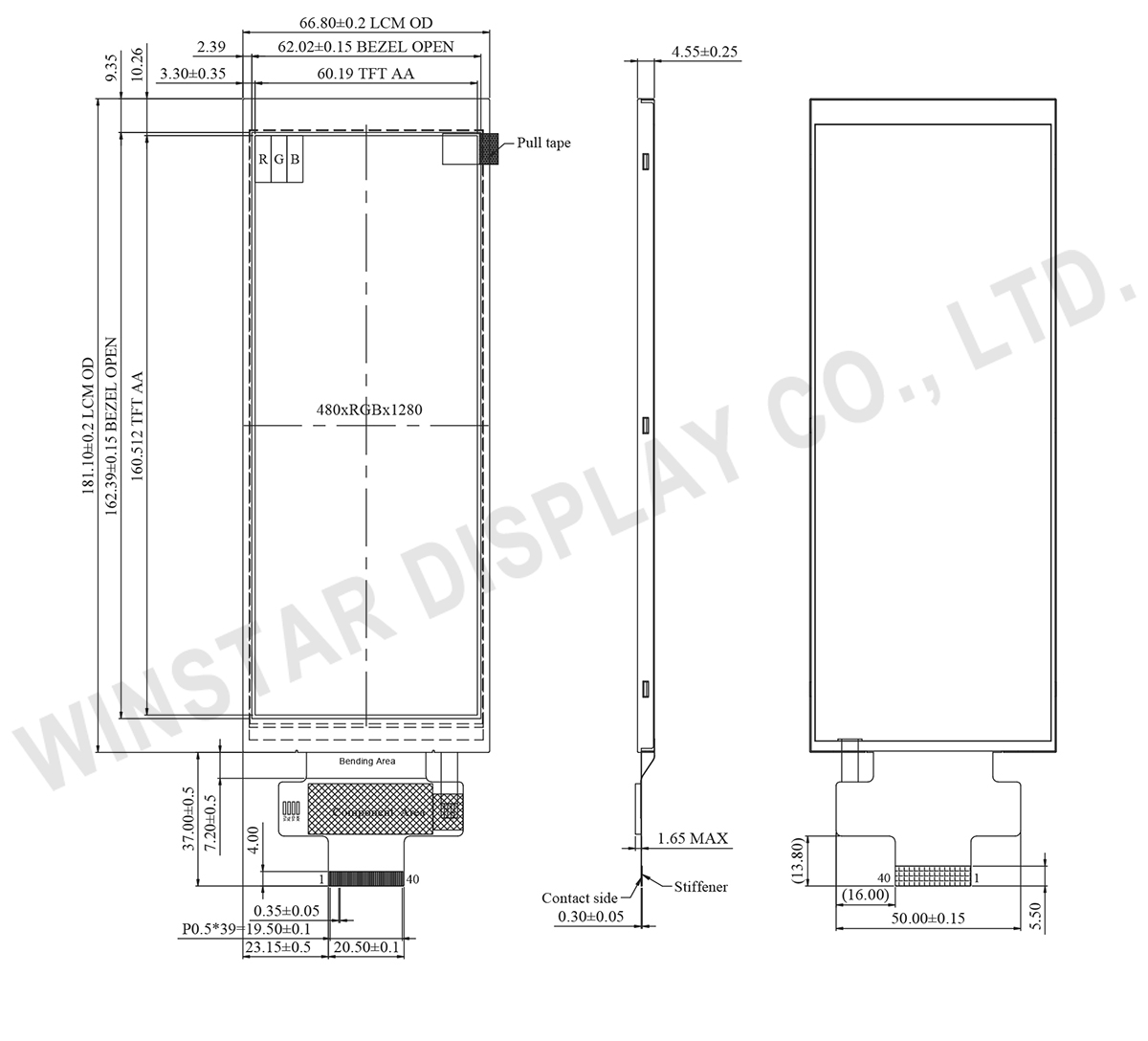

DRAWING
SPECIFICATIONS
Interface Pin Function
LCM PIN Definition
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | NC | No connection |
| 2 -3 | VCC | Power supply |
| 4 | NC | No connection |
| 5 | RESET | Global Reset Signal. Active Low. |
| 6 | STBYB | Standby mode, normally pull high STBYB=”1”, normal operation STBYB=”0”,timming control, source driver will turn off, all output are high-Z |
| 7 | GND | Ground |
| 8 | RXIN0- | LVDS data Input |
| 9 | RXIN0+ | LVDS data Input |
| 10 | GND | Ground |
| 11 | RXIN1- | LVDS data Input |
| 12 | RXIN1+ | LVDS data Input |
| 13 | GND | Ground |
| 14 | RXIN2- | LVDS data Input |
| 15 | RXIN2+ | LVDS data Input |
| 16 | GND | Ground |
| 17 | RXCLKIN- | LVDS clock Input. |
| 18 | RXCLKIN+ | LVDS clock Input. |
| 19 | GND | Ground |
| 20 | RXIN3- | LVDS data Input |
| 21 | RXIN3+ | LVDS data Input |
| 22 | GND | Ground |
| 23 | NC(YU) | No connection |
| 24 | NC(XL) | No connection |
| 25 | GND | Ground |
| 26 | NC(YD) | No connection |
| 27 | NC(XR) | No connection |
| 28-29 | NC | No connection |
| 30 | GND | Ground |
| 31 | VLED- | Power for LED backlight cathode |
| 32 | VLED- | Power for LED backlight cathode |
| 33-38 | NC | No connection |
| 39 | VLED+ | Power for LED backlight anode |
| 40 | VLED+ | Power for LED backlight anode |
General Specifications
| Item | Dimension | Unit |
|---|---|---|
| Size | 6.75 | inch |
| Dot Matrix | 480 x 3(RGB) x 1280 | dots |
| Module dimension | 66.8 x 181.1 x 4.55 | mm |
| Active area | 60.19 x 160.512 | mm |
| Pixel pitch | 0.1254 x 0.1254 | mm |
| LCD type | TFT, Normally Black ,Transmissive | |
| View Angle | 85/85/85/85 | |
| TFT Driver IC | NV3051F-L | |
| TFT Interface | LVDS | |
| Backlight Type | LED,Normally White | |
| Touch Panel | Without Touch Panel | |
| Surface | Glare | |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -20 | － | +70 | ℃ |
| Storage Temperature | TST | -30 | － | +80 | ℃ |
Electrical Characteristics
Operating conditions
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Supply Voltage For Logic | VCC | 3.0 | 3.3 | 3.6 | V |
| Supply LCM current | Icc | － | 80 | 75 | mA |
LED driving conditions
| Parameter | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| LED current | － | － | 180 | － | mA |
| LED voltage | VLED+ | 15.6 | 18.0 | 20.4 | V |
| LED Life Time | － | － | 50,000 | － | Hr |
