N° de modèle WEO012856A
►Type: Graphique, TOLED
►Structure: COG
►Dimension: 1.51 pouces
►Matrice de points 128 x 56
►IC：SSD1309
►Alimentation 3V
►1/56 duty
►Interface: 6800, 8080, I2C, SPI
►Couleur d'affichage: Bleu ciel

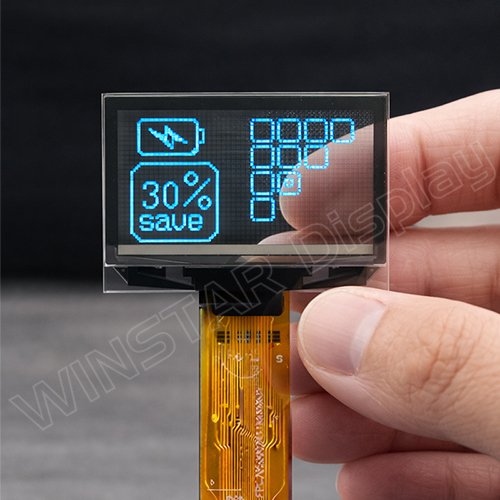

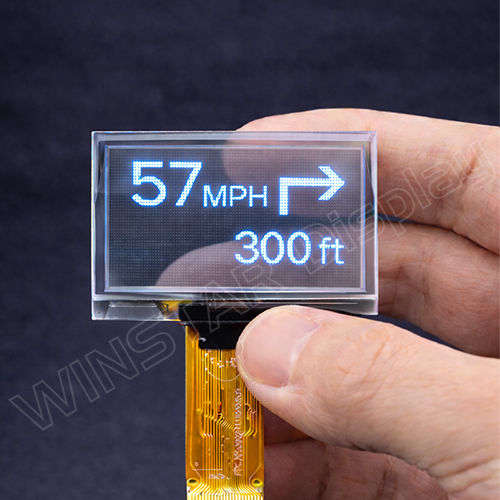

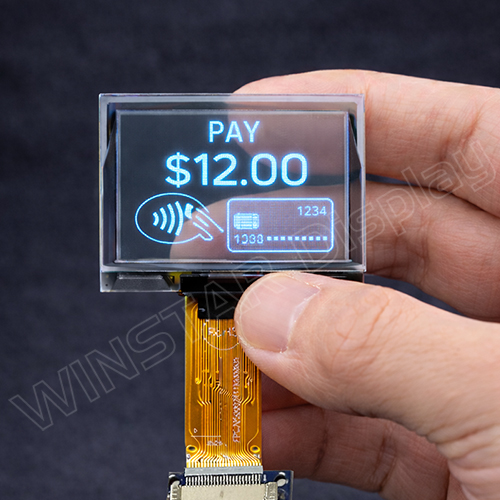

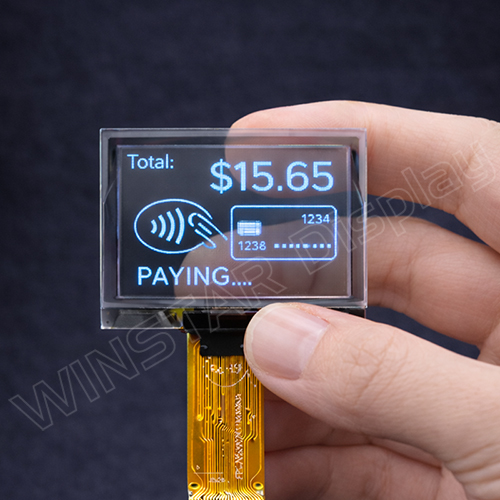

Le module d'affichage OLED transparent 1,51 pouce de WINSTAR est conçu pour offrir une haute visibilité et une intégration optique supérieure dans un format compact et efficace. Il représente la solution idéale pour des applications nécessitant des superpositions de données claires sans obstruer l'arrière-plan. Cet écran OLED transparent est proposé en couleur bleue ciel par défaut ; toutefois, WINSTAR peut fournir des options personnalisées, telles que blanc, vert, jaune, bleu et rouge, sur demande.
Pour plus de détails sur les avantages et les applications de l'affichage OLED transparent (TOLED), y compris comment il révolutionne les instruments optiques et les superpositions de données en temps réel, consultez notre guide détaillé.
| Article | Dimensions | Unité |
|---|---|---|
| Matrice de points | 128 × 56 | dots |
| Dimensions du module | 42.04 × 27.22 × 1.2 | mm |
| Zone active | 35.052 × 15.324 | mm |
| Pixel Size | 0.254 × 0.254 | mm |
| Pixel Pitch | 0.274 × 0.274 | mm |
| Mode d'affichage | Matrice passive | |
| Couleur d'affichage | Monochrome | |
| Drive Duty | 1/56 Duty | |
| IC | SSD1309 | |
| Interface | 6800/8080/4-Wire SPI/I2C | |
| Diagonale | 1.51 pouces | |
| Parameter | Symbole | Valeur min | Valeur max | Unité |
|---|---|---|---|---|
| Tension d'alimentation pour la logique | VDD | -0.3 | 4 | V |
| Tension d'alimentation pour l'affichage | VCC | 0 | 17 | V |
| Température de fonctionnement | TOP | -40 | +80 | °C |
| Température de stockage | TSTG | -40 | +85 | °C |
| Article | Symbole | État | Valeur min | Valeur type | Valeur max | Unité |
|---|---|---|---|---|---|---|
| Tension d'alimentation pour la logique | VDD | － | 1.65 | 3.0 | 3.3 | V |
| Tension d'alimentation pour l'affichage | VCC | － | 7.0 | 12.5 | 13.0 | V |
| Entrée Haute Tension | VIH | － | 0.8×VDD | － | － | V |
| Entrée Basse Tension | VIL | － | － | － | 0.2×VDD | V |
| Sortie Haute Tension | VOH | － | 0.9×VDD | － | － | V |
| Sortie Basse Tension | VOL | － | － | － | 0.1×VDD | V |
| Affichage 50 % des pixels allumés | VCC =12.5V | － | 12 | 18 | mA | |
| No. | Symbole | Fonction | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | ESD_GND | ESD Ground pin. | |||||||||||||||
| 2 | VLSS | This is an analog ground pin | |||||||||||||||
| 3 | VSS | Ground. | |||||||||||||||
| 4 | NC | No connection | |||||||||||||||
| 5 | VDD | Power supply pin for core logic operation | |||||||||||||||
| 6 | BS1 | MCU bus interface selection pins. Select appropriate logic setting as described in the following table. BS2 and BS1 are pin select
(1) 0 is connected to VSS (2) 1 is connected to VDD |
|||||||||||||||
| 7 | BS2 | ||||||||||||||||
| 8 | CS# | This pin is the chip select input connecting to the MCU. The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW). |
|||||||||||||||
| 9 | RES# | This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed. Keep this pin pull HIGH during normal operation. |
|||||||||||||||
| 10 | D/C# | This pin is Data/Command control pin connecting to the MCU. When the pin is pulled HIGH, the data at D[7:0] will be interpreted as data. When the pin is pulled LOW, the data at D[7:0] will be transferred to a command register. In I2C mode, this pin acts as SA0 for slave address selection. |
|||||||||||||||
| 11 | R/W# | This pin is read / write control input pin connecting to the MCU interface. When 6800 interface mode is selected, this pin will be used as Read/Write (R/W#) selection input. Read mode will be carried out when this pin is pulled HIGH and write mode when LOW. When 8080 interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled LOW and the chip is selected. When serial or I2C interface is selected, this pin must be connected to VSS. |
|||||||||||||||
| 12 | E/RD# | This pin is MCU interface input. When 6800 interface mode is selected, this pin will be used as the Enable (E) signal. Read/write operation is initiated when this pin is pulled HIGH and the chip is selected. When 8080 interface mode is selected, this pin receives the Read (RD#) signal. Read operation is initiated when this pin is pulled LOW and the chip is selected. When serial or I2C interface is selected, this pin must be connected to VSS. |
|||||||||||||||
| 13-20 | D0~D7 | These pins are bi-directional data bus connecting to the MCU data bus. Unused pins are recommended to tie LOW. When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN and D2 should be kept NC. When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL. |
|||||||||||||||
| 21 | IREF | This pin is the segment output current reference pin. IREF is supplied externally. A resistor should be connected between this pin and VSS to maintain the current around 10uA. |
|||||||||||||||
| 22 | VCOMH | COM signal deselected voltage level. A capacitor should be connected between this pin and VSS. |
|||||||||||||||
| 23 | VCC | Power supply for panel driving voltage. This is also the most positive power voltage supply pin. | |||||||||||||||
| 24 | ESD_GND | ESD Ground pin. |
