4.3 TFT LCD Display with Controller Board

Model No. WF43QTIBEDBNB

►4.3" TFT Display
►Display Format : 480 x 272
►View Direction : 12H
►Interface : MCU
►Built-in Controller : SSD1963
►Control-Board : Yes
►Brightness(cd/m²): 400
►Frame Through Hole: Yes
►Touch Screen : No
►O-Film: Option

DESCRIPTION

The WF43QTIBEDBNB is a 4.3 inch TFT LCD Display which is Winstar WF43H extended model with SSD1963 controller board plus a 36 pin-out connector on board. The model is available in 8080 family MPU 8 bit or 16 bit interface option and pre-defined pin no. 33 ~ 36 as backlight supply; so there is no need to design extra backlight circuit.  This 4.3" TFT LCD display is feature with Glare coating surface panel having benefited of less-reflective.

Winstar Q series is support with Solomon SSD1963 Which has the traditional inputs and drive TFT by VESA signal. Therefore, there is no need of T-COM circuit on board. Besides, we have integrated all functions including TFT connection, backlight driver, and touch panel into only one connection.

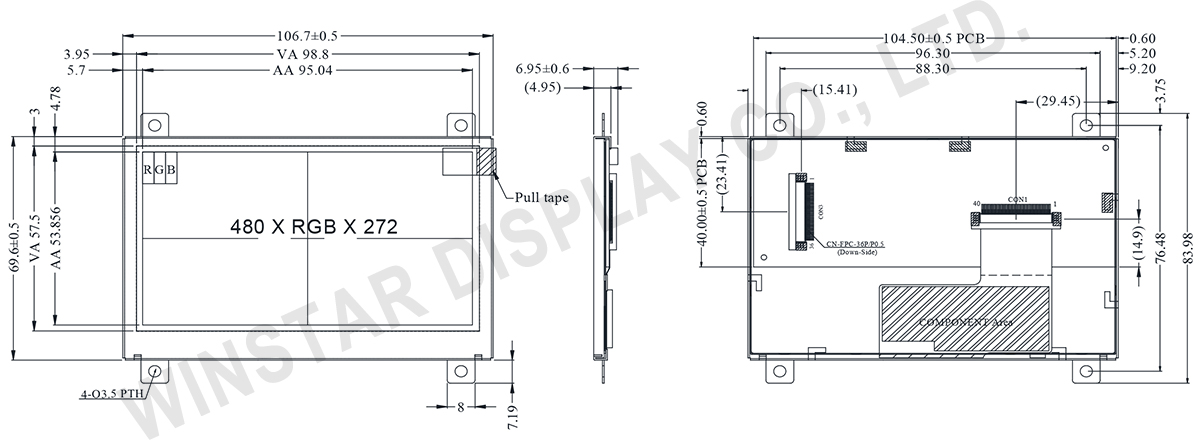

DRAWING

4.3 TFT LCD, 4.3 TFT LCD Display, 4.3" LCD - Winstar 4.3 LCD Display with Controller Board - WF43QTIBEDBNB

SPECIFICATIONS

Interface

Pin Symbol Function
1 GND System round pin of the IC. Connect to system ground.
2 VDD Power Supply : +3.3V
3 BL_E Backlight control signal , H: On \ L: Off
4 D/C Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7~14 DB0~DB7 Data bus
15~22 DB8~DB15 Data bus (When select 8bits mode, this pin is NC)
23~24 NC No connection
25 CS Chip select
26 RESET Hardware reset
27 DIP ON Display control H: On \ L:Off
28~32 NC No connection
33~34 VLED- VLED- for B/L  LED inverter  (GND)
35~36 VLED+ VLED+ for B/L  LED inverter   (+3.3V)

General Specifications

Item Dimension Unit
Size 4.3 inch
Dot Matrix 480 × RGB × 272 (TFT) dots
Module dimension 106.7 × 83.98 × 7.1 mm
Active area 95.04 × 53.856 mm
Dot pitch 0.066 × 0.198 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 16:9
Backlight Type LED, Normally White
Controller IC SSD1963
Interface Digital 8080 family MPU 8bit/16bit
Touch Panel Without touch panel
Surface Glare

Absolute Maximum Ratings

Item Symbol Min Typ Max Unit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80

Electrical Characteristics

Item Symbol Condition Min Typ Max Unit
Supply Voltage For LCM VDD 3.0 3.1 3.3 V
Supply Current For LCM IDD 200 300 mA
