Sept., 2020-English www.winstar.com.tw

E-Newsletter Jan., 2020 - Winstar Display



Issue No. 139

Contents
1) Shipping Arrangement before Taiwan & China Holidays
2) WO1602I3/WO1602I5: 16x2 COG LCD module with PCB
3) Graphic COG LCD Module WO12864K and WO12864K1
4) Round COG LCD WO128128A2-with PCB on Module
5) COG LCD WO240128B2-with PCB on Module
6) COG LCD WO256128A2-with PCB on Module





Shipping Arrangement before Taiwan & China Holidays

Winstar Headquarters in Taiwan will be closed from October 1st thru October 4th, 2020 for National Holidays and China factories and China Customs will be closed from October 1st to October 8th, 2020 for China National Day (Golden Week). Please notice the shipping date before and after holidays. Please work with your Winstar sales person closely before the holidays if your shipment might be affected. Thank you.


Shipping From Taiwan
►Last shipping date: September 30, 2020
►First shipping date: October 5, 2020
Shipping From China
►Last shipping date: September 29, 2020
►First shipping date: October 9, 2020
Shipping Arrangement before Taiwan & China Holidays



TOP





WO1602I3/WO1602I5: 16x2 COG LCD module with PCB

WO1602I3 and WO1602I5 are two models of 16 characters by 2 lines of COG LCD P/N WO1602I with PCB board on module. WO1602I3 and WO1602I5 are built in with ST7032i IC; it supports I2C interface. The advantage of WO1602I3/WO1602I5 is having circuit layout on PCB board and with screw holes which make modules can be fixed on customers’ applications easily. Also, there are three kinds of connector pitch sizes of 2.54mm (default), 1.0mm and 0.5mm for options.

The supply voltage for logic (VDD) of WO1602I3 is 3.3V; as to the WO1602I5 is 5V, 1/16 duty circle, 1/5 bias. The module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. WO1602I3 and WO1602I5 are available in FSTN positive Transflective LCD and with White LED backlight; please contact us if you need different types of LCDs or LED combinations.

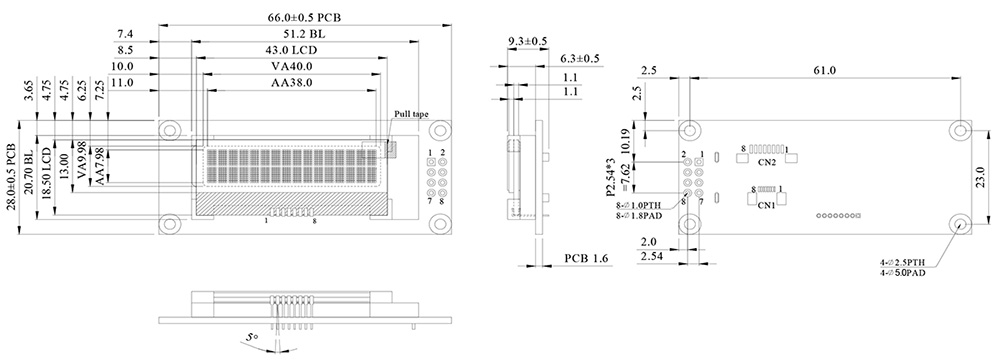

WO1602I3/WO1602I5 Dimension
Number of Characters 16 Characters x 2 Lines
Module dimension 66.0 x 28.0 x 9.3 mm
View area 40.0 x 9.98 mm
Active area 38.0 x 7.98 mm
Dot size 0.36 x 0.43 mm
Dot pitch 0.41 x 0.48 mm
Character size 2.00 x 3.79 mm
Character pitch 2.40 x 4.19 mm
LCD type FSTN Positive Transflective
Duty 1/16 , 1/5 Bias
View direction 6 o'clock
Backlight Type LED, White
Interface I2C
IC  ST7032i

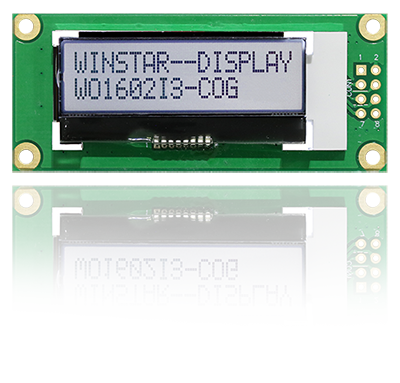

WO1602I3

WO1602I3

Link to Winstar WO1602I3/WO1602I5 web page



TOP





Graphic COG LCD Module WO12864K and WO12864K1

WO12864K and WO12864K1 models are monochrome COG graphic LCD modules made of 128x64 dot matrix format. WO12864K/WO12864K1 COG Module is built in with ST7565 IC, it supports 8-bit 6800, 8-bit 8080 parallel and 4-wire serial SPI interface, power supply voltage 3V, VOP 9.5V, 1/65 duty. The WO12864K item is adopted ST7565V IC which is built-in with negative voltage, as to the WO12864K1 item is adopted ST7565P IC which is built- in with positive voltage.

This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. WO12864K/K1 are available in STN Negative, Blue Transmissive LCD and with White LED backlight. Please contact us if you need different types of LCDs or LED combinations.

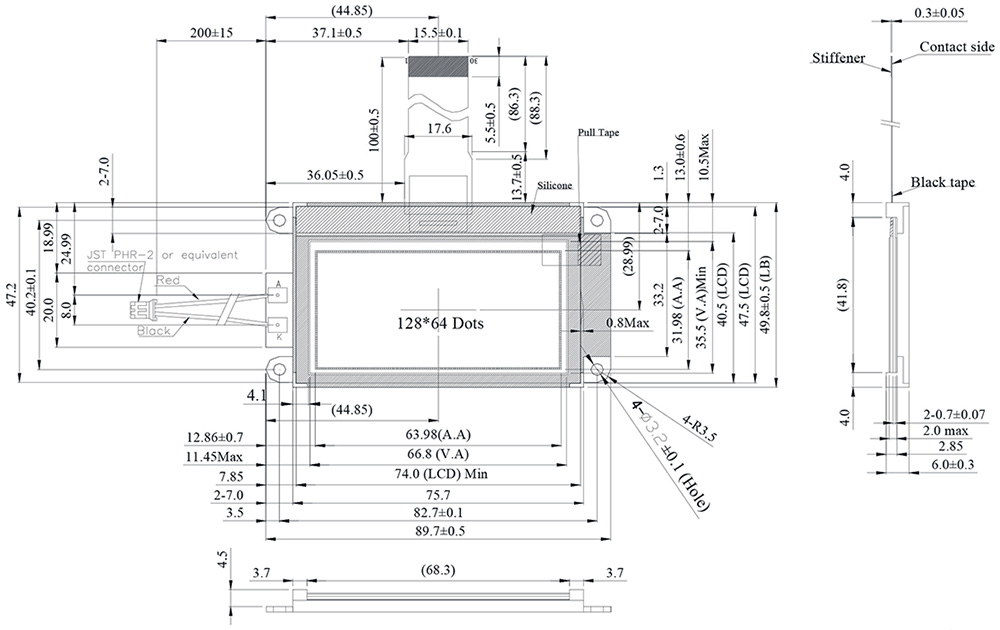

WO12864K/WO12864K1 Dimension
Number of dots 128 x 64
Module dimension 89.7 x 49.8 x 6.0 mm
View area 66.8 x 35.5 mm
Active area 63.98 x 31.98 mm
Dot size 0.48 x 0.48 mm
Dot pitch 0.50x 0.50 mm
LCD type STN Negative, Blue Transmissive
Duty 1/65duty , 1/9 Bias
View direction 6 o'clock
Backlight Type LED ,White
Interface 8080, 6800, SPI
IC ST7565

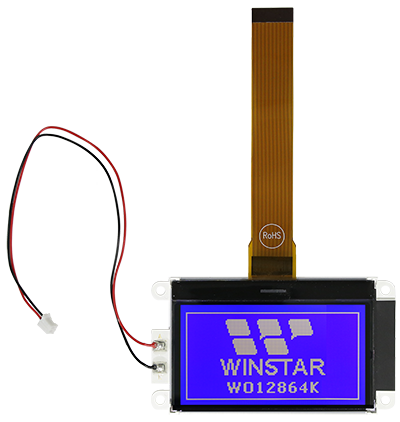

WO12864K

WO12864K

► Link to Winstar WO12864K / WO12864K1 web page



TOP





Round COG LCD WO128128A2-with PCB on Module

WO128128A2 model is a round COG LCD display WO128128A model with a PCB board on module. This Round STN COG module is built in with ST75161 IC; it supports 8080 parallel (default), 6800 parallel, 3-wire and 4-wire serial SPI, I2C interface, power supply voltage 3V, 1/136 driving duty, 1/12 BIAS. The advantage of WO128128A2 is having circuit layout on PCB board and with screw holes which make modules can be fixed on customers’ applications easily. Also, there are three kinds of connector pitch sizes of 2.54mm (default), 1.0mm and 0.5mm for options. WO128128A2 also have VDD 5V power supply voltage for optional.

The supply voltage for logic of WO128128A2 is 2.7V to 3.3V, typical value 3V. This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. WO128128A2 is available in FSTN positive LCD type with white LED backlight. Please contact us if you need different types of LCDs or LED combinations.

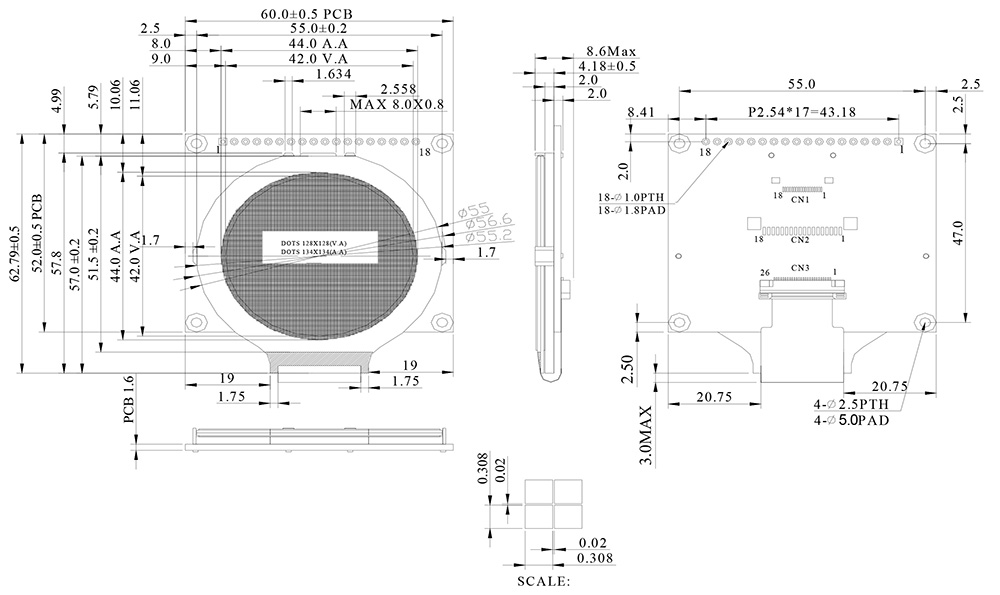

WO128128A2 Dimension
Number of dots 128 x 128
Module dimension 60.0 x 62.79 x 8.6 mm
View area 42.0 x 42.0 mm
Active area 44.0 x 44.0 mm
Dot size 0.308 x 0.308 mm
Dot pitch 0.310 x 0.310 mm
LCD type FSTN Positive Transflective
Duty 1/136 Duty,1/12 Bias
View direction 6 o'clock
Backlight Type LED White
Interface default 8080, option 6800, SPI, I2C
IC ST75161

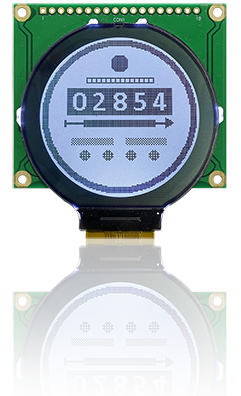

WO128128A2

WO128128A2

Link to Winstar WO128128A2 web page



TOP





COG LCD WO240128B2-with PCB on Module

WO240128B2 model is a COG LCD display WO240128B model with a PCB board on module, which is made of 240x128 dots. WO240128B2 is built in with ST7586S controller IC; it supports 6800 8-bit (default), 8080 8-bit parallel and serial SPI interface, power supply voltage 3.3V, 1/128 duty, 1/12 Bias. The advantage of WO240128B2 is having circuit layout on PCB board and with screw holes which make modules can be fixed on customers’ applications easily. Also, there are three kinds of connector pitch sizes of 2.54mm (default), 1.0mm and 0.5mm for options. WO240128B2 also have VDD 5V power supply voltage for optional.

This WO240128B2 module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. The WO240128B2 is available for FSTN positive Transflective with white LED backlight. Please contact us if you need different types of LCDs or LED combinations.

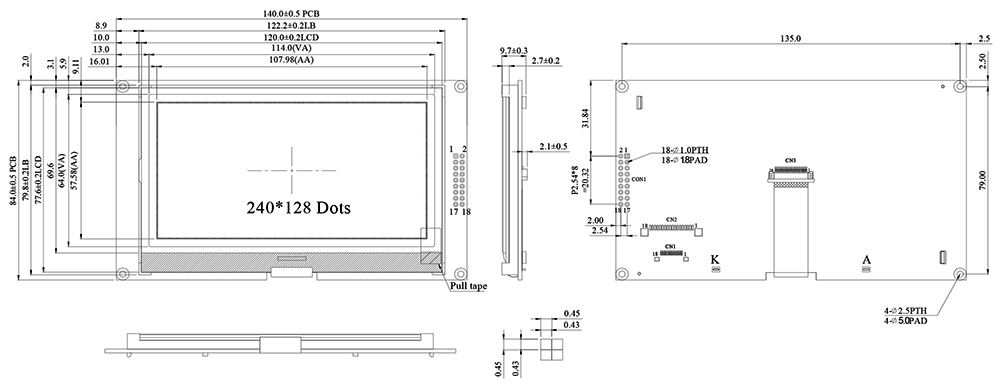

WO240128B2 Dimension
Number of dots 240 x 128
Module dimension 140.0 x 84.0 x 9.7 mm
View area 114.0 x 64.0 mm
Active area 107.98 x 57.58 mm
Dot size 0.43 x 0.43 mm
Dot pitch 0.45 x 0.45 mm
LCD type FSTN Positive Transflective
Drive Method 1/128Duty,1/12Bias
View direction 6 o'clock
Backlight Type LED, White
Interface default 6800, option 8080, SPI
IC ST7586S

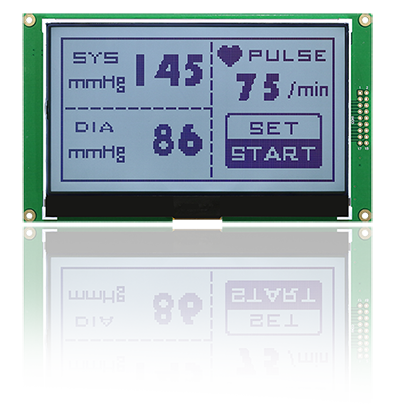

WO240128B2

WO240128B2

Link to Winstar WO240128B2 web page



TOP





COG LCD WO256128A2-with PCB on Module

WO256128A2 model is a COG LCD display WO256128A model featured with a PCB board on module which is made of 256x128 dots, diagonal size 2.9 inch. WO256128A2 is built in with ST75256 controller IC, it supports 8080 8-bit parallel (default), 6800 8-bit and 4-wire serial SPI and I2C interface, power supply voltage 3.3V, 1/128 duty, 1/12 Bias. The advantage of WO256128A2 is having circuit layout on PCB board and with screw holes which make modules can be fixed on customers’ applications easily. Also, there are three kinds of connector pitch sizes of 2.54mm (default), 1.0mm and 0.5mm for options. WO256128A2 also have VDD 5V power supply voltage for optional.

WO256128A2 module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. The WO256128A2 is available for FSTN positive Transflective with white LED backlight. Please contact us if you need different types of LCDs or LED combinations.

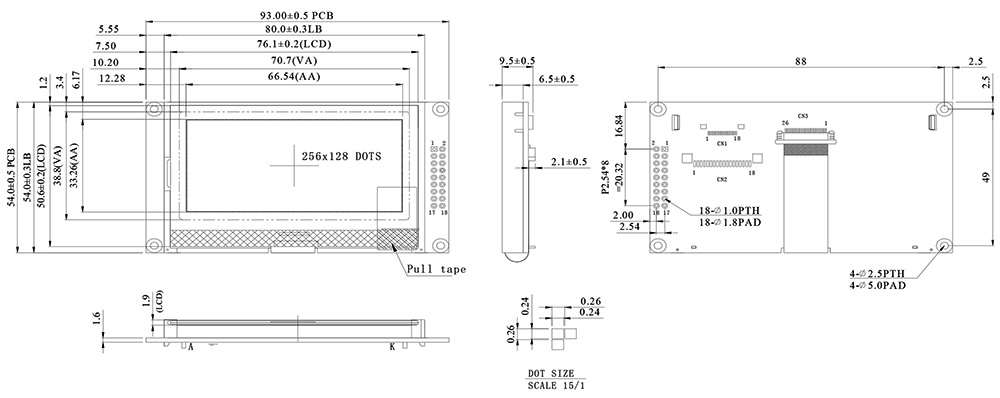

WO256128A2 Dimension
Number of dots 256 x 128
Module dimension 93.0 x 54.0 x 9.5 mm
View area 70.7 x 38.8 mm
Active area 66.54 x 33.26 mm
Dot size 0.24 x0.24 mm
Dot pitch 0.26 x 0.26 mm
LCD type FSTN Positive Transflective
Drive Method 1/128 Duty, 1/12 Bias
View direction 6 o'clock
Backlight Type LED, White
Interface default 8080, option 6800,SPI, I2C
IC ST75256

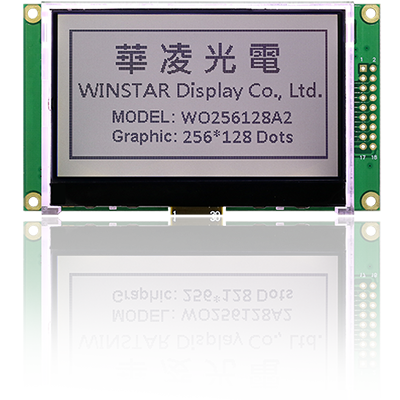

WO256128A2

WO256128A2

Link to Winstar WO256128A2 web page
