Modellnummer WEO009664D
►Typ: Grafik
►Bauweise: COG
►Größe: 0,95 Zoll OLED
►96 x 64 Punktmatrix
►IC：SSD1315
►3-V-Stromversorgung
►1/64 duty
►Schnittstelle: 6800, 8080, SPI, I2C
►die Farbe des Displays: Weiß / Gelb

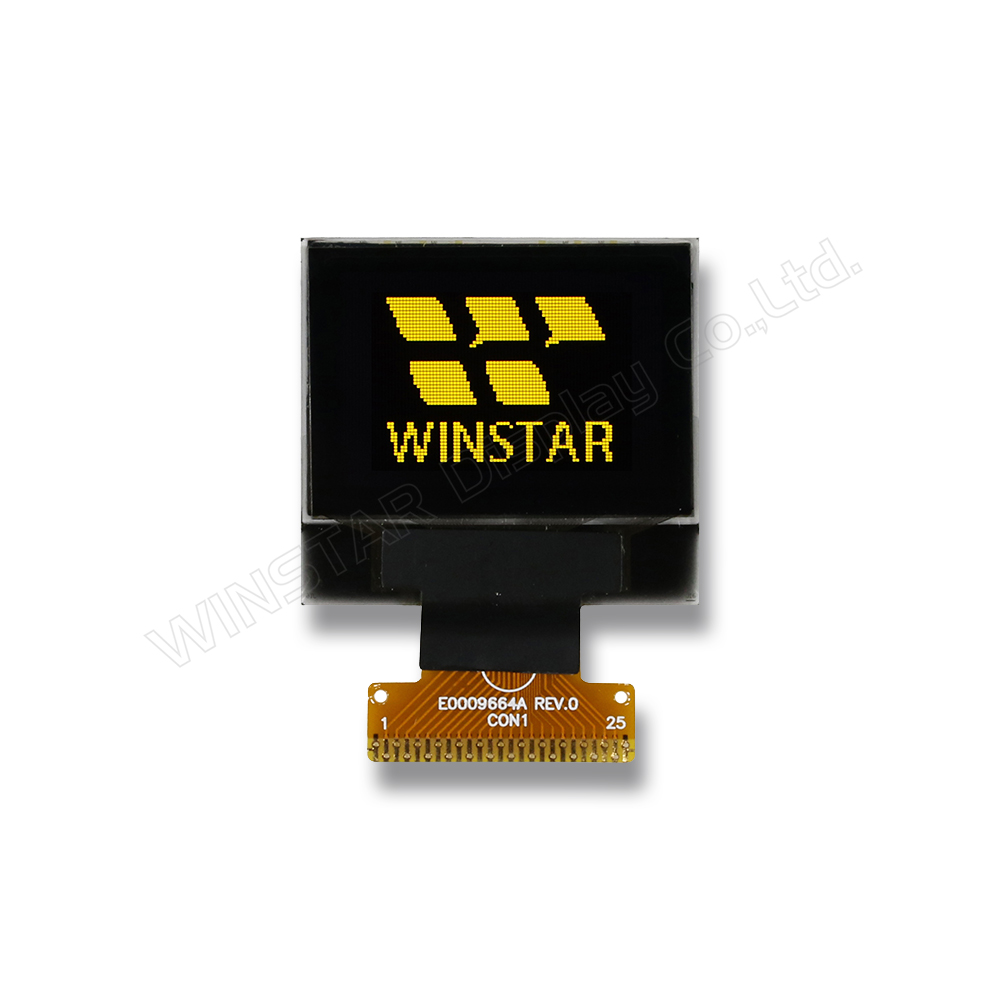

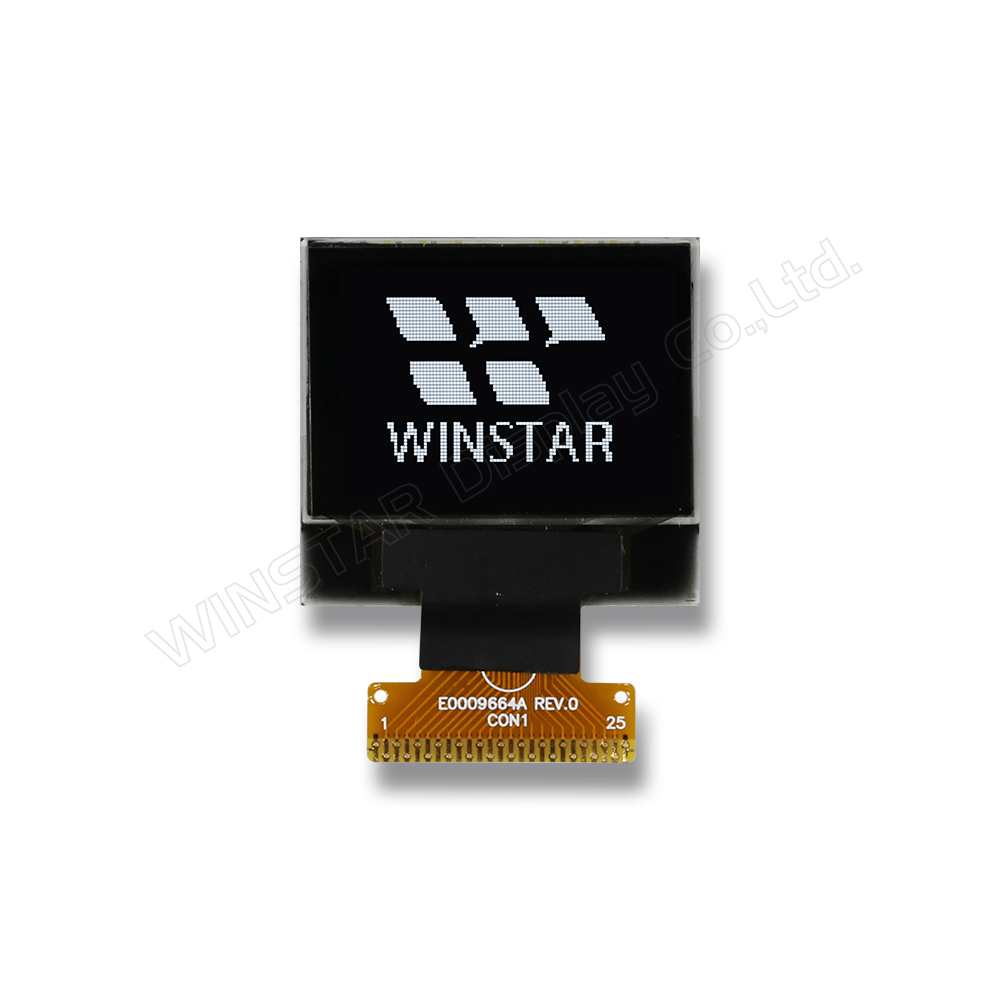

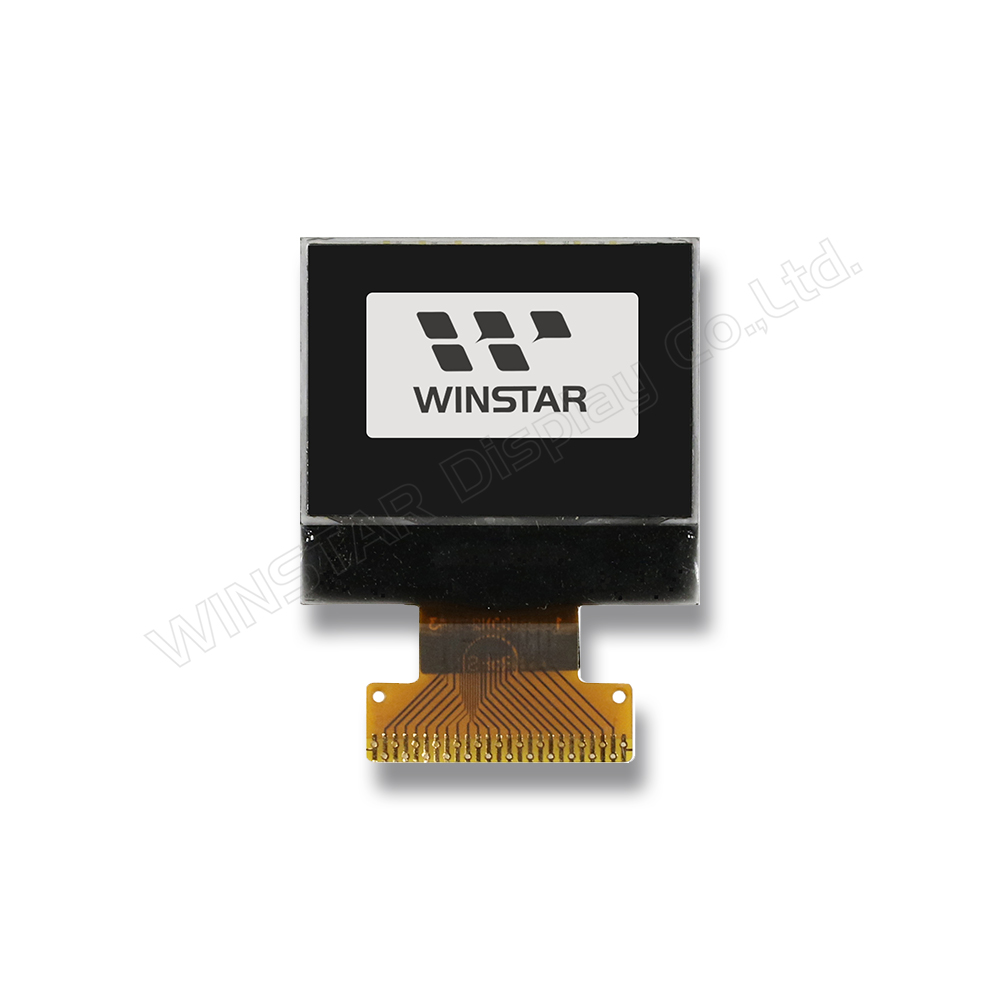

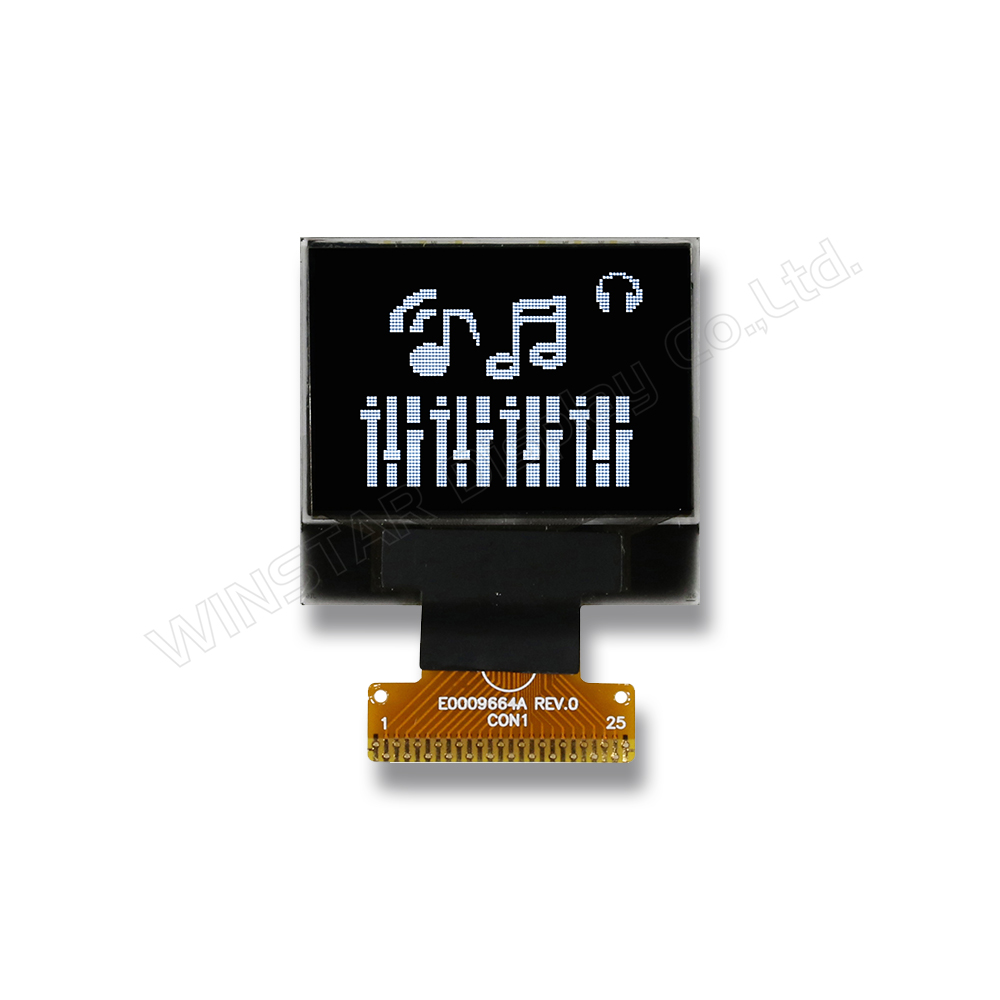

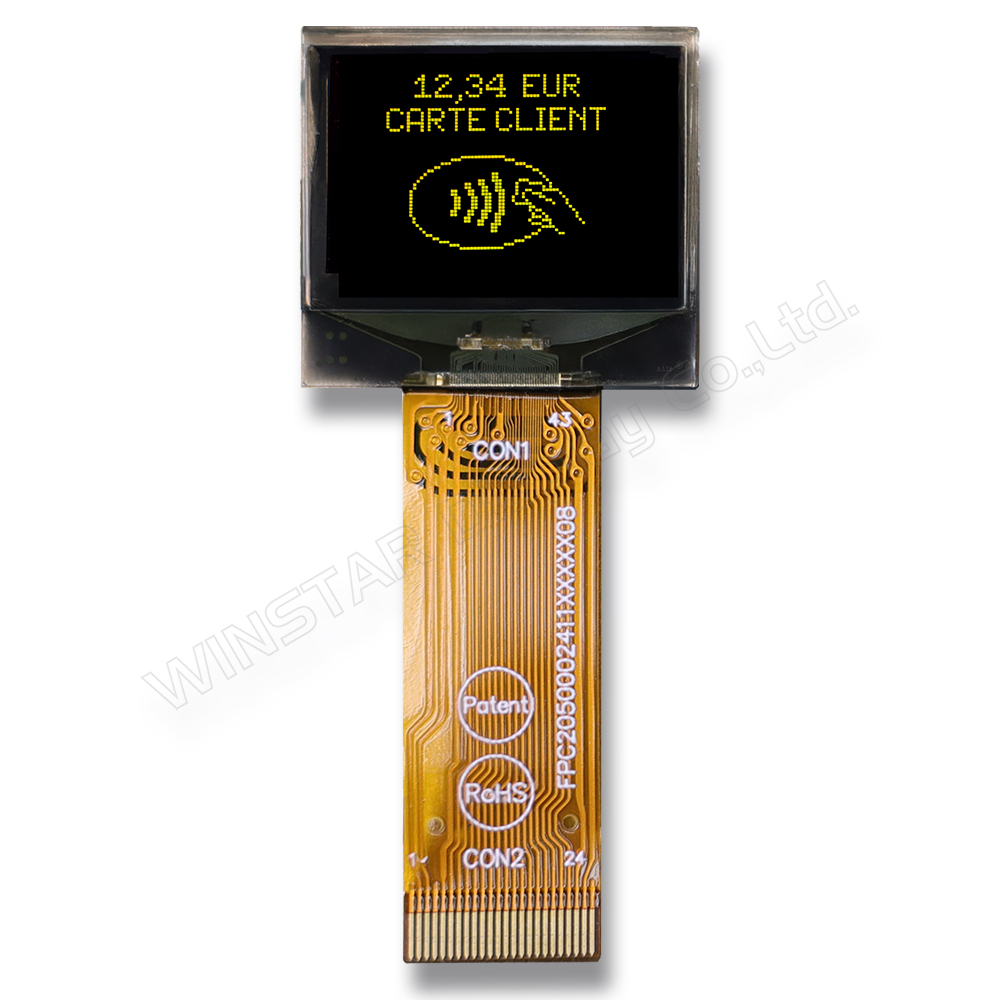

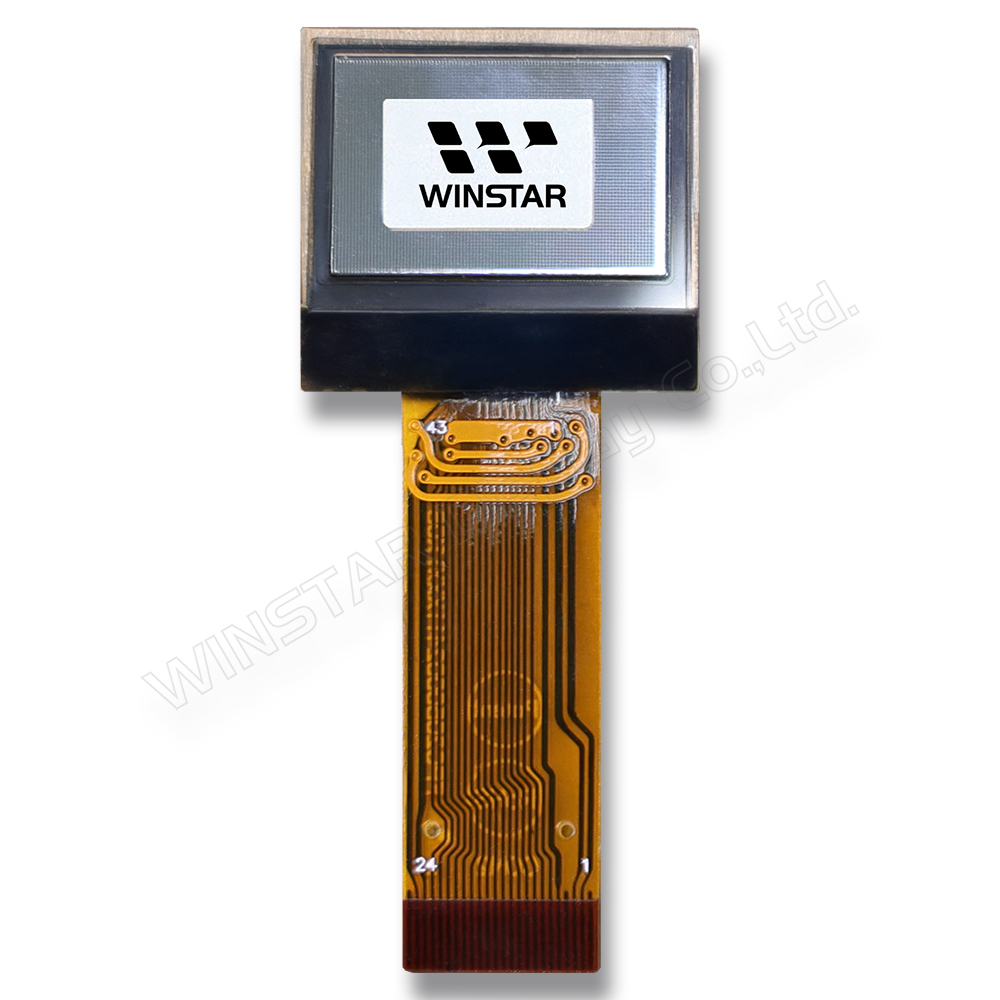

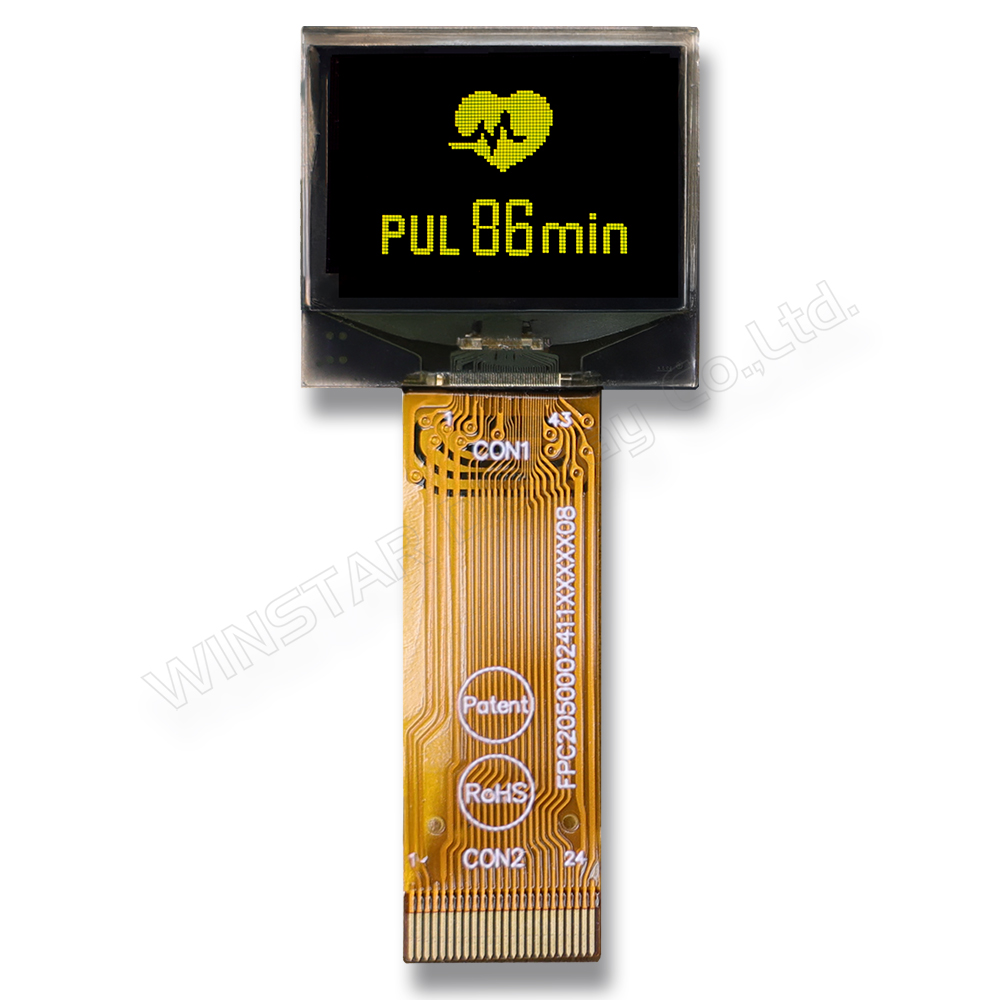

Das WEO009664D ist ein 0,95-Zoll-OLED-Displaymodul mit einer Auflösung von 96×64 Pixeln. Dieses Passive-Matrix-OLED verwendet die COG (Chip on Glass)-Struktur und ist mit dem SSD1315-IC integriert; es unterstützt 6800/8080 8-Bit-Parallelschnittstellen, I²C und SPI. Die Logik-Versorgungsspannung beträgt 3V bei 1/64 Treiberduty, und der typische Anzeige-Strom bei einem 50%-Schachbrettmuster beträgt 6mA @ 12Vcc. Das Kontrastverhältnis beträgt 10.000:1, und die Lebensdauer liegt bei bis zu 50.000 Stunden. Dieses OLED-Modul kann bei Temperaturen von -40℃ bis +80℃ betrieben und bei -40℃ bis +85℃ gelagert werden.
Der sichtbare Bereich des OLED misst 0,95 Zoll diagonal mit 96×64 Pixeln und eignet sich hervorragend für tragbare Geräte. Im Vergleich zu herkömmlichen LCDs bietet es höhere Helligkeit, besseren Kontrast, größere Betrachtungswinkel und geringeren Stromverbrauch. Das WEO009664D COG OLED-Display ist ultra-dünn, leicht und energieeffizient, ideal für Handgeräte, Messgeräte, Smart-Grid-Geräte, IoT-Anwendungen und mehr.
| Artikel | Ausmaß | Einheit |
|---|---|---|
| Punktmatrix | 96 x 64 Punkte | － |
| Abmaße der modul | 24,90 × 22,95 ×1,61 | mm |
| Aktiver Bereich | 19,946 × 13,418 | mm |
| Punktgröße | 0,184 × 0,186 | mm |
| Punktabstand | 0,208 × 0,210 | mm |
| der Anzeigemodus | Passive Matrix | |
| die Farbe des Displays | Monochromes | |
| Drive Duty | 1/64 Duty | |
| IC | SSD1315 | |
| Schnittstelle | 6800,8080,4-Wire SPI,I2C | |
| Größe (Diagonale) | 0,95 Zoll | |
| Parameter | Symbol | Mindestwert | typischer Wert | Maximalwert | Einheit |
|---|---|---|---|---|---|
| Supply Voltage for Logic | VDD | -0,3 | - | 4 | V |
| Supply Voltage for Display | VCC | 0 | - | 18 | V |
| Betriebstemperatur | TOP | -40 | - | +80 | °C |
| Lagertemperatur | TSTG | -40 | - | +85 | °C |
| Artikel | Symbol | Bedingung | Mindestwert | typischer Wert | Maximalwert | Einheit |
|---|---|---|---|---|---|---|
| Supply Voltage for Logic | VDD | － | 1,65 | 3,0 | 3,3 | V |
| Supply Voltage for Display | VCC | － | 7.5 | 12.0 | 12,5 | V |
| Input High Volt. | VIH | － | 0,8×VDD | － | VDD | V |
| Input Low Volt. | VIL | － | 0 | － | 0,2×VDD | V |
| Output High Volt. | VOH | Iout = 100uA | 0,9×VDD | － | VDD | V |
| Output Low Volt. | VOL | Iout = 100uA | 0 | － | 0,1×VDD | V |
| 50% Check Board operating Current | ICC | － | － | 6 | 9 | mA |
| No. | Symbol | Beschreibung | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | NC | No connection | ||||||||||
| 2 | VCC | Power supply for panel driving voltage. This is also the most positive power voltage supply pin. | ||||||||||
| 3 | VSS | Ground pin. It must be connected to external ground. | ||||||||||
| 4 | NC | No connection | ||||||||||
| 5 | VDD | Power supply pin for core logic operation. | ||||||||||
| 6 | BS1 | MCU bus interface selection pins. Select appropriate logic setting as described in the following table. BS2, BS1 are pin select
(1) 0 is connected to VSS (2) 1 is connected to VDD |
||||||||||
| 7 | BS2 | |||||||||||
| 8 | CS# | This pin is the chip select input connecting to the MCU. The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW). |
||||||||||
| 9 | RES# | This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed. Keep this pin HIGH (i.e. connect to VDD) during normal operation. | ||||||||||
| 10 | D/C# | This pin is Data/Command control pin connecting to the MCU. When the pin is pulled HIGH, the data at D[7:0] will be interpreted as data. When the pin is pulled LOW, the data at D[7:0] will be transferred to a command register. In I2C mode, this pin acts as SA0 for slave address selection. |
||||||||||
| 11 | R/W# | This is read / write control input pin connecting to the MCU interface. When interfacing to a 6800-series microprocessor, this pin will be used as Read/Write (R/W#) selection input. Read mode will be carried out when this pin is pulled HIGH (i.e. connect to VDD) and write mode when LOW. When 8080 interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled LOW and the chip is selected. When serial or I2C interface is selected, this pin must be connected to VSS. |
||||||||||
| 12 | E/RD# | This pin is MCU interface input. When 6800 interface mode is selected, this pin will be used as the Enable (E) signal. Read/write operation is initiated when this pin is pulled HIGH and the chip is selected. When 8080 interface mode is selected, this pin receives the Read (RD#) signal. Read operation is initiated when this pin is pulled LOW and the chip is selected. When serial or I2C interface is selected, this pin must be connected to VSS. |
||||||||||
| 13 | D0 | These are 8-bit bi-directional data bus to be connected to the microprocessor’s data bus. When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN. When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL. |
||||||||||
| 14 | D1 | |||||||||||
| 15 | D2 | |||||||||||
| 16 | D3 | |||||||||||
| 17 | D4 | |||||||||||
| 18 | D5 | |||||||||||
| 19 | D6 | |||||||||||
| 20 | D7 | |||||||||||
| 21 | IREF | This is segment output current reference pin. When external IREF is used, a resistor should be connected between this pin and VSS to maintain the IREF current at 30uA. |
||||||||||
| 22 | VCOMH | COM signal deselected voltage level. A capacitor should be connected between this pin and VSS. |
||||||||||
| 23 | VCC | Power supply for panel driving voltage. This is also the most positive power voltage supply pin. | ||||||||||
| 24 | VLSS | This is an analog ground pin. It should be connected to VSS externally. | ||||||||||
| 25 | NC | No connection |
