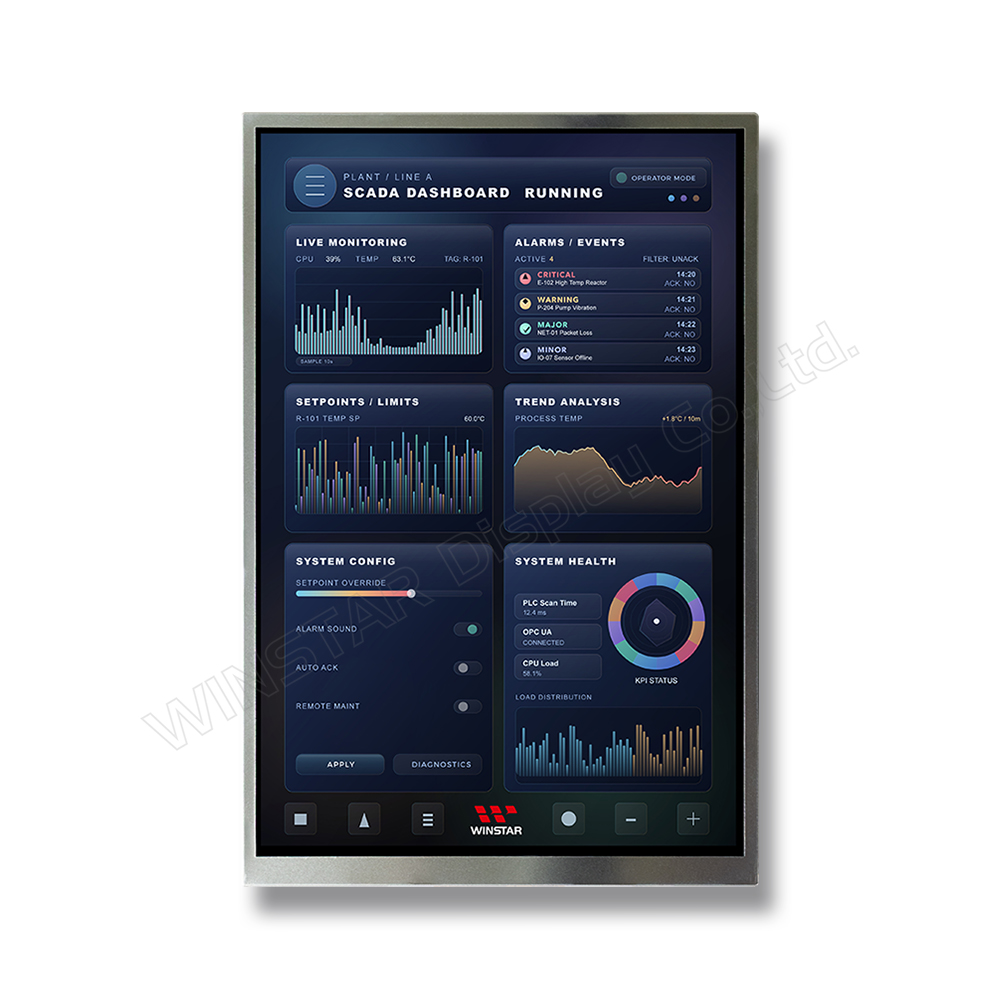

N° de modèle WF80GSYFUMHNV
►Dimension 8 pouces
►Résolution d’écran: 800x1280 pixels
►Vue préférentielle IPS
►Interface : Support HDMI Connector (Only DVI Signal)
►Contrôleur intégré : LT6911C

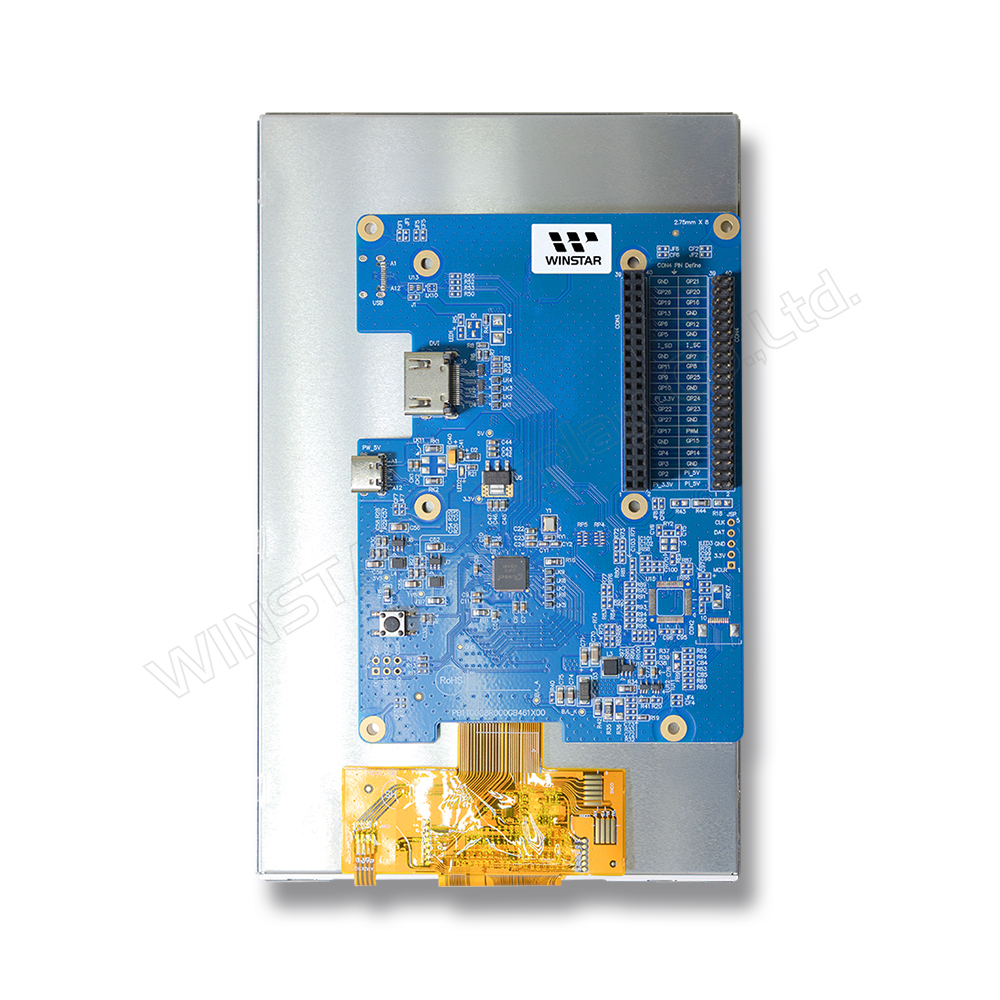

►Carte de contrôle: Yes
►Luminosité (Cd/m²): 1125
►cadre de maintien avec points de fixation: NON
►Dalle tactile: Sans dalle tactile
►Température d’utilisation: -20~+70℃
| Article | Dimensions | Unité |
|---|---|---|
| Dimension | 8.0 | pouce |
| Matrice de points | 800 × 3(RGB) ×1280 | points |

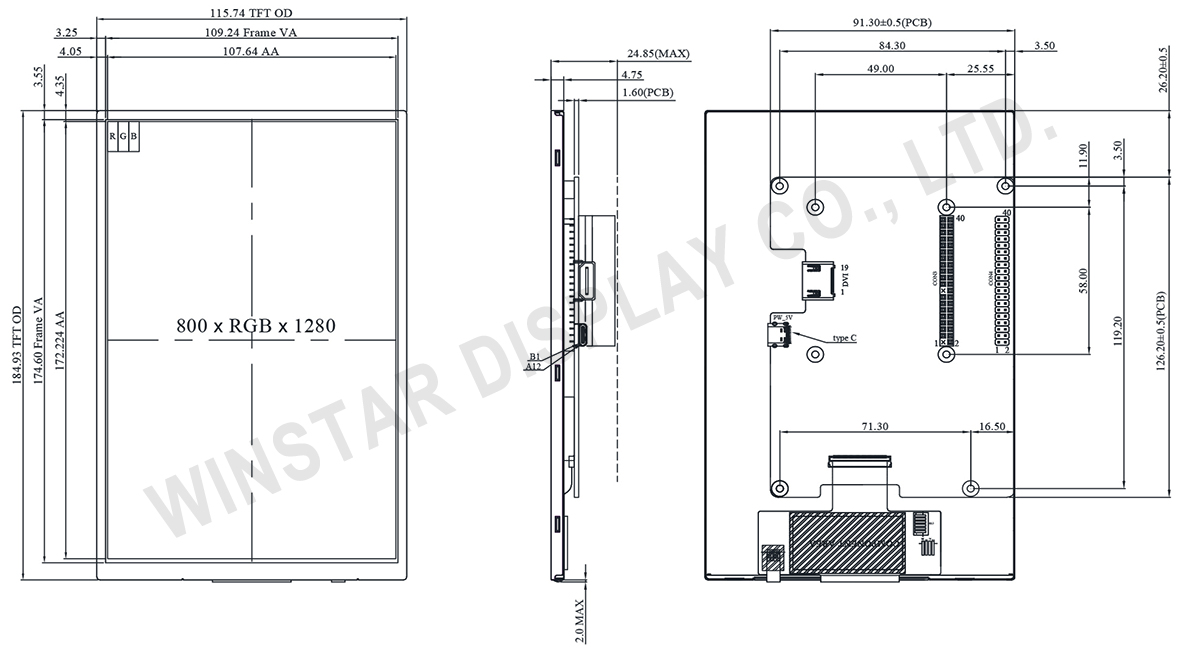

| Dimensions du module | 115.74 × 184.93 × 24.85 | mm |
| Zone active | 107.64 × 172.224 | mm |
| Pas de pixel | 0.13455 × 0.13455 | mm |
| Type de LCD | TFT, Noir, Transmissif | |
| Vue préférentielle | 85/85/85/85 | |
| Type de rétroéclairage | LED, Blanc | |
| Contrôleur intégré | LT6911C | |
| Interface électrique (logique) | DVI | |
| Dalle tactile | Sans dalle tactile | |
| Surface | Anti-reflets | |
| Article | Symbole | Valeur min | Valeur type | Valeur max | Unité |
|---|---|---|---|---|---|
| Température de fonctionnement | TOP | -20 | － | +70 | ℃ |
| Température de stockage | TST | -30 | － | +80 | ℃ |
| Article | Symbole | Valeur min | Valeur type | Valeur max | Unité |
|---|---|---|---|---|---|
| Tension d'alimentation pour LCM | VDD | 4.75 | 5.0 | 5.25 | V |
| Courant d'alimentation pour LCM | IDD | － | 1263 | 1895 | mA |
| Durée de vie LED | － | 50000 | － | Hr |
| Pin No. | Symbole | Fonction |
|---|---|---|
| 1 | NC | No connection |
| 2 | 5V | Raspberry Pi:Power 5V |
| 3 | GPIO02 | Raspberry Pi:GPIO02 |
| 4 | 5V | Raspberry Pi:Power 5V |
| 5 | GPIO03 | Raspberry Pi:GPIO03 |
| 6 | GND | Raspberry Pi:GND |
| 7 | GPIO04 | Raspberry Pi:GPIO04 |
| 8 | GPIO14 | Raspberry Pi:GPIO14 |
| 9 | GND | Raspberry Pi:GND |
| 10 | GPIO15 | Raspberry Pi:GPIO15 |
| 11 | GPIO17 | Raspberry Pi:GPIO17 |
| 12 | BL-PWM GPIO18 |
Raspberry Pi:GPIO18 (Backlight Enable) |
| 13 | GPIO27 | Raspberry Pi:GPIO27 |
| 14 | GND | Raspberry Pi:GND |
| 15 | GPIO22 | Raspberry Pi:GPIO22 |
| 16 | GPIO23 | Raspberry Pi:GPIO23 |
| 17 | NC | No connection |
| 18 | GPIO24 | Raspberry Pi:GPIO24 |
| 19 | GPIO10 | Raspberry Pi:GPIO10 |
| 20 | GND | Raspberry Pi:GND |
| 21 | GPIO09 | Raspberry Pi:GPIO09 |
| 22 | GPIO25 | Raspberry Pi:GPIO25 |
| 23 | GPIO11 | Raspberry Pi:GPIO11 |
| 24 | GPIO08 | Raspberry Pi:GPIO08 |
| 25 | GND | Raspberry Pi:GND |
| 26 | GPIO07 | Raspberry Pi:GPIO07 |
| 27 | ID_SD | Raspberry Pi:ID_SD |
| 28 | ID_SC | Raspberry Pi:ID_SC |
| 29 | GPIO05 | Raspberry Pi:GPIO05 |
| 30 | GND | Raspberry Pi:GND |
| 31 | GPIO06 | Raspberry Pi:GPIO06 |
| 32 | GPIO12 | Raspberry Pi:GPIO12 |
| 33 | GPIO13 | Raspberry Pi:GPIO13 |
| 34 | GND | Raspberry Pi:GND |
| 35 | GPIO19 | Raspberry Pi:GPIO19 |
| 36 | GPIO16 | Raspberry Pi:GPIO16 |
| 37 | GPIO26 | Raspberry Pi:GPIO26 |
| 38 | GPIO20 | Raspberry Pi:GPIO20 |
| 39 | GND | Raspberry Pi:GND |
| 40 | GPIO21 | Raspberry Pi:GPIO21 |
| Pin No. | Symbole | Fonction |
|---|---|---|
| 1 | 3.3V | TFT Module Power limit can only output 3.3V,100mA |
| 2 | 5V | Raspberry Pi:Power 5V |
| 3 | GPIO02 | Raspberry Pi:GPIO02 |
| 4 | 5V | Raspberry Pi:Power 5V |
| 5 | GPIO03 | Raspberry Pi:GPIO03 |
| 6 | GND | Raspberry Pi:GND |
| 7 | GPIO04 | Raspberry Pi:GPIO04 |
| 8 | GPIO14 | Raspberry Pi:GPIO14 |
| 9 | GND | Raspberry Pi:GND |
| 10 | GPIO15 | Raspberry Pi:GPIO15 |
| 11 | GPIO17 | Raspberry Pi:GPIO17 |
| 12 | BL-PWM GPIO18 |
Raspberry Pi:GPIO18 (Backlight Enable) |
| 13 | GPIO27 | Raspberry Pi:GPIO27 |
| 14 | GND | Raspberry Pi:GND |
| 15 | GPIO22 | Raspberry Pi:GPIO22 |
| 16 | GPIO23 | Raspberry Pi:GPIO23 |
| 17 | 3.3V | TFT Module Power limit can only output 3.3V,100mA |
| 18 | GPIO24 | Raspberry Pi:GPIO24 |
| 19 | GPIO10 | Raspberry Pi:GPIO10 |
| 20 | GND | Raspberry Pi:GND |
| 21 | GPIO09 | Raspberry Pi:GPIO09 |
| 22 | GPIO25 | Raspberry Pi:GPIO25 |
| 23 | GPIO11 | Raspberry Pi:GPIO11 |
| 24 | GPIO08 | Raspberry Pi:GPIO08 |
| 25 | GND | Raspberry Pi:GND |
| 26 | GPIO07 | Raspberry Pi:GPIO07 |
| 27 | ID_SD | Raspberry Pi:ID_SD |
| 28 | ID_SC | Raspberry Pi:ID_SC |
| 29 | GPIO05 | Raspberry Pi:GPIO05 |
| 30 | GND | Raspberry Pi:GND |
| 31 | GPIO06 | Raspberry Pi:GPIO06 |
| 32 | GPIO12 | Raspberry Pi:GPIO12 |
| 33 | GPIO13 | Raspberry Pi:GPIO13 |
| 34 | GND | Raspberry Pi:GND |
| 35 | GPIO19 | Raspberry Pi:GPIO19 |
| 36 | GPIO16 | Raspberry Pi:GPIO16 |
| 37 | GPIO26 | Raspberry Pi:GPIO26 |
| 38 | GPIO20 | Raspberry Pi:GPIO20 |
| 39 | GND | Raspberry Pi:GND |
| 40 | GPIO21 | Raspberry Pi:GPIO21 |
| Pin No. | Symbole | I/O | Fonction |
|---|---|---|---|
| 1 | Rx2+ | I | Channel-2 positive receiver input; low-voltage signal differential- input pair. |
| 2 | GND | P | Ground |
| 3 | Rx2- | I | Channel-2 negative receiver input; low-voltage signal differential- input pair. |
| 4 | Rx1+ | I | Channel-1 positive receiver input; low-voltage signal differential- input pair. |
| 5 | GND | P | Ground |
| 6 | Rx1- | I | Channel-1 negative receiver input; low-voltage signal differential- input pair. |
| 7 | Rx0+ | I | Channel-0 positive receiver input; low-voltage signal differential- input pair. |
| 8 | GND | P | Ground |
| 9 | Rx0- | I | Channel-0 negative receiver input; low-voltage signal differential- input pair. |
| 10 | RxC+ | I | Clock positive receiver input; low-voltage signal differential- input pair. |
| 11 | GND | P | Ground |
| 12 | RxC- | I | Clock negative receiver input; low-voltage signal differential- input pair. |
| 13-14 | NC | - | No connection |
| 15 | SCL | I/O | DDC(Data Display Channel) Clock |
| 16 | SDA | I/O | DDC(Data Display Channel) Data |
| 17 | GND | P | Ground |
| 18 | HDMI_5V | P | Power Supply |
| 19 | Detect | I/O | Hot plug detect |
| Pin No | Symbole | Fonction |
|---|---|---|
| A1 | GND | Power Ground |
| A4 | VBUS | Power 5V |
| A5 | CC1 | Configuration channel |
| A6 | NC | No connection |
| A7 | NC | No connection |
| A8 | NC | No connection |
| A9 | VBUS | Power 5V |
| A12 | GND | Power Ground |
| B12 | GND | Power Ground |
| B9 | VBUS | Power 5V |
| B8 | NC | No connection |
| B7 | NC | No connection |
| B6 | NC | No connection |
| B5 | CC2 | Configuration channel |
| B4 | VBUS | Power 5V |
| B1 | GND | Power Ground |
