Pantalla Táctil Capacitiva 3.5 pulgadas
Modelo Nº TST0003R5L4111XXXX00
►Tamaño : 3.5"
►Estructura : G-G
►Dimensión de esquema : 76.25 × 63.00 × 1.59 mm
►Área de visualización : 71 × 53.51 mm
►Interfaz : I2C
►Driver IC: ILI2130
►Tipo: Táctil capacitiva
►Series for : WF35L, WF35M, WF35Q, WF35P, WF35Y

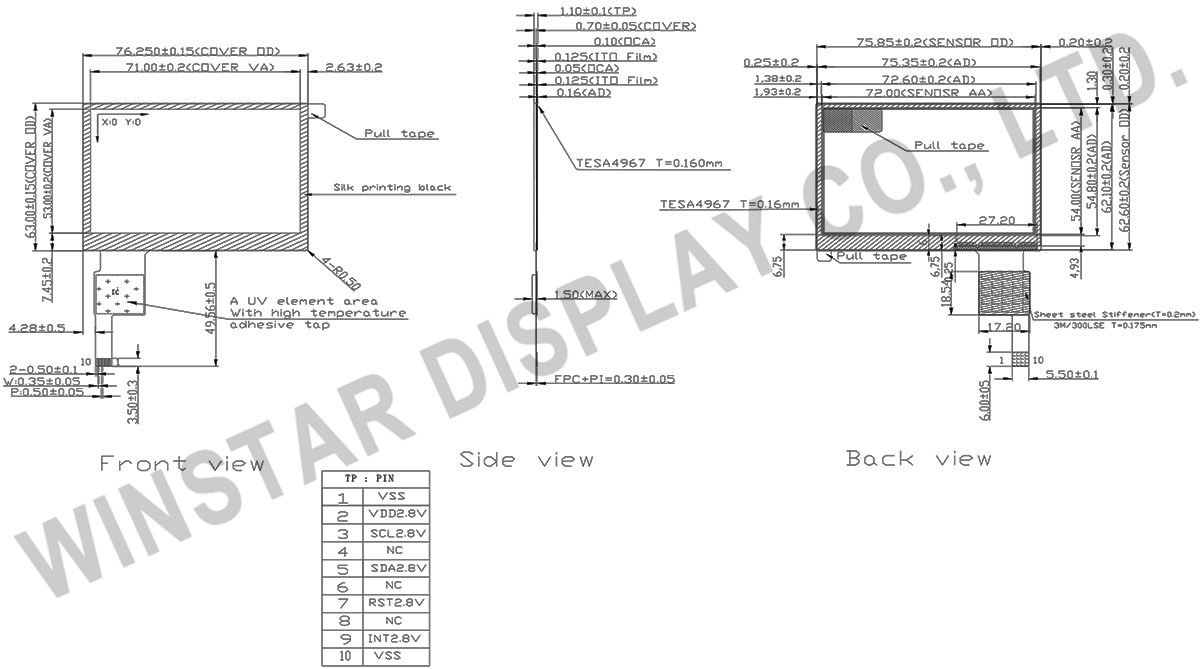

DIBUJO
ESPECIFICACIONES
Especificaciones generales
Feature
NO. | Elemento | Especificaciones |
---|---|---|
1 | Type | panel táctil capacitivo(PCAP) |
2 | Input Mode | Finger |
3 | Connector | COF-IIC |
Especificaciones generales
NO. | Elemento | Especificaciones | Unidad |
---|---|---|---|
1 | Tamaño | 3.5(Diagonal) | pulgada |
2 | Estructura | CTP | |
3 | Área de visión | 71.00(H) x 53.51(V) | mm |
4 | Dimensión de esquema | 76.25(H) x 63.00(V) x 1.59(D) | mm |
Función interfaz Pin
Pin No. | Símbolo | I/O | Descripción |
---|---|---|---|
1 | VSS | --- | Ground |
2 | VDDT | --- | Power supply |
3 | SCL | I/O | I2C clock signal |
4 | NC | --- | No Connection |
5 | SDA | I/O | I2C data signal |
6 | NC | --- | No Connection |
7 | RST | I | External reset signal, active low |
8 | NC | --- | No Connection |
9 | INT | O | Interrupt signal, active low, asserted to request Host start a new transcation |
10 | VSS | --- | Ground |
IC Specification
NO. | Elemento | Specifications |
---|---|---|
1 | Driver IC | ILI2130 |
2 | Detect Points | 5 |
3 | Interfaz | I2C |
4 | Power Supply | 3.3V |
FW:FN035IGRGXX005A_ILI2130_V01_20210322.hex
Test config:FN035IGRGXX005A_ILI2130_TP_Test_MP.ini
Version: 0x07.0x00.0x00.0x00.0x00.0x35.0x5A.0x01
Other
Environment Conditions:
NO. | Símbolo | Specifications |
---|---|---|
1 | Temperatura de funcionamiento | -30~85℃ |
2 | Temperatura de almacenamiento | -30~85℃ |
