Tela LCD TFT Toque Resistivo HDMI 5 polegadas 800x480, TFP401

Model No. WF50FTYFGDHTV

►Tamanho: 5 polegadas
►Resolução : 800x480 pontos
►Direção de exibição: IPS
►Interface: suporte conector de HDMI (Somente sinal DVI)
►Controlador TFP401 integrado
►Placa de controle : Yes
►Brightness(cd/m2): 350
►Quadro com furo passante: Não
►Tela de toque: Com painel de toque resistivo
►Temperatura de operação : -20~+70℃

Descrição

O display TFT de 5 polegadas com painel touchscreen resistivo apresenta uma resolução WVGA de 800x480. O Winstar WF50FTYFGDHTV inclui uma placa de controle com uma interface de sinal HDMI e um conector de 40 pinos, simplificando seu uso com Raspberry Pi. Ele também possui uma interface USB e uma sobreposição de tela touchscreen resistiva, com um painel touchscreen capacitivo opcional disponível.

Este display compacto foi projetado para fácil utilização com Raspberry Pi e qualquer sistema embarcado com saída HDMI. Sua resolução de 800x480 é adequada para executar a maioria dos softwares, permanecendo pequeno o suficiente para ser usado em projetos portáteis ou embarcados.

A série WF50F, que suporta conectores HDMI (sinal DVI), foi aprovada nos testes CE e é certificada.

WF50F 5-inch HDMI TFT - CE Certificate
CE Certificate Download
EMC Test Report Download

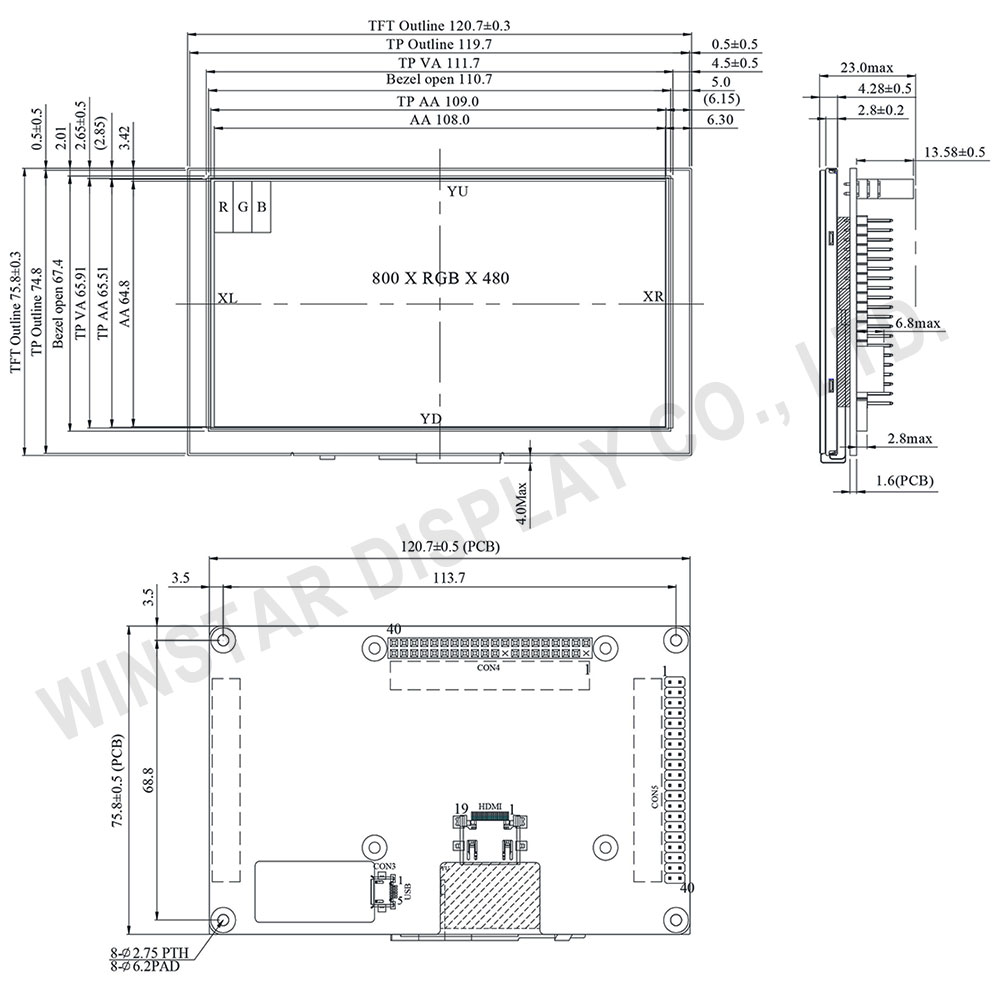

DRAWING

 LCD 5 inch 800x480 for HDMI Signal Touchscreen, 5 Display HDMI, 5 HDMI Display (For Raspberry Use) - WF50FTYFGDHTV

SPECIFICATIONS

Especificações Gerais

Item Dimensão Unidade
Tamanho 5 polegadas
Matriz de pontos 800 × 3(RGB) × 480 pontos
Dimensão do módulo 120.7 × 75.8 × 23.0 (Max) mm
Área ativa 108.0 × 64.8 mm
Distância entre pontos 0.045 × 0.135 mm
Tipo LCD TFT, Preto, Transmissivo
Direção de exibição 80/80/80/80
Relação de aspecto 5:3
Tipo de luz de fundo LED, Branco
Controlador IC TFP401
Interface HDMI(only for DVI)
Painel de toque painel de toque resistivo(USB)
Superfície Anti-Refletor

Classificações Máximas Absolutas

Item Símbolo Valor Min Valor Típico Valor Máximo Unidade
Temperatura de operação TOP -20 +70
Temperatura de armazenamento TST -30 +80

Características Eletrônicas

Item Símbolo Valor Min Valor Típico Valor Máximo Unidade
Supply Voltage For LCM VDD 4.9 5 5.1 V
Supply Current For LCM IDD 450 680 mA
LED life time 50,000 Hr

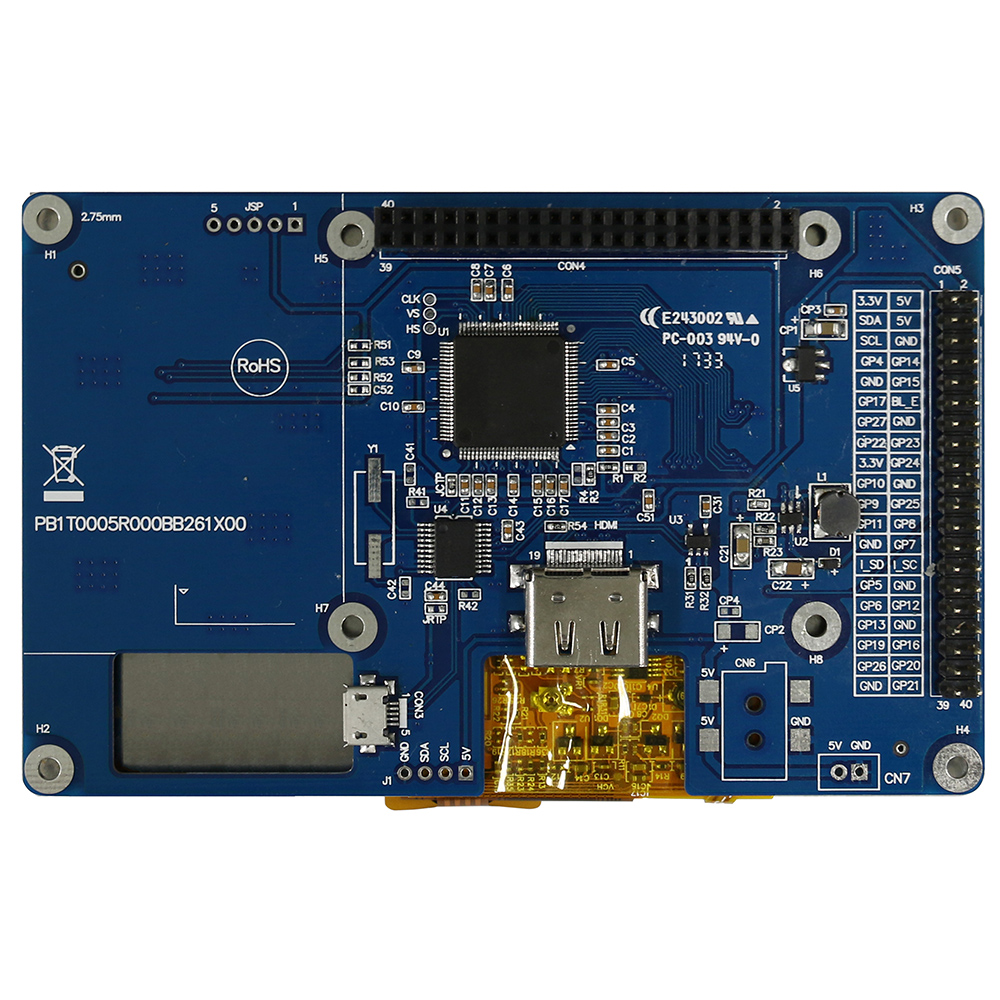

Função do pino de interface

1.LCM PIN Definition(CON4)

Pin Símbolo Função
1 NC No connection
2 5V Raspberry Pi:Power 5V
3 GPIO02 Raspberry Pi:GPIO02
4 5V Raspberry Pi:Power 5V
5 GPIO03 Raspberry Pi:GPIO03
6 GND Raspberry Pi:GND
7 GPIO04 Raspberry Pi:GPIO04
8 GPIO14 Raspberry Pi:GPIO14
9 GND Raspberry Pi:GND
10 GPIO15 Raspberry Pi:GPIO15
11 GPIO17 Raspberry Pi:GPIO17
12 GPIO18 Raspberry Pi:GPIO18 (Backlight Enable)
13 GPIO27 Raspberry Pi:GPIO27
14 GND Raspberry Pi:GND
15 GPIO22 Raspberry Pi:GPIO22
16 GPIO23 Raspberry Pi:GPIO23
17 NC No connection
18 GPIO24 Raspberry Pi:GPIO24
19 GPIO10 Raspberry Pi:GPIO10
20 GND Raspberry Pi:GND
21 GPIO09 Raspberry Pi:GPIO09
22 GPIO25 Raspberry Pi:GPIO25
23 GPIO11 Raspberry Pi:GPIO11
24 GPIO08 Raspberry Pi:GPIO08
25 GND Raspberry Pi:GND
26 GPIO07 Raspberry Pi:GPIO07
27 ID_SD Raspberry Pi:ID_SD
28 ID_SC Raspberry Pi:ID_SC
29 GPIO05 Raspberry Pi:GPIO05
30 GND Raspberry Pi:GND
31 GPIO06 Raspberry Pi:GPIO06
32 GPIO12 Raspberry Pi:GPIO12
33 GPIO13 Raspberry Pi:GPIO13
34 GND Raspberry Pi:GND
35 GPIO19 Raspberry Pi:GPIO19
36 GPIO16 Raspberry Pi:GPIO16
37 GPIO26 Raspberry Pi:GPIO26
38 GPIO20 Raspberry Pi:GPIO20
39 GND Raspberry Pi:GND
40 GPIO21 Raspberry Pi:GPIO21


2.LCM PIN Definition(CON5)

Pin Símbolo Função
1 3.3V TFT Module Power limit can only output 3.3V,100mA
2 5V Raspberry Pi:Power 5V
3 GPIO02 Raspberry Pi:GPIO02
4 5V Raspberry Pi:Power 5V
5 GPIO03 Raspberry Pi:GPIO03
6 GND Raspberry Pi:GND
7 GPIO04 Raspberry Pi:GPIO04
8 GPIO14 Raspberry Pi:GPIO14
9 GND Raspberry Pi:GND
10 GPIO15 Raspberry Pi:GPIO15
11 GPIO17 Raspberry Pi:GPIO17
12 GPIO18 Raspberry Pi:GPIO18 (Backlight Enable)
13 GPIO27 Raspberry Pi:GPIO27
14 GND Raspberry Pi:GND
15 GPIO22 Raspberry Pi:GPIO22
16 GPIO23 Raspberry Pi:GPIO23
17 3.3V TFT Module Power limit can only output 3.3V,100mA
18 GPIO24 Raspberry Pi:GPIO24
19 GPIO10 Raspberry Pi:GPIO10
20 GND Raspberry Pi:GND
21 GPIO09 Raspberry Pi:GPIO09
22 GPIO25 Raspberry Pi:GPIO25
23 GPIO11 Raspberry Pi:GPIO11
24 GPIO08 Raspberry Pi:GPIO08
25 GND Raspberry Pi:GND
26 GPIO07 Raspberry Pi:GPIO07
27 ID_SD Raspberry Pi:ID_SD
28 ID_SC Raspberry Pi:ID_SC
29 GPIO05 Raspberry Pi:GPIO05
30 GND Raspberry Pi:GND
31 GPIO06 Raspberry Pi:GPIO06
32 GPIO12 Raspberry Pi:GPIO12
33 GPIO13 Raspberry Pi:GPIO13
34 GND Raspberry Pi:GND
35 GPIO19 Raspberry Pi:GPIO19
36 GPIO16 Raspberry Pi:GPIO16
37 GPIO26 Raspberry Pi:GPIO26
38 GPIO20 Raspberry Pi:GPIO20
39 GND Raspberry Pi:GND
40 GPIO21 Raspberry Pi:GPIO21


3.RTP USB PIN Definition(CON3)

Pin Símbolo Função
1 5V Power 5V
2 D- Data line -
3 D+ Data line +
4 NC No connection
5 GND Power Ground


4.DVI

Pin No. Símbolo I/O Função
1 Rx2+ I Channel-2 positive receiver input; low-voltage signal differential- input pair.
2 GND P Ground
3 Rx2- I Channel-2 negative receiver input; low-voltage signal differential- input pair.
4 Rx1+ I Channel-1 positive receiver input; low-voltage signal differential- input pair.
5 GND P Ground
6 Rx1- I Channel-1 negative receiver input; low-voltage signal differential- input pair.
7 Rx0+ I Channel-0 positive receiver input; low-voltage signal differential- input pair.
8 GND P Ground
9 Rx0- I Channel-0 negative receiver input; low-voltage signal differential- input pair.
10 RxC+ I Clock positive receiver input; low-voltage signal differential- input pair.
11 GND P Ground
12 RxC- I Clock negative receiver input; low-voltage signal differential- input pair.
13-14 NC - No connection
15 SCL I/O DDC(Data Display Channel) Clock
16 SDA I/O DDC(Data Display Channel) Data
17 GND P Ground
18 5V P Power Supply
19 Detect I/O Hot plug detect
I: input, O: output, P: Power
