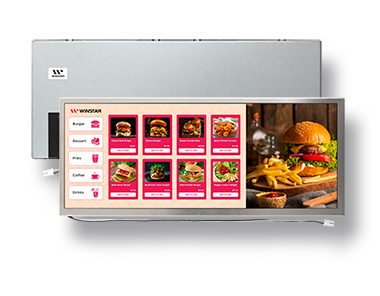

12.3-inch Wide Temperature IPS TFT Displays for Industrial Applications

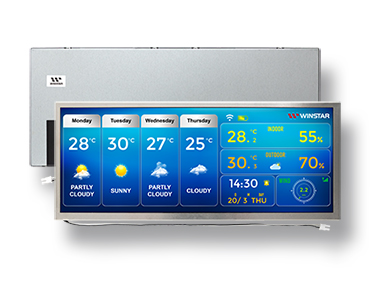

WINSTAR presents two models from the WF123E series: WF123ETWAYLNN0 and WF123ESWAYLNN0.
These 12.3-inch IPS TFT-LCD modules feature a wide aspect ratio (1920×720 resolution) and are designed to operate in challenging environments, with a wide temperature range of -30°C to +85°C — ideal for industrial settings.
The two models differ in brightness:
- WF123ETWAYLNN0: 800 cd/m² (typ.)
- WF123ESWAYLNN0: 1100 cd/m² (typ.)
With their ultra-wide format, high brightness, and excellent visibility, these displays are well-suited for:
- Onboard passenger information systems
- Train carriage display systems
- Industrial control panels
- Cost-effective wide-format display applications
| Model No. | WF123ETWAYLNN0 | WF123ESWAYLNN0 |
|---|---|---|
| Picture |  |
 |
| Size | 12.3-inch | 12.3-inch |
| Resolution | 1920×720 pixels | 1920×720 pixels |
| Module Dimensions | 310×128×11 mm | 310×128×11 mm |
| Active Area | 292.032×109.512 mm | 292.032×109.512 mm |
| Viewing Angle | 88/88/88/88(IPS) | 88/88/88/88(IPS) |
| Driver IC | FL5894+ST5086 | FL5894+ST5086 |
| Interface | 8 bits-D-LVDS | 8 bits-D-LVDS |
| Surface | Glare | Glare |
| Touch Panel | None | None |
| Brightness | 800 cd/m² | 1100 cd/m² |
| Operating Temp. | -30~+85℃ | -30~+85℃ |
| Storage Temp. | -40~+90℃ | -40~+90℃ |
| Link | View Product Details → | View Product Details → |

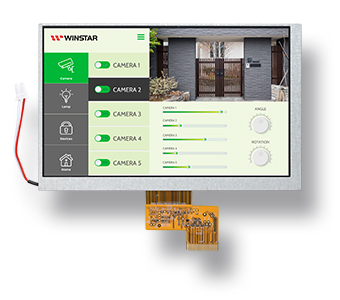

7-inch Wide Temperature IPS TFT Displays for Industrial and Commercial Applications

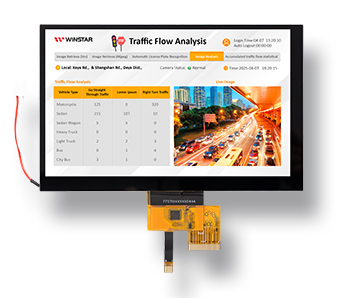

WINSTAR presents two models from the WF70D2 series: WF70D2TWAGLNN0 and WF70D2SWAGLNG0. These 7-inch IPS TFT LCD modules feature a resolution of 800 x 480 dots and support LVDS interface, making them suitable for a wide range of applications. Previously, the WF70D2 series was introduced with an RGB interface, and this new release focuses on LVDS for improved performance in industrial and commercial environments.
The two models differ in brightness and touch functionality:
- WF70D2TWAGLNN0: 450 cd/m² (typ.), Non-Touch Panel
- WF70D2SWAGLNG0: 1000 cd/m² (typ.), With Projected Capacitive Touch Panel, offering 5-point touch support via I2C interfaces
These modules are ideal for applications requiring reliable performance in extreme temperatures, with an operating temperature range of -30°C to +80°C (Wide Temperature). They are perfect for industrial control systems, smart home appliances, medical equipment, and monitoring systems, thanks to their wide viewing angles and robust temperature tolerance.
With their high brightness and excellent visibility, they are ideal for:
- Industrial control systems
- Automotive dashboards
- Medical devices
- Retail signage
- Self-service kiosks
| Model No. | WF70D2TWAGLNN0 | WF70D2SWAGLNG0 |
|---|---|---|
| Picture |  |
 |
| Size | 7-inch | 7-inch |
| Resolution | 800×480 pixels | 800×480 pixels |
| Module Dimensions | 165×104.6×5.3 mm | 165×104.6×7.3 mm |
| Active Area | 152.4×91.44 mm | 152.4×91.44 mm |
| Viewing Angle | 85/85/85/85(IPS) | 85/85/85/85(IPS) |
| Driver IC | RM53052+RM57452 | RM53052+RM57452 |
| Interface | LVDS | LVDS |
| Surface | Anti-Glare | Glare |
| Touch Panel | None | Projected Capacitive Touch Panel (PCAP) |
| PCAP IC | -- | ILI2130 |
| PCAP Interface | -- | I2C |
| Brightness | 450 cd/m² | 1000 cd/m² |
| Operating Temp. | -30~+80℃ | -30~+80℃ |
| Storage Temp. | -30~+80℃ | -30~+80℃ |
| Link | View Product Details → | View Product Details → |
3.97-inch Portrait IPS TFT Display with PCAP Touch for Vertical Applications

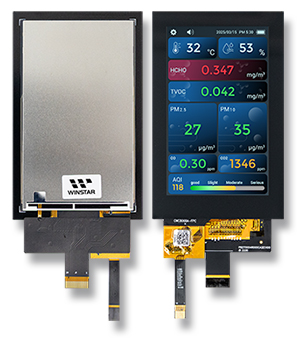

The WF40CTYAQMNG10 is a 3.97-inch portrait-mode IPS TFT-LCD display module with a resolution of 480x800 pixels. Designed for vertical layouts, this compact module is ideal for space-constrained industrial equipment, handheld devices, and security monitoring systems. It features a MIPI DSI interface (2-lane) and integrates the ST7701S driver IC for reliable performance.
With IPS technology providing wide viewing angles (80° in all directions), a typical contrast ratio of 900:1, and a minimum brightness of 400 nits, this display ensures clear visibility in various lighting conditions. The portrait format enhances usability in vertically oriented interfaces.
The built-in Projected Capacitive Touch Panel (PCAP), equipped with a GT911 driver IC and supporting 5-point multi-touch via I2C interface, offers precise and responsive touch interaction. The optically bonded PCAP further improves durability and optical clarity, making it well-suited for demanding environments.
With enhanced durability and readability through optical bonding, the WF40CTYAQMNG10 is ideal for:
- Handheld industrial equipment
- Dash cameras
- Security monitoring systems
- Vertical control interfaces
 |
Model No. | WF40CTYAQMNG10 |
|---|---|---|
| Size | 3.97-inch | |
| Resolution | 480×800 pixels | |
| Module Dimensions | 67.14×106.85×3.8 mm | |
| Active Area | 51.84×86.4 mm | |
| Viewing Angle | 80/80/80/80(IPS) | |
| Driver IC | ST7701S | |
| Interface | MIPI DSI | |
| Surface | Glare | |
| Touch Panel | Projected Capacitive Touch Panel (PCAP)+OCA | |
| PCAP IC | GT911 | |
| PCAP Interface | I2C | |
| Brightness | 400 cd/m² | |
| Operating Temp. | -20~+70℃ | |
| Storage Temp. | -30~+80℃ | |
| Link | View Product Details → |
4-inch Round IPS TFT Display Modules – Available with or without Touch
WINSTAR introduces two 4-inch round IPS TFT-LCD display modules, model numbers WFN0400A2T0YAMNN000 and WFN0400A2T0YAMNA000, both offering a 720×720 resolution and a MIPI DSI interface (4-lane) interface. Featuring IPS technology, these modules deliver consistent image quality and wide viewing angles of 85° in all directions, ensuring excellent readability from any angle.
These modules are well-suited for smart home devices, industrial equipment, and other applications that benefit from a round display design with high visual clarity.
Product Variants:
- WFN0400A2T0YAMNN000: Equipped with a Projected Capacitive Touch Panel (PCAP) and optical bonding, this model supports 4-point multi-touch and offers a typical brightness of 320 cd/m².

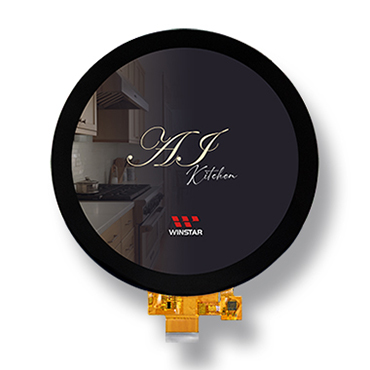

- WFN0400A2T0YAMNA000: A non-touch version with a higher typical brightness of 350 cd/m², ideal for applications where a touch interface is not required.
Both models are built with the FL7703 driver IC, ensuring reliable performance and integration flexibility in a variety of systems.

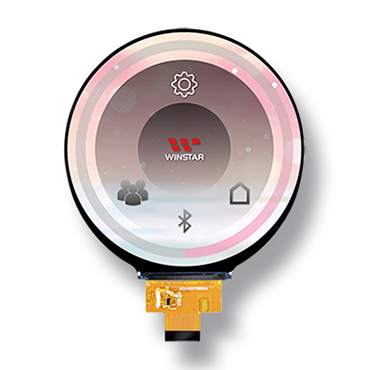

| Model No. | WFN0400A2T0YAMNN000 | WFN0400A2T0YAMNA000 |
|---|---|---|
| Picture |  |
 |
| Size | 4-inch | 4-inch |
| Resolution | 720×720 pixels | 720×720 pixels |
| Module Dimensions | 105.3×109.62×2.3 mm | 125×125×3.86 mm |
| Active Area | 101.52×101.52 mm | 101.52×101.52 mm |
| Viewing Angle | 85/85/85/85(IPS) | 85/85/85/85(IPS) |
| Driver IC | FL7703 | FL7703 |
| Interface | MIPI DSI | MIPI DSI |
| Surface | Anti-Glare | Glare |
| Touch Panel | None | Projected Capacitive Touch Panel (PCAP)+Optical bonding |
| PCAP IC | -- | FT3269 |
| PCAP Interface | -- | I2C |
| Brightness | 350 cd/m² | 320 cd/m² |
| Operating Temp. | -20~+70℃ | -20~+70℃ |
| Storage Temp. | -30~+80℃ | -30~+80℃ |
| Link | View Product Details → | View Product Details → |
2.76-inch Round IPS TFT Display with 480x480 Resolution

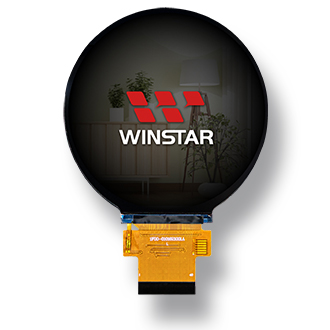

WINSTAR's WFN0276A2T0YADNN000 is a 2.76-inch round IPS TFT-LCD display with a 480x480 resolution, designed for applications that require a circular screen layout. Featuring 3W SPI+RGB 18-bit interface and powered by the ST7701 driver IC, it ensures smooth integration and reliable display performance. With low power consumption, this module is ideal for energy-efficient, space-constrained designs.
Perfect for:
- Industrial control applications
- Smart home devices
- Self-service kiosks
- Any application where a round display is essential, such as embedded systems or custom user interfaces.
| Model No. | WFN0276A2T0YADNN000 |  |
|---|---|---|
| Size | 2.76-inch | |
| Resolution | 480×480 pixels | |
| Module Dimensions | 73.03×76.48×2.34 mm | |
| Active Area | 70.128×70.128 mm | |
| Viewing Angle | 85/85/85/85(IPS) | |
| Controller IC | ST7701 | |
| Interface | SPI+RGB | |
| Surface | Anti-Glare | |
| Touch Panel | None | |
| Brightness | 420 cd/m² | |
| Operating Temp. | -20~+70℃ | |
| Storage Temp. | -30~+80℃ | |
| Link | View Product Details → |

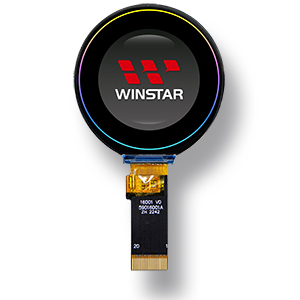

1.6-inch Round IPS TFT Display with 400x400 Resolution
The WFN0160A2T0YAMNN000 is a compact 1.6-inch round TFT LCD display module with a resolution of 400x400 pixels. Built with IPS technology, it offers wide viewing angles (85° in all directions) and consistent image quality, making it well-suited for compact and visually demanding interfaces.
This display features a 1-lane MIPI DSI interface and is driven by the ST7797 controller IC, ensuring reliable performance and easy system integration. With a typical brightness of 350 cd/m² and support for 16.7 million colors, it delivers crisp and vibrant visuals in a small form factor.
Perfect for:
- Smart appliances
- Industrial control systems
- Wearable technologies
- Any application requiring a round display
 |
Model No. | WFN0160A2T0YAMNN000 |
|---|---|---|
| Size | 1.6-inch | |
| Resolution | 400×400 pixels | |
| Module Dimensions | 42.94×45.89×1.94 mm | |
| Active Area | 39.84×39.84 mm | |
| Viewing Angle | 85/85/85/85(IPS) | |
| Driver IC | ST7797 | |
| Interface | MIPI DSI | |
| Surface | Anti-Glare | |
| Brightness | 350 cd/m² | |
| Operating Temp. | -20~+70℃ | |
| Storage Temp. | -30~+80℃ | |
| Link | View Product Details → |

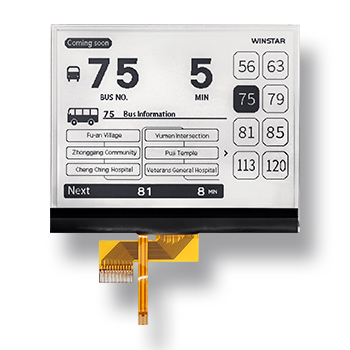

4.2-inch E-Paper Display Module – Available with or without Capacitive Touch
The WAA0420A2 series features a 4.2-inch E-paper display module with 400x300 resolution, designed for ultra-low power consumption and enhanced readability. Equipped with a front light panel, both models ensure visibility in a wide range of lighting conditions. The WAA0420A2ADB5NXXX000 model additionally integrates a capacitive touch panel, providing interactive functionality for applications requiring user input.
Built on reflective EPD technology with integrated gate/source drivers, timing controller, SRAM, and SPI interface, this module offers bi-stable image retention and wide viewing angles, making it a dependable choice for energy-efficient display solutions.
Perfect for:
- Electronic shelf labels (ESL)
- Smart meeting room signage
- Warehouse and logistics tags
- Medical device labels
- Smart appliances and control panels
- Any application requiring low-power, high-clarity display

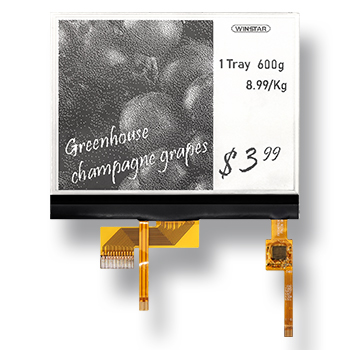

| Model No. | WAA0420A2AAB5NXXX000 | WAA0420A2ADB5NXXX000 |
|---|---|---|
| Picture |  |
 |
| Size | 4.2-inch | 4.2-inch |
| Resolution | 400×300 pixels | 400×300 pixels |
| Module Dimensions | 91×77×2.02 mm | 91×77×2.02 mm |
| Active Area | 84.8×63.6 mm | 84.8×63.6 mm |
| Interface | SPI,MCU | SPI,MCU |
| Touch Panel | None | Capacitive Touch Panel |
| Front Light | Yes | Yes |
| Operating Temp. | 0~+50℃ | 0~+50℃ |
| Link | View Product Details → | View Product Details → |

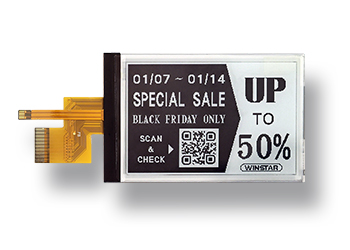

2.7-inch E-Paper Display with Front Light and 264×176 Resolution
This 2.7-inch E-paper Display module offers a high-contrast black-and-white reflective screen with built-in front light, ensuring excellent readability even in low-light environments. Featuring a resolution of 264x176 pixels and ultra-low power consumption, it's a compact and reliable display solution for a wide range of battery-powered devices.
Designed with system integration in mind, this module includes key components such as an on-chip timing controller, waveform storage, and display RAM. It supports both MCU and SPI interfaces, and offers deep sleep mode for power-sensitive applications.
- Integrated front light for enhanced visibility
- Bi-stable, reflective display retains image without power
- Supports portrait and landscape orientations
- Compact size, ideal for space-constrained designs
Perfect for:
- Electronic shelf labels
- Smart tags
- Portable signage
- Logistics and inventory systems
- Industrial labels
- Battery-powered IoT applications
| Model No. | WAA0270A2AAA7NXXX000 |  |
|---|---|---|
| Size | 2.7-inch | |
| Resolution | 264×176 pixels | |
| Module Dimensions | 45.8×70.42×1.58 mm | |
| Active Area | 38.19×57.29 mm | |
| Interface | SPI,MCU | |
| Touch Panel | None | |
| Front Light | Yes | |
| Operating Temp. | 0~+50℃ | |
| Link | View Product Details → |
Integrated Black Display – Seamless Design for Modern Devices
Integrated black display technology is a cutting-edge display solution, enhancing visual appeal and creating new experiences in functionality and design.
The core concept of Integrated black display technology is to deliver a seamless visual experience when the display is turned off, blending harmoniously into its surroundings to preserve a sleek and modern design at all times. Whether featured in automotive dashboards, smart home devices, or personal electronics, this technology elevates the user's visual experience while enhancing the perceived value of the product. In the following sections, we will discuss its key features, application areas, and the technical methods behind its implementation.
Technology and Methods
The method of realizing the integrated black display effect includes：
- Optical bonding (OCA/OCR) : Optical Bonding is used to adhere the TFT-LCD and cover glass to reduce the reflection and refraction of light, improving the overall visual effect. This technology ensures a consistent black appearance at different viewing angles. This contributes to a sleek and modern aesthetic, elevating the overall design appeal.
- Gray glass technology : Colorants are added during the manufacturing process of glass to change colorless transparent glass into dark gray glass, also known as gray glass. It adjusts reflectivity and transmittance to ensure a consistent appearance under varying light conditions.

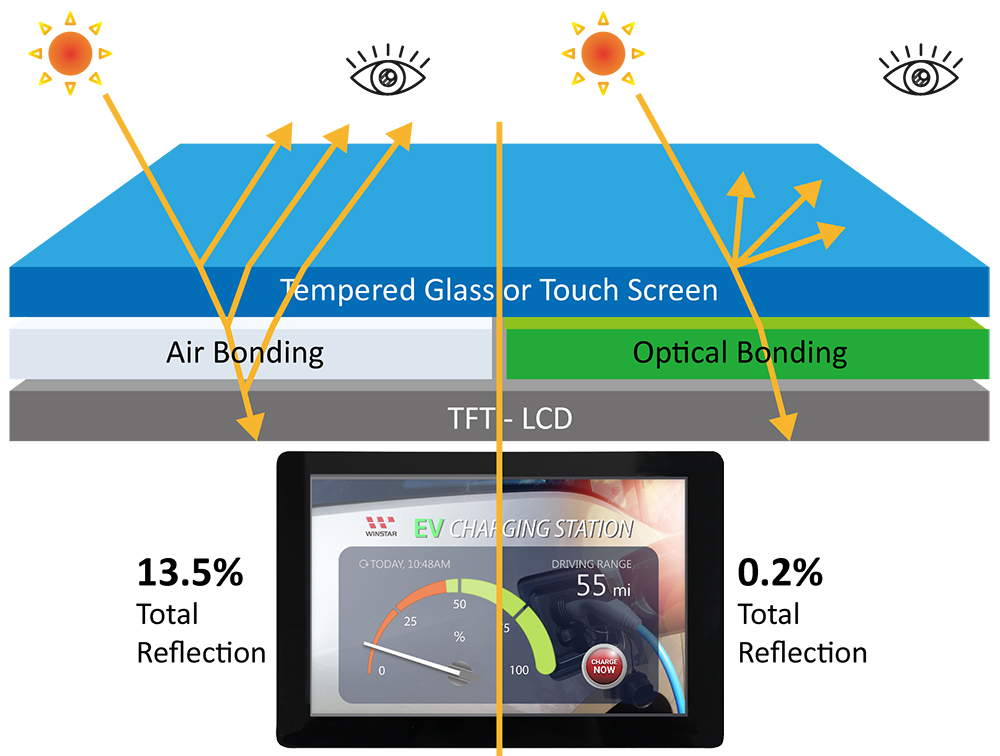

Comparison of Air Bonding and Optical Bonding
- Air Bonding : This is a traditional bonding method that uses adhesive tape to bond the cover glass to the TFT-LCD module along the edges of the TFT-LCD, leaving an air gap between the layers. When light passes through the different materials, the air gap causes the refractive index to vary greatly. This causes reflections, glare and visual distortion. (Below left).
- Optical Bonding : The process of bonding the cover glass directly to the TFT-LCD, using a transparent adhesive OCA or OCR to fill the air gap layer between the cover glass and the TFT-LCD. This significantly reduces the refractive index and reflective differences across the materials, enhancing the display's visual effect and durability.(Below right)
