인터페이스 핀 기능
LCM PIN Definition
Pin No. |
기호 |
설명 |
1 |
GND |
Ground |
2 |
D3N |
High speed interface data differential signal input pins. |
3 |
D3P |
4 |
GND |
Ground |
5 |
D2N |
High speed interface data differential signal input pins. |
6 |
D2P |
7 |
GND |
Ground |
8 |
CLKN |
High speed interface clock differential signal input pins. OPEN |
9 |
CLKP |
10 |
GND |
Ground |
11 |
D1N |
High speed interface data differential signal input pins. |
12 |
D1P |
13 |
GND |
Ground |
14 |
D0N |
High speed interface data differential signal input/output pins. |
15 |
D0P |
16 |
GND |
Ground |
17 |
GND |
Ground |
18 |
TE |
Serve as a TE (Tearing Effect) output signal
Leave the pin open when not in use. |
19 |
RESET |
Reset pin. This signal will reset the device and must be applied to properly initialize the chip. |
20 |
GND |
Ground |
21-23 |
VCC |
Power supply |
24 |
GND |
Ground |
25-28 |
NC |
No connection |
29 |
VLED- |
Power for LED backlight cathode |
30 |
VLED+ |
Power for LED backlight anode |

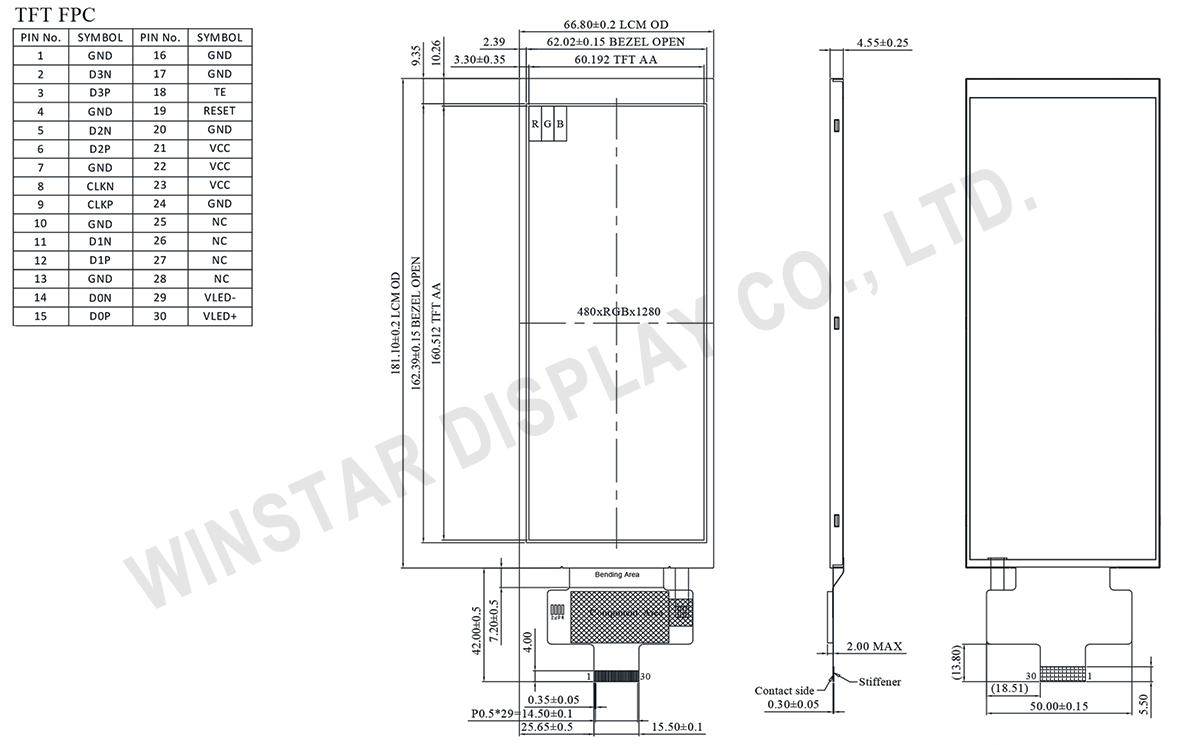

기계적 데이터
항목 |
치수 |
단위 |
크기 (대각선) |
6.75 |
인치 |
도트 매트릭스 |
480 x 3(RGB) x 1280 |
dots |
모듈 치수 |
66.8 x 181.1 x 4.55 |
mm |
활성 영역 |
60.19 x 160.512 |
mm |
도트 피치 |
0.1254 x 0.1254 |
mm |
LCD 유형 |
TFT, Normally Black ,Transmissive |
시야각 |
85/85/85/85 |
드라이버 IC |
FL7703NI-G5-DP |
인터페이스 |
MIPI DSI |
역광 타입 |
LED,Normally White |
터치 패널 포함/제외 |
터치패널(스크린)이 없는 |
표면 |
Glare |
*Color tone slight changed by temperature and driving voltage.
절대 최대 정격값
항목 |
기호 |
최소값 |
대표값 |
최대값 |
단위 |
작동 온도 |
TOP |
-20 |
- |
+70 |
℃ |
보관 온도 |
TST |
-30 |
- |
+80 |
℃ |
전기적 특성
Operating conditions
항목 |
기호 |
최소값 |
대표값 |
최대값 |
단위 |
Supply Voltage For Logic |
VCC |
3.0 |
3.3 |
3.6 |
V |
Supply LCM current |
Icc |
- |
80 |
120 |
mA |
LED driving conditions
Parameter |
기호 |
최소값 |
대표값 |
최대값 |
단위 |
LED current |
- |
- |
180 |
- |
mA |
LED voltage |
VLED+ |
15.6 |
18.0 |
20.4 |
V |
LED Life Time |
- |
- |
50,000 |
- |
Hr |
