5" MIPI LCD Display, MIPI DSI Interface LCD Panel - IPS
Model No. WF50DTYA3MNN0
►MIPI LCD Display
►Size : 5 inch
►Resolution : 720×1280 dots
►View Direction : IPS
►MIPI DSI Interface
►Driver IC:ILI9881C
►Control-Board : No
►Brightness (cd/m²): 300
►Frame Through Hole : No
►Touch Screen : Without touch screen
Description
The WF50DTYA3MNN0 is a 5-inch IPS TFT-LCD display module designed for portrait mode, featuring a resolution of 720 x 1280 pixels and a 16:9 aspect ratio. Its MIPI DSI interface facilitates efficient communication and supports a variety of data-encoding formats. The IPS panel provides a wider viewing angle of 80 degrees in all directions (Left: 80 / Right: 80 / Up: 80 / Down: 80).
Operating within a temperature range of -20℃ to +70℃, with storage temperatures ranging from -30℃ to +80℃, this module is well-suited for diverse environments. It has a compact module dimension of 66.10 x 120.4 mm, featuring an active area (AA) size of 62.1 x 110.4 mm. The integrated driver IC, ILI9881C, contributes to its efficient performance.
With a power supply for the analog range set between 2.5V to 3.6V (typical value 3.3V), this 5-inch MIPI LCD Display Panel delivers a brightness of 300 cd/m² (typical value) and a contrast ratio of 800:1 (typical value). The TFT module supports a 4-lane MIPI DSI serial interface, providing advantages such as low power consumption, high transmission rates, and resistance to noise and interference. These features make it particularly suitable for low power consumption applications that require a reliable MIPI display panel or MIPI LCD panel with a MIPI interface.

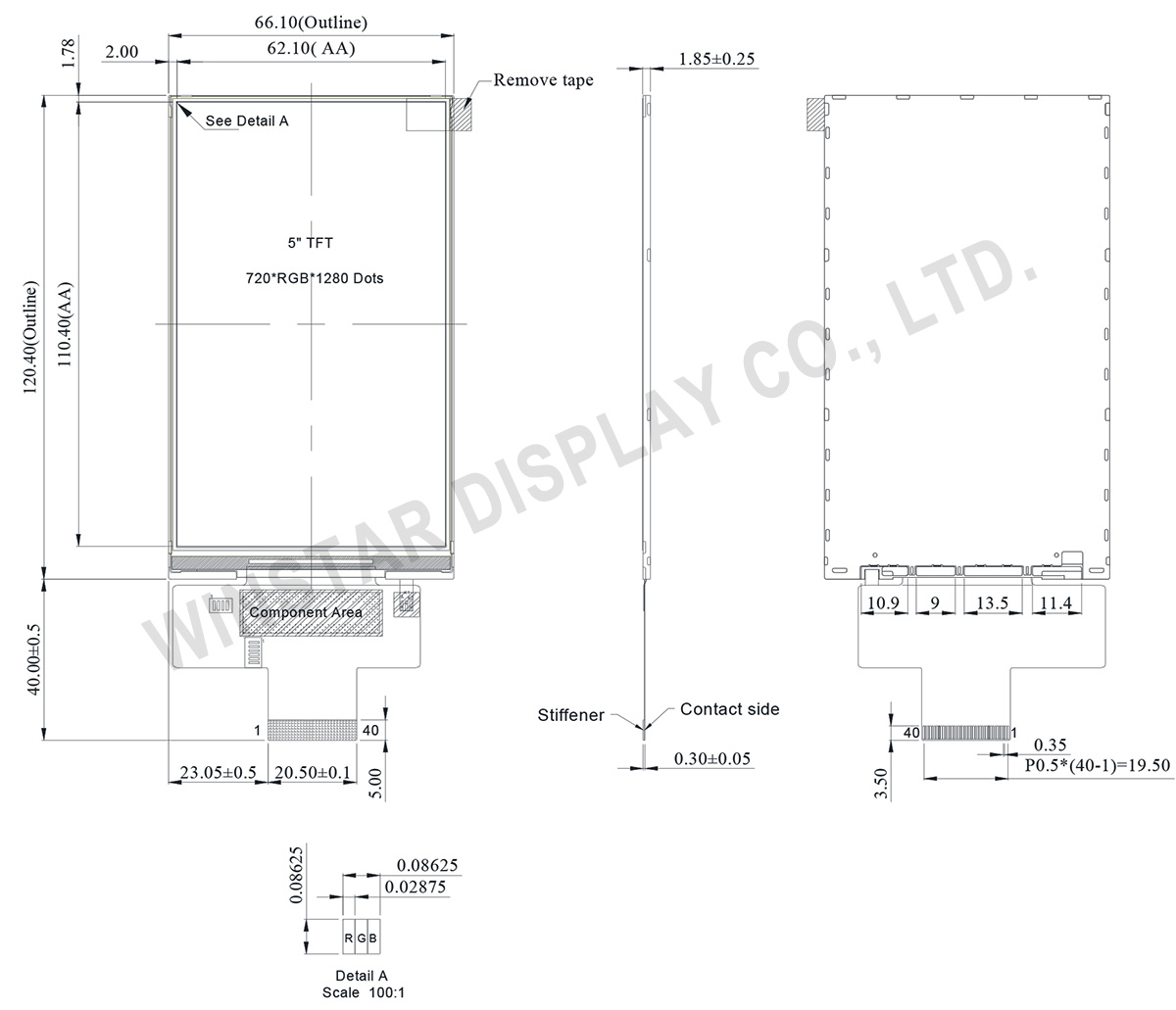

DRAWING
SPECIFICATIONS
Interface
LCM PIN Definition
Pin | Symbol | Function |
---|---|---|
1 | NC/TP_GND | No connection |
2 | NC/TP_SDA | No connection |
3 | NC/TP_SCL | No connection |
4 | NC/TP_INT | No connection |
5 | NC/TP_RST | No connection |
6 | NC/YU | No connection |
7 | NC/XL | No connection |
8 | NC/YD | No connection |
9 | NC/XR | No connection |
10-11 | VCI | Power supply for analog circuits. Connect to an external power supply of 2.5V to 3.6V |
12-13 | NC | No connection |
14 | RESET | The external reset input Initializes the chip with a low input. Be sure to execute a power-on reset after supplying power. Fix to VDDI level when not in use. |
15 | TE | Tearing effect output pin. Leave the pin open when not in use. |
16 | NC | No connection |
17-18 | GND | Power ground |
19-20 | IOVCC | Power supply for analog circuits. Connect to an external power supply of 1.65V to 3.6V |
21 | GND | Power ground |
22 | D3P | MIPI DSI differential data pair. (Data lane 3) |
23 | D3N | |
24 | GND | Power ground |
25 | D2P | MIPI DSI differential data pair. (Data lane 2) |
26 | D2N | |
27 | GND | Power ground |
28 | CLKP | MIPI DSI differential clock pair |
29 | CLKN | |
30 | GND | Power ground |
31 | D1P | MIPI DSI differential data pair. (Data lane 1) |
32 | D1N | |
33 | GND | Power ground |
34 | D0P | MIPI DSI differential data pair. (Data lane 0) |
35 | D0N | |
36-37 | GND | Power ground |
38 | LED+ | Power for LED backlight anode |
39 | LED1- | Power for LED1 backlight cathode |
40 | LED2- | Power for LED2 backlight cathode |
General Specifications
Item | Dimension | Unit |
---|---|---|
Size | 5.0 | inch |
Dot Matrix | 720× 3(RGB) ×1280 | dots |
Module dimension | 66.10 (W) × 120.4 (H) ×1.85 | mm |
Active area | 62.1 (W) × 110.4 (H) | mm |
Dot pitch | 0.08625(W) ×0.08625(H) | mm |
LCD type | TFT, Normally Black, Transmissive | |
Viewing angle | 80/80/80/80 | |
Aspect Ratio | 16:9 | |
TFT Drive IC | ILI9881C or Equivalent | |
TFT Interface | MIPI | |
Backlight Type | LED, Normally White | |
Touch Panel | Without Touch Panel | |
Surface | Glare |
Absolute Maximum Ratings
Item | Symbol | Min | Typ | Max | Unit |
---|---|---|---|---|---|
Operating Temperature | TOP | -20 | - | +70 | ℃ |
Storage Temperature | TST | -30 | - | +80 | ℃ |
Electrical Characteristics
1. Typical Operation Conditions
Item | Symbol | Values | Unit | ||
---|---|---|---|---|---|
Min. | Typ. | Max. | |||
Power supply for analog circuit | VCI | 2.5 | 3.3 | 3.6 | V |
Power supply for logic circuit | IOVCC | 1.65 | 1.8 | 3.6 | V |
Current for Driver | IDD | - | 44 | mA |
2. Backlight Driving Conditions
Parameter | Symbol | Min. | Typ. | Max. | Unit |
---|---|---|---|---|---|
LED current | ILED | - | 40 | - | mA |
LED voltage | VLED+ | 19.6 | - | 23.8 | V |
LED Life Time | 30,000 | - | - | Hr |
