Tape Automated Bonding, TAB LCD Module Display

Tape Automated Bonding, TAB LCD Display

Winstar compact TAB (Tape Automatic Bonding) LCD modules with resolution 128x64 pixel to 320x240 pixel. These TAB LCD display are available with different LED backlight solutions and without backlight option.  Our LED backlights are available in various colors including yellow/green, white, blue, red, and etc.

Winstar TAB product lines are ultra thin and light and low power consumption which is great for handheld instruments, PDAs, etc.

Filter Results

Filter Results

Select Display Format Picture Model No. Structure Outline Dimension
(mm)
Viewing Area
(mm)
Active Area
(mm)
Dot Pitch
(mm)
Dot Size
(mm)
Duty Interface Bulit-in Controller
320×240
320 x 240 TAB LCD Display, 320x240 Display

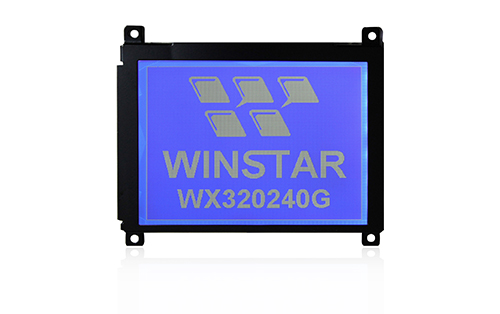

WX320240G TAB 94.7×71.7 81.4×61 76.78×57.58 0.24×0.24 0.225×0.225 1/240 No controller No
240×64
240x64 TAB Display, Tape Automated Bonding
WX24064B1 TAB 180×65 133×39 127.16×33.88 0.53×0.53 0.49×0.49 1/64 6800,8080,SPI ST7565P
320×240
TAB 6800 LCD, 8080 LCD, 8080 LCD Interface, 8080 Interface
WX320240D TAB 94.7×71.7 81.4×61 76.78×57.58 0.24×0.24 0.225×0.225 1/240 6800,8080 RA8835
