November 2024 WINSTAR News
Welcome to the November 2024 edition of the WINSTAR Newsletter! We're delighted to unveil our state-of-the-art display products to you. Let's embark on a journey of discovery and explore all the details.
- Keep reading about our new products and their features：
- (1) Revolutionize Your UI Design with WINSTAR's New UART Smart Display Series
- ✦3.5-inch | ✦4.3-inch | ✦5-inch | ✦7-inch | ✦10.1-inch
- (2) Smart Display UART Protocol Introduction
Revolutionize Your UI Design with WINSTAR's New UART Smart Display Series
The WINSTAR UART Smart Display is a high-performance solution designed for engineers and developers, allowing you to easily create various UI widgets. This UART TFT display integrates advanced technology for seamless communication and visual output.
Key Features：
- Real-Time Simulation: Test designs instantly with Smart Display GUI Builder, no programming needed.
- Convenient Design: Drag-and-drop, zero-code UI creation—perfect for beginners using UART TFT solutions.
- Rich Widgets: Customize widgets to suit various application needs for an enhanced UART display experience.
- STM32F MCU & ST Tools Support: Designed with STM32F MCU, supporting ST's development tools like TouchGFX and STM32CubeIDE.
- STMicroelectronics IC: Built with an STMicroelectronics IC, offering comprehensive documentation and technical support.
- Diverse Sizes: Available in multiple sizes to meet different requirements.
Application Scenarios:
Ideal for industrial short-distance applications such as coffee machines, vending machines, and audio digital mixers
Competitive Advantages:
- The WINSTAR UART Smart Display eliminates the need to separate design from functionality, saving time and effort.
- Provides real-time simulation and a user-friendly design interface, making it accessible for users without programming backgrounds.
- Easy start and speed up the development for programmers by built in STM32 MCU on Smart UART module.
WINSTAR's UART Smart Display is the ideal choice for modern display solutions. Whether you are an experienced developer or a beginner designer, this display makes your work easier and more efficient.
Choose the WINSTAR UART Smart Display today and experience a simple, flexible design process that brings your creative ideas to life effortlessly!
 |

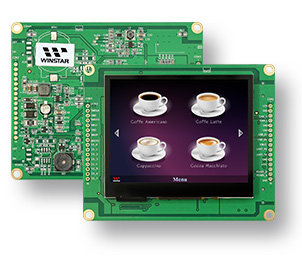

Model No. : WL0F00035000XGFAASA00 ►Diagonal Size: 3.5-inch |
|

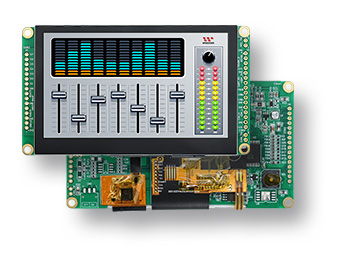

Model No. : WL0F00043000WGFAASA00 ►Diagonal Size: 4.3-inch |
 |
 |

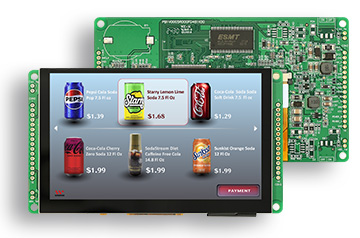

Model No. : WL0F00050000FGFAASA00 ►Diagonal Size: 5-inch |
|

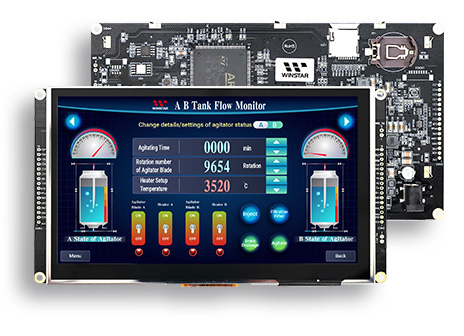

Model No. : WL0F0007000A8GFAASA00 ►Diagonal Size: 7-inch |
 |
 |

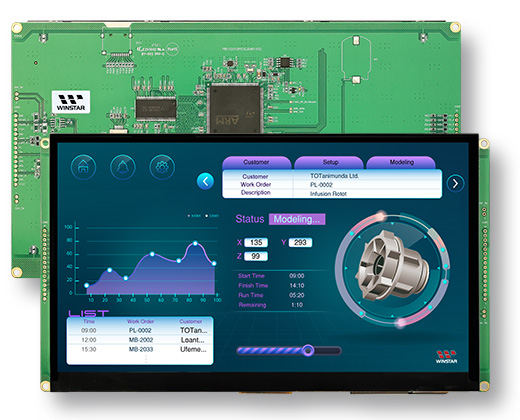

Model No. : WL0F00101000JGFAASA00 ►Diagonal Size: 10.1-inch |

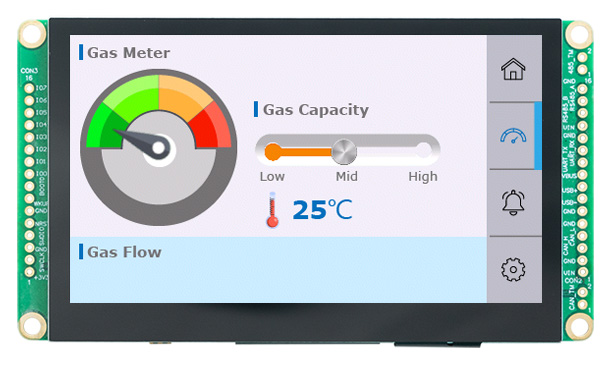

Smart Display UART Protocol Introduction
The SmartDisplay UART protocol is a proprietary communication protocol developed by WINSTAR, designed to allow customers to easily control their HMI (Human-Machine Interface) screens through the UART interface. This innovative protocol combines Winstar's user-friendly GUI Builder, providing customers with an intuitive and powerful tool to customize and quickly build widgets that meet their needs. Through the GUI Builder, customers can easily design a variety of HMI object for interacting, ranging from simple buttons and text to complex Gauges and Keypads, catering to various application scenarios. This not only saves customers time and costs but also makes UI design more flexible and characteristics. By using WINSTAR's custom UART protocol commands, interaction and control with Smart Display can be easily achieved. We are committed to providing the best customer experience and continuously improving our GUI Builder to ensure it meets the evolving needs of our customers. Whether you are a professional designer or a beginner, we believe that the SmartDisplay UART protocol will be an ideal choice for creating excellent HMI interfaces. Let's explore this exciting innovative technology together and infuse more vitality and inspiration into your products.
Smart Display GUI Builder – UART Project Setting Instructions
The SmartDisplay GUI Builder provides you with an intuitive and user-friendly interface, allowing you to easily create your own HMI projects. Simply drag and drop various widgets onto the page using the GUI Builder, and you can effortlessly display and interact with them on your SmartDisplay device. With simple operation and flexible functionality, it can meet your various needs, making your work more efficient. Read More
Customers can design UI by dragging and dropping widgets using the GUI Builder, achieving a WYSIWYG (What You See Is What You Get) effect, making UI design intuitive and efficient. Additionally, previewing the design results through the simulator allows customers to instantly view the UI presentation, providing an early understanding of the final effect, saving time and effort. Ultimately, through Winstar's custom UART protocol, customers can easily control the device. This end-to-end design process enables seamless integration of design and control for customers, enhancing operational convenience and accuracy. The application of the SmartDisplay UART protocol brings more operational possibilities and convenience to customers, expanding the scope of product development and applications. This comprehensive solution not only enhances customer work efficiency but also boosts product creativity and competitiveness. Excited? Quickly download the SmartDisplay GUI Builder. Before purchasing SmartDisplay, you can try the simulator to confirm if SmartDisplay meets your needs!
