June 2024 WINSTAR News
Welcome to the June 2024 edition of the WINSTAR Newsletter! We're delighted to unveil our state-of-the-art display products to you. Let's embark on a journey of discovery and explore all the details.
- Keep reading about our new products and their features：
- (1) WINSTAR Won 2024 Smart Display Application Awards - Smart Mobility Award
- (2) 2.99" 268x800 On-Cell Touch Panel TFT Display
- (3) 10.4" 1024x768 HDMI (DVI) TFT LCD Display with PCAP
- (4) 12.1" 1280x800 LVDS IPS TFT LCD Display with PCAP
- (5) 15.6" 1920x1080 High Resolution TFT LCD Display with PCAP
- (6) Overview of the Built-in Font Library in WINSTAR OLED Module SSD1311 IC
- (7) Shipping Notice Before and After Mid-Year Inventory
WINSTAR Won 2024 Smart Display Application Awards - Smart Mobility Award
Winstar is delighted to announce its participation in the Smart Display Application Awards (SDAA) hosted by the Taiwan Display Industry Association (TDUA), where it has been honored with the "Smart Mobility Award" at SDAA 2024. This recognition not only showcases Winstar's outstanding performance in smart display applications but also underscores its strong competitive edge in the global market.

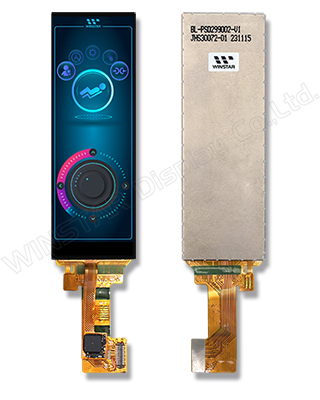

2.99" 268x800 On-Cell Touch Panel TFT Display
WF0299ATYAC2MNR0 is a portrait mode 2.99-inch stretched bar type TFT LCD with a resolution of 268x800 dots and an On-Cell touch panel (capacitive touch). On-Cell technology involves embedding the touch sensor into the LCD module, either on the color filter substrate or between the polarizers. One of the main advantages of On-Cell touch technology is the reduced thickness, as the touch layer is directly integrated into the display panel, eliminating the need for an additional touch layer and thereby reducing the overall thickness of the display.
The module comes with an On-Cell capacitive touch screen with a CST328 driver IC, supporting I2C interface and 2-point touch functionality. This integration enhances the user experience by enabling precise and responsive touch input, while the I2C interface facilitates easy communication with the device's control system.
This On-Cell touch TFT display utilizes IPS technology, providing wider viewing angles of 80 degrees to the left, right, up, and down. It boasts a typical brightness of 530 nits and a contrast ratio of 1200:1 (both typical values). The TFT module integrates the GC9503 driver IC, which supports the MIPI DSI serial interface (2 lanes).
This bar-type TFT module is ideal for use in electronic door locks, massage chair control panels, and other devices that require a stretched display screen.
 |
Model No. : WF0299ATYAC2MNR0 ►Size : 2.99-inch |

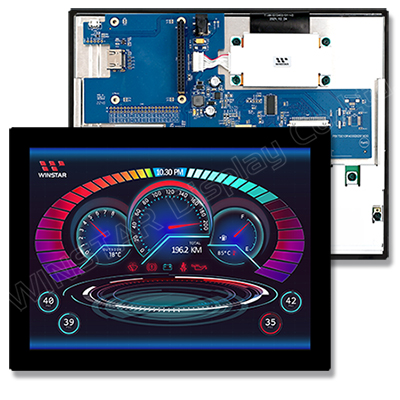

10.4" 1024x768 HDMI (DVI) TFT LCD Display with PCAP
The WF104GSWFMLHBV is a high-brightness 1024x768 HDMI TFT-LCD display with a projected capacitive touch panel (PCAP). This module features a diagonal size of 10.4 inches and an aspect ratio of 4:3. Featuring the TFP401 Controller IC, the WF104GSWFMLHBV comes with a control board that exclusively supports the HDMI signal interface (DVI) for the Raspberry Pi system. Specifically designed for the Raspberry Pi platform, this TFT module includes a 40-pin GPIO connector for seamless integration. Additionally, the WF104G HDMI series supports PWM (Pulse Width Modulation) functionality for adjusting LED backlight brightness.
The WF104GSWFMLHBV adopts an IPS panel, providing a wider viewing angle of 80 degrees (typical value) in all directions: Left: 80 / Right: 80 / Up: 80 / Down: 80. It boasts a brightness of 800 nits (typical value) and a contrast ratio of 1000:1 (typical value). Equipped with a projected capacitive touch panel (PCAP) featuring the ILI2511 IC, it supports a USB interface and offers 1/ 2/ multi-point touch capabilities.
The 10.4-inch 1024x768 HDMI display module of the WF104GSWFMLHBV is suitable for use in control panels for infotainment systems in cars, industrial control systems, boat dashboards, and home security.
|
Model No. : WF104GSWFMLHBV ►Size : 10.4-inch |
 |
12.1" 1280x800 LVDS IPS TFT LCD Display with PCAP
WF121BTXAPLNBA is a 12.1-inch color TFT LCD module boasting a resolution of 1280x800 dots and a projected capacitive touch panel (PCAP). Featuring a built-in ILI2132 IC, its PCAP touch panel supports 10-point touch functionality. This TFT display is equipped with the EK77526AHI205A driver IC, designed to support LVDS Interface.
WF121BTXAPLNBA utilizes IPS technology to deliver wider viewing angles, offering typical values of 89 degrees in all directions (left, right, up, and down), with an aspect ratio of 16:9.
With its specifications, the 12.1-inch color TFT LCD display is highly suitable for various applications, including medical equipment, fishfinders, industrial monitoring devices, home security systems, and more.
|
|
Model No. : WF121BTXAPLNBA ►Size : 12.1-inch |

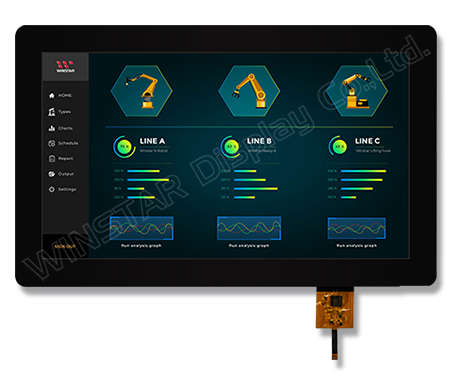

15.6" 1920x1080 High Resolution TFT LCD Display with PCAP
WF1560BSYAA5ENB0 is a 15.6-inch high-resolution TFT LCD display module with a resolution of 1920x1080 dots and PCAP touch functionality. This high-resolution TFT LCD display module features a built-in TC2055G driver IC and supports eDP interface. It utilizes IPS technology to deliver a wider viewing angle of 80 degrees in all directions (Left: 80 / Right: 80 / Up: 80 / Down: 80).
With a high contrast ratio of 1500:1 (typical value) and a brightness of 800 nits (typical value), this model ensures vivid and clear visuals, enhancing the user experience. Additionally, the module adopts a projected capacitive touch panel (PCAP) with ILI2511 IC, which supports USB and I2C interfaces and 10-point touch, further elevating its usability and functionality. This makes it suitable for a wide range of applications. From industrial machinery and equipment to HMI (Human-Machine Interface) systems, POS (Point of Sale) terminals, and outdoor vending systems, this high-resolution TFT LCD display module offers excellent performance and reliability.
|
Model No. : WF1560BSYAA5ENB0 ►Size : 15.6-inch |
|

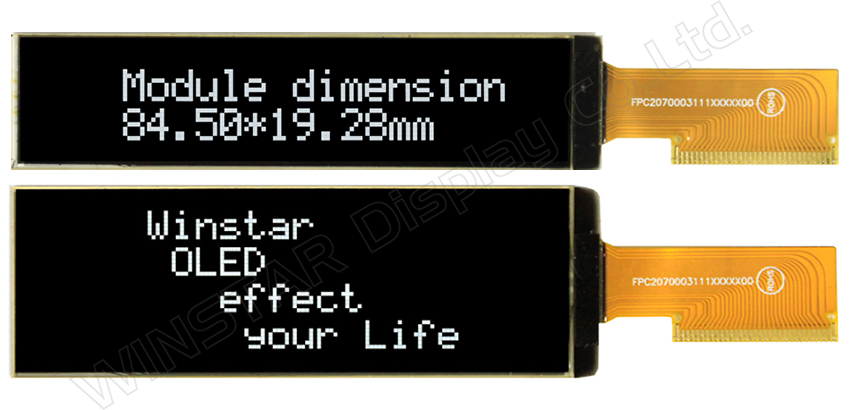

Overview of the Built-in Font Library in WINSTAR OLED Module SSD1311 IC
When customers use Winstar OLED modules for text layout, they need to utilize a font library for compilation. Winstar provides ICs with built-in font libraries to meet customer needs. When customers write display images, they can directly use the internal font library of the IC to quickly complete the compilation of the display images, reducing the time required to integrate the OLED module into their products.
For OLED modules with COG (Chip-on-Glass) structure, customers can choose to use the SSD1311 driver IC with built-in fonts.
► Read More
Shipping Notice Before and After Mid-Year Inventory
WINSTAR's Taiwan headquarters plans to conduct a mid-year inventory audit from June 27 to 28, 2024. Simultaneously, the China factories will undergo a mid-year inventory audit from June 29 to 30, 2024. During the inventory period from June 27 to 30, 2024, our ERP system will be temporarily closed, and product shipments will not be arranged. If your shipment may be affected, please closely contact our sales representatives. Thank you for your understanding.
Taiwan Shipping Dates:
► Last shipping date: June 26, 2024
► Resumed shipping date: July 1, 2024
China Shipping Dates:
► Last shipping date: June 27, 2024
► Resumed shipping date: July 1, 2024
