Feb., 2022-English www.winstar.com.tw

E-Newsletter - Winstar Display

Issue No. 156

Contents
1) WEO009616B – 0.69" COG Micro OLED Display
2) WEO012832M-CTP: 0 .91" COG OLED with In-cell Touch Panel
3) WEO012864A-CTP: 1.54" COG Graphic OLED with CTP Touch
4) COMMUNICATION TECHNOLOGY - Display Technology with Touch Solutions TP-OLED

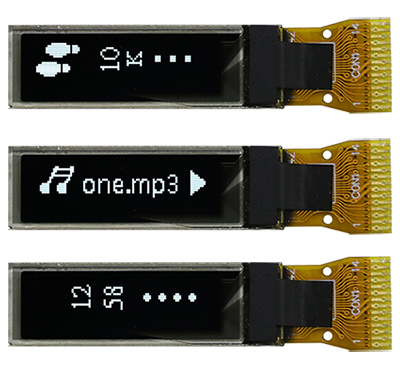

WEO009616B – 0.69" COG Micro OLED Display

WEO009616B model is a consumer-grade COG small OLED display, diagonal size 0.69 inch, made of resolution 96x16 pixels. This OLED module is built-in with SSD1306 IC; it supports the I2C interface, the supply voltage for logic 3V (VDD), the supply voltage for display 7.5V (VCC), the display with 50% Checkboard current is 5mA @7.5V VCC (typical value), driving duty 1/16.

This WEO009616B model is a small-size COG OLED display that is ultra-thin, lightweight, and has low power consumption. It is very suitable for smart home applications, medical devices, portable devices, wearable devices, etc. It can be operated at temperatures from -30℃ to +70℃; its storage temperatures range from -30℃ to +70℃.

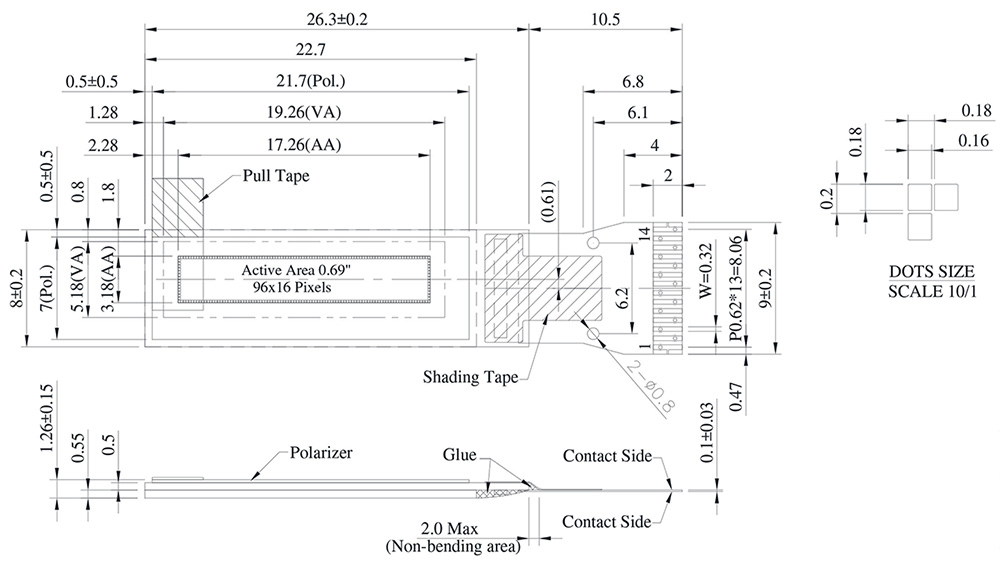

WEO009616B Dimension
Dot Matrix 96 x 16 Dots
Module dimension 26.3× 8.0 × 1.26 mm
Active Area 17.26 × 3.18 mm
Pixel Size 0.16 × 0.18 mm
Pixel Pitch 0.18 × 0.20 mm
Display Mode Passive Matrix OLED
Display Color White
Drive Duty 1/16 Duty
IC SSD1306
Interface I2C
Size 0.69 inch
WEO009616B

WEO009616B

Link to WEO009616B web page



TOP

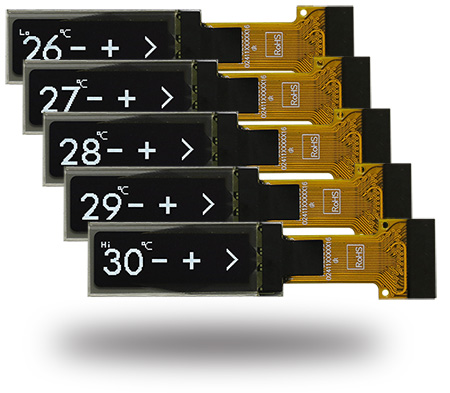

WEO012832M-CTP: 0 .91" COG OLED with In-cell Touch Panel

WEO012832M-CTP model is a 0.91” COG Graphic OLED display with In-Cell Capacitive Touch Panel, which is made of resolution 128x64 pixels. This module is built-in with SSD7317 TDDI IC (Touch with Display Driver IC); it supports 4-Wire SPI and I2C interface. This SSD7317 IC is a Touch and Display Driver Integration IC (TDDI IC), which integrates touch and display microelectronics into a single chip for use on PMOLED panels, targeting applications including wearables, smart home appliances, and smart healthcare devices.

WEO012832M-CTP model adopted In-Cell Touch Panel technology, which supports SPI and I2C interface featuring four touch keys (areas) and one direction slide (supports right or left direction). The supply voltage for logic (VDD) is from 3.0V to 3.5V, typical value 3.3V, 1/32 driving duty, the display with 50% Checkboard current is 4mA @8.5V VCC (typical value), driving duty 1/32. This module can be operating at temperatures from -40℃ to 80℃; its storage temperatures range from -40℃ to 85℃.

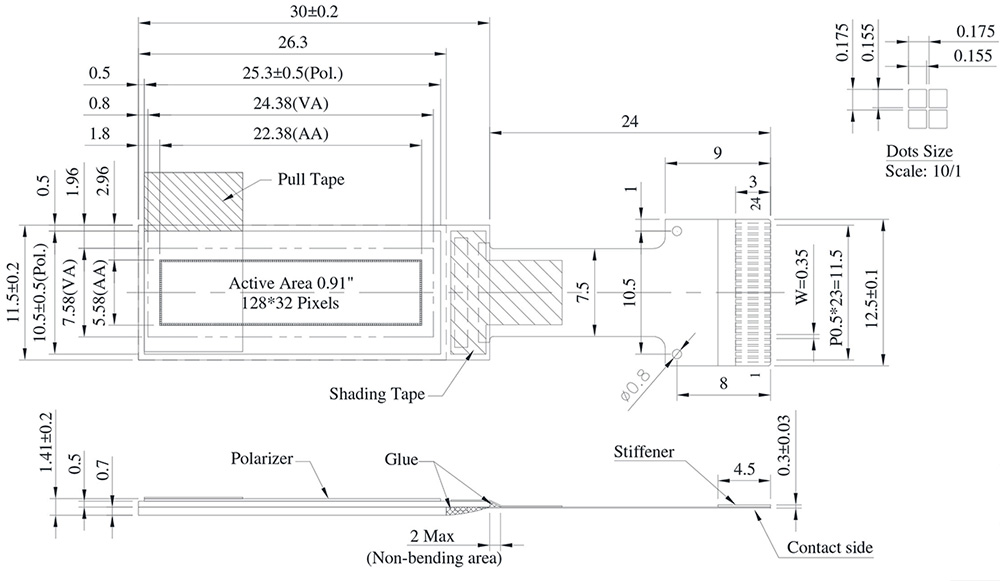

WEO012832M-CTP Dimension
Dot Matrix 128 × 32 Dots
Module dimension 30.0 × 11.5 × 1.41 mm
Active Area 22.38 × 5.58 mm
Pixel Size 0.155 × 0.155 mm
Pixel Pitch 0.175 × 0.175 mm
Display Mode Passive Matrix OLED
Display Color White
Drive Duty 1/32 Duty
IC SSD7317
OLED Interface 4-wire SPI,I2C
CTP Interface SPI,I2C
Gesture 4-key and 1-Direction slide
Size 0.91 inch
WEO012832M-CTP

WEO012832M-CTP

Link to WEO012832M-CTP web page



TOP

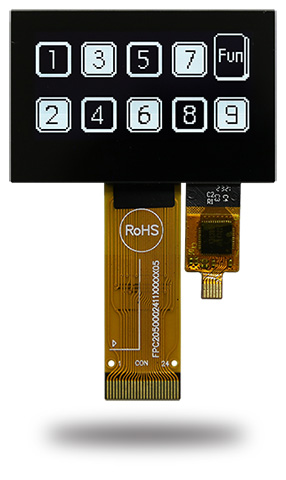

WEO012864A-CTP: 1.54" COG Graphic OLED with CTP Touch

WEO012864A-CTP is a 1.54-inch COG structure Graphic OLED display with Capacitive Touch Panel on the module, resolution 128x64 pixels. This module is built-in with SSD1309 IC; it can be communicated via 6800/8080 8-bit parallel, 4-wire SPI, and I2C interface; supply voltage for logic is from 2.8V to 3.3V, typical value 3.0V, the supply voltage for display 12.5V, 1/64 driving duty. We have two CTP options for this WEO012864A-CTP model; one CTP touch panel is by Air Bonding process, and the other CTP option is by Optical Bonding (OCA) process.  These two CTP touch panel options are both built-in with FT6336U IC and support I2C interface with one detect point.

WEO012864A with the CTP model is ideal for smart home applications, intelligent technology devices, meter devices, industrial control systems, medical instruments, etc. This module can be operating at temperatures from -10℃ to +60℃; its storage temperatures range from -20℃ to +70℃.

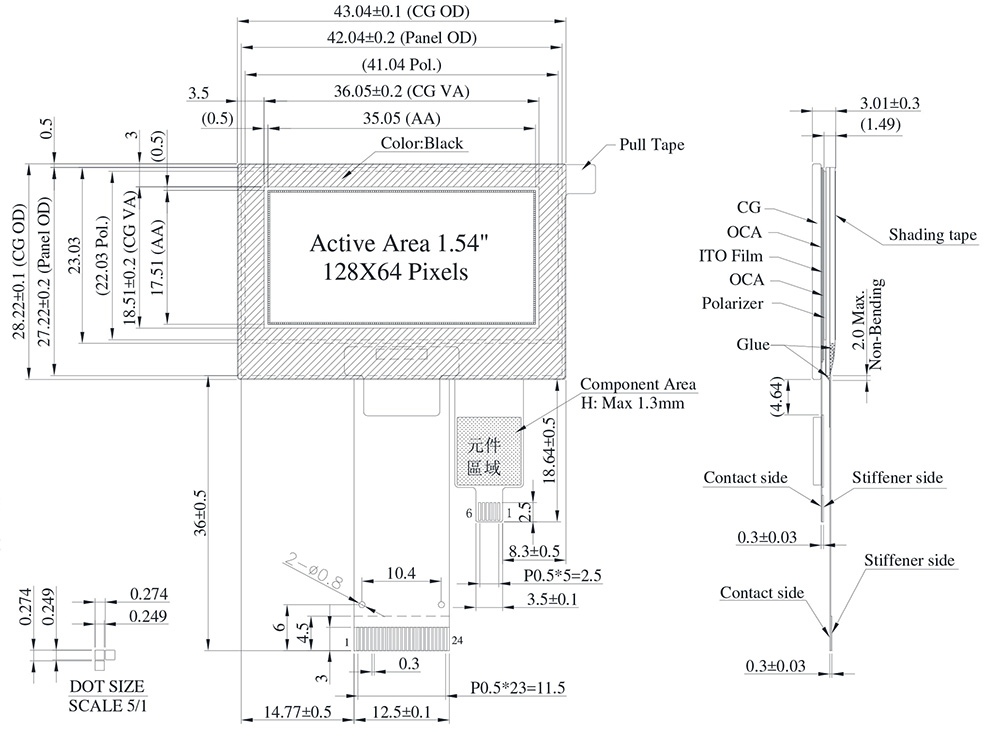

WEO012864A-CTP Dimension
Dot Matrix 128 x 64 Dots
Module dimension 43.04 × 28.22 × 3.01
Active Area 35.05 × 17.51
Pixel Size 0.249 × 0.249
Pixel Pitch 0.274 × 0.274
Display Mode Passive Matrix
Display Color Monochrome (White)
Drive Duty 1/64 Duty
IC SSD1309
Interface 6800,8080,4-wire SPI,I2C
Size 1.54 inch
CTP IC FT6336U
Detect Point 1
CTP Interface I2C
Surface Normal Glare
WEO012864A-CTP

WEO012864A-CTP

Link to WEO012864A-CTP web page



TOP





COMMUNICATION TECHNOLOGY - Display Technology with Touch Solutions TP-OLED

"Technology always comes from human nature", human nature is to control everything. As we know smartphones allow people to master, see-through information, and touch our thoughts, which completely changes people's habits and also people enjoy dominance and pleasure.

Buttons in the past, touch panels today; in the past CRT, and LCD today are bright and dazzling self-emitting OLED, no electronic radiation, no backlight; a green and environmentally friendly communication technology - TP OLED.

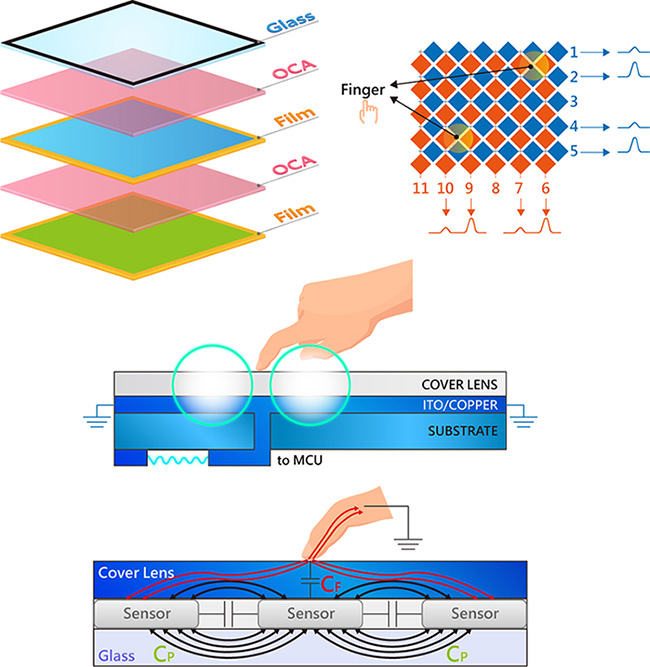

Touch panels (TP) can be divided into resistive touch panels (RTP) and capacitive touch panels (CTP) based on electrical characteristics. Winstar OLED touch solutions are mainly based on capacitive touch panels (CTP) as shown in Figure 1 below as reference.


[Figure 1: Capacitive Touch Solution]



TP-OLED modules are divided into two categories, one is external touch panel module, and the other is in-cell touch module (as shown in Figure 2). External touch panel solution refers to a touch panel module attached to the existing OLED panel. The advantages of those modules are that there is no need to change the OLED panel design, no need to change the manufacturing process, no need to make a fixture, save the change cost, and can widely apply to the existing various sizes, to fulfill customer's request for Touch OLED modules.

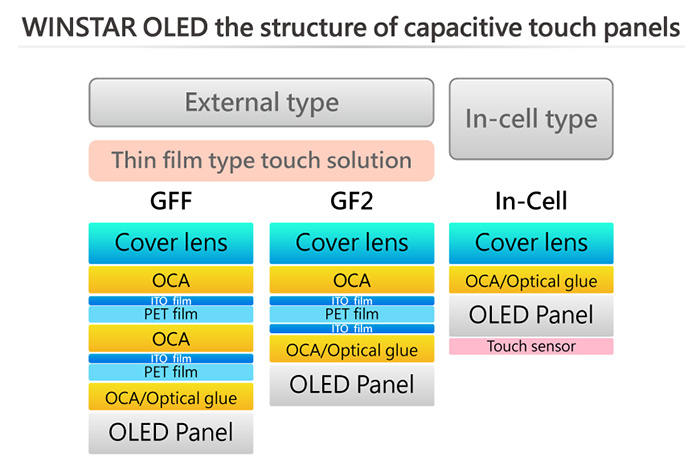

[Figure 2: Structure of OLED Touch Panel]



The bonding process of attaching an external touch panel to the OLED panel is divided into two types: Air-bonding and Direct / Optical-Bonding. The former one has a simpler bonding process, which can be easily attached to various types of OLED panels and has a lower price. The optical-bonding process is more rigorous, using OCA (Optical Clear Adhesive) to bond the touch panel with the OLED panel, the bonding strength is much increased, and the boundary between the display area and the non-display area is not obvious, and the panel's light transmittance and stereopsis can be enhanced. There are obvious visual differences between the two types of lamination modules. This is because there is an air layer in the air-bonding touch panel lens and the OLED panel (as shown in Figure 3).

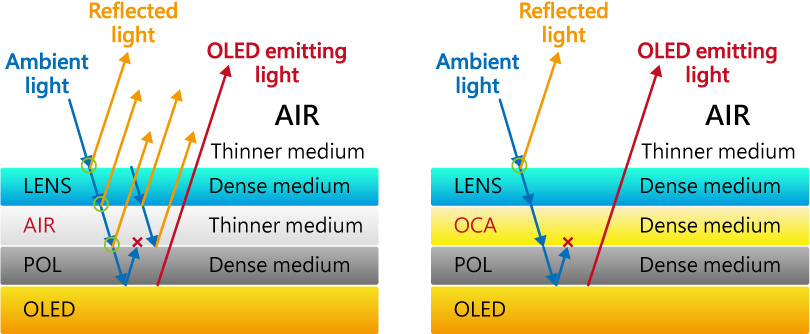

[Figure 3: theory of Air-bonding (left) vs. Optical-Bonding (right)]



Taking Winstar 1.54" TP-OLED module (WEO012864AWPP3A00000) as an example, the visual effect of optical bonding is quite good as shown in Figure 4.

[Figure 4: visual effect the Optical-bonding (left) vs. Air-bonding (right)]



In-cell TP-OLED module design, the driver IC is built-in with a touch circuit design and a display circuit design, called TDDI (Touch with Display Driver IC). Compared with the external TP-OLED module, the in-cell TP-OLED module has the advantages of lightness and thinness, saving film and adhesive, and has advantages in cost. The simple design structure helps simplify the circuit design and shorten the development process. Take Winstar 0.91" in-cell TP-OLED module WEO012832MWAP3J00000 as an example (as shown in Figure 5), the visual effect of optical bonding is quite good on module.

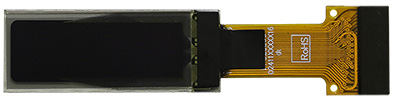

[Figure 5: Winstar 0.91” in-cell touch panel module]



Winstar offers a wide range of TP-OLED touch solutions for different product applications to customers. These TP-OLED can be applied to markets such as wearable devices, smart home equipment, meters, and industrial control panels to meet customer needs. Please refer to the below table 1 of Winstar touch solution module list.


Model No. Size Resolution Module Structure TP- Structure
WEO012832M-CTP 0.91” 128x32 COG In-cell
WEO128128D-CTP 1.18” 128x128 COG External
WEO012864A-CTP 1.54” 128x64 COG External
WEP012832A-CTP 2.23” 128x32 COG+PCB+FR External
WEO012864G-CTP 2.42” 128x64 COG External
WEO012864J-CTP 2.42” 128x64 COG+PCB+FR External
WEO012864Q-CTP 2.7” 128x64 COG External
WEP012864Q-CTP 2.7” 128x64 COG+PCB+FR External
WEP012864U-CTP 2.7” 128x64 COG+PCB+FR External
WEN025664A-CTP 2.8” 256x64 COF+PCB+FR External
WEX025664B-CTP 3.12” 256x64 COF External
WEN025664B-CTP 3.12” 256x64 COF+PCB+FR External
WEO025664D-CTP 3.55” 256x64 COG External
WEN025664D-CTP 5.5” 256x64 COF+PCB+FR External
[Table 1: Winstar touch solution module list]
