Issue No. 137



Contents

1) High Brightness 7" IPS TFT WF70A8SYAHLNG0

2) High Brightness 10.1" LVDS IPS TFT WF101JSYAHLNN0

3) Circular COG LCD WO128128A USB Demo Kits

4) 2.7 inch OLED WEO012864Q with CTP Touch Screen

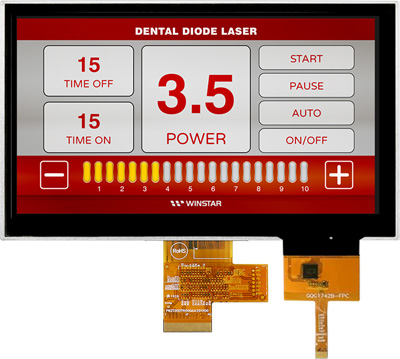

High Brightness 7" IPS TFT WF70A8SYAHLNG0

WF70A8SYAHLNG0 is a High Brightness 7 inch IPS TFT LCD module, with Projected Capacitive Touch Panel, resolution 1024x600 pixels. WF70A8 model is built in with ST5021 and ST5651 driver ICs, it supports LVDS interface, contrast ratio 800 (typical value), brightness 850 nits (typical value), aspect ratio 16:9, Glare surface glass, normally black, transmissive LCD type. The Projected Capacitive Touch Panel of WF70A8 is built in with FT5426 IC which supports I2C interface. This 7" IPS TFT has a wider viewing angle than TN TFT, it's view angle is Left:85 / Right:85 / Up:85 / Down:85 degree (typical value).

The supply voltage (VDD) of WF70A8SYAHLNG0 is from 3.0V to 3.6V, typical value 3.3V. It can be operating at temperatures from -20 ℃ to +70 ℃ and storage temperatures from -30 ℃ to +80 ℃. We also offer High Brightness WF70A8 model with Resistive Touch Panel (RTP) option which P/N is WF70A8SYAHLNT0.

WF70A8SYAHLNG0 Dimension Size 7 inch Dot Matrix 1024 × RGB × 600(TFT) dots Module dimension 169.9(W) × 103.4(H) × 7.275(D) mm Active area 154.2144 × 85.92 mm Dot pitch 0.1506 × 0.1432 mm LCD type TFT, Normally Black, Transmissive Viewing Angle 85/85/85/85 TFT Interface LVDS Aspect Ratio 16:9 Driver IC ST5021 + ST5651 or equivalent Backlight Type LED, Normally White CTP IC FT5426 or Equivalent CTP Interface I2C CTP FW Version: V03 Touch Panel Projected Capacitive Touch Screen  Surface Glare

► Link to Winstar WF70A8SYAHLNG0 web page

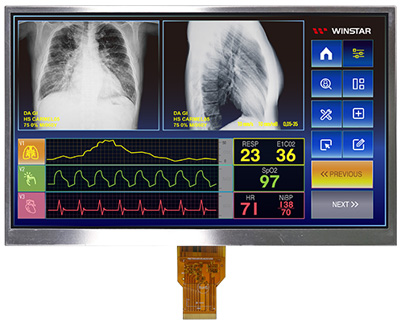

High Brightness 10.1" LVDS IPS TFT WF101JSYAHLNN0

WF101JSYAHLNN0 is a landscape mode 10.1 inch high brightness IPS TFT LCD module, it featured with resolution 1024x600 pixels. WF101J model is built in with EK79001HN and EK73215BCGA driver ICs, it supports LVDS interface, contrast ratio 800 (typical value), brightness 1100 nits (typical value), aspect ratio 16:9, anti-glare surface glass, normally black, transmissive LCD type. This 10.1" IPS TFT has a wider viewing angle than TN TFT, it's view angle is Left:85 / Right:85 / Up:85 / Down:85 degree (typical value).

The supply voltage (VDD) of WF101JSYAHLNN0 is from 3.0V to 3.6V, typical value 3.3V. It can be operating at temperatures from -20 ℃ to +70 ℃ and storage temperatures from -30 ℃ to +80 ℃. If customers do not require high brightness, please choose WF101JTYAHLNN0.

WF101JSYAHLNN0  Dimension Size 10.1 inch Dot Matrix 1024 RGB × 600 dots Module dimension 235(W) × 143(H) × 5.05(D) mm Active area 222.72 (H) × 125.28(V) mm Dot pitch 0.2175(W) × 0.2088(H)  mm LCD type TFT, Normally Black, Transmissive Interface LVDS Driver IC EK79001HN+EK73215BCGA or equivalent Viewing Angle 85/85/85/85 Aspect Ratio 16:9 Backlight Type LED, Normally White Touch Panel RTP option, CTP under development Surface Anti-Glare

► Link to Winstar WF101JSYAHLNN0 web page







Circular COG LCD WO128128A USB Demo Kits

WO128128A is a circular monochrome COG graphic LCD module made of 128x128 dot matrix format. This Round COG LCD module is built in with ST75161 IC; it supports 8080/6800 parallel, 3-wire and 4-wire serial SPI, I2C interface, Viewing Direction 6 o'clock, 1/136 driving duty, 1/12 BIAS.

The supply voltage for logic of WO128128A is 2.7V to 3.3V, typical value 3V. This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. WO128128A is available in FSTN Negative (WO128128A-TDI) and FSTN positive LCD type with white LED backlight (WO128128A-TFH). The USB demo kits are available now; please contact us for USB sampling or quotation.

Demo kit P/N: WWSTNUSBDEMO-00 for WO128128A-TFH LCD module
Demo kit P/N: WWSTNUSBDEMO-01 for WO128128A-TDI LCD module

USB Demo Kits:

► Link to Winstar WO128128A web page

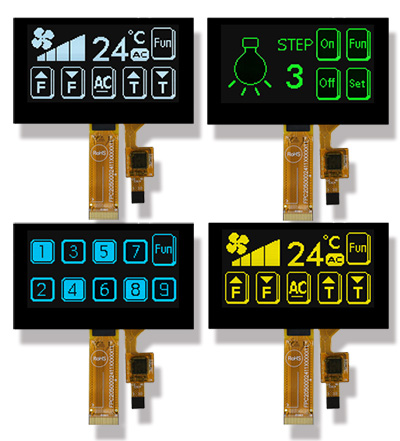

2.7 inch OLED WEO012864Q with CTP Touch Screen

WEO012864Q-CTP is the most popular 2.7 inch COG Graphic OLED display with Capacitive Touch Panel on module; which is made of resolution 128x64 dots. This module is built in with SSD1309 IC, it supports 6800/8080 8-bit parallel, 4-Wire SPI and I2C interface, supply voltage for logic is from 2.8V to 3.3V, typical value 3.0V, supply voltage for display 13V, 1/64 driving duty. This WEO012864Q-CTP model adopted GT911 as touch IC, which supports I2C interface, one Detect Point for CTP.

This 2.7" WEO012864Q with CTP model is ideal for smart home applications, intelligent technology devices, energy systems, meter devices, communication systems, medical instrument, etc. This module can be operating at temperatures from -20℃ to 70℃; its storage temperatures range from -30℃ to 80℃.

WEO012864Q-CTP Dimension Dot Matrix 128 × 64 dots Module dimension 74.8 × 44.16 × 3.66 mm Active Area 61.41 × 30.69 mm Pixel Size 0.45 × 0.45 mm Pixel Pitch 0.48 × 0.48 mm Display Mode Passive Matrix Display Color Monochrome (White / Yellow / Sky Blue / Green) Drive Duty 1/64 Duty IC SSD1309 Interface 6800,8080,4-Wire SPI,I2C Size 2.7 inch CTP IC GT911 Detect Point 1 finger CTP Interface I2C Surface Glare

► Link to Winstar WEO012864Q-CTP web page
