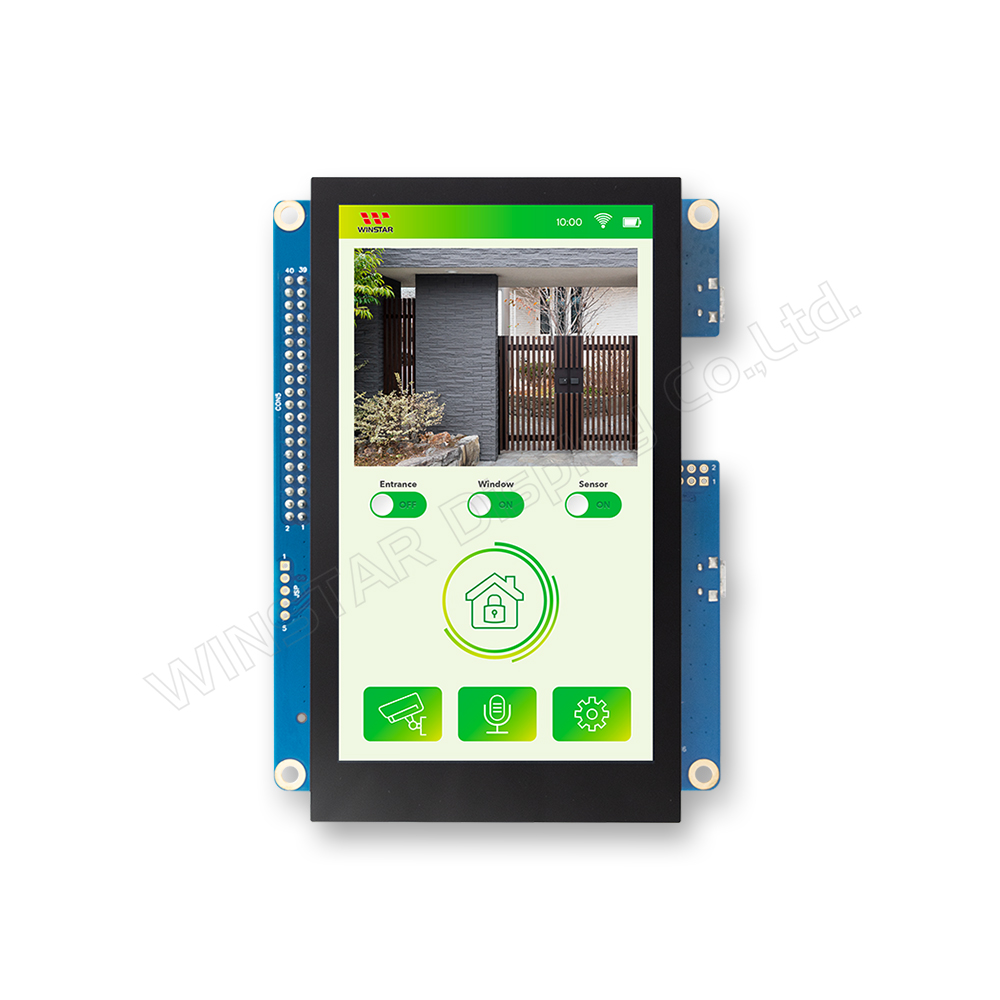

Display LCD TFT HDMI da 5 pollici 720x1280 con tecnologia OCA PCAP
Modello numero WF50DSYF3MHG1V
►Dimensione : 5 pollici (Modalità ritratto)
►Risoluzione : 720 x 1280 punti
►Direzione di visione : IPS
►Interfaccia : Support HDMI Connector (Only DVI Signal)
►Controllo IC : LT6911C
►Scheda di controllo : SÌ
►Luminosità (cd/m²) : 900
►Cornice di fissaggio : No
►Touch Screen : con pannello touch capacitivo (PCAP), OCA
►Detect Point (Fingers) : 1 / 2 / Option
►Temperatura di funzionamento : -20~+70℃
Descrizione

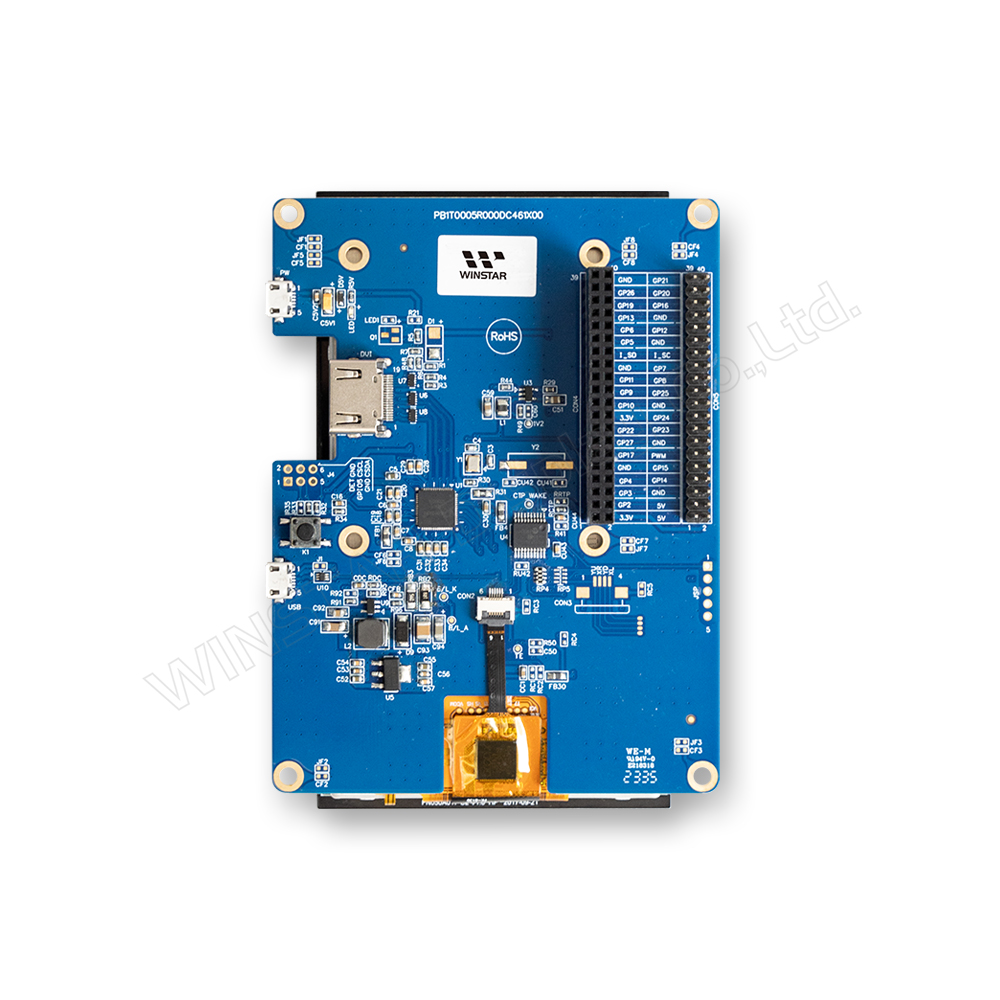

WF50DSYF3MHG1V è un modulo display TFT-LCD in modalità ritratto da 5 pollici con risoluzione 720x1280 che supporta segnali HDMI. La scheda di controllo del modulo supporta l'interfaccia del segnale HDMI e può comunicare attraverso l'interfaccia del segnale DVI. Il modulo dispone anche di un connettore GPIO a 40 pin, rendendolo più comodo per gli sviluppatori di Raspberry Pi utilizzare, e il design con fori filettati multipli consente ai clienti di fissare facilmente il modulo sui loro prodotti applicativi. Questo modulo utilizza il controllore TFT LT6911C.
Il modulo display 720x1280 di WF50DSYF3MHG1V presenta un pannello touchscreen capacitivo proiettato (PCAP) e adotta la tecnologia di incollaggio ottico (OCA), che migliora la robustezza, la resistenza agli urti e alle vibrazioni, oltre ad aumentare la resistenza ai graffi, impedendo all'umidità e alla polvere di invadere gli interni del display LCD e prolungando la durata del prodotto. Lo schermo touchscreen PCAP include un IC integrato GT928, abilitando il tocco a 1 punto/2 punti/multi-punti e supportando un'interfaccia USB.
Questo modulo TFT adotta la tecnologia IPS, fornendo buoni angoli di visualizzazione, migliore prestazione del colore, meno distorsione del colore (con angoli di visualizzazione di 80 gradi in tutte le direzioni), una risoluzione di 720 x 1280 punti e un rapporto di aspetto tipico di 16:9, offrendo un'esperienza visiva chiara e vivida. Vanta anche un'alta luminosità di 900 cd/m² e un alto rapporto di contrasto di 800:1, garantendo una visibilità ottimale anche in ambienti luminosi, offrendo un'esperienza visiva confortevole.
WF50DSYF3MHG1V funziona in un intervallo di temperatura compreso tra -20 e +70°C, con un intervallo di conservazione tra -30 e +80°C. L'intervallo di tensione di alimentazione è compreso tra 4,75V e 5,25V, tipicamente 5,0V. Il design con dimensioni diagonali da 5 pollici è adatto a varie applicazioni industriali, tra cui soluzioni per la sicurezza domestica (ad esempio, sistemi di controllo degli accessi) e console di missaggio (ad esempio, console da studio, console live, console di trasmissione). Offrendo diverse applicazioni industriali ed eccellente affidabilità, WF50DSYF3MHG1V è la soluzione preferita per numerose industrie.
DISEGNO
SPECIFICHE TECNICHE
Dati meccanici
Articolo | Dimensioni | Unità |
---|---|---|
Dimensione (Diagonale) | 5.0 | pollici |
A matrice di punti | 720 x 3(RGB) x 1280 | dots |
Dimensione del modulo | 91.3 x 127.6 x 24.85 | mm |
Area attiva | 62.1 x 110.4 | mm |
Passo del Dot | 0.08625 x 0.08625 | mm |
Tipo LCD | TFT, Nero, Trasmissivo | |
Angolo di visione | 80/80/80/80(IPS) | |
Controllo IC | LT6911C | |
Interfaccia | HDMI(only for DVI) | |
Proporzioni dell’area visiva (ratio) | 16:9 | |
Tipo di backlight | LED, Bianco | |
PCAP FW Version | 0x5F | |
PCAP Driver IC | GT928 | |
PCAP Interfaccia | USB | |
PCAP Risoluzione | 720 x 1280 | |
Con / senza Touch Panel | con schermo touch capacitivo (PCAP) | |
Superficie | Bagliore (Glare) |
Valori massimi assoluti
Articolo | Simbolo | Min | Valore tipico | Valore massimo | Unità |
---|---|---|---|---|---|
Temperatura di lavoro | TOP | -20 | - | +70 | ℃ |
Temperatura di stock | TST | -30 | - | +80 | ℃ |
Caratteristiche elettriche
Temperatura di funzionamento
Articolo | Simbolo | Min | Valore tipico | Valore massimo | Unità |
---|---|---|---|---|---|
Supply Voltage For LCM | VDD | 4.75 | 5.0 | 5.25 | V |
Supply LCM current | IDD | - | 0.9 | 1.35 | A |
LED Life Time | - | - | 50,000 | - | Hr |
Funzione dei Pin di Interfaccia
LCM PIN Definition(CON4)
Pin No. | Simbolo | descrizione |
---|---|---|
1 | NC | No connection |
2 | 5V | Raspberry Pi:Power 5V |
3 | GPIO02 | Raspberry Pi:GPIO02 |
4 | 5V | Raspberry Pi:Power 5V |
5 | GPIO03 | Raspberry Pi:GPIO03 |
6 | GND | Raspberry Pi:GND |
7 | GPIO04 | Raspberry Pi:GPIO04 |
8 | GPIO14 | Raspberry Pi:GPIO14 |
9 | GND | Raspberry Pi:GND |
10 | GPIO15 | Raspberry Pi:GPIO15 |
11 | GPIO17 | Raspberry Pi:GPIO17 |
12 | BL-PWM (GPIO18) |
Raspberry Pi:GPIO18 (Backlight Enable) |
13 | GPIO27 | Raspberry Pi:GPIO27 |
14 | GND | Raspberry Pi:GND |
15 | GPIO22 | Raspberry Pi:GPIO22 |
16 | GPIO23 | Raspberry Pi:GPIO23 |
17 | NC | No connection |
18 | GPIO24 | Raspberry Pi:GPIO24 |
19 | GPIO10 | Raspberry Pi:GPIO10 |
20 | GND | Raspberry Pi:GND |
21 | GPIO09 | Raspberry Pi:GPIO09 |
22 | GPIO25 | Raspberry Pi:GPIO25 |
23 | GPIO11 | Raspberry Pi:GPIO11 |
24 | GPIO08 | Raspberry Pi:GPIO08 |
25 | GND | Raspberry Pi:GND |
26 | GPIO07 | Raspberry Pi:GPIO07 |
27 | ID_SD | Raspberry Pi:ID_SD |
28 | ID_SC | Raspberry Pi:ID_SC |
29 | GPIO05 | Raspberry Pi:GPIO05 |
30 | GND | Raspberry Pi:GND |
31 | GPIO06 | Raspberry Pi:GPIO06 |
32 | GPIO12 | Raspberry Pi:GPIO12 |
33 | GPIO13 | Raspberry Pi:GPIO13 |
34 | GND | Raspberry Pi:GND |
35 | GPIO19 | Raspberry Pi:GPIO19 |
36 | GPIO16 | Raspberry Pi:GPIO16 |
37 | GPIO26 | Raspberry Pi:GPIO26 |
38 | GPIO20 | Raspberry Pi:GPIO20 |
39 | GND | Raspberry Pi:GND |
40 | GPIO21 | Raspberry Pi:GPIO21 |
(CON5)
Pin No. | Simbolo | Funzione |
---|---|---|
1 | 3.3V | TFT Module Power limit can only output 3.3V,100mA |
2 | 5V | Raspberry Pi:Power 5V |
3 | GPIO02 | Raspberry Pi:GPIO02 |
4 | 5V | Raspberry Pi:Power 5V |
5 | GPIO03 | Raspberry Pi:GPIO03 |
6 | GND | Raspberry Pi:GND |
7 | GPIO04 | Raspberry Pi:GPIO04 |
8 | GPIO14 | Raspberry Pi:GPIO14 |
9 | GND | Raspberry Pi:GND |
10 | GPIO15 | Raspberry Pi:GPIO15 |
11 | GPIO17 | Raspberry Pi:GPIO17 |
12 | BL-PWM (GPIO18) |
Raspberry Pi:GPIO18 (Backlight Enable) |
13 | GPIO27 | Raspberry Pi:GPIO27 |
14 | GND | Raspberry Pi:GND |
15 | GPIO22 | Raspberry Pi:GPIO22 |
16 | GPIO23 | Raspberry Pi:GPIO23 |
17 | 3.3V | TFT Module Power limit can only output 3.3V,100mA |
18 | GPIO24 | Raspberry Pi:GPIO24 |
19 | GPIO10 | Raspberry Pi:GPIO10 |
20 | GND | Raspberry Pi:GND |
21 | GPIO09 | Raspberry Pi:GPIO09 |
22 | GPIO25 | Raspberry Pi:GPIO25 |
23 | GPIO11 | Raspberry Pi:GPIO11 |
24 | GPIO08 | Raspberry Pi:GPIO08 |
25 | GND | Raspberry Pi:GND |
26 | GPIO07 | Raspberry Pi:GPIO07 |
27 | ID_SD | Raspberry Pi:ID_SD |
28 | ID_SC | Raspberry Pi:ID_SC |
29 | GPIO05 | Raspberry Pi:GPIO05 |
30 | GND | Raspberry Pi:GND |
31 | GPIO06 | Raspberry Pi:GPIO06 |
32 | GPIO12 | Raspberry Pi:GPIO12 |
33 | GPIO13 | Raspberry Pi:GPIO13 |
34 | GND | Raspberry Pi:GND |
35 | GPIO19 | Raspberry Pi:GPIO19 |
36 | GPIO16 | Raspberry Pi:GPIO16 |
37 | GPIO26 | Raspberry Pi:GPIO26 |
38 | GPIO20 | Raspberry Pi:GPIO20 |
39 | GND | Raspberry Pi:GND |
40 | GPIO21 | Raspberry Pi:GPIO21 |
USB
Pin No. | Simbolo | Funzione |
---|---|---|
1 | 5V | Power 5V |
2 | D- | Data line - |
3 | D+ | Data line + |
4 | NC | No connection |
5 | GND | Power Ground |
DVI
Pin No. | Simbolo | I/O | Funzione |
---|---|---|---|
1 | Rx2+ | I | Channel-2 positive receiver input; low-voltage signal differential- input pair. |
2 | GND | P | Ground |
3 | Rx2- | I | Channel-2 negative receiver input; low-voltage signal differential- input pair. |
4 | Rx1+ | I | Channel-1 positive receiver input; low-voltage signal differential- input pair. |
5 | GND | P | Ground |
6 | Rx1- | I | Channel-1 negative receiver input; low-voltage signal differential- input pair. |
7 | Rx0+ | I | Channel-0 positive receiver input; low-voltage signal differential- input pair. |
8 | GND | P | Ground |
9 | Rx0- | I | Channel-0 negative receiver input; low-voltage signal differential- input pair. |
10 | RxC+ | I | Clock positive receiver input; low-voltage signal differential- input pair. |
11 | GND | P | Ground |
12 | RxC- | I | Clock negative receiver input; low-voltage signal differential- input pair. |
13-14 | NC | - | No connection |
15 | SCL | I/O | DDC(Data Display Channel) Clock |
16 | SDA | I/O | DDC(Data Display Channel) Data |
17 | GND | P | Ground |
18 | 5V | P | Power Supply |
19 | Detect | I/O | Hot plug detect |
PW
Pin No. | Simbolo | Funzione |
---|---|---|
1 | 5V | Power 5V |
2 | NC | No connection |
3 | NC | No connection |
4 | NC | No connection |
5 | GND | Power Ground |
