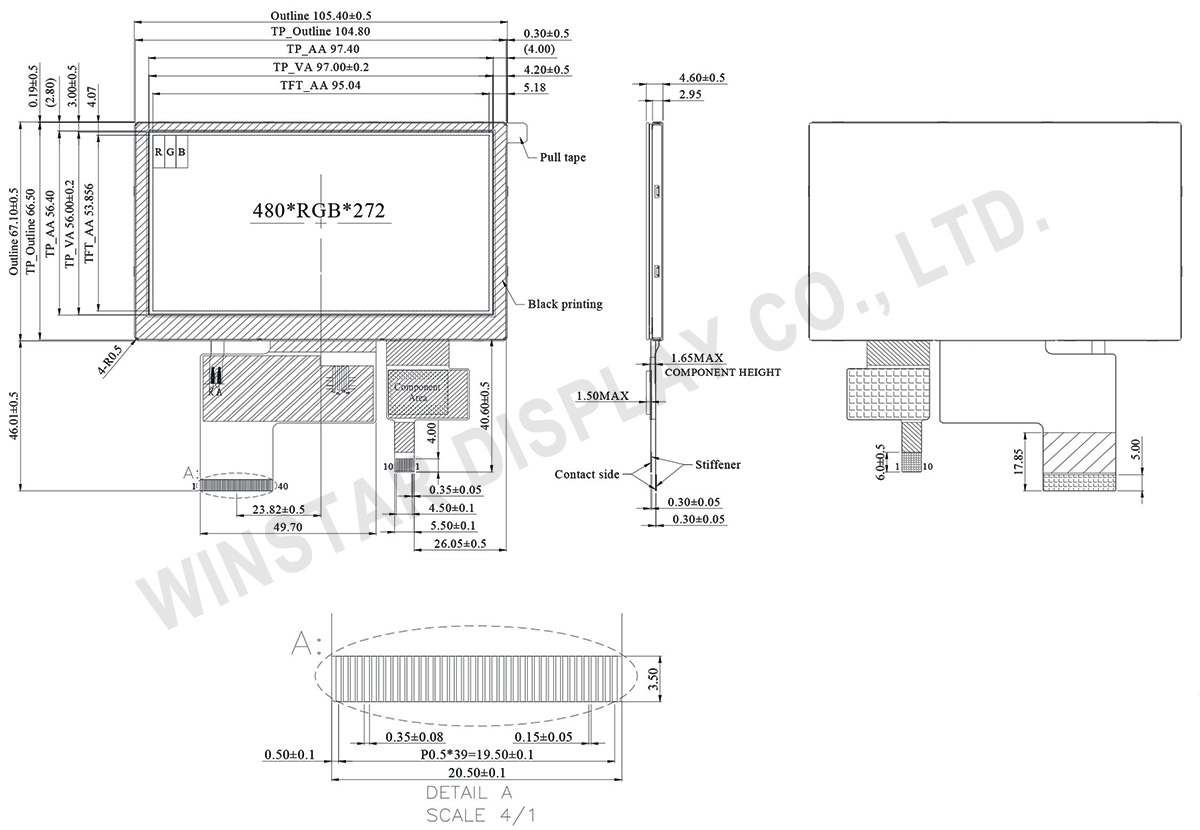

规格图

产品规格
Pin功能定义
LCM PIN 定义
Pin | 符号 | 功能说明 |
---|---|---|
1 | LED- | Power for LED backlight cathode |
2 | LED+ | Power for LED backlight anode |
3 | GND | Power ground |
4 | VCC | Power voltage |
5 | R0 | Red data (LSB) |
6 | R1 | Red data |
7 | R2 | Red data |
8 | R3 | Red data |
9 | R4 | Red data |
10 | R5 | Red data |
11 | R6 | Red data |
12 | R7 | Red data (MSB) |
13 | G0 | Green data (LSB) |
14 | G1 | Green data |
15 | G2 | Green data |
16 | G3 | Green data |
17 | G4 | Green data |
18 | G5 | Green data |
19 | G6 | Green data |
20 | G7 | Green data (MSB) |
21 | B0 | Blue data (LSB) |
22 | B1 | Blue data |
23 | B2 | Blue data |
24 | B3 | Blue data |
25 | B4 | Blue data |
26 | B5 | Blue data |
27 | B6 | Blue data |
28 | B7 | Blue data (MSB) |
29 | GND | Power ground |
30 | CLK | Pixel clock |
31 | DISP | Display on/off |
32-33 | NC | No connection |
34 | DE | Data Enable |
35 | NC | No connection |
36 | GND | Power ground |
37-40 | NC | No connection |
PCAP PIN 定义
Pin | 符号 | 功能说明 |
---|---|---|
1 | VSS | Ground for analog circuit |
2 | VDDT | Power Supply : +3.0V |
3 | SCL | I2C clock input |
4 | NC | No connect |
5 | SDA | I2C data input and output |
6 | NC | No connect |
7 | /RST | External Reset, Low is active |
8 | NC | No connect |
9 | /INT | External interrupt to the host |
10 | VSS | Ground for analog circuit |
规格说明
项目 | 外型尺寸 | 单位 |
---|---|---|
尺寸 (对角线) | 4.3 | 吋 |
点阵(分辨率) | 480 x RGBx272(TFT) | dots |
模块尺寸 | 105.4(W) x 67.1(H) x 4.6 (D) | mm |
有效区域 | 95.04 x 53.856 | mm |
点间距 | 0.066 x 0.198 | mm |
LCD类型 | TFT, 平常白, 透射式 | |
视角 | 12钟方向 | |
灰阶反转 | 6钟方向 | |
长宽比 | 16:9 | |
TFT驱动IC | ST7282 | |
接口 | 24-bit RGB | |
背光类型 | LED, 平常白 | |
PCAP IC | FT5426DQ8 | |
PCAP 界面 | I2C | |
PCAP FW 版本 | 3 | |
触控面板 | 投射电容式触控面板 (PCAP) | |
表面 | 亮面 |
最大绝对额定值
项目 | 符号 | 最小值 | 典型值 | 最大值 | 单位 |
---|---|---|---|---|---|
工作温度 | TOP | -20 | - | +70 | ℃ |
储存温度 | TST | -30 | - | +80 | ℃ |
电气特性
项目 | 符号 | 条件 | 最小值 | 典型值 | 最大值 | 单位 |
---|---|---|---|---|---|---|
逻辑电源电压 | VCC | - | 3.1 | 3.3 | 3.5 | V |
数字工作电流 | Icc | - | - | 22 | 33 | mA |
PCAP供电电压 | VDDT | -- | 2.8 | 3.1 | 3.3 | V |
