20 karakter x 4 satır OLED Ekran COG+FR+PCB

Model No. WEP002004C

►Türü : Karakter
►Yapı : COG+FR+PCB
►20 karakter x 4 satır
►Kontrolör dahil SSD1311
►3.3V/5V güç sağlayıcı
►1/32 görev
►Ara yüz: 6800, 8080, SPI, I2C
►OLED Rengi: Beyaz / Sarı

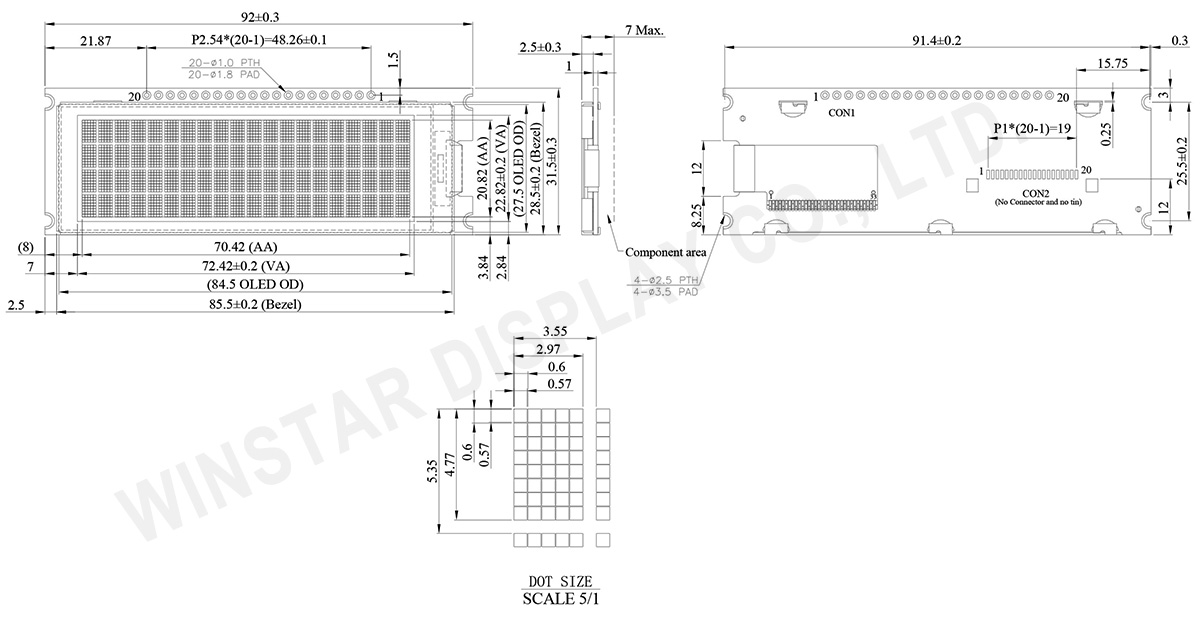

ÇIZIM

20 characters x 4 Lines OLED Display COG+FR+PCB - WEP002004C
Data source ref: WEP002004CWPP5N00000

AYRINTILAR

Arayüz Pin Fonksiyonlari

Pin No. Sembol Pin Type TANIM
1 VSS P Ground
2 VDD P Power supply and power supply for interface logic level.
3 REGVDD I Internal VDD regulator selection pin in 5V I/O application mode.
When this pin is pulled HIGH, internal VDD regulator is enabled (5V I/O application).
When this pin is pulled LOW, internal VDD regulator is disabled (Low voltage I/O application).
4 D/C# I This pin is Data/Command control pin connecting to the MCU.
When the pin is pulled HIGH, the data at D[7:0] will be interpreted as data.
When the pin is pulled LOW, the data at D[7:0] will be transferred to a command register.
In I2C mode, this pin acts as SA0 for slave address selection.
When serial interface is selected, this pin must be connected to VSS.
5 R/W# (WR#) I This pin is read / write control input pin connecting to the MCU interface.
When 6800 interface mode is selected, this pin will be used as Read/Write (R/W#) selection input. Read mode will be carried out when this pin is pulled HIGH and write mode when LOW.
When 8080 interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled LOW and the chip is selected.
When serial or I2C interface is selected, this pin must be connected to VSS.
6 E/RD# I This pin is MCU interface input.
When 6800 interface mode is selected, this pin will be used as the Enable (E) signal.
Read/write operation is initiated when this pin is pulled HIGH and the chip is selected.
When 8080 interface mode is selected, this pin receives the Read (RD#) signal. Read operation is initiated when this pin is pulled LOW and the chip is selected.
When serial or I2C interface is selected, this pin must be connected to VSS.
7 D0 I/O These pins are bi-directional data bus connecting to the MCU data bus.
Unused pins are recommended to tie LOW. When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SID and D2 will be the serial data output: SOD. When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL.
8 D1
9 D2
10 D3
11 D4
12 D5
13 D6
14 D7
15 CS# I This pin is the chip select input connecting to the MCU.
The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW).
In I2C mode, this pin must be connected to VSS.
16 RES# I This pin is reset signal input.
When the pin is pulled LOW, initialization of the chip is executed.
Keep this pin pull HIGH during normal operation.
17 BS0 I setting as described in the following table. BS2, BS1 and BS0 are pin select.
Bus Interface selection
BS[2:0] Interface
000 Serial Interface
001 Invalid
010 I2C
011 Invalid
100 8-bit 6800 parallel
101 4-bit 6800 parallel
110 8-bit 8080 parallel
111 4-bit 8080 parallel
Note
(1) 0 is connected to VSS
(2) 1 is connected to VDD
18 BS1
19 BS2
20 VSS
(FRGnd)
P Ground

Mekanik Veri

Kalem Ölçü Birim
Ekran Formati 20 karakter x 4 satır
Modül ölçüleri 92.0 x 31.5 x 7.0 Max. mm
Görüntüleme alanı 72.42 x 22.82 mm
Aktif alan 70.42 x 20.82 mm
Nokta boyutu 0.57 x 0.57 mm
Nokta sıklığı 0.60 x 0.60 mm
Karakter Boyutu 2.97 x 4.77 mm
Character pitch 3.55 x 5.35 mm
LCD Tipi OLED , monokrom
Duty 1/32
IC SSD1311
Arayüz 6800, 8080, SPI, I2C
Boyut (Köşegen) 2.89 inç

Maksimum Değerler

Item Symbol Min Max Unit
Çalışma Sıcaklığı TOP -40 +80 °C
Saklama Sıcaklığı TST -40 +85 °C
Supply Voltage For Logic VDD-VSS -0.3 5.5 V


Elektronik Özellikleri

DC Elektronik Özellikleri

Kalem Sembol Durum Minumum Deger Tipik Deger Maksimum Deger Birim
Supply Voltage For Logic VDD-VSS 4.8 5.0 5.3 V
Input High Volt. VIH 0.8xVDD VDD V
Input Low Volt. VIL GND 0.2xVDD V
Output High Volt. VOH IOH=-0.5mA 0.8xVDD VDD V
Output Low Volt. VOL IOL=0.5mA GND 0.2xVDD V
50% Check Board
Operating Current
IDD VDD=5V - 60 110 mA
