4.3" Wide Temperature Active Matrix TFT LCD Display

Model No. WF43STVAEDNN0

►Size : 4.3 TFT
►Active Matrix Display
►Display Format : 480 x 272
►View Direction : VA Glass
►Interface : RGB
►Built-in Controller : No
►Control-Board : No
►Brightness(cd/m²) : 600
►Frame Through Hole : No
►Touch Screen : No
►Operating Temperature : -30~80 °C (Wide Temperature)

DESCRIPTION

WF43STVAEDNN0 is a 4.3 inch TFT-LCD module with resolution of 480x272 pixels. This TFT-LCD is featured with VA panel which is having the advantages of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical) and wider temperature. It can be operating at temperatures from -30℃ to +80℃; its storage temperatures range from -30℃ to +80℃.

This 4.3 inch module is a landscape mode TFT-LCD, it supports parallel 24 bit RGB interface, having Anti-Glare surface panel and its aspect ratio is 16:9. This TFT-LCD featured with great brightness of 600cd/m2 and wide temperature, it is very suitable for industrial equipment & outdoor application, and etc.

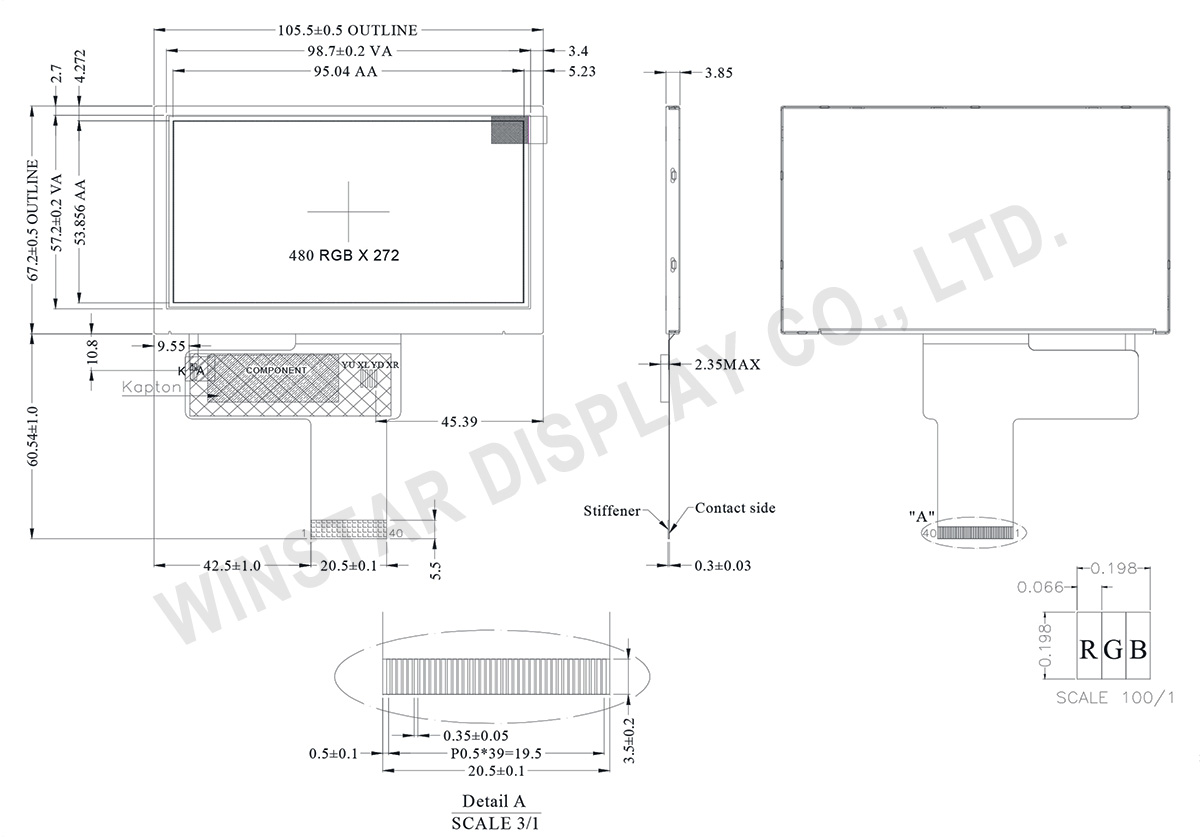

DRAWING

Winstar 4.3" Wide Temperature Active Matrix TFT LCD Display - WF43STVAEDNN0

SPECIFICATIONS

Interface

Pin Symbol Function
1 VLED_A Power for LED backlight anode
2 VLED_K Power for LED backlight cathode
3 VCC Power voltage
4 VCC Power voltage
5 R0 Red data (LSB)
6~11 R1~R6 Red data
12 R7 Red data (MSB)
13 GND Power ground
14 G0 Green data (LSB)
15~20 G1~G6 Green data
21 G7 Green data (MSB)
22 GND Power ground
23 B0 Blue data (LSB)
24~29 B1~B6 Blue data
30 B7 Blue data (MSB)
31 GND Power ground
32 PCLK Pixel clock
33 DISP Display on/off
34 HSYNC Horizontal sync signal; negative polarity
35 VSYNC Vertical sync signal; negative polarity
36 DE Data Enable
37~40 NC No connection

General Specifications

Item Dimension Unit
Size 4.3 inch
Dot Matrix 480 × RGB × 272(TFT) dots
Module dimension 105.5 × 67.2 × 3.85 mm
Active area 95.04 × 53.856 mm
Dot pitch 0.066 × 0.198 mm
LCD type TFT, Normally Black, Transmissive
View Direction Wide View
Aspect Ratio 16:9
Backlight Type LED, Normally White
Touch Screen Without Touch Screen
Surface Anti-Glare

Absolute Maximum Ratings

Item Symbol Min Typ Max Unit
Operating Temperature TOP -30 +80
Storage Temperature TST -30 +80

Electrical Characteristics

Item Symbol Condition Min Typ Max Unit
Supply Voltage For Logic VCC 3.0 3.3 3.6 V
Digital operation current ICC -   17 25 mA
